Manuale utente della lavatrice Indesit BWSE 7125X SV IT

1. Introduzione

Thank you for choosing the Indesit BWSE 7125X SV IT front-load washing machine. This manual provides essential information for the safe and efficient use, installation, and maintenance of your appliance. Please read it carefully before using the washing machine and keep it for future reference.

This Indesit free-standing front-load washing machine features a spacious 7.0 kg drum capacity, an energy efficiency class B rating, and a rapid and efficient 1200 rpm spin speed. It comes in a classic white finish.

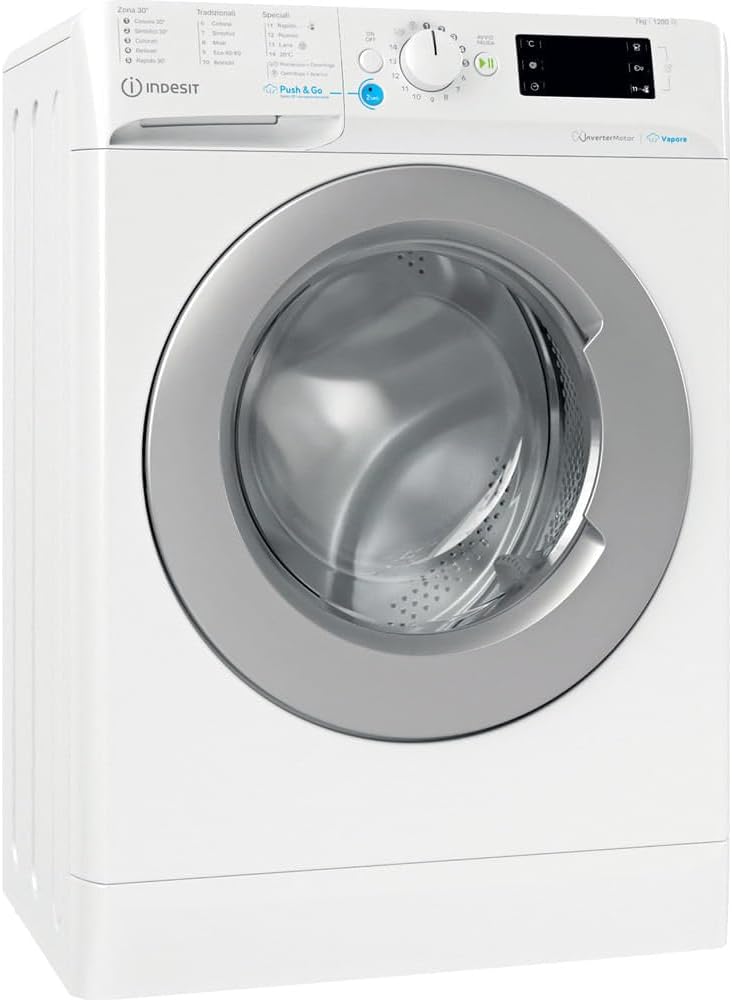

Immagine: Frontale view of the Indesit BWSE 7125X SV IT washing machine.

2. Informazioni sulla sicurezza

It is crucial to follow these safety guidelines to prevent risks of electric shock, fire, explosion, or injury. Keep this manual in a safe place for future reference.

• Sicurezza elettrica: Ensure the appliance is properly grounded. Do not use extension cords or multiple adapters. Disconnect the appliance from the power supply before any cleaning or maintenance.
• Sicurezza dell'acqua: Ensure water inlet and outlet hoses are securely connected to prevent leaks. Do not operate the machine if there is a water leak.
• Bambini e persone vulnerabili: This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction. Children should be supervised to ensure they do not play with the appliance.
• Uso generale: Do not overload the washing machine. Do not wash items that are soiled with flammable substances. Do not open the detergent dispenser or the door during a wash cycle if the water level is high or the temperature is hot.
• Disposizione: Dispose of packaging materials and the appliance itself in accordance with local environmental regulations.

3. Installazione e configurazione

3.1 Disimballaggio

Remove all packaging materials and transport bolts before using the appliance. Keep packaging materials out of reach of children. Ensure no parts are damaged during transit. If any damage is found, contact customer service immediately.

3.2 Posizionamento

The Indesit BWSE 7125X SV IT is a free-standing front-load washing machine. Place it on a flat, stable surface, away from direct sunlight and heat sources. Ensure there is adequate space around the machine for ventilation and maintenance.

Image: Indesit washing machine installed in a laundry room setting.

3.3 Livellamento

Adjust the appliance's feet to ensure it is perfectly level. A level machine reduces vibration and noise during operation. Use a spirit level to check stability.

3.4 Collegamento idrico

• Ingresso acqua: Connect the cold water inlet hose to a cold water tap with a 3/4" thread. Ensure the connection is tight to prevent leaks.
• Uscita acqua: Securely attach the drain hose to a standpipe or place it over the edge of a sink, ensuring it is properly fixed to prevent displacement during draining.

3.5 Collegamento elettrico

Plug the power cord into a grounded electrical outlet. The power cord length is 1.2 meters. Ensure the voltage la frequenza corrispondano alle specifiche riportate sulla targhetta identificativa dell'apparecchio.

3.6 Dimensioni

Refer to the diagram below for the appliance's dimensions.

Image: Dimensional diagram of the Indesit BWSE 7125X SV IT washing machine.

3.7 Primo ciclo di lavaggio

Before washing laundry, run an empty wash cycle at 60°C with a small amount of detergent to clean the drum and remove any manufacturing residues.

4. Istruzioni per l'uso

4.1 Pannello di controllo Sopraview

The washing machine features a user-friendly control panel with a program selector knob, various buttons, and a digital display.

Image: Control panel of the Indesit BWSE 7125X SV IT washing machine.

4.2 Caricamento della biancheria

Open the washing machine door and load the laundry, ensuring not to exceed the maximum 7 kg capacity. Distribute items evenly in the drum. Close the door firmly.

Image: Interior of the washing machine drum.

4.3 Aggiunta del detersivo

Estrarre il cassetto del detersivo. Aggiungere la quantità appropriata di detersivo e ammorbidente negli appositi scomparti. Fare riferimento alla confezione del detersivo per le raccomandazioni sul dosaggio.

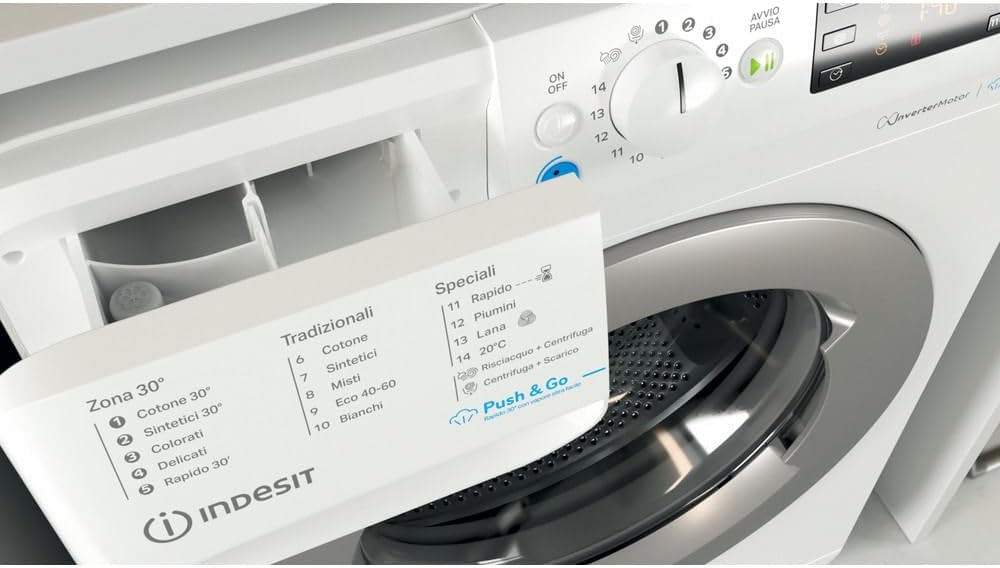

Image: Detergent dispenser drawer and program guide.

4.4 Selezione di un programma

Turn the program selector knob to choose the desired wash program. The digital display will show the estimated cycle duration.

4.5 Avvio di un ciclo

Premere il pulsante "Avvio/Pausa" per avviare il ciclo di lavaggio. La spia si illuminerà.

4.6 Pausing/Cancelling a Cycle

To pause a cycle, press the 'Start/Pause' button. To cancel a cycle, turn the program selector knob to the 'OFF' position, then select a new program or turn it off completely.

4.7 Avvio ritardato

This model supports a delayed start function. Consult the control panel for specific instructions on setting a delayed start time.

4.8 Fine del ciclo

At the end of the cycle, the machine will signal with an audible alert or a display message. The door can be opened once the door lock indicator light turns off.

5. Programmi di lavaggio

The Indesit BWSE 7125X SV IT offers 16 washing programs designed for various fabric types and soil levels. Below is a list of available programs:

• 20° C: For lightly soiled items requiring a low-temperature wash.
• Cotone: Standard program for cotton garments.
• Delicati/Seta: Gentle wash for delicate fabrics and silk.
• Duvet/Quilt: Specific program for washing duvets and quilts.
• Eco 40-60°C: Energy-efficient program for normally soiled cotton garments washable at 40°C or 60°C.
• Mescolare: For mixed loads of different fabric types.
• Quick 30min: A fast wash cycle for lightly soiled items.
• Risciacquo e centrifuga: Per risciacquare e centrifugare separatamente i capi.
• Centrifuga/Scarico: Per scaricare l'acqua e centrifugare il bucato.
• Sintetico: Per tessuti sintetici.
• Bianco: For white cottons and linens.
• Lana: Programma delicato per capi in lana.

Always check the care labels on your garments and refer to the program guide on the detergent drawer for optimal results.

6. Manutenzione e pulizia

Una manutenzione regolare garantisce la longevità e le prestazioni ottimali della lavatrice.

6.1 Pulizia del distributore del detersivo

Periodically remove and clean the detergent dispenser drawer under running water to prevent detergent residue buildup.

6.2 Pulizia della guarnizione della porta

Wipe the rubber door seal after each wash to remove any lint or moisture, preventing mold and unpleasant odors.

6.3 Pulizia del filtro

The washing machine is equipped with a filter that collects lint and small objects. Refer to the appliance's specific instructions for locating and cleaning the filter regularly.

6.4 Pulizia dell'esterno

Pulire le superfici esterne della lavatrice con un panno morbido eamp panno. Non usare detergenti abrasivi o solventi.

6.5 Care When Not in Use

If the appliance will not be used for an extended period, unplug it, turn off the water supply, and leave the door slightly ajar to prevent odors.

7. Risoluzione Dei Problemi

If you encounter any issues with your washing machine, consult the following common troubleshooting tips before contacting customer service.

• La macchina non si avvia: Check if the power cord is plugged in, the door is fully closed, and the water supply is turned on. Ensure a program has been selected and the 'Start/Pause' button pressed.
• No Water Filling: Controllare che il rubinetto dell'acqua sia aperto e che il tubo di alimentazione non sia piegato.
• L'acqua non scarica: Check if the drain hose is kinked or blocked. The machine has an overflow protection system.
• Vibrazioni/rumore eccessivi: Ensure the machine is level and the transport bolts have been removed. Check if the load is balanced inside the drum (the machine has a load balancing system).
• Schiuma eccessiva: Reduce the amount of detergent used. The machine has a foam control system.
• La porta non si apre: Wait a few minutes after the cycle ends. The door lock will release automatically once the temperature and water level are safe.

For persistent issues or error codes displayed on the screen, refer to the full technical service manual or contact customer support.

8. Specifiche

Detailed technical specifications for the Indesit BWSE 7125X SV IT washing machine:

9. Garanzia e supporto

This Indesit appliance is covered by a manufacturer's warranty. Please refer to the warranty card provided with your purchase for specific terms and conditions, including the warranty period and coverage details.

For any product defects or damages, or if you wish to return the product within the applicable return period, please consult your retailer's return policy or the Amazon help page for specific instructions. For technical assistance, spare parts, or general inquiries, please contact Indesit customer service. Contact details can typically be found on the Indesit official websito o nella documentazione di acquisto.
