Novilla 150x190cm Essential White Metal Bed Frame with Wood Slats Instruction Manual

1. Introduzione

Thank you for choosing the Novilla 150x190cm Essential White Metal Bed Frame. This manual provides comprehensive instructions for the safe assembly, proper use, and effective maintenance of your new bed frame. Please read this manual thoroughly before beginning assembly and retain it for future reference.

2. Informazioni sulla sicurezza

Your safety is paramount. Please adhere to all safety guidelines during assembly and use. Ensure all components are correctly installed and tightened before use. Do not allow children to play on or around the bed frame unsupervised.

For detailed safety information, please download and review the official safety document: Scarica le informazioni sulla sicurezza (PDF)

3. Contenuto della confezione

Before assembly, verify that all parts are present and undamaged. If any parts are missing or damaged, please contact Novilla customer support.

• Componenti del telaio metallico (traverse laterali, travi di supporto, gambe)
• Wood slats (poplar wood)
• Pacchetto di ferramenta (viti, bulloni, rondelle, dadi)
• Assembly tools (e.g., hex key)
• Manuale di istruzioni

Figura 3.1: An illustration depicting the various components and tools required for assembly, including the metal frame, wood slats, and basic tools like a hammer and screwdriver (though typically an Allen key is provided).

4. Installazione e assemblaggio

The Novilla bed frame is designed for easy assembly, typically requiring only one person and a few simple steps. Refer to the included Installation Manual for detailed diagrams and instructions.

1. Place the Frame: Begin by laying out the main metal frame components on a clean, flat surface.
2. Install Support Frame: Connect the support beams and central leg(s) to the main frame, ensuring all connections are secure.
3. Extend Slats: Place the wood slats across the frame. Ensure they are evenly spaced and properly seated in their designated positions.
4. Rimuovere la cinghia: If present, remove any protective or adhesive straps from the slats. Some slats may have noise-reducing strips that should remain in place.

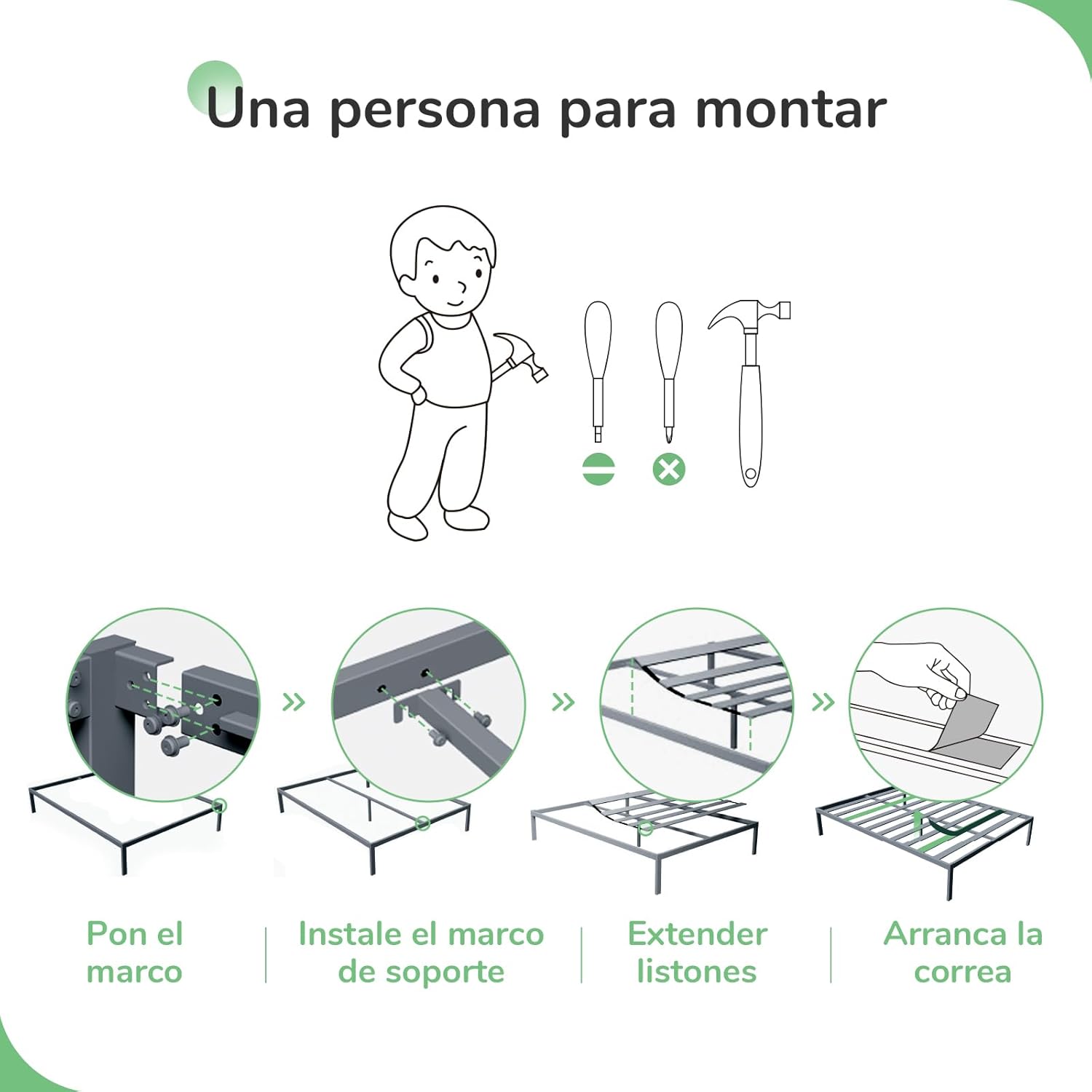

Figura 4.1: A visual guide illustrating the four main assembly steps: placing the frame, installing support, extending slats, and removing the strap.

5. Funzionamento e utilizzo

This bed frame is designed to provide a stable and comfortable sleeping surface. It is suitable for adults, children, and teenagers.

• Compatibilità del materasso: The frame is compatible with a 150x190cm mattress. A box spring is not required, as the wood slats provide adequate support.
• High Under-Bed Clearance: The design offers approximately 30.5 cm of clearance beneath the frame, providing convenient space for storage or easy cleaning by robotic vacuums.

Figura 5.1: An illustration showing the generous 30.5 cm under-bed clearance, providing ample space for storing items like suitcases or storage boxes, and allowing for easy cleaning.

• Supporto stabile: The frame features strong central support legs and a robust metal structure to ensure stability and prevent shaking.

Figura 5.2: Un dettagliato view of the robust central support leg, designed to provide enhanced stability and prevent shaking of the bed frame.

• Protezione del pavimento: The bed legs are equipped with anti-scratch pads to protect your flooring from damage.

Figura 5.3: A close-up image of a bed leg, featuring an anti-scratch pad at the base to protect your floor from damage.

• Riduzione del rumore: The bed frame incorporates silent strips to effectively reduce noise, contributing to a quiet sleeping environment.

Figura 5.4: A close-up image showing the silent strips placed on the bed frame, designed to effectively reduce noise and ensure a quiet sleeping environment.

• Design semplice: The bed frame features a classic, versatile design without a headboard, allowing it to blend seamlessly with various bedroom decors.

Figura 5.5: Un primo piano view of the Novilla bed frame, highlighting its minimalist and versatile design without an integrated headboard, suitable for various room styles.

6. Manutenzione

Una manutenzione regolare contribuirà a prolungare la durata e l'aspetto della struttura del letto.

• Pulizia: Pulisci la struttura metallica con un panno morbido eamp panno. Evitare prodotti chimici aggressivi o detergenti abrasivi che potrebbero danneggiare la finitura.
• Doghe: The poplar wood slats are solid and durable. Periodically check them for any signs of wear or damage.

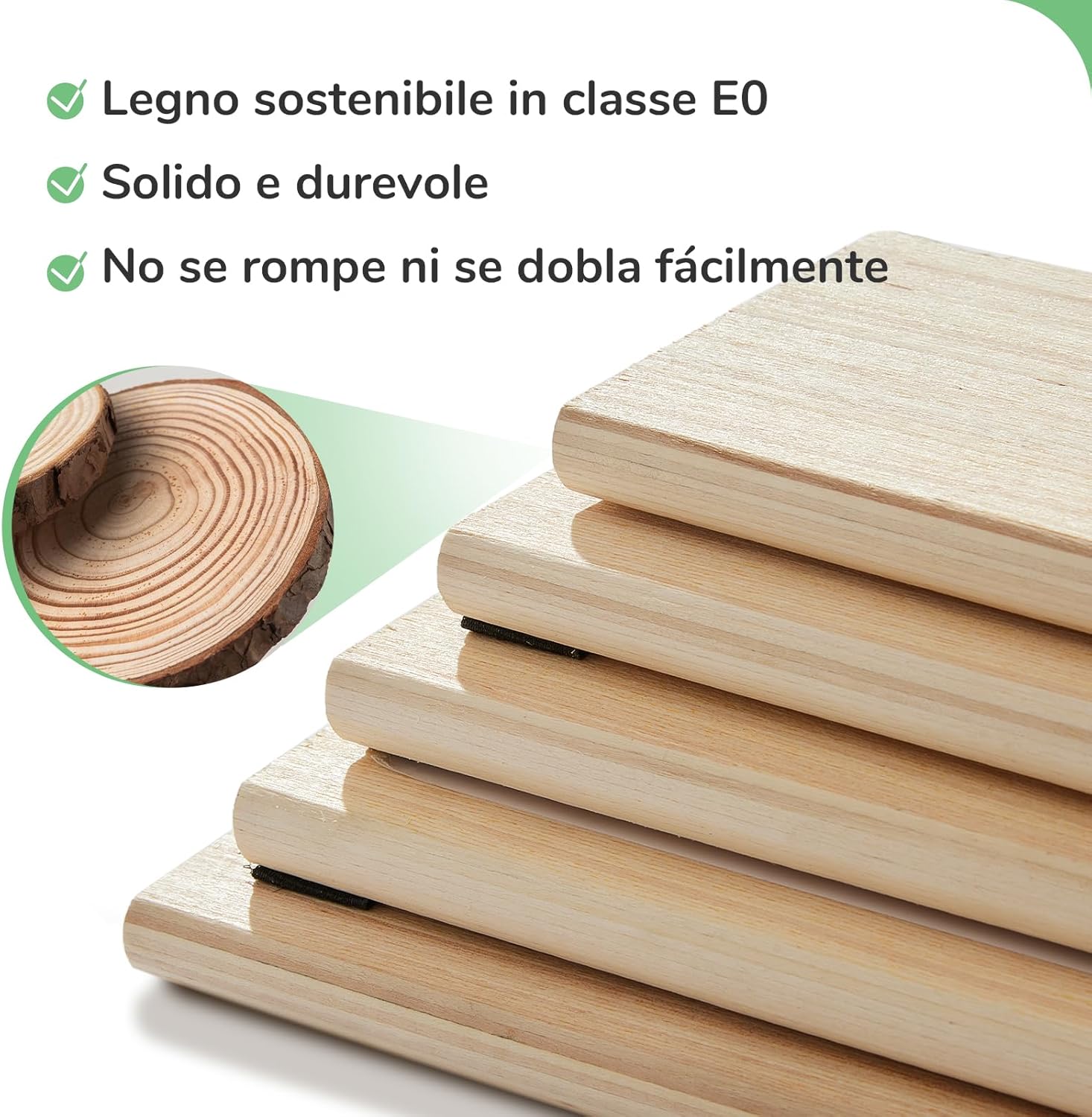

Figura 6.1: Un dettagliato view of the solid and durable E0 class sustainable poplar wood slats, which are designed to be strong and resistant to breaking or bending.

• Elementi di fissaggio: Controllare periodicamente tutte le viti, i bulloni e i collegamenti per assicurarsi che siano ben serrati. Serrarli nuovamente se necessario per mantenere la stabilità.
• Movimento: If you need to move the bed frame, lift it rather than dragging it to prevent damage to the frame or your floor.

7. Risoluzione Dei Problemi

Se riscontri problemi con la struttura del tuo letto, fai riferimento alle seguenti soluzioni comuni:

• Rumori stridenti:
  • Assicurarsi che tutti i bulloni e le viti siano ben serrati.
  • Check that the wood slats are properly seated and not rubbing against the metal frame. The integrated noise-reducing strips should prevent this.
  • Verificare che il materasso sia posizionato correttamente e non causi attrito.
• Instabilità/oscillazione:
  • Confirm that all frame components are correctly assembled according to the instructions.
  • Stringere tutti i dispositivi di fissaggio.
  • Assicurarsi che la struttura del letto sia posizionata su una superficie piana.

8. Specifiche

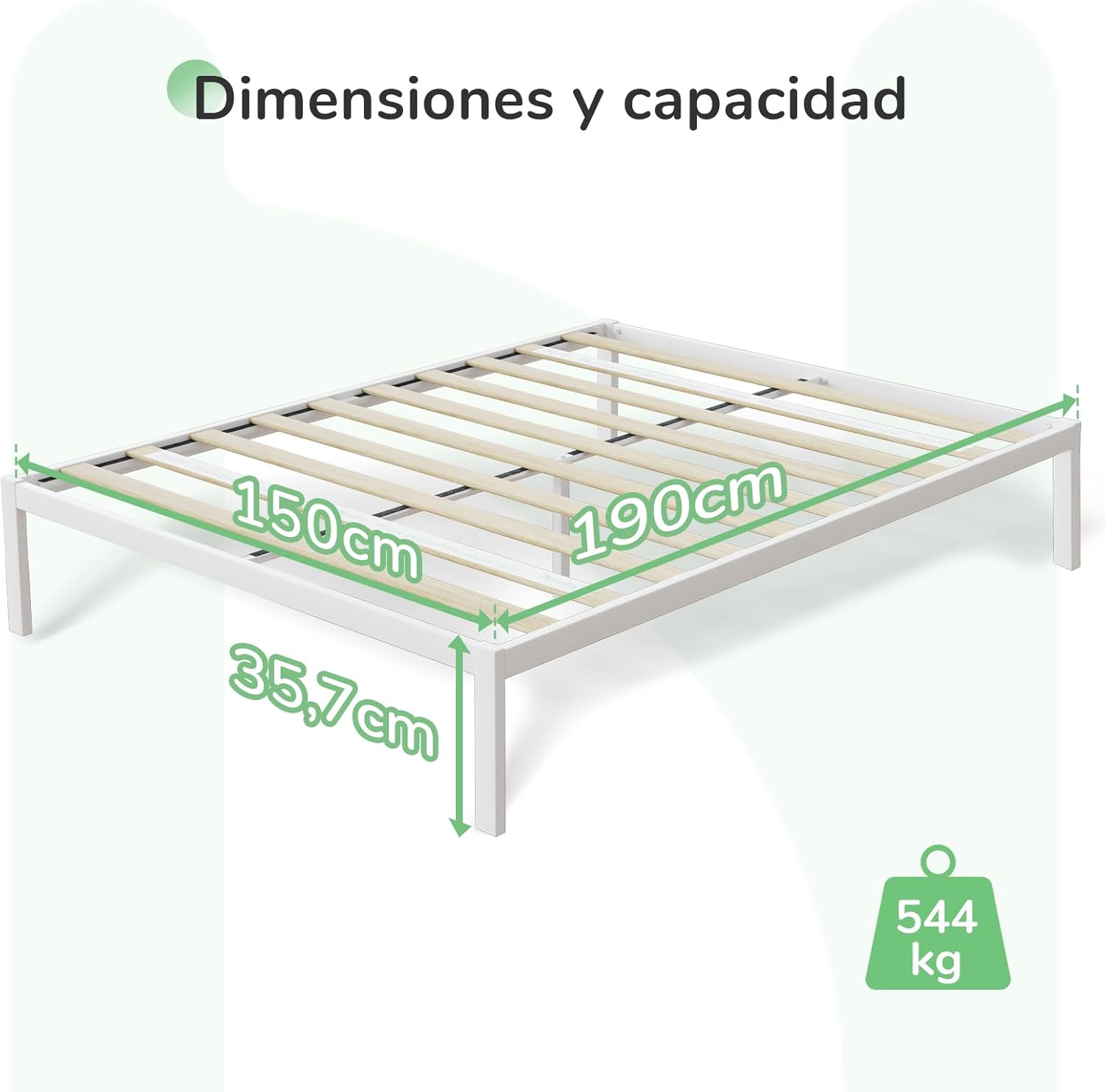

Figura 8.1: A visual diagram illustrating the key dimensions of the bed frame: 150 cm in width, 190 cm in length, and 35.7 cm in height. The maximum weight capacity is indicated as 544 kg.

9. Garanzia e supporto

For warranty information or technical support, please refer to the documentation included with your purchase or visit the official Novilla website. If you require assistance with assembly, parts, or have any questions regarding your bed frame, please contact Novilla customer service directly.
