1. Prodotto finitoview
The CAMECHO 170° Car Handle Backup Camera is a high-definition, waterproof rear view camera designed to enhance parking safety and convenience. It integrates seamlessly into your vehicle's trunk handle, providing a wide 170-degree viewing angle and night vision capabilities. This camera is compatible with various Audi and Volkswagen models, specifically designed for aftermarket car stereo units with an AV interface.
Figure 1: CAMECHO 170° Car Handle Backup Camera.
Caratteristiche principali:
- 170° Largo Viewangolo di ing: Provides a broad perspective for improved visibility during reversing.
- Visione notturna HD: Equipped with an AHD imaging sensor for clear visibility in low-light conditions, with a 15m visible distance at night.
- Grado di impermeabilità IP67: Ensures reliable operation in various weather conditions, including rain, snow, and dust.
- Progettazione integrata: Replaces the original trunk handle for a factory-like appearance.
- Dynamic Trajectory (on compatible systems): Offers moving guide parking lines to assist with precise parking maneuvers.
2. Compatibilità
This trunk handle parking camera is compatible with the following vehicle models and years. Please verify your car's make, model, and year, and ensure your car stereo is an aftermarket unit with an AV interface before proceeding with installation.
Figure 2: List of compatible Audi and Volkswagen vehicle models and years.
Modelli di auto applicabili:
- Audi: A3 (2015-2016), A4L/S5/S3 (2012-2015), A6L (2012-2017), Q3/Q5 (2012-2016), Q7 (2016-2017)
- Volkswagen: Tiguan (2012-2015), Passat/Passat Lingyu (2009-2010), Passat/Sagitar/Lavida (2012-2016), Touareg (2014-2016)
Important Note: This product requires an aftermarket car stereo unit with an AV interface. It is not compatible with factory-installed stereo systems unless specified.
3. Configurazione e installazione
Proper installation is crucial for optimal performance. It is recommended that installation be performed by a qualified technician. Always disconnect the vehicle's battery before beginning any electrical work.
3.1 Componenti Oltreview
Figure 3: Included components: Backup Camera, 6m AV line, and Power Cable.
3.2 Schema elettrico
Follow the wiring diagram carefully to ensure correct connections. The camera connects to your car stereo via the AV line and receives power from the vehicle's reverse light circuit.
Figure 4: Wiring diagram showing connections for the backup camera, AV line, and power supply.
3.3 Passaggi di installazione:
- Remove Original Trunk Handle: Carefully remove the existing trunk handle from your vehicle. Use appropriate trim removal tools to avoid damage.
- Install New Camera Handle: Insert the CAMECHO backup camera unit into the trunk handle slot. Ensure it fits securely.
- Connect AV Line: Connect one end of the 6m AV line to the yellow interface of the backup camera.
- Collegare il cavo di alimentazione: Connect the power cable (red and black wires) to the red end of the backup camera's power input.
- Collegamento all'alimentazione del veicolo: Connect the positive (red) and negative (black) wires of the power cable to the positive and negative terminals of your vehicle's reverse light power supply, respectively. This ensures the camera activates when reversing.
- Route AV Line to Stereo: Carefully route the 6m AV line from the trunk to your aftermarket car stereo unit. Connect the remaining yellow RCA connector to the camera input on your stereo.
- Connect Reverse Trigger Wire: Locate the reverse trigger wire on your car stereo's wiring harness (often labeled 'BACK' or 'REVERSE'). Connect the corresponding trigger wire from the camera's wiring to this input.
- Funzionalità di prova: Before reassembling, test the camera by engaging reverse gear. Verify that the image appears correctly on your stereo screen.
- Secure Wiring and Reassemble: Once confirmed working, secure all wiring to prevent pinching or damage. Reassemble the trunk trim and any other removed components.
Video 1: Demonstrates the wiring and connection process for the CAMECHO backup camera to a car stereo unit.
4. Istruzioni per l'uso
The CAMECHO backup camera operates automatically when the vehicle is shifted into reverse gear, displaying the rear view on your connected aftermarket stereo screen.
4.1 Automatic Activation:
- When you shift your vehicle into reverse, the camera will automatically activate and display the rear view on your car stereo screen.
- The display will include parking guide lines to assist with maneuvering.
4.2 Dynamic Trajectory Lines:
If your aftermarket stereo supports dynamic trajectory, the guide lines will adjust according to your steering wheel's movement, providing real-time guidance for parking.
Video 2: Illustrates the dynamic trajectory parking lines feature, showing how they adjust with steering input.
4.3 Visione notturna:
The camera's HD night vision ensures clear visibility even in low-light conditions, making parking safer at night or in dimly lit areas.

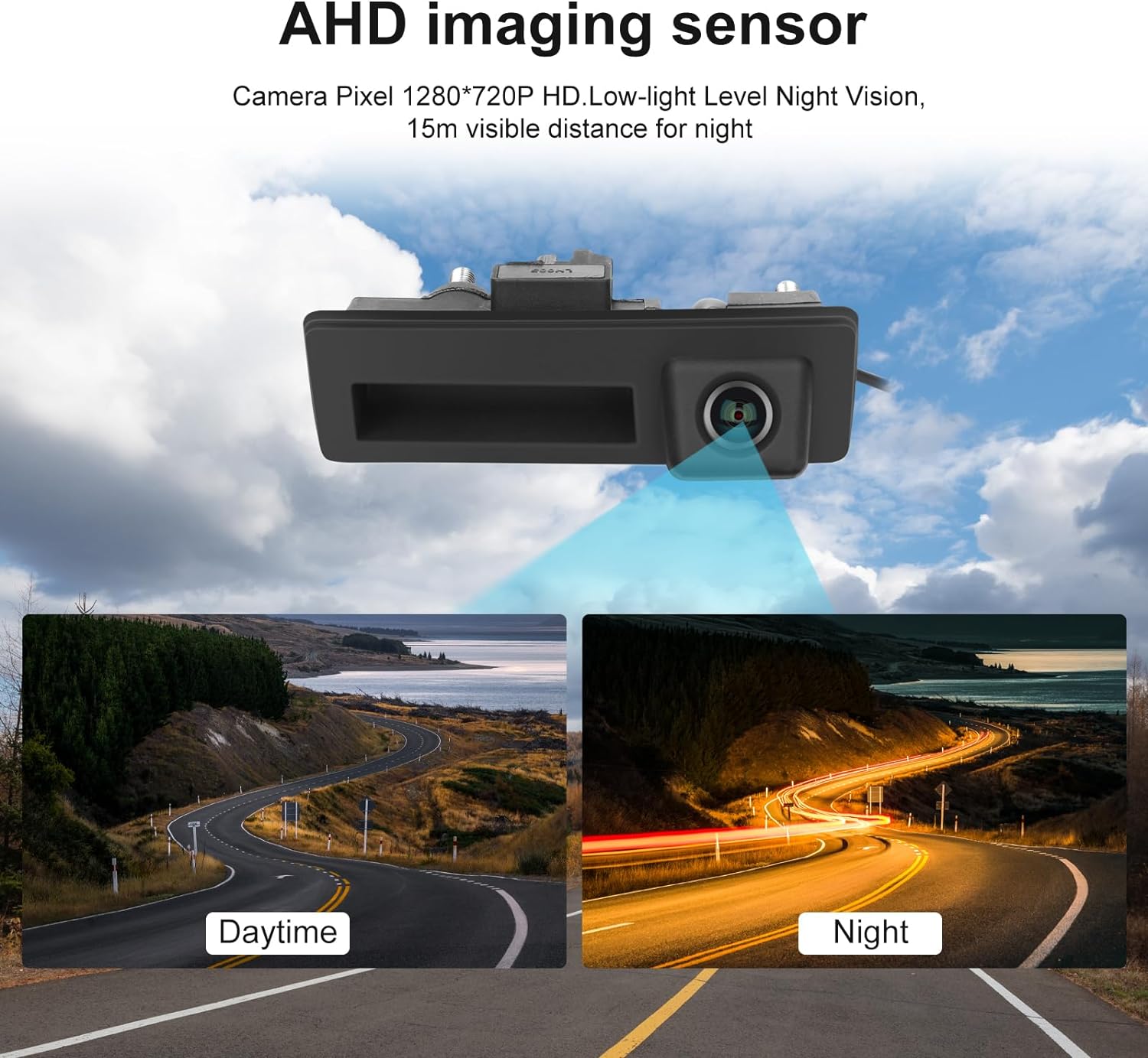

Figure 5: Comparison of camera image quality during daytime and nighttime conditions.
5. Manutenzione
To ensure the longevity and optimal performance of your CAMECHO backup camera, follow these simple maintenance guidelines:
- Pulizia regolare: Pulire periodicamente l'obiettivo della fotocamera con un panno morbido eamp panno per rimuovere sporco, polvere o macchie d'acqua che potrebbero ostruire il viewEvitare detergenti abrasivi.
- Ispezionare il cablaggio: Occasionally check the visible wiring for any signs of wear, fraying, or loose connections. Secure any loose wiring.
- Protezione dalle intemperie: Although the camera is IP67 waterproof, extreme weather conditions (e.g., heavy snow, ice) may temporarily affect visibility. Clear any obstructions from the lens before driving.
Figure 6: The camera's IP67 rating ensures durability against snow, washing, heat, and cold.
6. Risoluzione Dei Problemi
If you encounter any issues with your backup camera, refer to the following troubleshooting steps:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Nessuna immagine sullo schermo | Loose AV cable connection Collegamento di alimentazione errato Incorrect reverse trigger wire connection Stereo not set to camera input | Check all AV and power cable connections. Ensure reverse trigger wire is correctly connected to stereo. Select the correct camera input on your stereo. |
| Immagine tremolante o distorta | Alimentazione scarsa Interferenza Damaged AV cable | Garantire un'alimentazione elettrica stabile a 12 V. Check for electromagnetic interference from other car electronics. Replace AV cable if damaged. |
| L'immagine è troppo scura/luminosa | Monitor brightness settings Camera lens obstruction | Adjust brightness/contrast settings on your car stereo. Pulisci l'obiettivo della fotocamera. |
| Parking lines not appearing/moving | Stereo not configured for parking lines Camera not supporting dynamic lines | Check your stereo's settings for parking line display. Confirm if your specific camera model supports dynamic lines. |
Se il problema persiste dopo aver provato queste soluzioni, contattare l'assistenza clienti.
7. Specifiche
Detailed technical specifications for the CAMECHO 170° Car Handle Backup Camera:
| Caratteristica | Specificazione |
|---|---|
| Dimensioni del prodotto | 3 x 3 x 3 pollici |
| Peso dell'articolo | 9.6 once |
| ASIN | B0CCY77831 |
| Tecnologia di visualizzazione | LCD (for compatible monitors) |
| Altre caratteristiche del display | Wireless (si riferisce alla compatibilità con i sistemi di visualizzazione wireless, la telecamera stessa è cablata) |
| Produttore | CAMECHO |
| Dimensioni dello schermo | 0.33 Inches (refers to camera sensor size) |
| Dispositivi compatibili | Monitor (Aftermarket car stereo with AV input) |
| Tipo di installazione | Surface Mount (integrated into trunk handle) |
| Voltage | 12 Volt |
| Tecnologia dei sensori ottici | Infrarossi (per la visione notturna) |
| Tipo di lente | Grandangolo |
| Angolo reale di View | 170 gradi |
| Tipo di connettore | RCA |
| Dimensioni del sensore ottico | 1/3 pollici |
8. Garanzia e supporto
CAMECHO products are designed for reliability and performance. For any questions, technical assistance, or warranty claims, please refer to the following contact information:
- Garanzia: This product typically comes with a standard manufacturer's warranty. Please refer to your purchase documentation for specific warranty terms and duration.
- Assistenza clienti: For 24-hour customer support and user manual assistance, please contact us via email.
E-mail: CAMECHOVIP@126.com
