SIGNALPLUS Discone Antenna 25-1300MHz Instruction Manual

1. Introduzione

The SIGNALPLUS Discone Antenna is a wideband antenna designed for receiving and transmitting across a broad frequency range from 25 MHz to 1300 MHz. This antenna is suitable for various applications including public radio scanners, ham radio, two-way radios, and SDR systems, covering bands such as HF, CB, AIR, UHF, VHF, FM, FRS, and GMRS. Its robust stainless steel construction ensures durability and rust-free performance.

2. Caratteristiche del prodotto

• Ampia gamma di frequenze: 25 MHz to 1300 MHz, supporting HF, CB, AIR, UHF, VHF, FM, FRS, GMRS bands.
• Guadagno: 3.5 dBi for enhanced signal reception.
• Polarizzazione: Verticale.
• Potenza massima: 200 Watt.
• Impedenza: 50 Ohm.
• ROS: Less than 1.5:1.
• Costruzione: Rust-free stainless steel for long-term outdoor use.

3. Contenuto della confezione

Verifica che tutti gli articoli elencati di seguito siano inclusi nel tuo pacchetto:

• 1 x Discone Antenna
• 1 x 10-meter RG58 Coaxial Cable (SO-239 male to SO-239 male connectors)
• 1 x SO-239 female to BNC Male Adapter
• 1 x SO-239 female to SMA Male Adapter

Image: The 10-meter RG58 coaxial cable with PL259 male connectors, along with a PL259 female to BNC male adapter and a PL259 female to SMA male adapter, which are included in the package.

4. Specifiche

5. Configurazione e installazione

Proper installation is crucial for optimal antenna performance. Consider the following steps:

1. Posizione di montaggio: Choose a high, clear location free from obstructions like buildings, trees, or metal structures that could interfere with signal reception. The antenna should be mounted vertically.
2. Montaggio sicuro: Securely attach the antenna to a mast or pole using appropriate mounting hardware (not included). Ensure the mount is stable and can withstand wind and weather conditions.
3. Montaggio dell'antenna: Assemble the discone elements according to the visual guides. Ensure all elements are firmly attached.
4. Connessione via cavo: Connect one end of the supplied 10-meter RG58 coaxial cable (SO-239 male) to the SO-239 female connector on the antenna. Tighten the connection securely but do not overtighten.
5. Collegamento radio: Route the coaxial cable to your radio or scanner. Use the appropriate adapter (SO-239 female to BNC Male or SO-239 female to SMA Male) if your device has a BNC or SMA female input. Connect the cable to your device's antenna input.
6. Messa a terra: For safety and improved performance, it is recommended to properly ground the antenna mast and coaxial cable. Consult local electrical codes for grounding requirements.

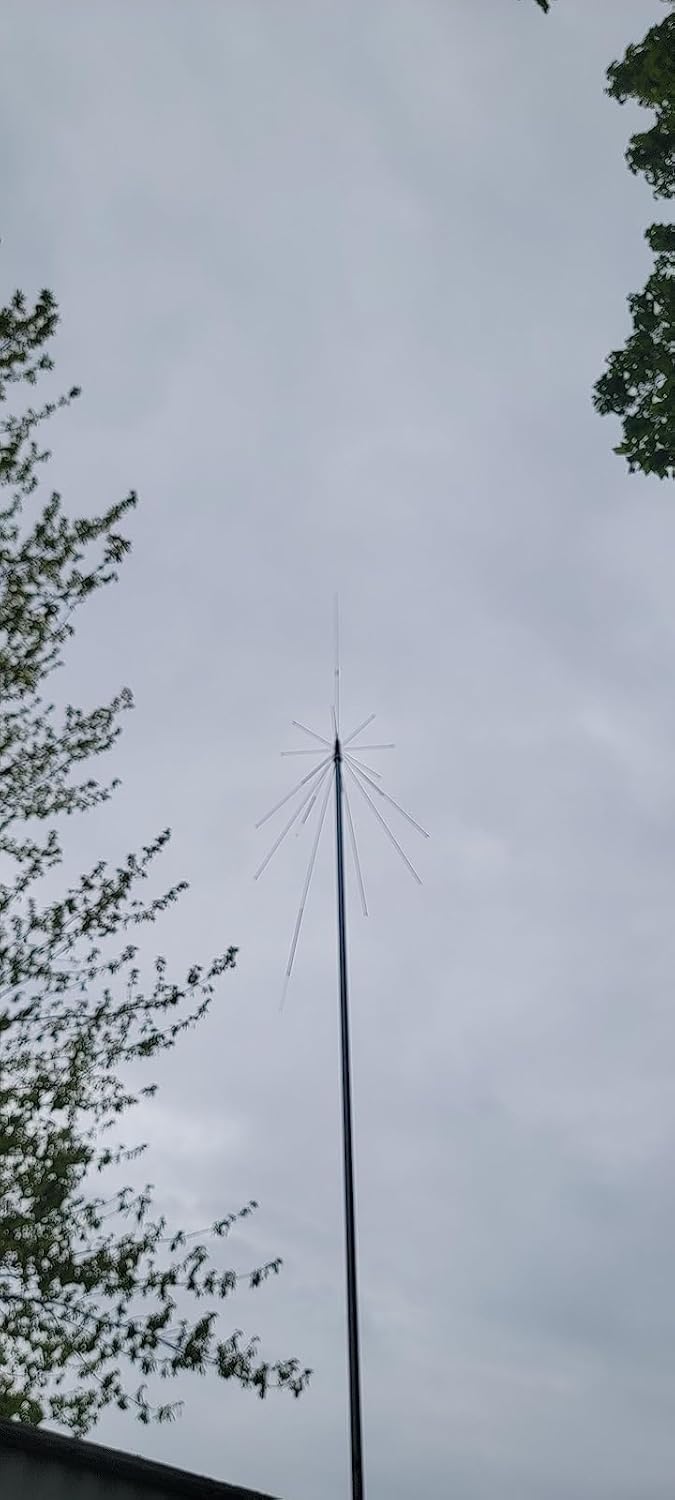

Image: The SIGNALPLUS Discone Antenna installed on a mast, demonstrating a typical outdoor setup.

6. Funzionamento

Once the antenna is installed and connected to your radio or scanner, you can begin operation:

• Accensione: Turn on your radio or scanner.
• Selezione della frequenza: Tune your device to the desired frequency within the antenna's operational range (25-1300 MHz).
• Ricezione del segnale: The wideband nature of the discone antenna allows for reception across multiple bands without needing to change antennas.
• Transmission (if applicable): If using with a compatible transceiver, ensure your device's output power does not exceed the antenna's maximum power rating of 200 Watts.

7. Manutenzione

The SIGNALPLUS Discone Antenna is designed for durability with its rust-free stainless steel structure, requiring minimal maintenance.

• Ispezione regolare: Periodically inspect the antenna and its connections for any signs of wear, corrosion, or damage, especially after severe weather.
• Pulizia: Keep the antenna elements clean from dirt, dust, and debris to ensure optimal performance. A soft cloth and mild detergent can be used if necessary.
• Verifica della connessione: Ensure all cable connections remain tight and free from moisture.

8. Risoluzione Dei Problemi

Se riscontri problemi con l'antenna, tieni presente quanto segue:

• Scarsa ricezione del segnale:
  • Controllare tutti i collegamenti dei cavi per assicurarsi che siano sicuri.
  • Verify the antenna is mounted in a clear, unobstructed location.
  • Ensure your radio/scanner is tuned to the correct frequency.
  • Controllare che il cavo coassiale non sia danneggiato o piegato.
• Nessun segnale:
  • Confirm the antenna is properly connected to your device.
  • Test with a different coaxial cable or adapter if available.
  • Ensure your radio/scanner is functioning correctly with another antenna (if possible).
• Interferenza:
  • Relocate the antenna away from potential sources of electrical interference (e.g., power lines, large electronic devices).
  • Garantire la corretta messa a terra del sistema di antenna.

9. Compatibilità

This antenna is compatible with a wide range of radio equipment, including but not limited to:

• Public Radio Scanners: SR30C, BC125AT, BCD436HP, BC75XLT, BCD325P2, BC355N, BCD996P2, BC365CRS, BCT15X, BCD536HP, BC345CRS, BCD996XT, BC278CLT, BC350A, BC350C, BC355C, BC340CRS, BC370CRS, BC700A, BC780XLT, BC785D, BC796D, BC860XLT, BC895XLT, BC898T, BCT7, BCT8, BC75XLT, BC55, BC60XLT, BC80XLT, BC72XLT, BC92XLT, BC95XLT, BC100, SC230, BC200, SC200, SC150, SC180, SC235, BC120, BC72, BC80, BC246, BR330.
• Radio Scanners (WS Series): WS1040, WS1088, WS1010, WS1080, WS1025, WS1065, TRX1, TRX2.
• Radio Scanners (PRO Series): PRO-2018, PRO-197, PRO-650, PRO-163, PRO-405, PRO-528, PRO-668, PRO-94, PRO-404, PRO-95, PRO-62, PRO-83.
• Ham Radios (TK Series): TK100, TK200, TK210, TK220, TK300, TK310, TK320.
• Ham Radios (IC Series): IC-V8, IC-V80, IC-V82, IC-U82, IC-W32.
• Other Compatible Radios: HT440, HT90, HR, CP500, CP520, 1015, 734, 834, HR146, HX300, HX320, HX400, CU32, CP/CS 5015, 0420, HH979, HH152, HH154, HH156, HH462, HH464.

10. Garanzia e supporto

Warranty information for this product is not provided within this manual. For details regarding warranty coverage, technical support, or service, please refer to the manufacturer's official website or contact SIGNALPLUS customer service directly. Keep your purchase receipt for any warranty claims.
