1. Introduzione
Thank you for choosing the Galano Cleverton 4-Drawer Chest. This manual provides essential information for the safe assembly, operation, and maintenance of your new furniture. Please read these instructions carefully before beginning assembly and retain them for future reference.
Image: The fully assembled Galano Cleverton 4-Drawer Chest, featuring a light grey finish, an oak-effect top, and four drawers with gold-toned bar handles.
2. Informazioni sulla sicurezza
AVVERTIMENTO: Serious or fatal crushing injuries can occur from furniture tip-over. To prevent tip-over, this furniture must be permanently fixed to the wall using the wall attachment devices provided. Always use the appropriate screws and plugs for your wall type.
- Keep all assembly parts, especially small components, out of reach of children.
- Ensure all screws and fittings are securely tightened before use. Periodically check and re-tighten as necessary.
- Do not stand on the chest or allow children to climb on it.
- Do not place heavy objects on top of the chest that could cause it to become unstable.
- Always lift the furniture when moving it; do not drag it, as this may damage the base or floor.
3. Contenuto della confezione
Before assembly, please check that all components are present and undamaged. If any parts are missing or damaged, do not proceed with assembly. Contact customer support for assistance.
- Pannelli laterali (2)
- Pannello superiore (1)
- Pannello di base (1)
- Pannello posteriore (1)
- Frontali dei cassetti (4)
- Pannelli laterali per cassetti (8)
- Pannelli posteriori per cassetti (4)
- Drawer Bases (4)
- Drawer Runners (8 pairs)
- Maniglie (4)
- Hardware Pack (screws, dowels, cam locks, wall attachment kit)
4. Istruzioni per l'installazione e il montaggio
Assembly requires two people. Lay out all parts on a soft, clean surface to prevent scratches. A Phillips head screwdriver and a hammer may be required (not included).
- Assemblare il telaio principale: Attach the side panels to the base and top panels using the provided cam locks and dowels. Ensure all connections are secure.
- Installare il pannello posteriore: Slide or nail the back panel into the grooves on the main frame. This adds stability to the chest.
- Attach Drawer Runners: Secure the drawer runners to the inside of the chest's side panels using the designated screws. Ensure they are level and correctly aligned.
- Montare i cassetti: For each of the four drawers, connect the side panels, back panel, and drawer base. Ensure the drawer base slides into the grooves correctly.
- Fissare i frontali dei cassetti e le maniglie: Secure the drawer fronts to the assembled drawer boxes. Then, attach the handles to the drawer fronts.
- Inserisci cassetti: Carefully slide the assembled drawers onto the runners within the chest.
- Fissaggio al muro: Position the chest in its desired location. Using the provided wall attachment kit, secure the chest to a solid wall stud or use appropriate wall anchors. This step is critical for safety.
Image: Illustration of the initial assembly phase, connecting the main frame components.
Image: Diagram illustrating the attachment of the chest's back panel.
Image: Illustration of installing the metal drawer runners onto the interior side panels.
Image: Diagram detailing the assembly of a single drawer box.
Image: Illustration of attaching the decorative front panel and handle to a drawer.
Image: Diagram showing the final step of sliding the completed drawers into the chest frame.
5. Istruzioni per l'uso
The Galano Cleverton 4-Drawer Chest is designed for storing clothing, linens, and other household items. Each drawer operates on smooth metal runners for easy opening and closing.
- Apertura/chiusura cassetti: Gently pull or push the handles to open and close the drawers. Avoid forcing drawers, especially if they feel stiff.
- Capacità di peso: Distribute weight evenly within each drawer. Do not overload drawers, as this can cause damage to the runners or the drawer structure. The top surface can hold decorative items, but avoid excessive weight.
- Stabilità: Always ensure the chest is stable and securely anchored to the wall. Avoid opening multiple drawers simultaneously, as this can affect stability.

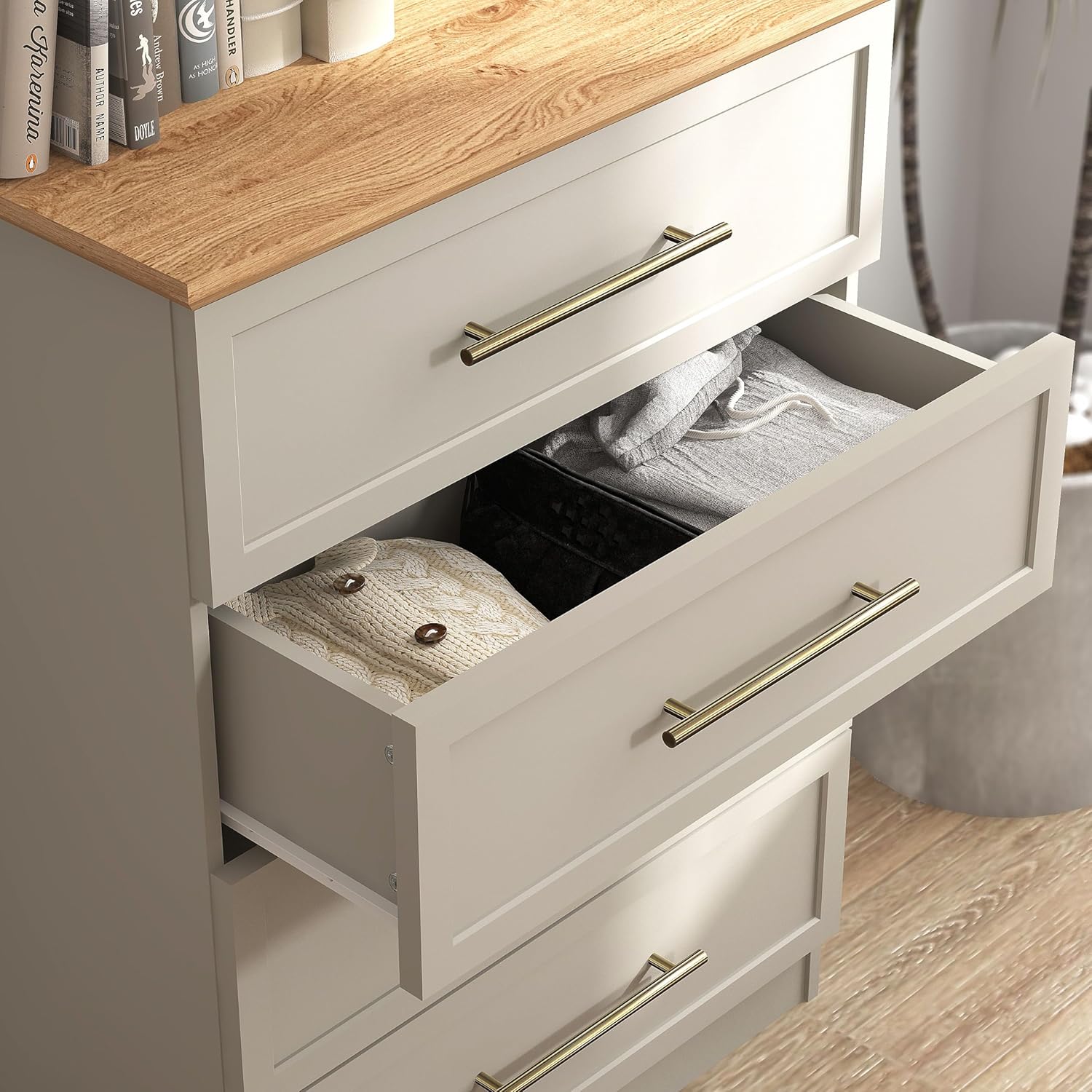

Image: A drawer of the chest partially open, revealing neatly folded clothing inside, demonstrating its storage capacity.
Immagine: Un'immagine aerea view of the chest with all four drawers slightly ajar, showcasing the smooth operation and internal space.
6. Manutenzione e cura
Proper care will help maintain the appearance and longevity of your Galano Cleverton 4-Drawer Chest.
- Pulizia: Pulire le superfici con un panno morbido, damp panno. Evitare l'uso di prodotti chimici aggressivi, detergenti abrasivi o lucidanti che potrebbero danneggiare la finitura. Asciugare immediatamente con un panno pulito.
- Fuoriuscite: Pulire immediatamente eventuali fuoriuscite per evitare macchie o danni al legno ingegnerizzato.
- Luce solare: Evitare l'esposizione prolungata alla luce solare diretta, che può causare sbiadimento o scolorimento.
- Calore e umidità: Keep the chest away from direct heat sources and areas of high humidity.
- Hardware: Periodically check all screws, bolts, and fittings to ensure they remain tight. Re-tighten as needed to maintain structural integrity.
7. Risoluzione Dei Problemi
If you encounter any issues with your chest, refer to the following common problems and solutions:
- I cassetti sono rigidi o non scorrono fluidamente:
- Verificare che le guide dei cassetti siano installate e allineate correttamente.
- Assicurarsi che il cassetto non sia sovraccarico o che il peso non sia uniforme.
- Verify that all assembly screws for the drawer and runners are tight.
- Il torace sembra traballante o instabile:
- Confirm all main frame assembly screws and cam locks are fully tightened.
- Ensure the chest is placed on a level surface. Adjust furniture glides if present.
- Verify that the wall attachment device is securely installed and properly anchored to the wall.
- Gaps between drawer fronts and frame:
- Check that the drawer fronts are correctly attached and aligned. Some drawer fronts allow for minor adjustment.
- Ensure the main frame is assembled squarely.
8. Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Marca | Galano |
| Numero di modello | FG-PU-4-1146-UK |
| Colore | Light Grey/Oak |
| Materiale | Legno ingegnerizzato |
| Dimensioni del prodotto (L x P x A) | Dimensioni: 38.8 x 69.6 x 94.6 cm |
| Peso dell'articolo | 31 chilogrammi |
| Numero di cassetti | 4 |
| Assemblaggio richiesto | SÌ |

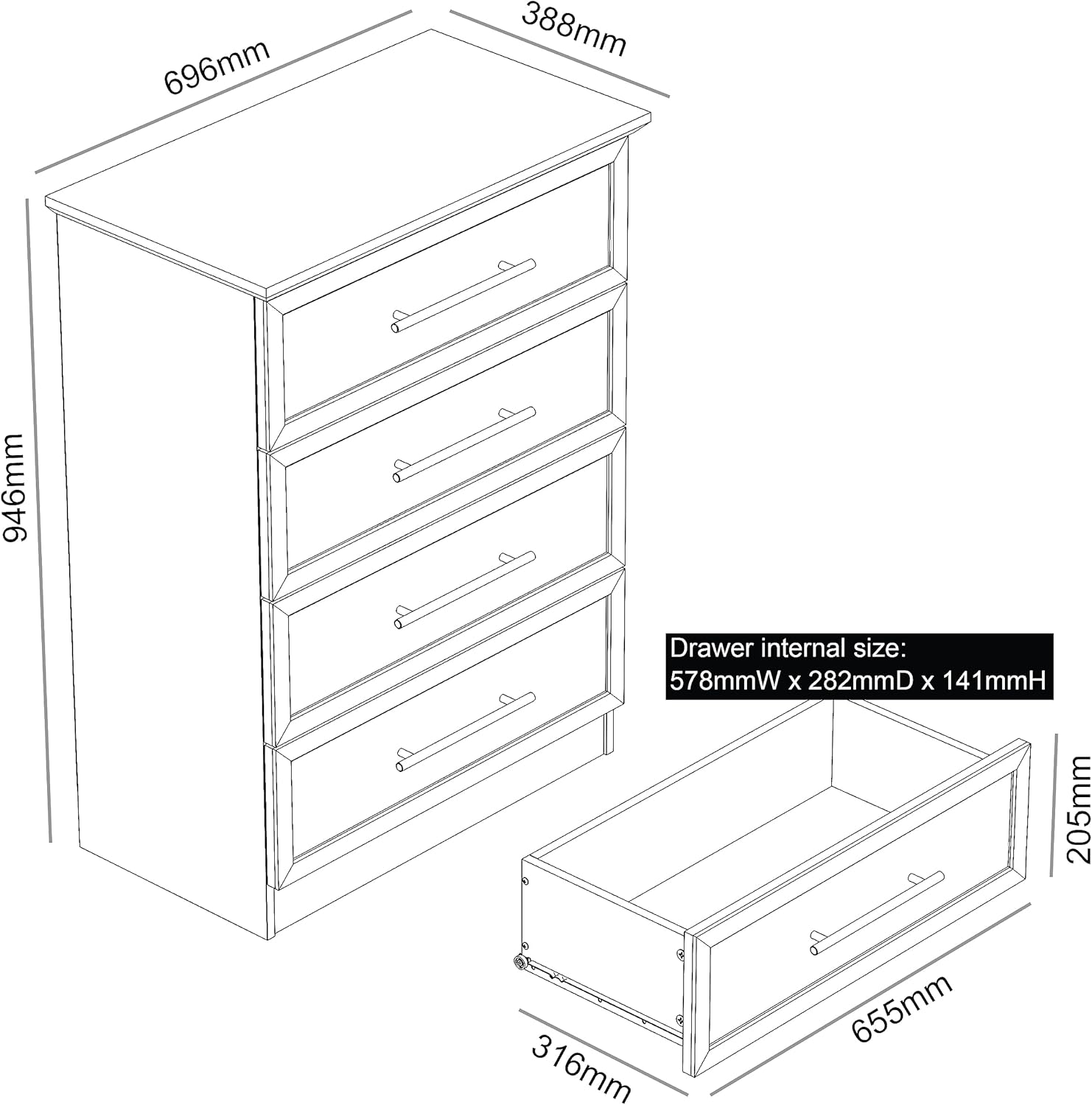

Image: A detailed line drawing illustrating the overall dimensions of the chest (696mm W x 388mm D x 946mm H) and internal drawer dimensions (578mm W x 282mm D x 141mm H).
9. Informazioni sulla garanzia
Specific warranty information for the Galano Cleverton 4-Drawer Chest is not provided in the product details. Please refer to your retailer's return policy or contact the manufacturer directly for details regarding any applicable warranty or guarantees.
Al momento non sono disponibili informazioni sulla disponibilità dei pezzi di ricambio.
10. Assistenza clienti
If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact the retailer where you purchased this product or visit the official Galano websito di supporto.
Please have your model number (FG-PU-4-1146-UK) and purchase details ready when contacting support.
