1. Introduzione
Welcome to the smartGyro Crossover Dual MAX LR electric scooter instruction manual. This document provides essential information for the safe and efficient operation, maintenance, and care of your new electric scooter. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.
2. Impostazione
2.1 Disimballaggio e ispezione iniziale
Rimuovere con attenzione tutti i componenti dall'imballaggio. Ispezionare lo scooter per verificare eventuali segni di danni durante il trasporto. Assicurarsi che tutti i componenti elencati nella lista di imballaggio siano presenti.
2.2 Montaggio
Your smartGyro Crossover Dual MAX LR comes partially assembled. Follow these steps to complete the setup:
- Aprire lo scooter: Release the folding mechanism. Ensure the stem is securely locked in the upright position. The new generation 2.0 folding system with double mast adjustment enhances safety and stability.
- Regolazione del manubrio: Adjust the handlebar height to a comfortable position and secure it firmly.
- Controllare le connessioni: Verify that all cables and connections are secure.
2.3 Carica iniziale
Before first use, fully charge the scooter's battery. The smartGyro Crossover Dual MAX LR is equipped with an 18,000 mAh lithium battery.
- Collegare il caricabatterie alla porta di ricarica dello scooter.
- Collegare il caricabatterie a una presa di corrente.
- L'indicatore di carica sul caricabatterie solitamente è rosso durante la carica e diventa verde quando la carica è completa.
- Scollegare il caricabatterie una volta completata la ricarica.
The battery features triple security technology (OSP) and a Battery Management System (BMS) for safe and efficient charging and discharge, extending battery life.

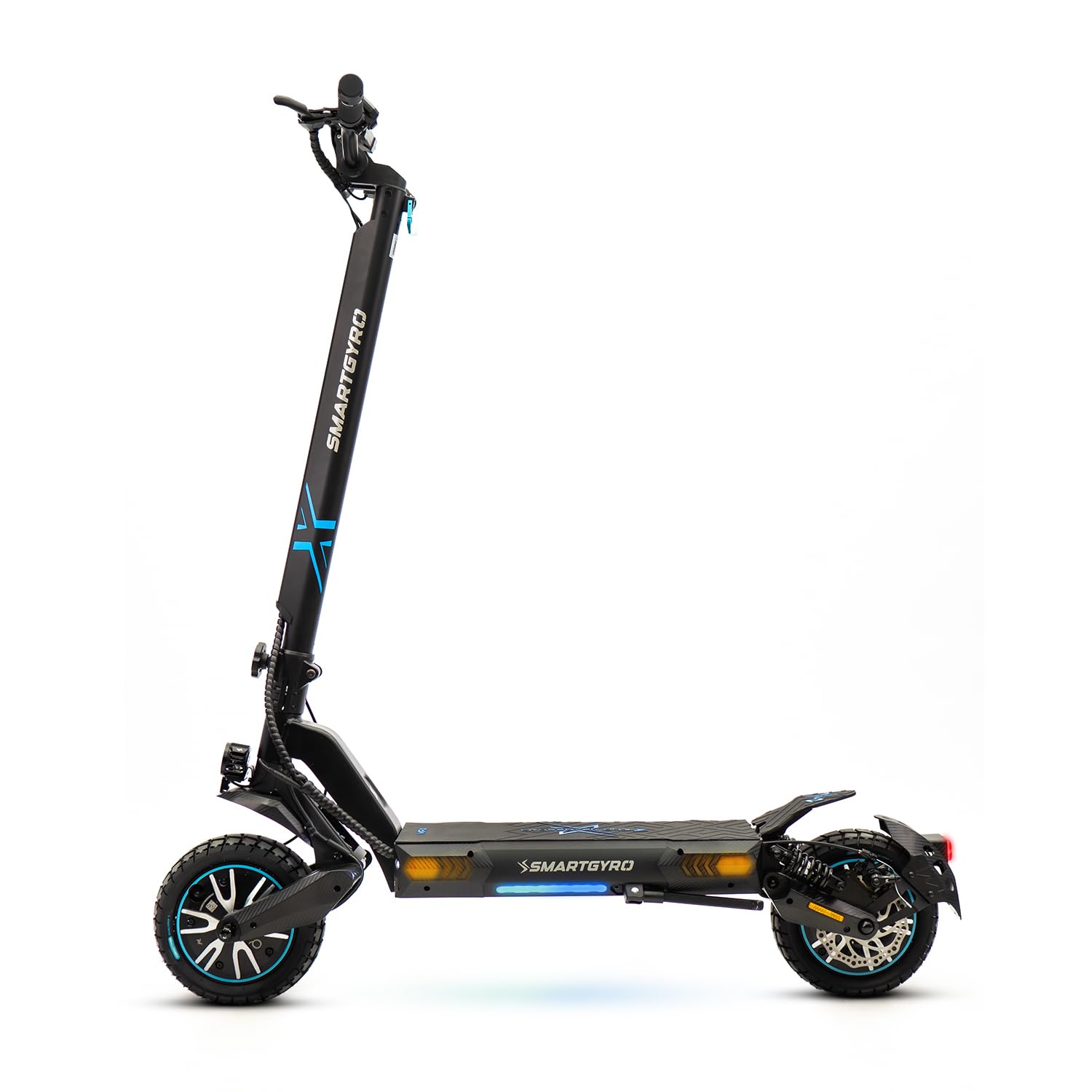

Image: The smartGyro Crossover Dual MAX LR electric scooter in its upright, ready-to-ride position.
3. Istruzioni per l'uso
3.1 Power On/Off and NFC Activation
To power on your scooter, use the provided NFC card. Tap the NFC card on the designated area of the display to activate the scooter. Repeat the process to power off.
Image: A hand holding an NFC card near the scooter's display to power it on or off.
3.2 Display e controlli
The front display provides essential riding information:
- Indicatore di velocità: Mostra la velocità attuale.
- Odometro: Tiene traccia della distanza totale percorsa.
- Contachilometri parziale: Mostra la distanza percorsa durante il percorso attuale.
- Livello della batteria: Indica la carica residua della batteria.
- Modalità di guida: Displays the selected riding mode.
The handlebar features intuitive controls for lights, horn, and mode selection. A USB port is integrated into the display for charging mobile devices.
Image: Close-up of the handlebar controls, including buttons for lights, horn, and mode selection.
3.3 Modalità di guida
The scooter offers 4 selectable driving modes:
- Modalità camminata: For very low speeds, suitable for walking alongside the scooter.
- Modalità ecologica: Maximizes battery efficiency for longer range.
- Modalità Comfort: Balanced performance for everyday commuting.
- Modalità Sport: Full power for maximum speed and acceleration.
3.4 Dual Motor Activation
The smartGyro Crossover Dual MAX LR features two independent motors. You can activate or deactivate the front motor by pressing the 'M' button twice on the handlebar. This allows you to optimize battery usage or engage full power for challenging terrains and inclines.
3.5 SmartGyro App Connectivity
Connect your scooter to the smartGyro App for enhanced control and customization:
- Blocco remoto: Lock or unlock your scooter remotely.
- Personalizzazione della luce: Change the color of the RGB LED lights on the base.
- Dati di guida: View real-time speed, distance, and battery information.
- Frenata rigenerativa: Adjust the intensity of regenerative braking (Weak, Medium, Strong).
Image: The scooter's base with customizable RGB LED lights, controlled via the app.
4. Caratteristiche principali
4.1 Dual Motors
The Crossover Dual MAX LR is powered by two independent 500W (48V) motors, delivering a combined nominal power of 1000W. When only one motor is active, it provides 700W of power. This dual-motor system ensures powerful acceleration and excellent climbing capability on various terrains.
4.2 Long-Range Battery
Equipped with an 18,000 mAh lithium battery, the scooter offers an impressive range of up to 70 km on a single charge. The advanced BMS and OSP technologies ensure battery safety and longevity.
4.3 Triple Suspension System
Experience a smooth ride with the triple suspension system, featuring an inverted long-travel front suspension and double rear suspension. This setup effectively absorbs shocks and irregularities from various surfaces, providing comfort and stability.
4.4 Triple Braking System
For maximum safety, the scooter incorporates a triple braking system:
- Front disc brake.
- Rear disc brake.
- Regenerative electric brake.
This combination ensures powerful and controlled stopping power.
4.5 Tubeless Dual Grip Tires
The 10-inch pneumatic Tubeless Dual Grip tires are designed for durability and stability, allowing you to navigate various terrains with confidence. Their robust construction minimizes the risk of punctures.
4.6 Advanced Lighting System
The scooter features a comprehensive lighting system for visibility and safety:
- High-brightness front LED headlight.
- RGB LED lights on the base, customizable via the app.
- Front and rear turn signals, selectable from the handlebar.
- Rear brake light.
4.7 Resistenza all'acqua IPX4
The smartGyro Crossover Dual MAX LR is rated IPX4, providing resistance to dust and splashes, making it suitable for various weather conditions.
Immagine: Lato view of the smartGyro Crossover Dual MAX LR, showcasing its robust design and suspension.
5. Manutenzione
5.1 Pulizia
Regular cleaning helps maintain the scooter's appearance and functionality. Use a damp cloth to wipe down the frame and deck. The anti-slip rubber deck is designed for easy cleaning. Avoid using high-pressure water jets directly on electronic components.
5.2 Cura della batteria
- Always use the original smartGyro charger.
- Evitare di scaricare completamente la batteria prima di ricaricarla.
- Store the scooter in a cool, dry place when not in use for extended periods, ensuring the battery is partially charged (around 50-70%).
- The battery's BMS ensures cell balancing during charging, preventing uneven wear.
5.3 Controlli generali
- Controllare regolarmente la pressione degli pneumatici per garantire prestazioni e sicurezza ottimali.
- Inspect brake pads and discs for wear and tear. Adjust or replace as needed.
- Ensure all screws and bolts are tightened, especially on the folding mechanism and handlebars.
6. Risoluzione Dei Problemi
This section addresses common issues you might encounter with your smartGyro Crossover Dual MAX LR. For more complex problems, please contact customer support or an authorized service center.
- Lo scooter non si accende: Ensure the battery is charged and the NFC card is correctly used.
- Gamma ridotta: Check tire pressure, riding mode (Eco mode extends range), and ensure the battery is fully charged. Extreme temperatures can also affect battery performance.
- Freni non efficaci: Inspect brake pads and discs for wear. Adjust brake cables if necessary.
- Rumori insoliti: Check for loose components, especially around the wheels and suspension.
7. Specifiche
| Caratteristica | Specificazione |
|---|---|
| Marca | SMARTGYRO |
| Nome del modello | Crossover Dual MAX LR |
| Numero di modello | SG27-423 |
| Motori | 2 independent motors, 500W 48V each (1000W total nominal) |
| Batteria | 18,000 mAh Lithium-metal (1 included) |
| Autonomia | Up to 70 Km |
| Ruote | 10" Tubeless Dual Grip pneumatic rubber |
| Sospensione | Triple suspension (inverted front, double rear) |
| Sistema frenante | Triple braking (front disc, rear disc, regenerative) |
| Luci | High-brightness front LED, RGB LEDs on base (APP selectable), front & rear turn signals, rear brake light |
| Resistenza all'acqua | Grado di protezione IPX4 |
| Dimensioni (L x P x A) | Dimensioni: 112 x 64 x 128 cm |
| Peso | 30 kg |
| Carico massimo | 140 chilogrammi |
| Materiale del telaio | Alluminio |
| Caratteristica speciale | Controllo della velocità |
| Certificazione | DGT Certified |
Image: Diagram illustrating the dimensions of the smartGyro Crossover Dual MAX LR electric scooter.
8. Linee guida di sicurezza
Always prioritize safety when operating your electric scooter. Adhere to local regulations and best practices:
- Wear a helmet and appropriate protective gear (knee pads, elbow pads).
- Informatevi sulle leggi e le normative locali sul traffico per gli scooter elettrici.
- Eseguire un controllo prima della partenza: assicurarsi che i freni funzionino correttamente, che gli pneumatici siano gonfiati correttamente e che tutti i componenti siano ben fissati.
- Mantenere una velocità e una distanza di sicurezza dagli altri veicoli e dai pedoni.
- Avoid riding in adverse weather conditions (heavy rain, ice, snow).
- Non guidare sotto l'effetto di alcol o droghe.
- Siate consapevoli dell'ambiente circostante e dei potenziali pericoli.
9. Garanzia e supporto
The smartGyro Crossover Dual MAX LR is DGT Certified, ensuring compliance with regulatory standards. SMARTGYRO provides extensive after-sales support, including a wide network of official workshops across Spain and readily available original spare parts.
- For warranty claims or technical assistance, please refer to the warranty card included with your product or visit the official SMARTGYRO websito.
- Contact customer service for information on authorized repair centers and spare parts availability.
