1. Informazioni importanti sulla sicurezza
Leggere attentamente tutte le istruzioni prima del montaggio e dell'uso. Conservare il manuale per riferimento futuro.
- Montaggio: Assemble with caution. Ensure all components are correctly installed and tightened before use.
- Capacità di peso: Non superare il carico massimo supportato di 20 kg (44 libbre) on the top surface. Overloading can cause instability and damage.
- Bordi taglienti: Exercise care during assembly and handling to avoid injury from sharp edges.
- Stabilità: Place the TV cabinet on a flat, stable surface. If necessary, use wall anchoring hardware (not included) to prevent tipping, especially in households with children or pets.
- Pulizia: Utilizzare solo un panno morbido,amp panno per la pulizia. Evitare prodotti chimici aggressivi o detergenti abrasivi.
2. Prodotto finitoview
The Vente-unique LOTULA TV Cabinet is designed to provide a functional and stylish solution for your entertainment area. It features a balanced two-tone design with clean lines, three push-to-open doors, and one open storage niche.
Figura 2.1: Fronte view of the LOTULA TV Cabinet with doors closed.
- Progetto: White and natural light finish, melamine particle board.
- Magazzinaggio: Three hinged doors with push-to-open mechanism and one open niche.
- Installazione: Floor-standing unit.
3. Installazione e assemblaggio
This product requires self-assembly. Please ensure you have sufficient space and the necessary tools before beginning. Tools are not included.
3.1 Contenuto della confezione
Verify that all parts and hardware are present before starting assembly. Refer to the included assembly diagram for a complete list of components.
3.2 Fasi di assemblaggio
- Disimballare tutti i componenti e disporli su una superficie pulita e morbida per evitare graffi.
- Identificare ogni parte utilizzando lo schema di montaggio fornito.
- Follow the step-by-step instructions in the assembly diagram to connect the panels.
- Attach the hinged doors, ensuring the push-to-open mechanisms are correctly aligned and functional.
- Una volta assemblato, spostare con cautela l'unità nella posizione desiderata.
- Importante: Ensure the unit is stable and level. Consider securing it to a wall if there is a risk of tipping.

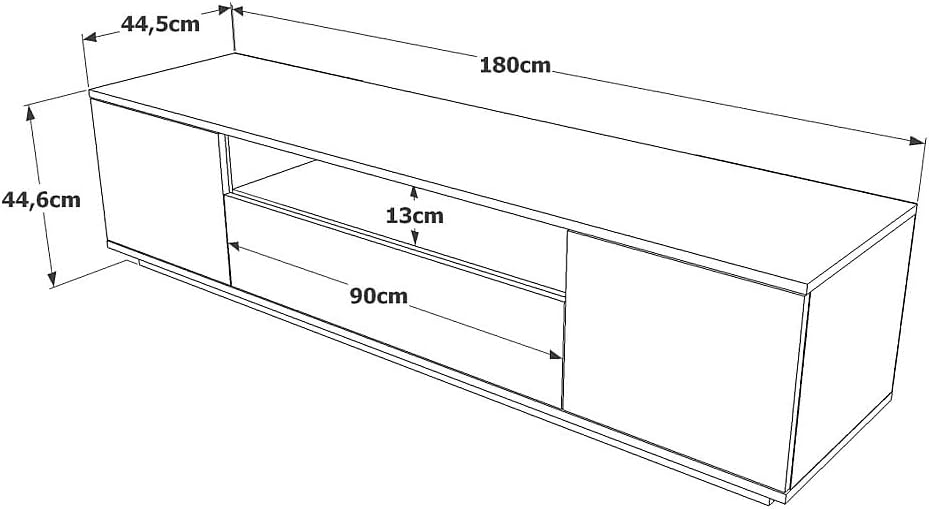

Figure 3.1: Assembly diagram showing dimensions and components.
4. Istruzioni per l'uso
The LOTULA TV Cabinet is designed for straightforward use.
4.1 Utilizzo delle porte
The cabinet features three doors with a push-to-open mechanism. To open a door, gently press on its surface. To close, push the door until it latches securely.
Figure 4.1: LOTULA TV Cabinet with doors open, revealing internal storage compartments.
4.2 Using the Niche
The central open niche is ideal for media devices such as a soundbar, receiver, or gaming console. Ensure proper ventilation for electronic equipment.
4.3 Distribuzione del peso
Distribute weight evenly across the top surface and within the storage compartments. Do not place excessively heavy items on any single point.
5. Manutenzione e cura
Una cura adeguata contribuirà a preservare l'aspetto e la longevità del tuo mobile TV.
- Pulizia: Pulire le superfici con un panno morbido e leggermente damp cloth. Dry immediately with a clean, dry cloth.
- Evitare: Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the melamine finish.
- Fuoriuscite: Pulire immediatamente eventuali fuoriuscite per evitare macchie o danni al materiale.
- Luce solare: Evitare l'esposizione prolungata alla luce solare diretta per evitare che sbiadisca.
- Calore: Non appoggiare oggetti caldi direttamente sulla superficie senza protezione.
6. Risoluzione Dei Problemi
If you encounter any issues with your LOTULA TV Cabinet, refer to the following common solutions:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| La porta non si chiude correttamente. | Misaligned hinge or push-to-open mechanism. | Check hinge alignment and adjust if necessary. Ensure the push-to-open mechanism is not obstructed. |
| Il mobile sembra instabile. | Pavimento irregolare o montaggio allentato. | Ensure the cabinet is on a level surface. Re-tighten all assembly screws. Consider using wall anchoring hardware. |
| Graffi o piccoli danni. | Urto durante il montaggio o l'uso. | For minor scratches, touch-up pens or furniture repair kits may be used (test in an inconspicuous area first). |
Se il problema persiste, contattare l'assistenza clienti.
7. Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Nome del modello | LOTULA |
| Marca | Vendita singola |
| Colore | White, Natural Light |
| Materiale | Particle Board (Panneau de particule), Melamine finish |
| Dimensioni (L x P x A) | 180 cm x 44.5 cm x 44.6 cm (70.9 pollici x 17.5 pollici x 17.6 pollici) |
| Peso dell'articolo | 40.1 kg (88.4 libbre) |
| Maximum Supported Load (Top) | 20 kg (44 libbre) |
| Numero di porte | 3 (Hinged, Push-to-open) |
| Number of Niches | 1 (Aperto) |
| Assemblaggio richiesto | SÌ |
8. Informazioni sulla garanzia
Specific warranty details for the Vente-unique LOTULA TV Cabinet may vary by retailer and region. Please retain your proof of purchase and refer to the warranty policy provided by your retailer at the time of purchase.
For any warranty claims or inquiries, please contact the retailer from whom you purchased this product.
9. Assistenza clienti
If you require further assistance, have questions about assembly, or need to report a missing or damaged part, please contact Vente-unique customer service or your purchasing retailer.
Please have your product model (LOTULA) and proof of purchase ready when contacting support.
Per maggiori informazioni potete visitare il negozio Vente-unique su Amazon: Negozio Vente-unique
