Manuale di istruzioni della tastiera cablata Macally per Mac con hub USB (UCAMINIZHUB)

1. Introduzione

This manual provides instructions for the Macally Wired Keyboard for Mac with an integrated USB Hub (Model: UCAMINIZHUB). This compact keyboard is designed for Apple computers, offering a familiar MacOS layout, convenient shortcut keys, and a built-in 3-port USB hub for connecting additional peripherals. Its 2-in-1 USB-C and USB-A plug ensures broad compatibility.

Immagine: Oltreview of the Macally Wired Keyboard for Mac, showcasingrazie al suo design compatto e al cavo integrato.

2. Impostazione

2.1 Contenuto della confezione

• Macally Wired Keyboard (UCAMINIZHUB)
• Guida per l'utente (questo documento)

2.2 Collegamento della tastiera

1. Locate the integrated USB cable on the Macally keyboard. This cable features a unique 2-in-1 plug, allowing connection to either a USB-A or USB-C port.
2. Connect the appropriate end of the keyboard's USB cable to an available USB-A or USB-C port on your Mac computer (MacBook Pro/Air, Mac mini, iMac).
3. Your Mac should automatically detect the keyboard. Follow any on-screen prompts to identify the keyboard type if necessary. No additional drivers are required for basic functionality.

Immagine: Primo piano view of the keyboard's 2-in-1 USB-A and USB-C plug, demonstrating its versatility for different port types.

3. Funzionamento

3.1 MacOS Layout and Shortcut Keys

The Macally UCAMINIZHUB keyboard features a 78-key MacOS layout, providing a familiar typing experience for Mac users. It includes 12 convenient shortcut keys for quick access to common functions such as screen brightness, volume control, media playback, and Mission Control.

• Da F1 a F2: Regolazione della luminosità dello schermo
• Domanda 3: Controllo missione
• Domanda 4: rampa di lancio
• Da F7 a F9: Media Playback Controls (Previous, Play/Pause, Next)
• Da F10 a F12: Volume Control (Mute, Volume Down, Volume Up)

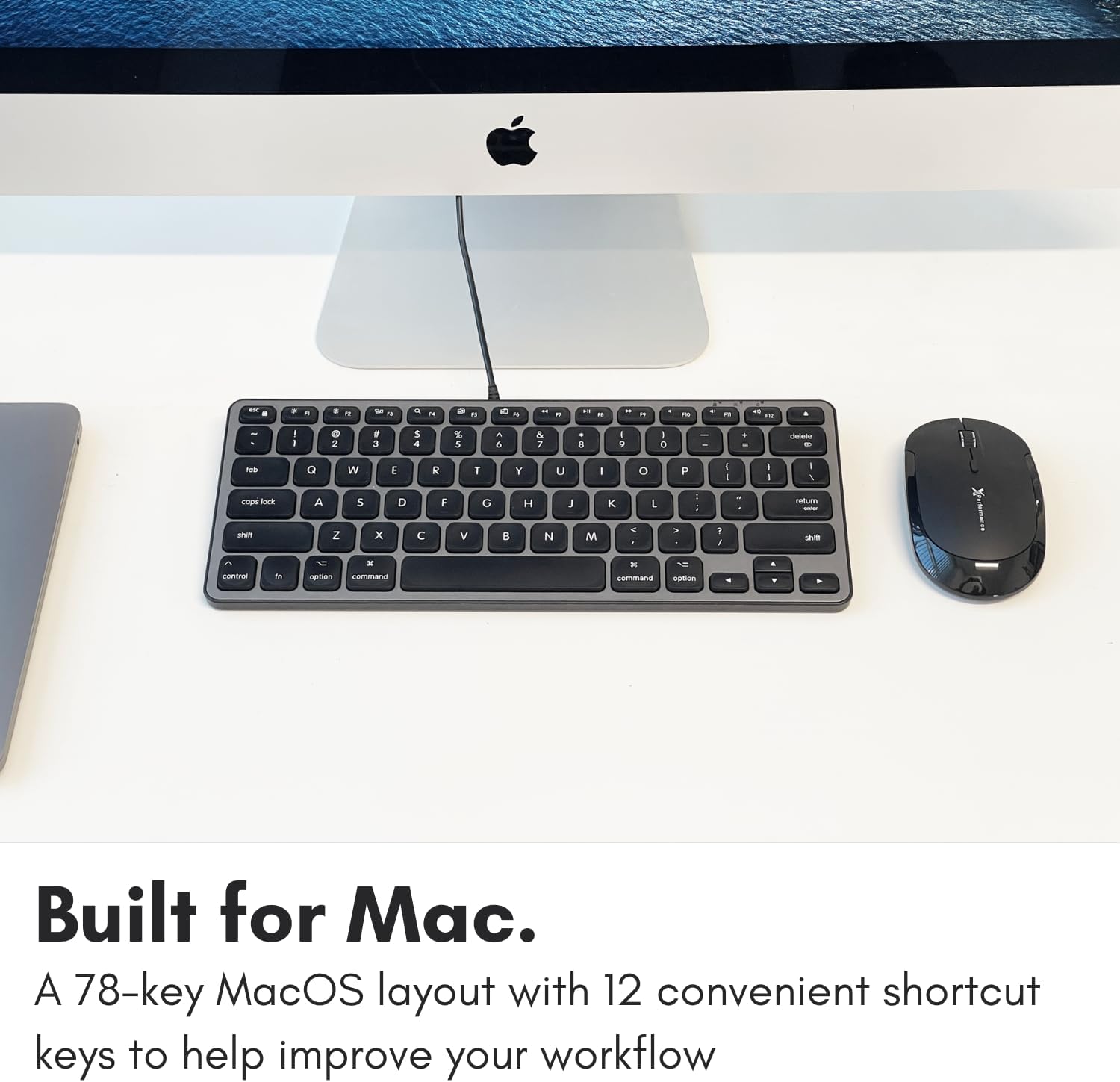

Image: The Macally keyboard positioned next to an iMac, highlighting its MacOS-specific layout and shortcut keys.

3.2 Integrated USB Hub

The keyboard includes a built-in 3-port USB hub, consisting of two USB-C ports and one USB-A port. This allows you to connect additional peripherals directly to your keyboard, such as a mouse, flash drive, or external hard drive, providing convenient access and reducing cable clutter.

• 2x USB-C Ports: For connecting USB-C compatible devices.
• 1x USB-A Port: For connecting standard USB-A compatible devices.

To use the USB hub, simply plug your peripheral devices into the available ports on the side of the keyboard.

Immagine: un primo piano view of the side of the Macally keyboard, clearly showing the integrated USB-C and USB-A ports of the built-in hub.

3.3 Scissor Switch Keys

The keyboard utilizes scissor-switch key technology, providing a tactile and responsive typing experience similar to Apple's native keyboards. This design ensures comfortable and efficient typing.

Image: A close-up of the keyboard keys, illustrating the low-profile design and keycap structure indicative of scissor-switch technology.

3.4 Ergonomics and Portability

The keyboard features an integrated kickstand that angles the keyboard slightly, enhancing typing comfort. Its compact size makes it suitable for various desk setups and easy to transport.

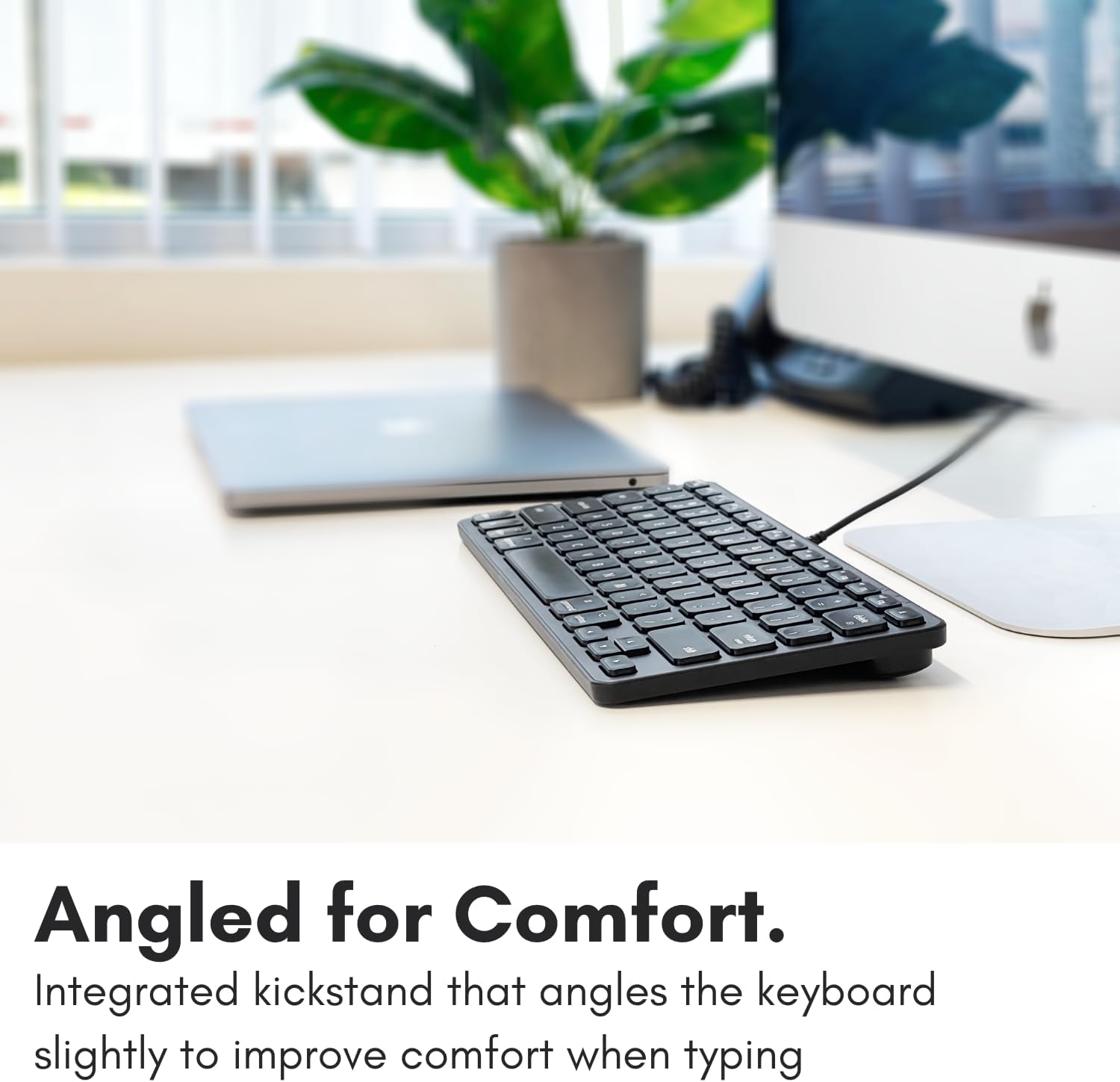

Image: The Macally keyboard shown from a side angle, highlighting the slight incline provided by its integrated kickstand for ergonomic typing.

Image: The compact Macally keyboard on a desk, demonstrating how its small footprint helps save desk space.

4. Manutenzione

To ensure the longevity and optimal performance of your Macally keyboard, follow these maintenance guidelines:

• Pulizia: Utilizzare un panno morbido e privo di lanugine leggermente dampPulire la superficie della tastiera con acqua o una soluzione detergente delicata. Evitare prodotti chimici aggressivi, detergenti abrasivi o umidità eccessiva.
• Rimozione della polvere: Utilizzare aria compressa per rimuovere polvere e detriti dagli spazi tra i tasti.
• Magazzinaggio: Quando non viene utilizzata, conservare la tastiera in un ambiente pulito e asciutto, lontano da temperature estreme e dalla luce solare diretta.
• Cura del cavo: Evitare di piegare o schiacciare eccessivamente il cavo USB per evitare danni.

5. Risoluzione Dei Problemi

If you encounter issues with your Macally keyboard, refer to the following common troubleshooting steps:

• La tastiera non risponde:
  • Ensure the USB cable is securely connected to your Mac's USB-A or USB-C port.
  • Prova a collegare la tastiera a una porta USB diversa sul tuo Mac.
  • Restart your Mac computer.
  • Check System Settings/Preferences > Keyboard to ensure the keyboard is recognized and configured correctly.
• Hub USB non funzionante:
  • Ensure the keyboard itself is properly connected and functioning.
  • Verify that the peripheral device connected to the hub is working correctly when plugged directly into your Mac.
  • Some high-power devices may require direct connection to your Mac or a powered USB hub. The keyboard's hub is designed for low-power peripherals.
• Shortcut Keys Not Working:
  • Ensure your Mac's operating system is up to date.
  • Check System Settings/Preferences > Keyboard > Keyboard Shortcuts to ensure no conflicts exist.

6. Specifiche

7. Garanzia e supporto

Macally products are designed for reliability and performance. This product comes with a Garanzia limitata di 2 anno dalla data di acquisto.

For technical support, warranty claims, or further assistance, please contact Macally customer support. US-based support is available to assist you with any questions or issues you may have.

Please visit the official Macally websito per le informazioni di contatto e le risorse di supporto più aggiornate: www.macally.com
