ECONTROLLY NK1B Replacement Remote Control User Manual

1. Introduzione

This manual provides instructions for the ECONTROLLY NK1B replacement infrared remote control. This remote is designed to be compatible with the Nakamichi Sound Bar NK1B, offering a straightforward and easy-to-operate solution for controlling your sound system.

The remote control operates using infrared technology and does not require any programming or complex setup procedures. Simply insert the batteries, and it is ready for use.

Figura 1: Fronte view of the ECONTROLLY NK1B Replacement Remote Control.

2. Impostazione

2.1 Installazione della batteria

The ECONTROLLY NK1B remote control requires two (2) AAA ALKALINE batteries for operation. Please follow these steps to install the batteries:

1. Individuare il vano batterie sul retro del telecomando.
2. Far scorrere per aprire il coperchio del vano batterie.
3. Insert two AAA ALKALINE batteries, ensuring that the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
4. Chiudere saldamente il coperchio del vano batterie.

Important: Do not use rechargeable batteries. Only AAA ALKALINE batteries are recommended for optimal performance and to prevent potential damage to the remote control.

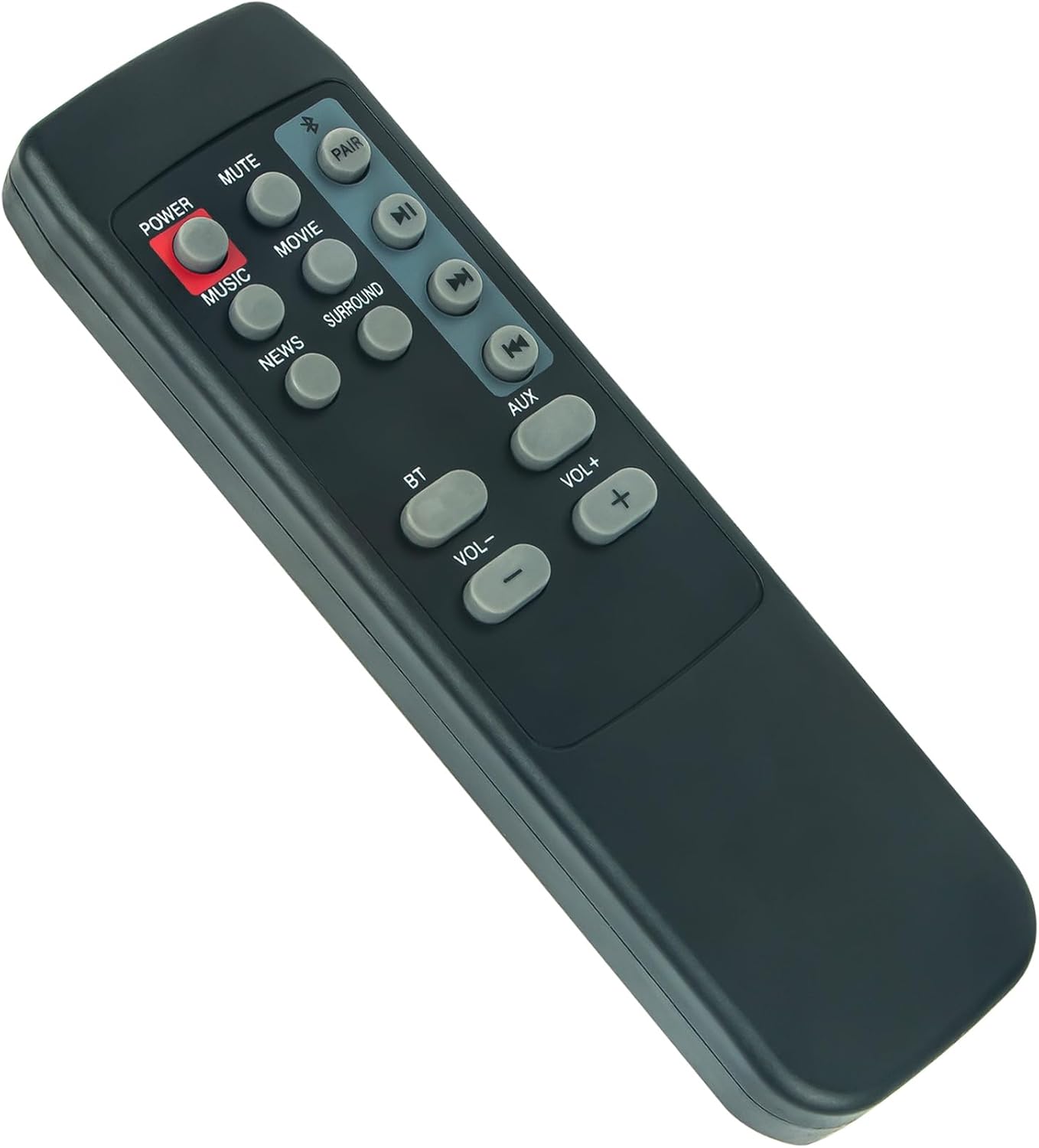

Figura 2: Angolato view of the remote control, typically where the battery compartment is located on the back.

3. Istruzioni per l'uso

3.1 Funzionamento di base

This remote control is pre-programmed for the Nakamichi Sound Bar NK1B. No additional programming is required. Point the remote control directly at the infrared receiver on your sound bar for proper functionality.

3.2 Funzioni dei pulsanti

The remote control features various buttons for controlling your Nakamichi Sound Bar NK1B. Refer to the image below for button layout and their corresponding functions:

Figura 3: primo piano view dei pulsanti del telecomando.

• ENERGIA (Red Button): Turns the sound bar on or off.
• MUTE: Disattiva o riattiva l'audio.
• MUSICA: Selects the Music sound mode.
• FILM: Selects the Movie sound mode.
• NOTIZIA: Selects the News sound mode.
• CIRCONDARE: Attiva o disattiva la modalità audio surround.
• BT: Selects Bluetooth input source.
• AUSILIARIO: Selects Auxiliary input source.
• vol-: Decreases the volume.
• Volume+: Aumenta il volume.
• PAIO: Avvia la modalità di associazione Bluetooth.
• Riproduci/Pausa (►▮▮): Plays or pauses media playback.
• Salta avanti (►►): Skips to the next track or chapter.
• Salta indietro (◄◄): Skips to the previous track or chapter.

4. Manutenzione

4.1 Pulizia

Per pulire il telecomando, strofinarlo delicatamente con un panno morbido e asciutto. Evitare l'uso di detergenti liquidi, solventi o materiali abrasivi, poiché potrebbero danneggiare la superficie o i componenti interni.

4.2 Conservazione

When not in use for extended periods, remove the batteries to prevent leakage and store the remote control in a cool, dry place away from direct sunlight and extreme temperatures.

5. Risoluzione Dei Problemi

5.1 Il telecomando non risponde

• Controllare le batterie: Ensure the batteries are inserted correctly with the correct polarity (+/-) and are not depleted. Replace with fresh AAA ALKALINE batteries if necessary.
• Linea di vista: Make sure there is a clear line of sight between the remote control and the infrared receiver on your Nakamichi Sound Bar NK1B. Obstructions can block the signal.
• Distanza: Assicurarsi di trovarsi all'interno del raggio d'azione effettivo del telecomando.
• Interferenza: Strong light sources, such as direct sunlight or fluorescent lighting, can interfere with infrared signals. Try operating the remote in a different environment.

5.2 Buttons Not Functioning Correctly

• Pulsanti puliti: Ensure there is no dirt or debris lodged around the buttons.
• Controllo della batteria: Low batteries can sometimes cause intermittent button functionality. Replace batteries.

6. Specifiche

7. Supporto

If you have any questions, encounter issues, or require further assistance with your ECONTROLLY NK1B replacement remote control, please feel free to contact the manufacturer or seller for support.
