1. Introduzione

This manual provides instructions for the proper setup, operation, maintenance, and troubleshooting of your Epson TM-S1000 M236A Single Feed MICR Check Scanner. Please read this manual thoroughly before using the device to ensure optimal performance and longevity.

The Epson TM-S1000 is designed for efficient and accurate scanning of checks, featuring single-feed capability and Magnetic Ink Character Recognition (MICR) technology for secure document processing. It also supports double-sided scanning.

2. Impostazione

2.1 Disimballaggio e contenuto

Rimuovere con attenzione tutti i componenti dall'imballaggio. Verificare che siano presenti tutti gli elementi:

• Epson TM-S1000 M236A Check Scanner
• Adattatore CA
• Cavo di alimentazione
• USB Cable (may be included or sold separately)

Figure 2.1: Epson TM-S1000 M236A Check Scanner with included AC adapter and power cord.

2.2 Collegamento dell'alimentazione

1. Connect the AC adapter to the power input port on the scanner.
2. Collegare il cavo di alimentazione all'adattatore CA.
3. Collegare il cavo di alimentazione a una presa elettrica standard.

2.3 Collegamento a un computer

1. Collegare un'estremità del cavo USB alla porta USB dello scanner.
2. Collegare l'altra estremità del cavo USB a una porta USB disponibile sul computer.

2.4 Installazione del driver

After connecting the scanner to your computer, you may need to install the appropriate drivers. Refer to the Epson support website for the latest drivers compatible with your operating system (Windows, macOS).

3. Istruzioni per l'uso

3.1 Accensione/Spegnimento

• To power on the scanner, ensure it is connected to power and your computer. The power indicator light will illuminate.
• To power off, disconnect the power cord from the electrical outlet.

3.2 Loading Checks

The TM-S1000 is a single-feed scanner. Load one check at a time into the input slot.

1. Ensure the check is flat and free from staples or paper clips.
2. Gently insert the check into the input slot, face up, until the scanner mechanism grips it.

Figure 3.1: Input tray for single-feed check scanning.

3.3 Processo di scansione

Once a check is loaded and the scanner is ready, initiate the scan through your scanning software. The check will be fed through the scanner, and the scanned image will be processed by your computer.

Figure 3.2: Scanner with the output tray extended, ready to receive scanned checks.

3.4 Comprensione delle spie luminose

The scanner features indicator lights to communicate its status:

• Indicatore di alimentazione: Illuminates when the scanner is powered on.
• Indicatore di errore: Illuminates or flashes to indicate an error condition (e.g., paper jam, scanner malfunction). Refer to the troubleshooting section.
• Document Indicator: Illuminates when a document is detected in the input slot or during scanning.

Figura 3.3: primo piano view of the scanner's status indicator lights.

4. Manutenzione

4.1 Pulizia dello scanner

Regular cleaning helps maintain optimal scanning quality and prevents paper jams. Always power off and unplug the scanner before cleaning.

1. Open the scanner covers to access the internal components.
2. Utilizzando un panno morbido e privo di lanugine, pulire delicatamenteampened with water or a mild, non-abrasive cleaner, gently wipe the rollers and glass surfaces.
3. Allow all components to dry completely before closing the covers and reconnecting power.

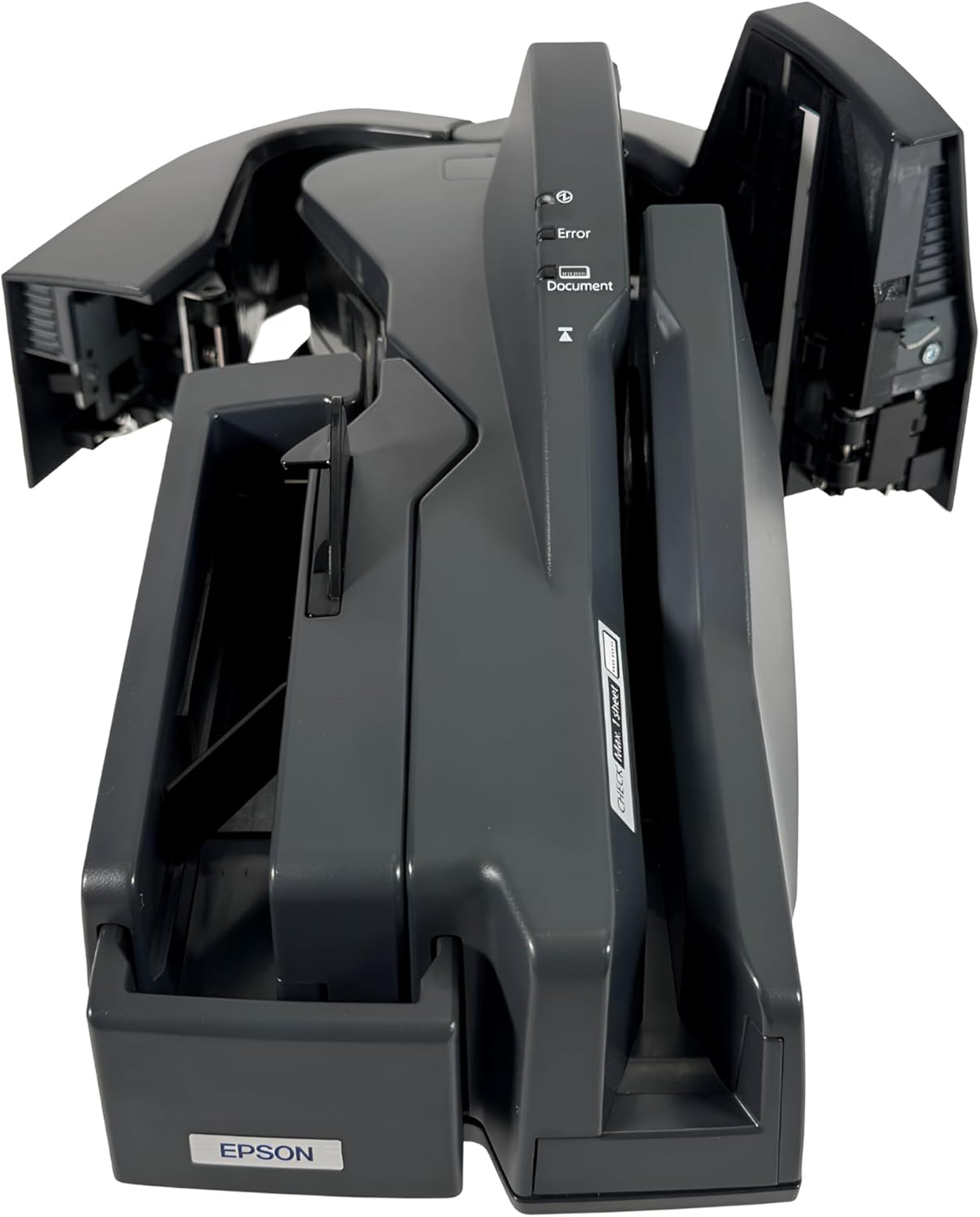

Figure 4.1: Scanner with covers open, showing internal access for cleaning.

5. Risoluzione Dei Problemi

This section addresses common issues you might encounter with your Epson TM-S1000 scanner.

5.1 Scanner Not Powering On

• Ensure the AC adapter is securely connected to the scanner and the power cord is firmly plugged into a working electrical outlet.
• Verificare che la presa di corrente funzioni collegandovi un altro dispositivo.

5.2 Document Not Feeding or Paper Jam

• Check that the document is inserted correctly and is not wrinkled, folded, or damaged.
• Open the scanner covers (refer to Section 4.1) and carefully remove any jammed paper or obstructions.
• Clean the rollers if they appear dirty or worn.

5.3 Error Light Illuminated

• An illuminated error light typically indicates a problem such as a paper jam, cover open, or internal malfunction.
• Follow the steps for "Document Not Feeding or Paper Jam" if applicable.
• Ensure all covers are securely closed.
• Restart the scanner by unplugging and replugging the power cord.
• If the issue persists, consult the Epson support websito o contattare l'assistenza clienti.

5.4 Scarsa qualità di scansione

• Clean the scanner's glass surfaces and rollers as described in Section 4.1.
• Ensure the check is clean and free from smudges or excessive folds.
• Verify that the correct scanning settings are selected in your software.

6. Specifiche

Figure 6.1: Product label with model, serial number, and certification details.

7. Garanzia e supporto

7.1 Garanzia del produttore

This product is covered by a manufacturer's warranty provided by Epson. Please refer to the warranty documentation included with your purchase or visit the official Epson websito per termini e condizioni di garanzia dettagliati.

7.2 Supporto tecnico

For technical assistance, driver downloads, or further troubleshooting not covered in this manual, please visit the official Epson support website or contact their customer service department. Have your product model (TM-S1000 M236A) and serial number ready when contacting support.
