GAZHOME Twin Metal Platform Bed Frame with Storage Drawers - Instruction Manual

1. Introduzione e oltreview

This manual provides comprehensive instructions for the assembly, operation, and maintenance of your GAZHOME Twin Metal Platform Bed Frame with two XL storage drawers. This bed frame is designed for durability and space-saving functionality, featuring a robust metal structure and integrated storage.

Image 1.1: Fully assembled GAZHOME Twin Metal Platform Bed Frame with two storage drawers, shown with bedding.

2. Informazioni sulla sicurezza

Si prega di leggere attentamente tutte le avvertenze di sicurezza prima del montaggio e dell'uso. Il mancato rispetto di queste istruzioni può causare lesioni o danni al prodotto.

• Capacità di peso: Non superare la capacità di peso massima di 1000 libbre (circa 453 kg).
• Parti mobili: Be cautious of moving parts and sharp edges during assembly.
• Bambini: Keep small parts away from children during assembly. Do not allow children to play on or under the bed frame.
• Montaggio: Assicurarsi che tutti i bulloni e gli elementi di fissaggio siano ben serrati prima dell'uso. Controllare periodicamente e serrare nuovamente se necessario.
• Superficie piana: Montare e utilizzare la struttura del letto su una superficie piana e livellata per evitare instabilità.

3. Contenuto della confezione

Before beginning assembly, verify that all components and hardware are present. Refer to the detailed parts list included in your package. If any parts are missing or damaged, contact customer support.

Immagine 3.1: Esploso view showing the metal frame, slats, and storage drawer components.

Image 3.2: Diagram illustrating the overall dimensions and key structural components of the bed frame.

A complete hardware kit and assembly tools are included in the package. No additional tools are typically required for assembly.

4. Istruzioni per l'installazione e il montaggio

Assembly of the GAZHOME Twin Metal Platform Bed Frame is designed to be straightforward. Follow the step-by-step instructions provided in the included manual. It is recommended to assemble the bed frame with two people for ease and safety.

1. Disimballare i componenti: Carefully unpack all parts and lay them out on a clean, soft surface (e.g., a carpet or blanket) to prevent scratches.
2. Montare il telaio principale: Connect the headboard, footboard, and side rails using the provided bolts and tools. Do not fully tighten bolts until all major components are aligned.
3. Installare le doghe: Place the metal slats onto the designated supports. Ensure the rubber strips are properly positioned to prevent noise.
4. Montare i cassetti: Construct the two XL storage drawers according to the separate drawer assembly instructions. Attach the wheels to the bottom of each drawer.
5. Serraggio finale: Once all components are in place and aligned, securely tighten all bolts.

Image 4.1: Detail showing the mute buckle design for secure connections and the noise-free slat system, which contributes to a quiet sleeping environment.

For detailed visual guidance, refer to the assembly diagrams in your product manual.

5. Istruzioni per l'uso

5.1 Utilizzo dei cassetti portaoggetti

The GAZHOME bed frame includes two extra-large storage drawers designed to maximize under-bed storage space. These drawers are equipped with wheels for easy movement.

• Posizionamento: The drawers can be positioned on either the left or right side of the bed frame, depending on your preference and room layout.
• Accesso: Simply pull the drawers out from under the bed to access stored items. Push them back in when not in use to keep your space tidy.
• Capacità: Utilize the generous capacity for storing bedding, clothing, books, or other personal items.

Image 5.1: The two XL storage drawers shown pulled out from under the bed frame, demonstrating their capacity and wheeled design for easy access.

5.2 Mattress Recommendation

This platform bed frame does not require a box spring. It is compatible with a twin-sized mattress. For optimal comfort and aesthetics, a mattress thickness of 10-14 inches is recommended.

Image 5.2: Visual guide for recommended mattress thickness (10-14 inches) for the bed frame, indicating no box spring is needed.

6. Manutenzione e cura

Una cura adeguata prolungherà la durata e l'aspetto della struttura del letto.

• Pulizia: Wipe the metal frame and drawer surfaces with a damp cloth. For general cleaning, a dry cloth is sufficient. Avoid harsh chemicals or abrasive cleaners.
• Ispezione: Periodically inspect all bolts and connections to ensure they remain tight. Retighten as needed to maintain stability and prevent noise.
• Distribuzione del peso: Ensure weight is evenly distributed across the bed frame to prevent stress on individual slats.

7. Risoluzione Dei Problemi

Questa sezione affronta i problemi più comuni che potresti riscontrare con la struttura del tuo letto.

• Cigolio o rumore:
  • Assicurarsi che tutti i bulloni siano serrati saldamente.
  • Verify that the rubber strips on the slats are correctly positioned to minimize metal-on-metal contact.
  • Check if the bed frame is on a level surface.
• Drawers Slide Freely:
  • The storage drawers are designed with wheels for easy movement and do not feature fixed tracks or sliders. This allows for flexible placement.
  • To prevent excessive movement, ensure the bed frame is placed on a rug or carpeted surface, which can provide more friction for the drawer wheels.
• Slats Bending or Breaking:
  • Ensure the total weight on the bed (including mattress and occupants) does not exceed 1000 lbs.
  • Verify that the mattress is properly supported across all slats.
  • Avoid concentrated weight or impact on specific slats.
• Difficoltà durante il montaggio:
  • Refer to the detailed assembly manual provided with the product.
  • Ensure all parts are correctly oriented before tightening bolts. It is often easier to loosely assemble all parts first, then tighten them securely.
  • Contact customer support if you encounter persistent issues.

8. Specifiche

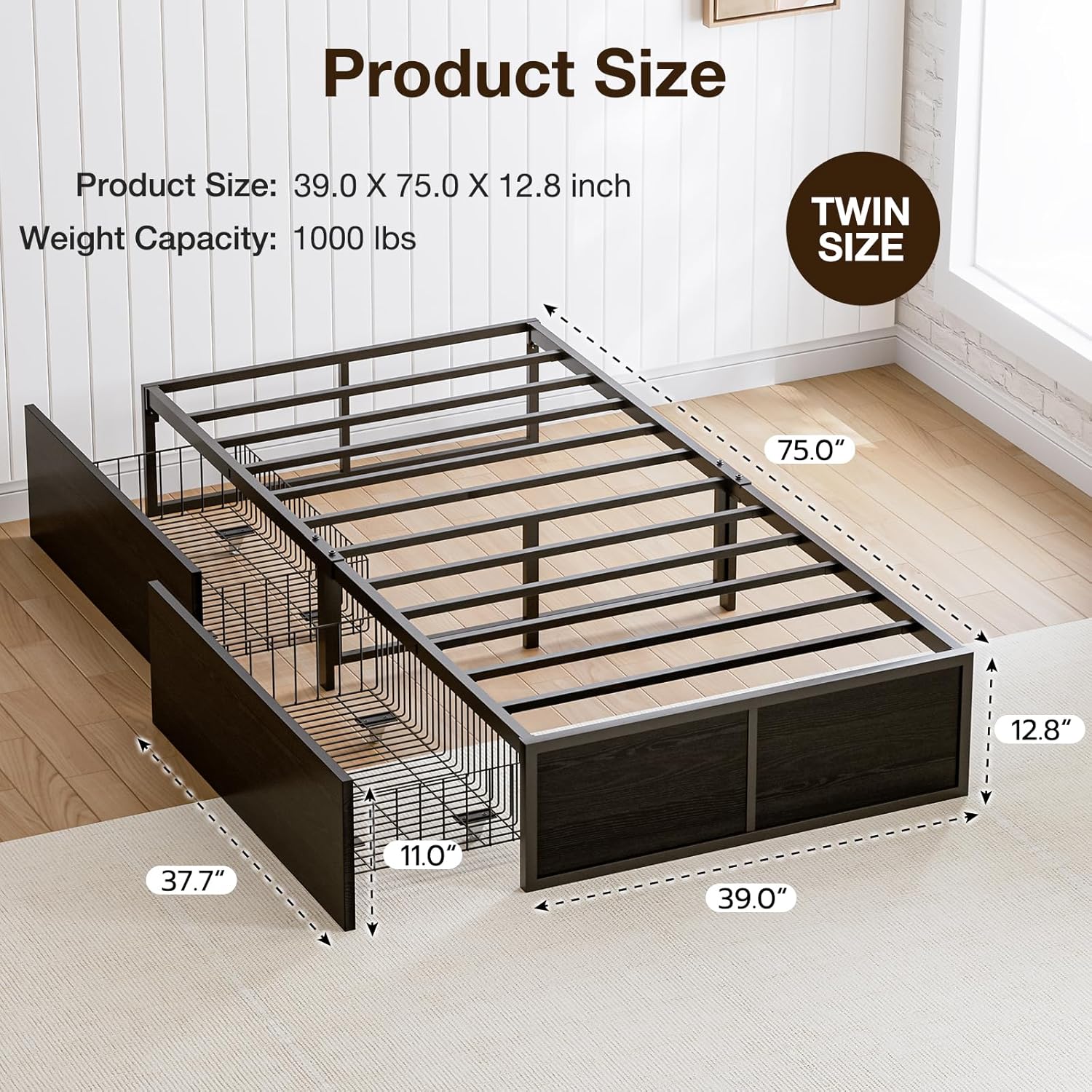

Image 8.1: Diagram showing the precise measurements of the bed frame, including length, width, height, and under-bed clearance.

9. Garanzia e supporto

GAZHOME is committed to customer satisfaction. If you have any questions, concerns, or require assistance with your bed frame, please do not hesitate to contact our customer support team. We are ready to assist you promptly and effectively.

For warranty information or to report missing/damaged parts, please refer to the contact details provided in your product packaging or visit the official GAZHOME websito.
