Manuale utente della stampante termica portatile Xprinter XP-P323B

1. Introduzione

This manual provides detailed instructions for the safe and efficient operation of your Xprinter XP-P323B Portable Thermal Printer. Please read this manual thoroughly before using the device to ensure proper functionality and to prevent damage. The XP-P323B is designed for printing receipts and labels, offering portability and high-speed capabilities for various business needs.

2. Informazioni sulla sicurezza

• Non esporre la stampante all'acqua o a umidità eccessiva.
• Evitare di far cadere la stampante o di sottoporla a forti urti.
• Utilizzare solo l'adattatore di alimentazione e gli accessori specificati.
• Keep the printer away from heat sources and direct sunlight.
• Non tentare di smontare o riparare la stampante da soli. Contattare personale di assistenza qualificato.
• Garantire una ventilazione adeguata durante il funzionamento.

3. Contenuto della confezione

Verificare che tutti gli articoli siano presenti nel pacco:

• Xprinter XP-P323B Portable Thermal Printer
• Power Adapter (not explicitly listed but standard)
• USB Cable (not explicitly listed but standard)
• Sample Thermal Paper Roll (not explicitly listed but standard)
• Manuale dell'utente (questo documento)

4. Prodotto finitoview

The Xprinter XP-P323B is a compact and efficient thermal printer designed for various printing tasks. It supports NV logo download and picture printing (BMP format), along with concentration adjustment for print quality.

4.1. Printer Components

Figura 1: Davanti view of the Xprinter XP-P323B Portable Thermal Printer, showing the power button, display, and a sample label being printed.

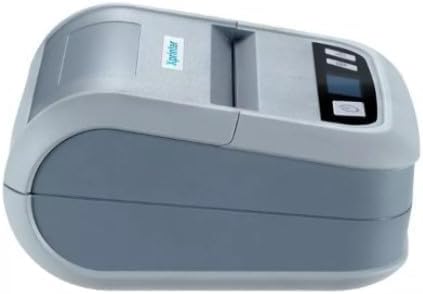

Figura 2: Lato view of the Xprinter XP-P323B, highlighting its compact design and the Xprinter logo.

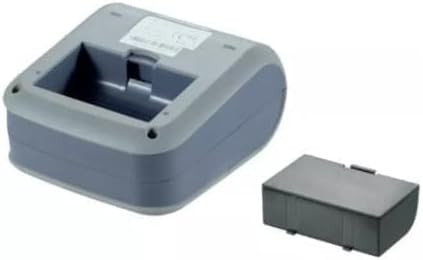

Figura 3: Parte inferiore view of the Xprinter XP-P323B, showing the base and the removable battery compartment.

5. Impostazione

5.1. Carica della batteria

1. Connect the power adapter to the printer's charging port.
2. Collegare l'adattatore di corrente a una presa a muro.
3. The charging indicator light will illuminate. Allow the printer to charge fully before first use.

5.2. Loading Thermal Paper/Labels

1. Open the paper compartment cover by gently pushing the release latch.
2. Insert the thermal paper roll with the printing surface facing the print head. Ensure the roll is seated correctly.
3. Estrarre una piccola quantità di carta oltre la testina di stampa.
4. Chiudere saldamente il coperchio del vano carta finché non scatta in posizione.

5.3. Connessione a un dispositivo

The XP-P323B supports USB and Bluetooth connectivity.

5.3.1. Connessione USB

1. Collega la stampante al computer utilizzando il cavo USB in dotazione.
2. Install the necessary printer drivers (available from the Xprinter website or included software).

5.3.2. Bluetooth Connection (for Smartphones/iOS)

1. Assicurarsi che la stampante sia accesa.
2. On your smartphone or iOS device, go to Bluetooth settings and enable Bluetooth.
3. Cercare available devices and select 'XP-P323B' (or similar name).
4. Enter the pairing PIN if prompted (refer to printer documentation for default PIN, often '0000' or '1234').
5. Once paired, you can use a compatible printing application to send print jobs.

6. Utilizzo della stampante

6.1. Stampa di base

1. Ensure the printer is connected to your device and has paper loaded.
2. Open the document or image you wish to print on your connected device.
3. Select the print option within your application.
4. Choose 'XP-P323B' as the printer.
5. Adjust print settings as needed (e.g., paper size, print quality).
6. Avviare il processo di stampa.

6.2. NV Logo and Picture Printing

The printer supports downloading and printing NV (Non-Volatile) logos and BMP format pictures. This functionality typically requires specific software or commands. Refer to the advanced programming guide or software documentation for detailed instructions on how to upload and print custom logos or images.

6.3. Adjusting Print Concentration

Print concentration can be adjusted to optimize print quality. This setting is usually accessible through the printer driver software on a computer or within the settings of a compatible mobile printing application. Consult your software's help section for specific steps.

7. Manutenzione

7.1. Pulizia della stampante

• Esterno: Pulire l'esterno della stampante con un panno morbido eamp stoffa. Non utilizzare prodotti chimici aggressivi o detergenti abrasivi.
• Testina di stampa: The thermal print head should be cleaned periodically to ensure optimal print quality. Use a cotton swab lightly dampcon alcol isopropilico. Pulire delicatamente la superficie della testina di stampa. Lasciarla asciugare completamente prima di chiudere il coperchio e riprendere l'operazione.
• Percorso carta: Rimuovere la polvere o i detriti di carta dal percorso della carta utilizzando una spazzola morbida o aria compressa.

7.2. Conservazione

When not in use for extended periods, store the printer in a cool, dry place, away from direct sunlight and extreme temperatures. Remove the paper roll if storing for a very long time to prevent dust accumulation.

8. Risoluzione Dei Problemi

9. Specifiche

10. Garanzia e supporto

For warranty information and technical support, please refer to the warranty card included with your product or visit the official Xprinter websito. Conservare la ricevuta d'acquisto come prova d'acquisto per eventuali reclami in garanzia.
