1. Prodotto finitoview
This manual provides instructions for the Archaic Tailgate Ladder, designed for Suzuki Jimny Sierra JB64 and JB74 models manufactured between 2019 and 2024. This accessory facilitates access to the vehicle's roof or cargo area.
The ladder features a robust aluminum construction with five anti-slip steps, capable of supporting a maximum load of 200 kg. Its design allows for easy installation without drilling and ensures the tailgate can be opened and closed freely after installation.
Image 1.1: Archaic Tailgate Ladder installed on a Suzuki Jimny Sierra.
2. Specifiche del prodotto
| Specificazione | Dettaglio |
|---|---|
| Marca | Arcaico |
| Numero di modello | 74JMN-TZ-B-EU1 |
| Colore | Nero |
| Materiale | Alluminio |
| Dimensioni del prodotto (L x P x A) | Dimensioni: 10 x 12.67 x 40 cm |
| Peso dell'articolo | 3.5 chilogrammi |
| Caratteristica speciale | Anti-slip steps |
| Capacità di carico massima | 200 kg |
| Numero di passaggi | 5 |
Image 2.1: Product dimensions of the tailgate ladder.
3. Contenuto della confezione
Verificare che tutti i componenti siano presenti nella confezione prima di iniziare l'installazione:
- Tailgate Ladder (Black Aluminum) x 1
- Assembled Bolts and Washers (various sizes)
- Staffe di montaggio
- Hex Wrenches (for assembly)
- Protective Gloves (for handling)

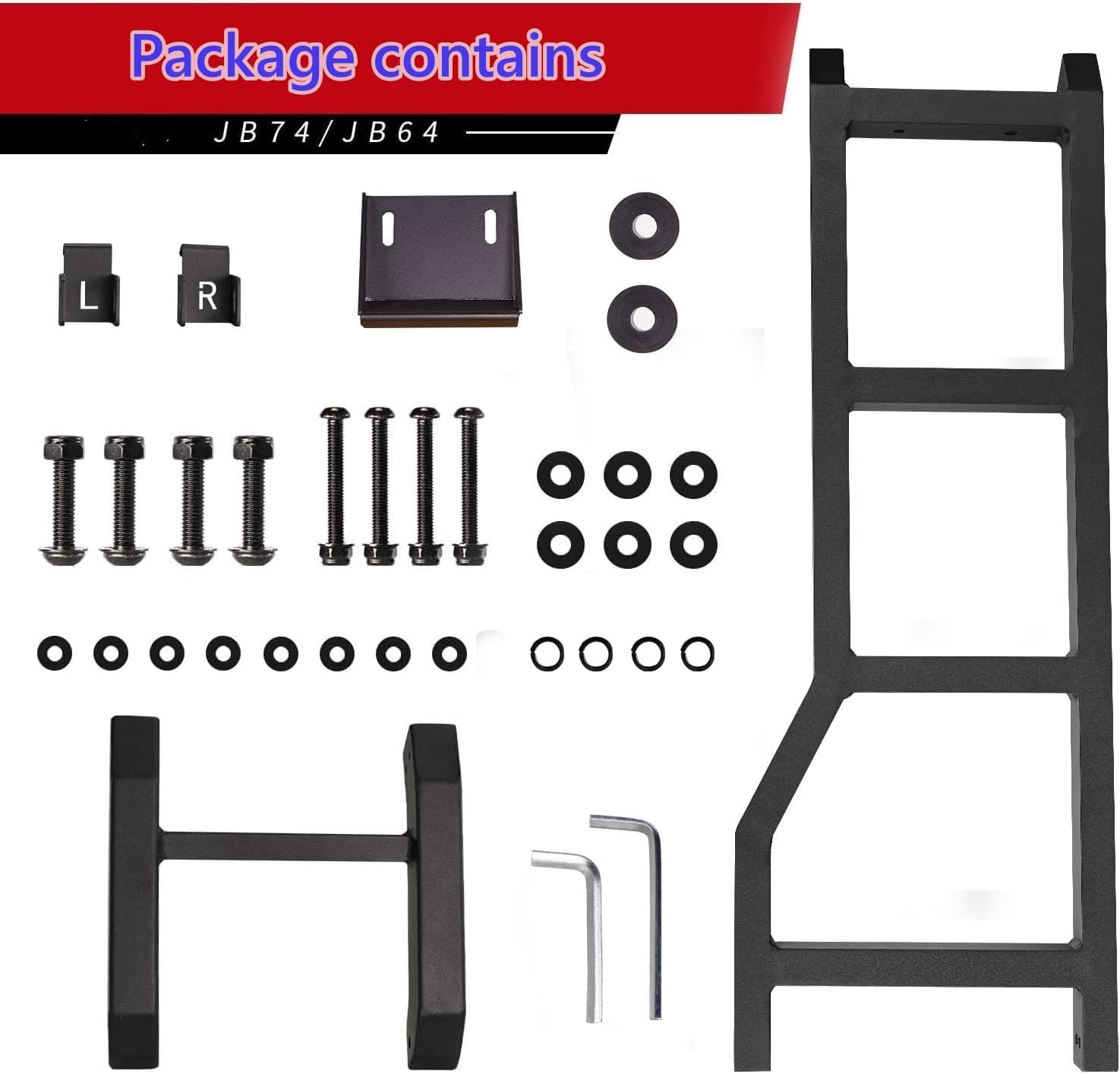

Immagine 3.1: Tutti i componenti inclusi nella confezione.
4. Configurazione e installazione
The Archaic Tailgate Ladder is designed for a straightforward, no-drilling installation process. Follow these steps carefully:
- Step 1: Assemble the upper section. Attach the top part of the ladder using the M6x45 bolts (4 pieces). Ensure they are securely fastened.
- Step 2: Connect the main ladder sections. Join the two main ladder sections using the M8x55 bolts (2 pieces).
- Step 3: Attach the lower support. Secure the lower support bracket to the main ladder using the M8x35 bolts (2 pieces).
- Step 4: Prepare for vehicle mounting. The ladder should now be assembled.
Image 4.1: Step-by-step assembly instructions.
Once assembled, position the ladder on the vehicle's tailgate. The upper hooks will secure over the top edge of the tailgate, and the lower section will rest against the bumper. The design incorporates a suspended support system to ensure stability without requiring permanent modifications to the vehicle.

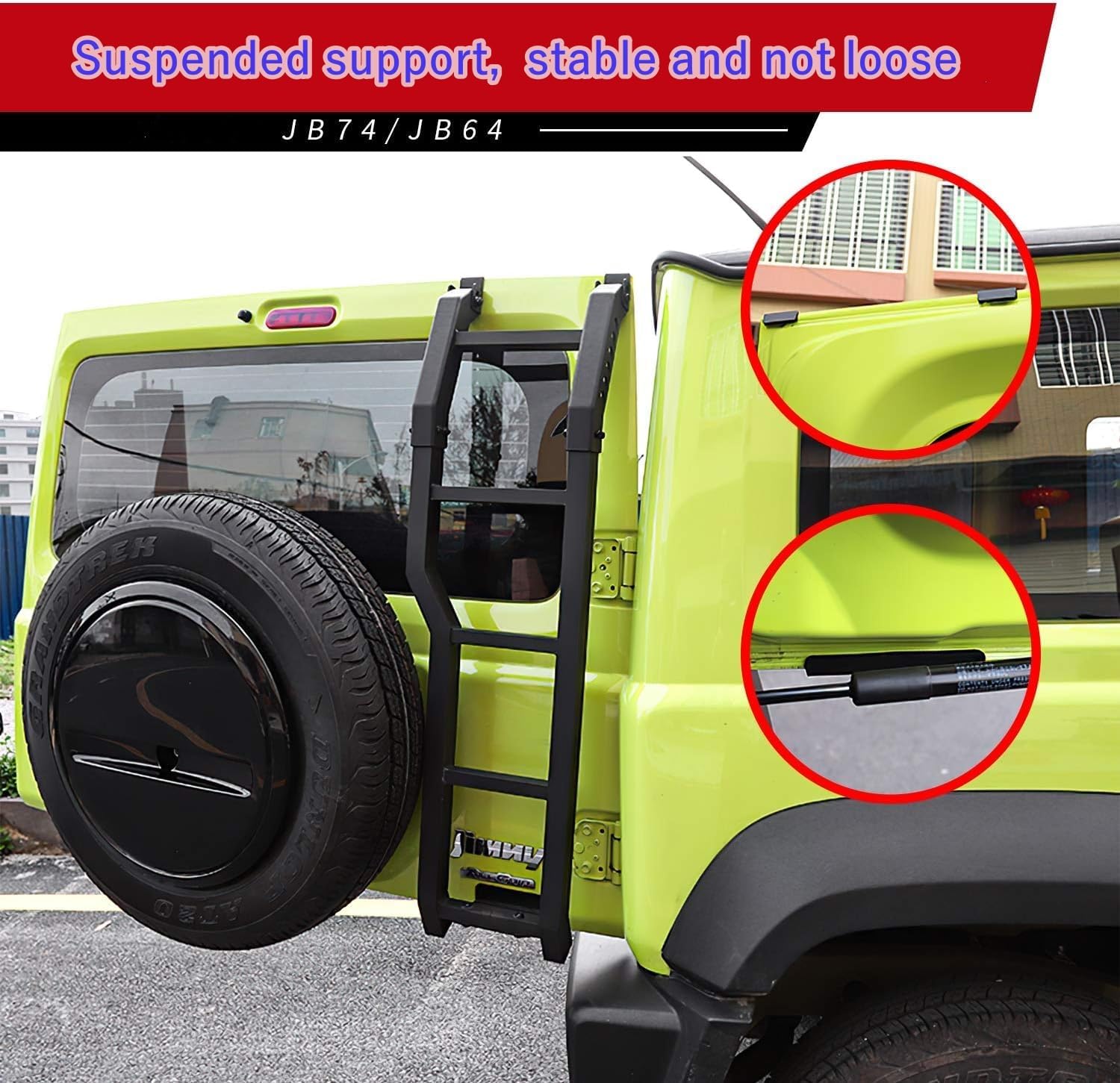

Image 4.2: Detail of the suspended support for stable, non-drilling installation.
5. Istruzioni per l'uso
The tailgate ladder provides a secure and convenient way to access the roof rack or other elevated areas of your Suzuki Jimny Sierra. Always ensure the ladder is properly seated and stable before use.
- Arrampicata: Use the anti-slip steps to ascend or descend. Maintain three points of contact (two hands and one foot, or two feet and one hand) at all times.
- Limite di peso: Non superare la capacità di carico massima di 200 kg (circa 440 libbre).
- Tailgate Operation: The ladder's design allows the tailgate to open and close freely even when the ladder is installed.
Image 5.1: Demonstrating safe use of the tailgate ladder.
6. Manutenzione
To ensure the longevity and safe operation of your Archaic Tailgate Ladder, follow these maintenance guidelines:
- Ispezione regolare: Controllare periodicamente tutti i bulloni e i collegamenti per assicurarsi che siano ben serrati. Serrare nuovamente se necessario.
- Pulizia: Clean the ladder with mild soap and water. Avoid abrasive cleaners or solvents that could damage the finish.
- Controllo dei danni: Inspect the aluminum frame and steps for any signs of damage, cracks, or deformation. If damage is found, discontinue use and contact customer support.
- Magazzinaggio: If removing the ladder for extended periods, store it in a dry place away from direct sunlight and extreme temperatures.
7. Risoluzione Dei Problemi
If you encounter any issues with your tailgate ladder, consider the following:
- Ladder feels loose: Recheck all assembly bolts and mounting points on the tailgate. Ensure they are tightened according to the installation instructions.
- Difficulty opening/closing tailgate: Verify that the ladder is correctly positioned and not obstructing the tailgate hinges or latch mechanism. Adjust its placement if necessary.
- Unusual noises during use: Inspect for any loose components or contact points that might be rubbing. Ensure all parts are securely fastened.
For persistent issues or concerns not addressed here, please contact Archaic customer support.
8. Garanzia e supporto
For information regarding product warranty, returns, or technical support, please refer to the purchase documentation or contact Archaic customer service directly through their official channels. Keep your proof of purchase for any warranty claims.
