Introduzione
Thank you for choosing the THINK 30 Full Size Lift Up Storage Bed. This modern upholstered platform bed features a hydraulic storage system, integrated LED lighting, and convenient USB charging ports. This manual provides essential information for safe assembly, operation, and maintenance of your new bed. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
Informazioni sulla sicurezza
- Capacità di peso: Do not exceed the maximum weight capacity of 800 lbs (363 kg) for this bed frame. Exceeding this limit may result in damage to the bed or personal injury.
- Montaggio: Assicurarsi che tutti i componenti siano ben fissati prima dell'uso. Controllare e serrare periodicamente tutti i collegamenti.
- Sistema idraulico: Exercise caution when operating the hydraulic lift mechanism. Keep hands and fingers clear of moving parts to prevent pinching. Ensure the mattress is properly seated before lifting or lowering.
- Componenti elettrici: Do not expose the USB charging ports or LED lighting system to moisture. Disconnect power before cleaning or performing any maintenance on electrical components.
- Bambini e animali domestici: Keep children and pets away from the bed during assembly and when operating the hydraulic lift mechanism.
Contenuto della confezione
Please verify that all parts are present before assembly. If any parts are missing or damaged, contact customer support.
- Headboard with integrated LED and USB charging ports
- Sponde laterali e pediera del telaio del letto
- Hydraulic lift mechanism components
- Rete a doghe
- Pacchetto di ferramenta (viti, bulloni, rondelle, chiave a brugola)
- Telecomando LED
- Manuale di istruzioni
Installazione e assemblaggio
Assembly typically requires two adults. Please follow the step-by-step instructions provided in the separate assembly guide included with your product. Ensure you have adequate space for assembly.
- Disimballare i componenti: Estrarre con cautela tutti i componenti dall'imballaggio e disporli su una superficie pulita e morbida per evitare graffi.
- Montare la testiera: Attach any necessary supports or legs to the headboard as per the assembly guide.
- Collegare le guide laterali: Securely attach the side rails to the headboard and footboard using the provided hardware. Do not fully tighten all bolts until the frame is completely assembled.
- Installare il meccanismo idraulico: Follow the specific instructions for installing the hydraulic lift system. Ensure it is correctly oriented and securely fastened to the bed frame.
- Posizionare la rete a doghe: Position the slatted bed base onto the frame and secure it according to the instructions.
- Serraggio finale: Una volta posizionati tutti i componenti, serrare completamente tutti i bulloni e le viti.
- Connetti alimentazione: Plug the power adapter for the LED lights and USB charging ports into a suitable wall outlet.

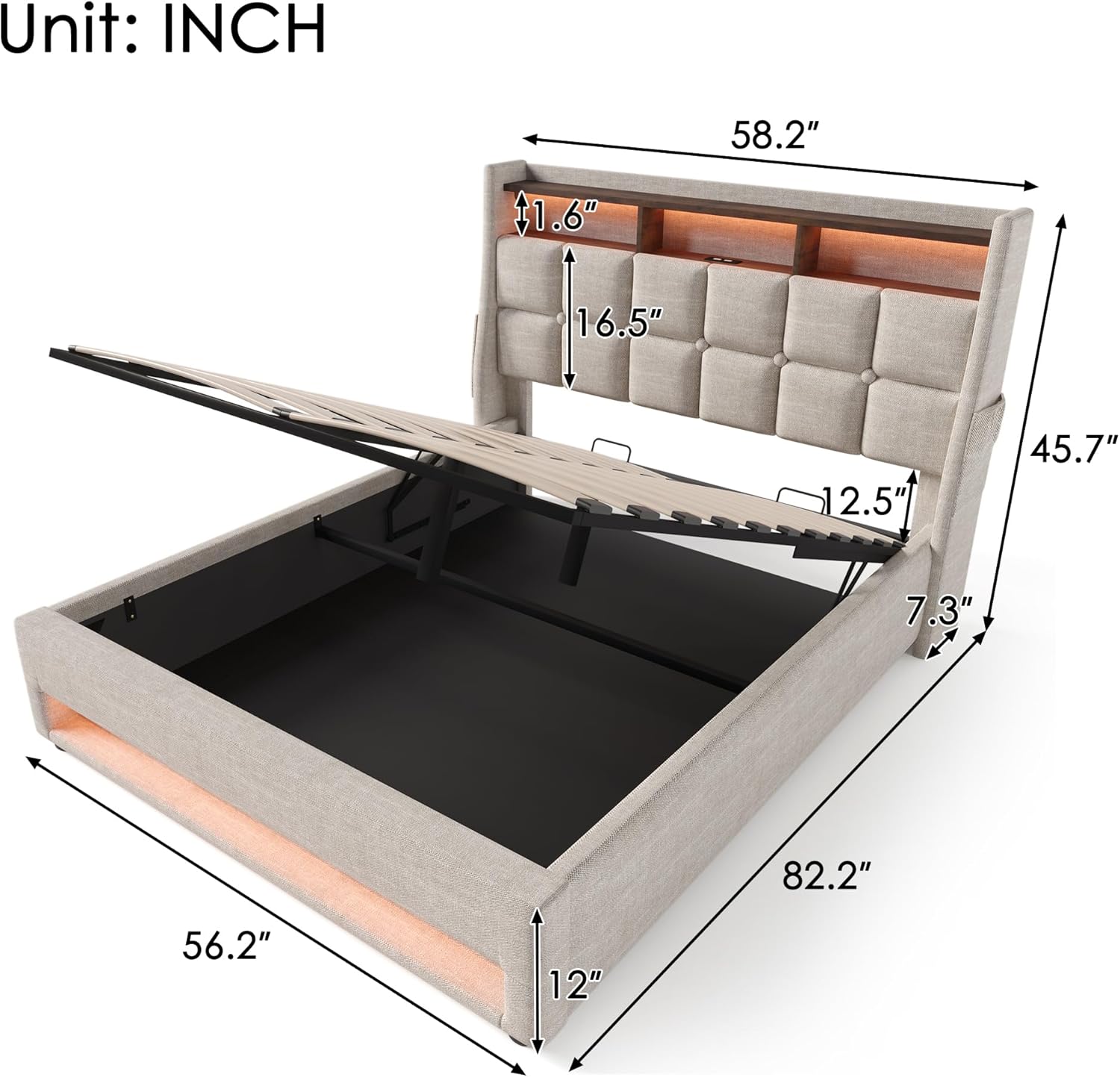

Image: Dimensions of the bed frame, including length, width, and height of the headboard and footboard. The overall dimensions are 82.2 inches long, 56.2 inches wide, and 45.7 inches high at the headboard.
Image: The bed frame with the slatted base and mattress partially lifted by the hydraulic mechanism, showing the spacious storage area beneath the bed.
Istruzioni per l'uso
Hydraulic Lift Storage System
To access the storage compartment, gently lift the mattress platform from the foot end of the bed. The hydraulic mechanism will assist in raising the platform. To close, gently push the platform down until it locks into place. Ensure no objects obstruct the mechanism during operation.
Sistema di illuminazione a LED
The integrated LED lighting can be controlled using the provided remote control. Point the remote at the receiver (usually located near the headboard). You can adjust:
- Accensione/spegnimento: Utilizzare il pulsante di accensione.
- Selezione del colore: Choose from various colors using the color buttons.
- Regolazione della luminosità: Aumentare o diminuire l'intensità della luce.
- Selezione della modalità: Cycle through different lighting effects (e.g., flash, fade, strobe).
Porte di ricarica USB
Two USB charging ports are located on the headboard. Simply plug your USB charging cables into these ports to charge compatible devices such as smartphones and tablets. Ensure the bed's power adapter is plugged into a wall outlet for the USB ports to function.

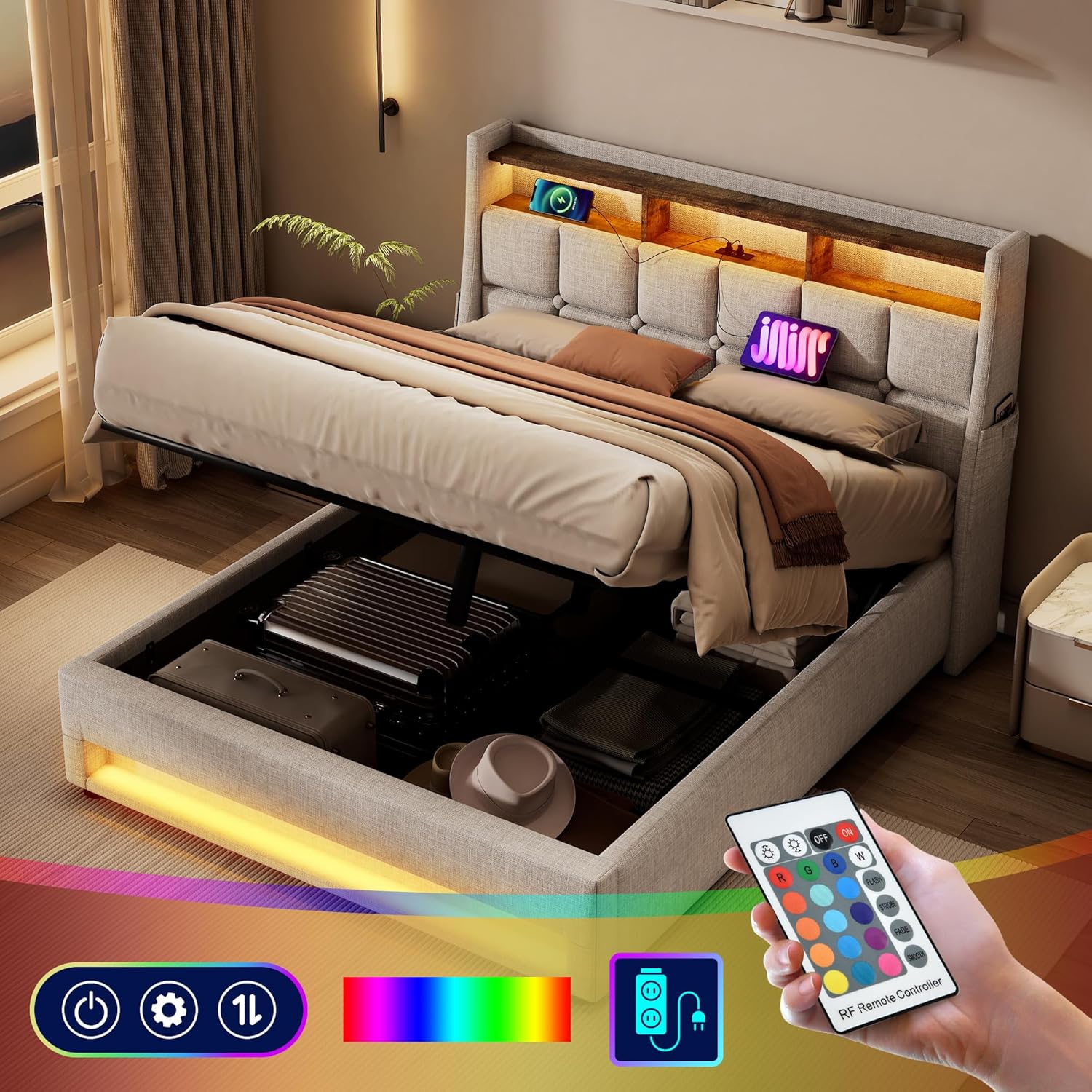

Image: The bed with its storage area open, displaying various items stored within. A hand is shown holding the multi-color LED remote control, illustrating the lighting features.

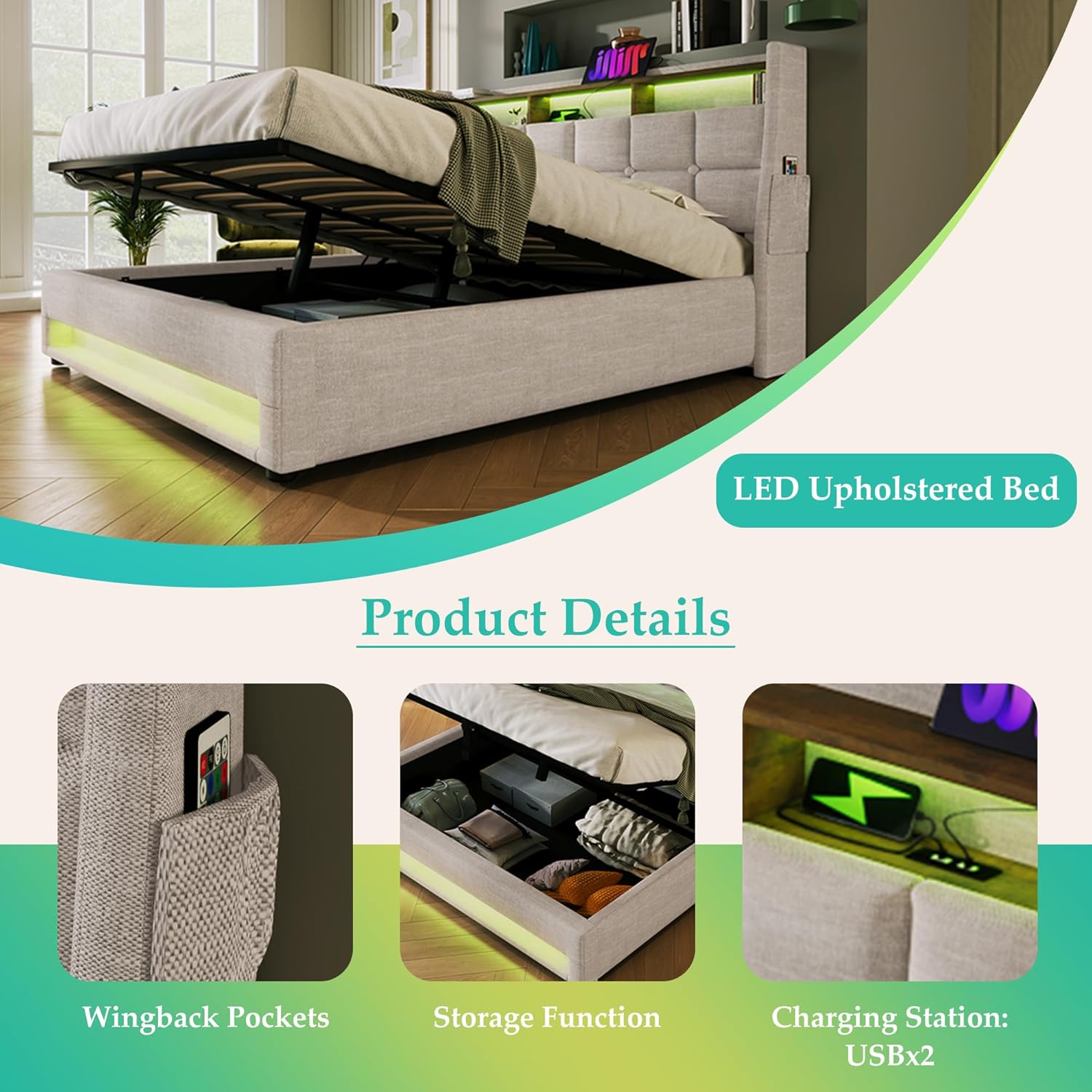

Immagine: Un dettaglio view highlighting the bed's practical features: side wingback pockets for small items, the under-bed storage function, and the dual USB charging station on the headboard.
Image: A close-up shot of the two USB ports embedded in the wooden shelf of the headboard, ready for device charging.
Manutenzione
- Pulizia: For the upholstered fabric, use a soft, damp cloth and mild detergent for spot cleaning. Avoid harsh chemicals. For wooden or metal parts, wipe with a dry or slightly damp stoffa.
- Controllo hardware: Controllare periodicamente tutti i bulloni e le viti per assicurarsi che siano ben serrati. Serrarli nuovamente se necessario per mantenere la stabilità.
- Sistema idraulico: Keep the hydraulic pistons clean and free of debris. Do not apply lubricants unless specifically instructed by the manufacturer.
- Componenti elettrici: Ensure the power cord is not pinched or damaged. Do not attempt to repair electrical components yourself.
Risoluzione dei problemi
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Le luci a LED non funzionano | Power cord unplugged; remote battery dead; remote not pointed at receiver; faulty connection. | Check power connection; replace remote battery; ensure clear line of sight to receiver; inspect wiring connections. |
| Le porte USB non si caricano | Bed not plugged in; device cable faulty; device incompatible. | Ensure bed is plugged in; try a different USB cable; test with another device. |
| Hydraulic lift difficult to operate | Mechanism obstructed; mattress too heavy/light (unlikely for standard use); faulty hydraulic piston. | Clear any obstructions; ensure mattress is within recommended weight; contact support if mechanism is faulty. |
| Bed frame is wobbly | Hardware sciolto. | Controllare e serrare tutti i bulloni e le viti. |
Specifiche
- Modello: Full Size Lift Up Storage Bed
- Marca: THINK 30
- Dimensioni complessive (L x P x A): 82.2" x 56.2" x 45.7"
- Capacità di peso: 800 libbre
- Spessore consigliato del materasso: 8"-12"
- Materiale: Linen fabric, Wood, Metal
- Caratteristiche speciali: Hydraulic Lift Storage, Integrated LED Lighting, Dual USB Charging Ports
- Assemblaggio richiesto: SÌ
Garanzia e supporto
This THINK 30 product comes with a Limited Warranty. For specific details regarding warranty coverage, claims, or technical support, please refer to the warranty card included with your purchase or contact the seller directly. Please have your purchase receipt and product model information available when contacting support.
