Manuale d'uso dell'aspirapolvere compatto da giardino Cecotec Conga Rockstar Wet & Dry

1. Introduzione

Thank you for choosing the Cecotec Conga Rockstar Wet & Dry Compact Garden Plus Vacuum Cleaner. This powerful 1200W wet and dry vacuum cleaner is designed for easy transport due to its reduced weight and compact size, offering dual suction and blowing functions for versatile cleaning.

This manual provides important information on the safe use, operation, and maintenance of your new appliance. Please read it thoroughly before first use and keep it for future reference.

2. Installazione e assemblaggio

Before operating the vacuum cleaner, ensure all components are present and correctly assembled.

2.1 Disimballaggio

Carefully remove all parts from the packaging. Verify that all included components are present:

• Main Vacuum Unit (16 L capacity)
• Tubo flessibile
• Tubi di prolunga
• Spazzola per pavimenti
• Strumento per fessure
• Spazzola per tappezzeria
• Manuale di istruzioni

Figure 1: Main vacuum unit with included accessories, demonstrating its compact design and the various tools for different cleaning tasks.

2.2 Fasi di assemblaggio

1. Montare le ruote: Turn the main unit upside down and securely attach the four rubber wheels to the designated slots on the base.
2. Collegare il tubo flessibile: Insert the flexible hose into the suction inlet on the front of the vacuum cleaner until it clicks into place.
3. Assemble Extension Tubes: Connect the extension tubes to the end of the flexible hose. For longer reach, connect multiple tubes.
4. Attach Cleaning Tool: Select the appropriate cleaning tool (floor brush, crevice tool, or upholstery brush) and attach it firmly to the end of the extension tube.
5. Collegamento elettrico: Ensure the power cord is fully extended and plug it into a suitable electrical outlet.

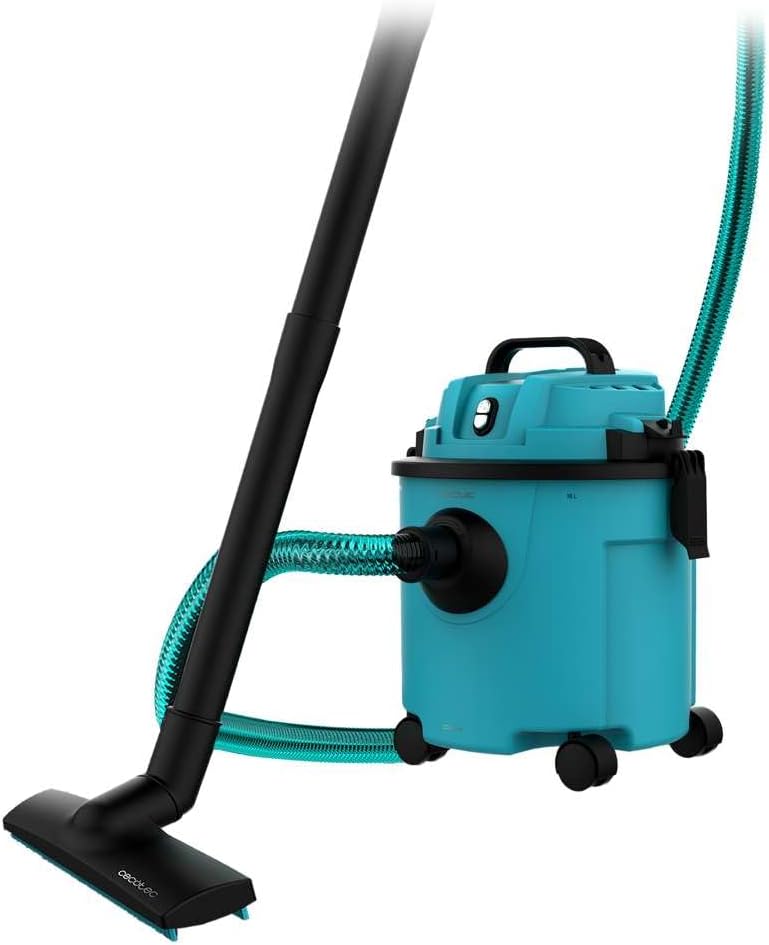

Figure 2: The vacuum cleaner fully assembled, showing the main unit, flexible hose, and floor brush attached, ready for operation.

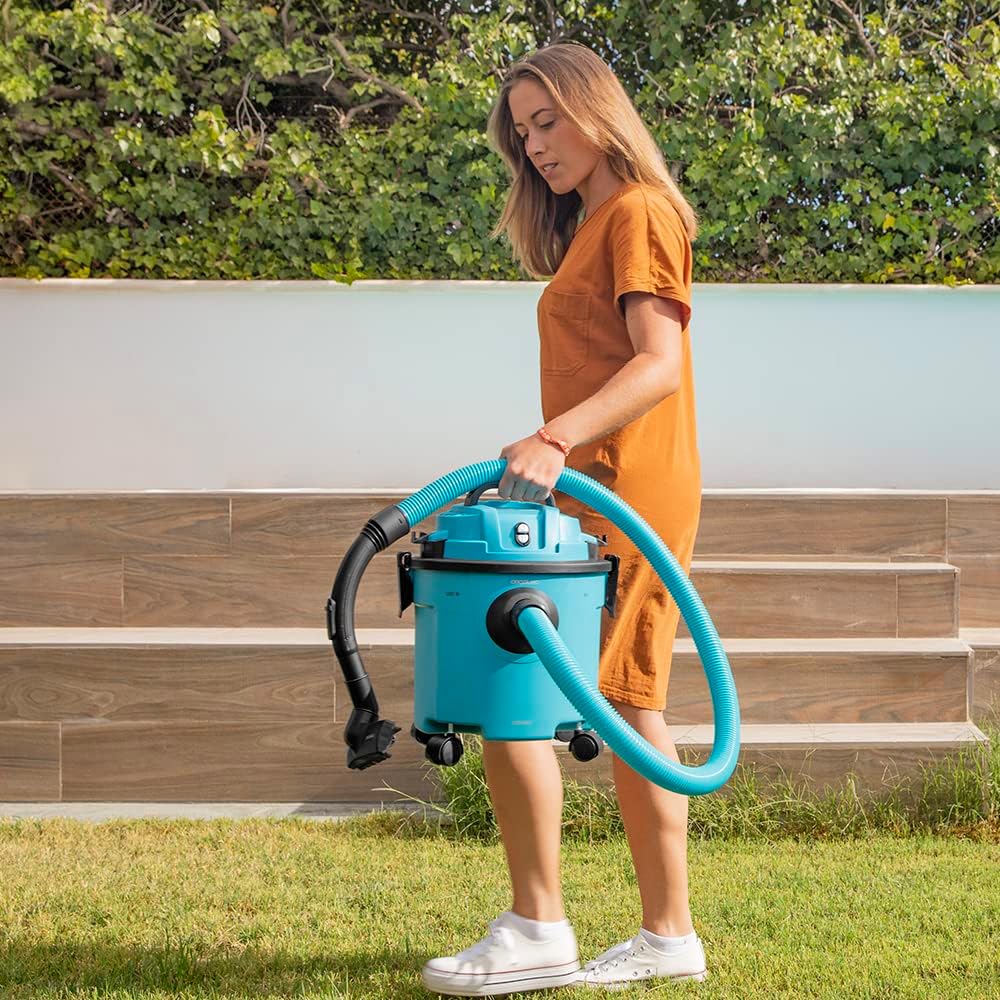

Figure 3: The vacuum cleaner's compact design and lightweight nature make it easy to transport, as demonstrated by a user carrying it.

3. Istruzioni per l'uso

The Cecotec Conga Rockstar Wet & Dry Compact Garden Plus offers powerful suction and a convenient blowing function.

3.1 Suction Mode (Wet & Dry)

This vacuum cleaner is designed to handle both dry debris and liquids. It features a dual filtration system that filters water and purifies the air, effectively retaining a large percentage of allergens.

• For Dry Cleaning: Ensure the dry filter is properly installed. Vacuum dust, dirt, and small debris from various surfaces.
• For Wet Cleaning: Remove the dry filter and ensure the wet filter is in place (if applicable, refer to filter section). The plastic tank is designed to safely collect liquids. Do not exceed the maximum liquid fill line indicated on the tank.

Figure 4: Demonstrating the vacuum's capability to clean dry debris, such as leaves and dirt, from outdoor surfaces like patios.

Figure 5: The vacuum cleaner effectively cleaning up a liquid spill on a tiled surface, highlighting its wet vacuuming functionality.

3.2 Blowing Function (Blowing System)

To activate the blowing function, detach the flexible hose from the suction inlet and attach it to the blowing outlet, usually located on the top or side of the motor unit. This function is ideal for clearing leaves, debris, or drying surfaces.

Figure 6: A user demonstrating the powerful blowing function, useful for clearing leaves and light debris from outdoor steps and pathways.

3.3 Utilizzo degli accessori

The vacuum comes with 4 accessories to clean any surface efficiently. The accessory holder allows for convenient storage and access to tools.

• Spazzola per pavimenti: For general cleaning of hard floors and carpets.
• Bocchetta per fessure: Ideale per fessure strette, angoli e zone difficili da raggiungere.
• Spazzola per tappezzeria: Suitable for cleaning furniture, car interiors, and delicate surfaces.

Figura 7: Un dettaglio view of the included accessories, such as the crevice tool and brush, designed for specialized cleaning tasks in tight spaces or on delicate surfaces.

The vacuum cleaner offers a large operating radius of over 5 meters, providing ample portata per varie attività di pulizia.

Figure 8: The vacuum cleaner in action on an outdoor patio, illustrating its extended reach and ease of use for larger areas.

4. Manutenzione e cura

Una manutenzione regolare garantisce prestazioni ottimali e prolunga la durata del tuo aspirapolvere.

4.1 Svuotamento del serbatoio

After each use, especially after wet vacuuming, empty the 16-liter tank. Detach the motor unit from the tank and dispose of the collected debris or liquid responsibly. Clean the inside of the tank with water and mild detergent if necessary, then dry thoroughly.

4.2 Pulizia/sostituzione del filtro

The dual filtration system requires regular cleaning. For dry use, tap the filter to remove dust or wash it if heavily soiled (ensure it's completely dry before re-installing). For wet use, clean the wet filter as per instructions. Replace filters periodically as recommended in the full manual or if performance decreases.

4.3 Pulizia generale

Pulisci l'esterno dell'aspirapolvere con l'adamp cloth. Do not use abrasive cleaners or solvents. Check hoses and attachments for blockages and clear them as needed.

5. Risoluzione Dei Problemi

Se riscontri problemi con l'aspirapolvere, consulta la tabella seguente per i problemi più comuni e le relative soluzioni.

6. Specifiche tecniche

Below are the key technical specifications for the Cecotec Conga Rockstar Wet & Dry Compact Garden Plus Vacuum Cleaner:

7. Garanzia e supporto

Cecotec is committed to providing high-quality products. For any issues or inquiries regarding your Conga Rockstar Wet & Dry Compact Garden Plus Vacuum Cleaner, please contact Cecotec customer support.

Disponibilità ricambi: I pezzi di ricambio per questo prodotto sono disponibili per 10 anni dalla data di acquisto.

For further assistance, please visit the official Cecotec websito o contattare il loro servizio clienti.
