1. Introduzione
This manual provides detailed instructions for the safe and effective use of your FEELWORLD NP-F550 2200mAh replacement battery. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.

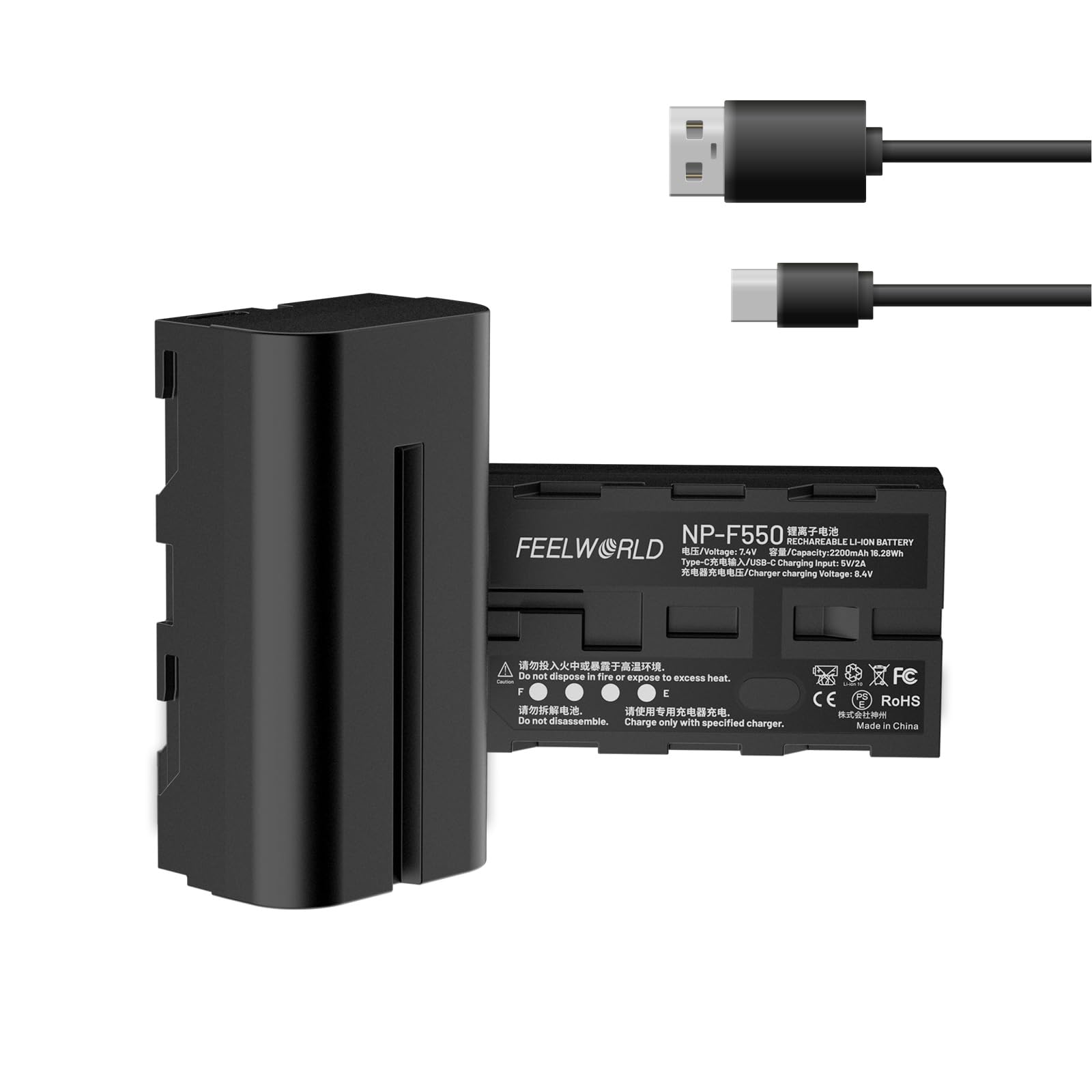

Image 1.1: FEELWORLD NP-F550 Replacement Battery. This image displays the front view of the NP-F550 battery.
2. Contenuto della confezione
Verifica che tutti gli articoli elencati di seguito siano inclusi nel tuo pacchetto:
- FEELWORLD NP-F550 Battery (2 packs)
- Cavo di ricarica USB-C
- Manuale d'uso
Image 2.1: Package contents. This image shows one NP-F550 battery, a USB-C charging cable, and the user manual.
3. Configurazione e ricarica
3.1 Carica iniziale
Before first use, fully charge the battery. The NP-F550 battery offers two charging methods:
3.1.1 Ricarica USB-C
Connect the provided USB-C charging cable to the battery's USB-C port and plug the other end into a 5V/2A power source (e.g., host charger, adapter, power bank, or car charger). The LED indicators will show the charging progress.
Image 3.1: USB-C charging port. This image highlights the USB-C charging port on the side of the NP-F550 battery.
Image 3.2: Multiple charging options. This image illustrates different ways to charge the battery via USB-C, including a host charger, adapter charger, power bank, and car charging.
3.1.2 Dedicated Charger Charging
Alternatively, you can charge the battery using a dedicated NP-F series charger (not included) with an 8.4V output. Place the battery into the charger's slot. The charger's indicators will show the charging status.

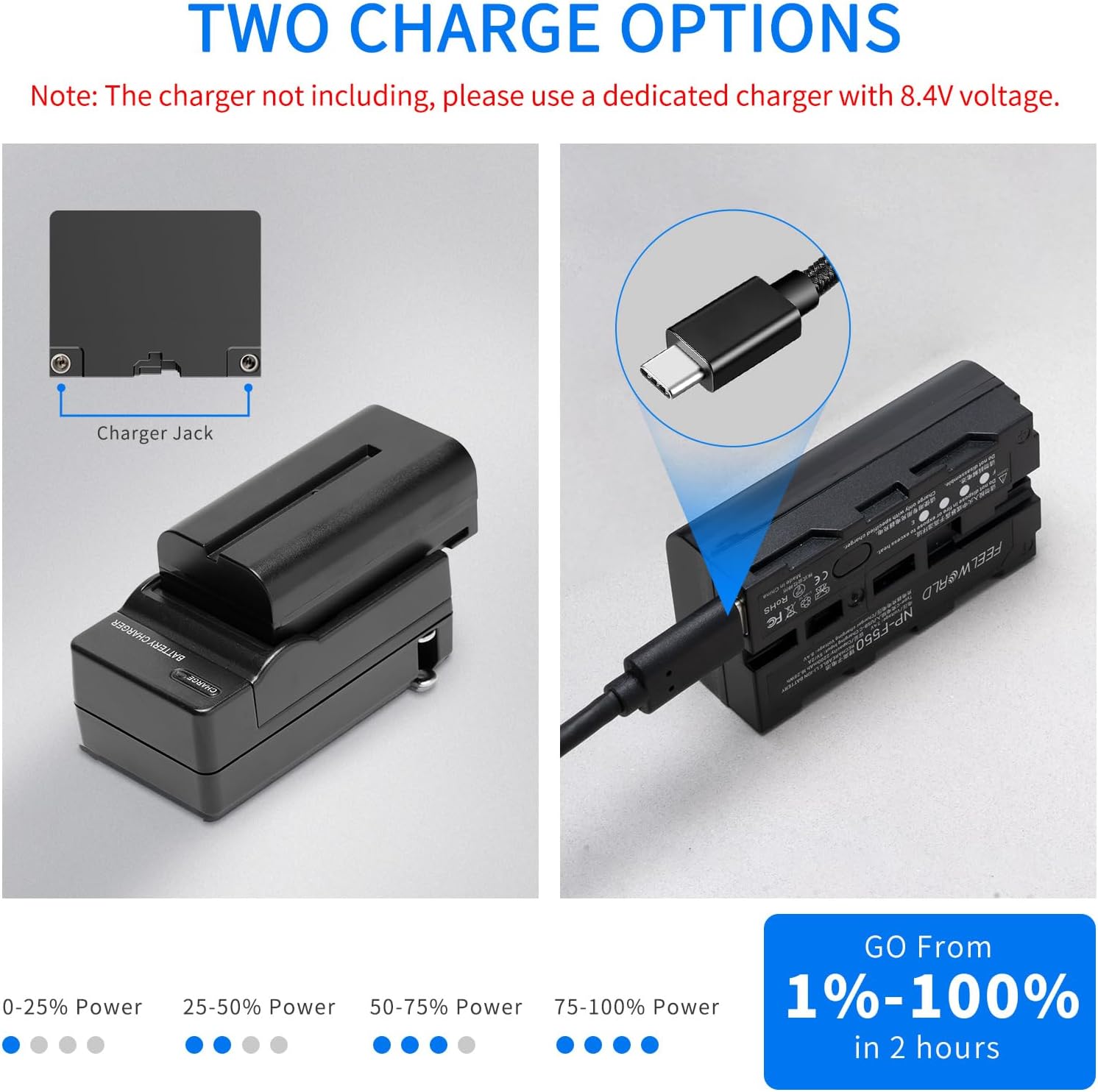

Image 3.3: Two charge options. This image visually compares charging with a dedicated charger and charging via the USB-C port.
3.2 LED Battery Level Indicators
The battery features four LED indicators on the bottom to display the current charge level:
- 1LED: 0-25% di potenza
- 2 LED: 25-50% di potenza
- 3 LED: 50-75% di potenza
- 4 LED: 75-100% di potenza
4. Funzionamento
4.1 Compatibilità del dispositivo
The FEELWORLD NP-F550 battery is designed for use with a variety of photographic and video equipment, including:
- Luci video
- Luci LED
- Monitor da campo
- Wireless Video Transmission Systems
Nota: This battery does not include decode functionality and cannot power cameras or camcorders directly.

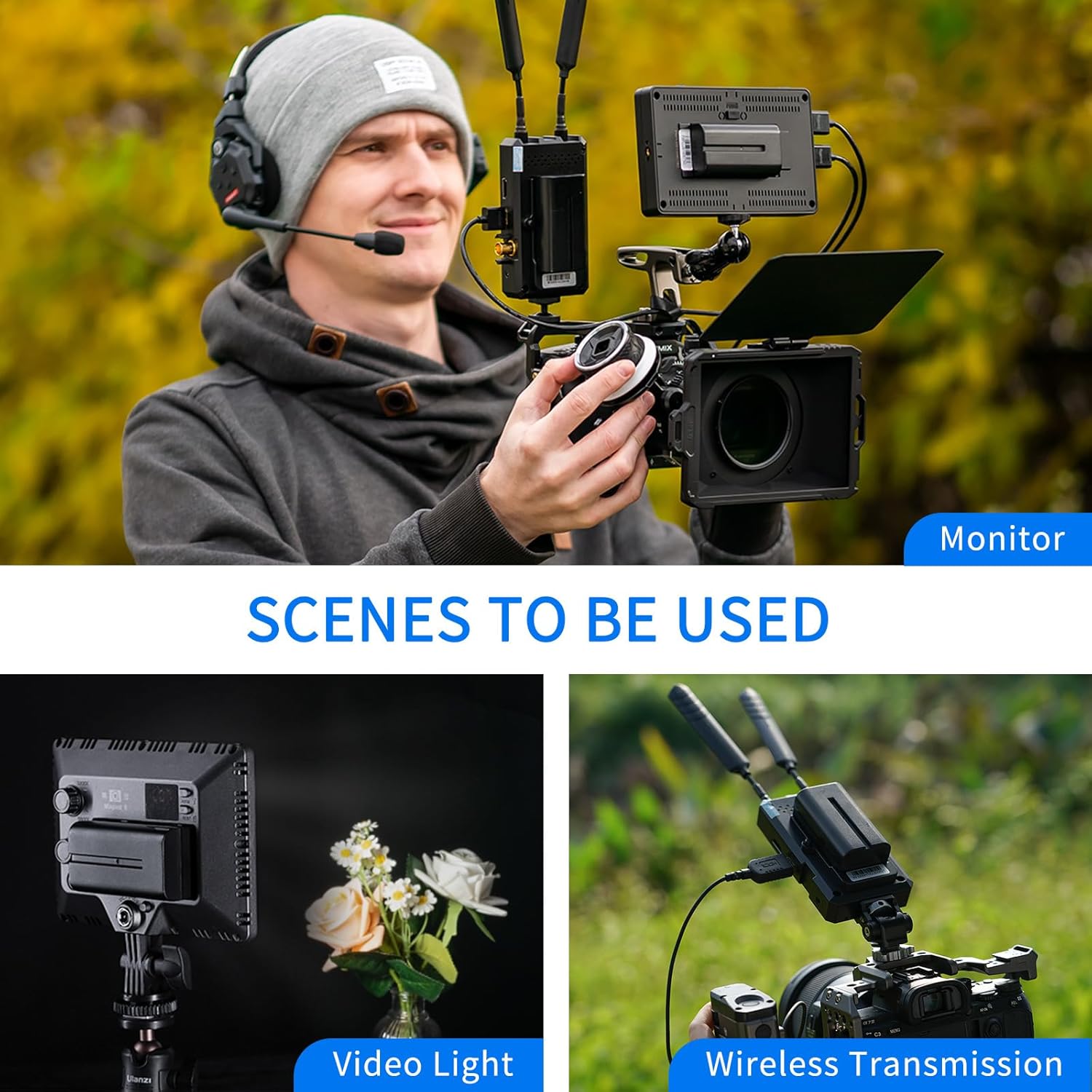

Image 4.1: Compatible devices. This image shows the NP-F550 battery being used with a monitor, a video light, and a wireless transmission system.
4.2 Installazione della batteria
To install the battery, align the battery terminals with the corresponding contacts on your compatible device. Slide the battery into the device's battery slot until it clicks securely into place. To remove, press the release latch (if present on your device) and slide the battery out.
4.3 Recommended Battery Models for FEELWORLD Monitors
The following table provides guidance on recommended NP-F series battery models for various FEELWORLD monitors and their approximate running times:
| Modello di monitoraggio | Monitorare il consumo energetico | Modello della batteria | Tempo di funzionamento della batteria |
|---|---|---|---|
| FW568 | 8W | NP-F550 | 2h |
| FW759 | 5W | NP-F550 | ore 3.2 |
| FW572 | 9W | NP-F550 | ore 1.8 |
| F6 PIÙ | 8W | NP-F750 | 4h |
| F7 PRO | 9W | NP-F750 | ore 3.6 |
| LUT7 | 16W | NP-F750 | 2h |
| LUT6 | 16W | NP-F970 | 3h |
| F5 PROX | 9W | NP-F970 | 5h |
Battery Running Time = Battery Capacity / (Monitor Power Consumption / Battery Voltage)
For touch and high brightness monitors, selecting a higher capacity battery such as NP-F750 or NP-F970 is recommended for longer running times.
Image 4.2: Monitor compatibility table. This image displays a table detailing recommended NP-F battery models for various FEELWORLD monitors and their estimated running times.
5. Caratteristiche di sicurezza e protezione
The FEELWORLD NP-F550 battery incorporates multiple protection mechanisms to ensure safe operation and extend battery life:
- Protezione da sovraccarico: Prevents overcharging, which can damage the battery.
- Protezione da sovracorrente: Protezioni contro l'eccessivo assorbimento di corrente.
- Protezione da scarica eccessiva: Impedisce che la batteria si scarichi troppo profondamente.
- Over-volumetage Protezione: Protegge contro il voltage picchi.
- Protezione da cortocircuito: Interrompe automaticamente l'alimentazione in caso di cortocircuito.
- Protezione di recupero: Allows the battery to recover from certain fault conditions.

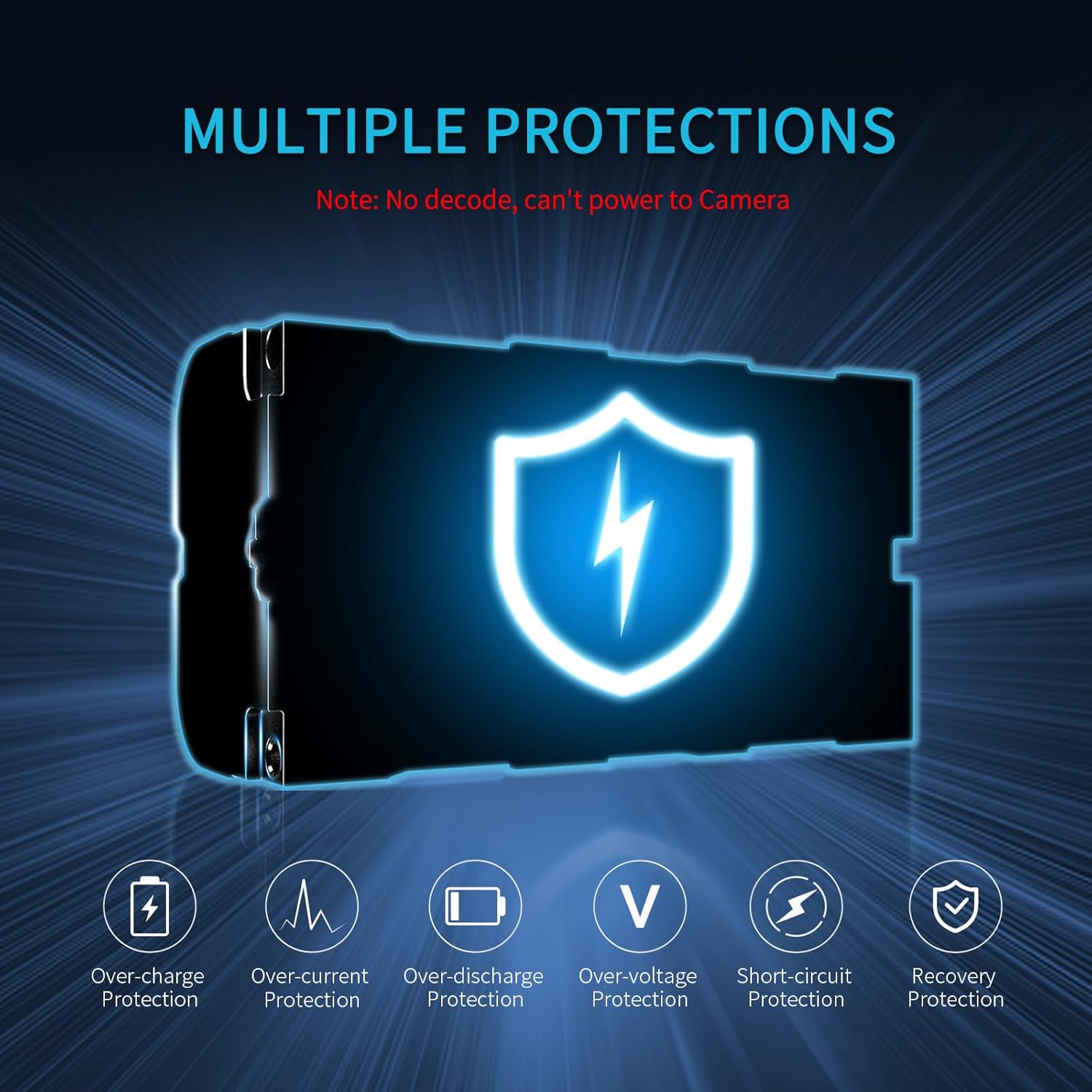

Image 5.1: Multiple protection features. This diagram visually represents the various safety protections integrated into the NP-F550 battery.
6. Manutenzione e conservazione
6.1 Cura generale
- Keep the battery terminals clean. Use a dry, soft cloth to wipe them if necessary.
- Evitare di esporre la batteria a temperature estreme, alla luce solare diretta o a elevata umidità.
- Do not disassemble, puncture, or drop the battery.
- Use only compatible chargers and devices.
6.2 Conservazione
- Per una conservazione a lungo termine, caricare la batteria fino a circa il 50-60% della sua capacità.
- Conservare la batteria in un luogo fresco e asciutto, lontano da materiali infiammabili.
- If storing for extended periods, periodically check the charge level and recharge to 50-60% every 3-6 months.
7. Risoluzione Dei Problemi
7.1 Batteria non in carica
- Verifica il cavo di connessione: Assicurarsi che il cavo USB-C sia collegato saldamente sia alla batteria che alla fonte di alimentazione.
- Verificare la fonte di alimentazione: Confirm that the power adapter or USB port is functional and providing sufficient power (5V/2A for USB-C).
- Inspect LED Indicators: Observe the LED indicators on the battery. If no LEDs light up, the battery may be completely depleted or there might be an issue with the charging setup.
- Try Different Charger/Cable: Test with another USB-C cable or a dedicated NP-F charger to rule out faulty accessories.
7.2 Battery Not Powering Device
- Controlla la compatibilità: Ensure your device is compatible with NP-F series batteries and does not require decode functionality (e.g., cameras/camcorders are not supported).
- Verifica la carica della batteria: Check the LED indicators to confirm the battery has sufficient charge.
- Installazione corretta: Ensure the battery is correctly inserted and securely locked into the device's battery slot.
- Contatti puliti: Gently clean the battery terminals and device contacts with a dry, soft cloth.
7.3 Durata breve della batteria
- Consumo energetico del dispositivo: High power consumption devices will drain the battery faster. Refer to your device's manual for its power requirements.
- Battery Age/Condition: Con il passare del tempo, tutte le batterie ricaricabili subiscono una diminuzione della capacità.
- Fattori ambientali: L'utilizzo a temperature molto basse può ridurre le prestazioni della batteria.
- Consider Higher Capacity: If consistently experiencing short runtimes, consider upgrading to a higher capacity NP-F series battery (e.g., NP-F750 or NP-F970) if your device supports it.
8. Specifiche
Key technical specifications for the FEELWORLD NP-F550 battery:
| Caratteristica | Specificazione |
|---|---|
| Numero di modello | AA-2ANP55-LY-US |
| Tipo di batteria | Agli ioni di litio |
| Capacità | 2200mAh |
| Voltage | 7.4V |
| Ingresso USB-C | 5V/2A |
| Dimensioni (L x P x A) | 70.7 mm x 38.4 mm x 25 mm (circa 2.8 x 1.52 x 0.98 pollici) |
| Peso dell'articolo | 3.52 once (circa 100 g) |
| Riutilizzabilità | Ricaricabile |
| Usi consigliati | Photographic Lighting, Field Monitors, Wireless Video Transmission |
Image 8.1: Battery dimensions. This image provides a visual representation of the NP-F550 battery with its key dimensions labeled.
9. Garanzia e supporto
For warranty information or technical support, please refer to the documentation provided with your purchase or contact FEELWORLD customer service through their official website or the retailer where the product was purchased. Please have your product model number (AA-2ANP55-LY-US) and purchase details ready when contacting support.
