1. Prodotto finitoview
The MCombo 6160-6922 Power Swivel Glider Rocker Recliner is designed for comfort and versatility in living rooms and nurseries. It features power reclining, smooth gliding, 270-degree swivel, and integrated USB charging ports.

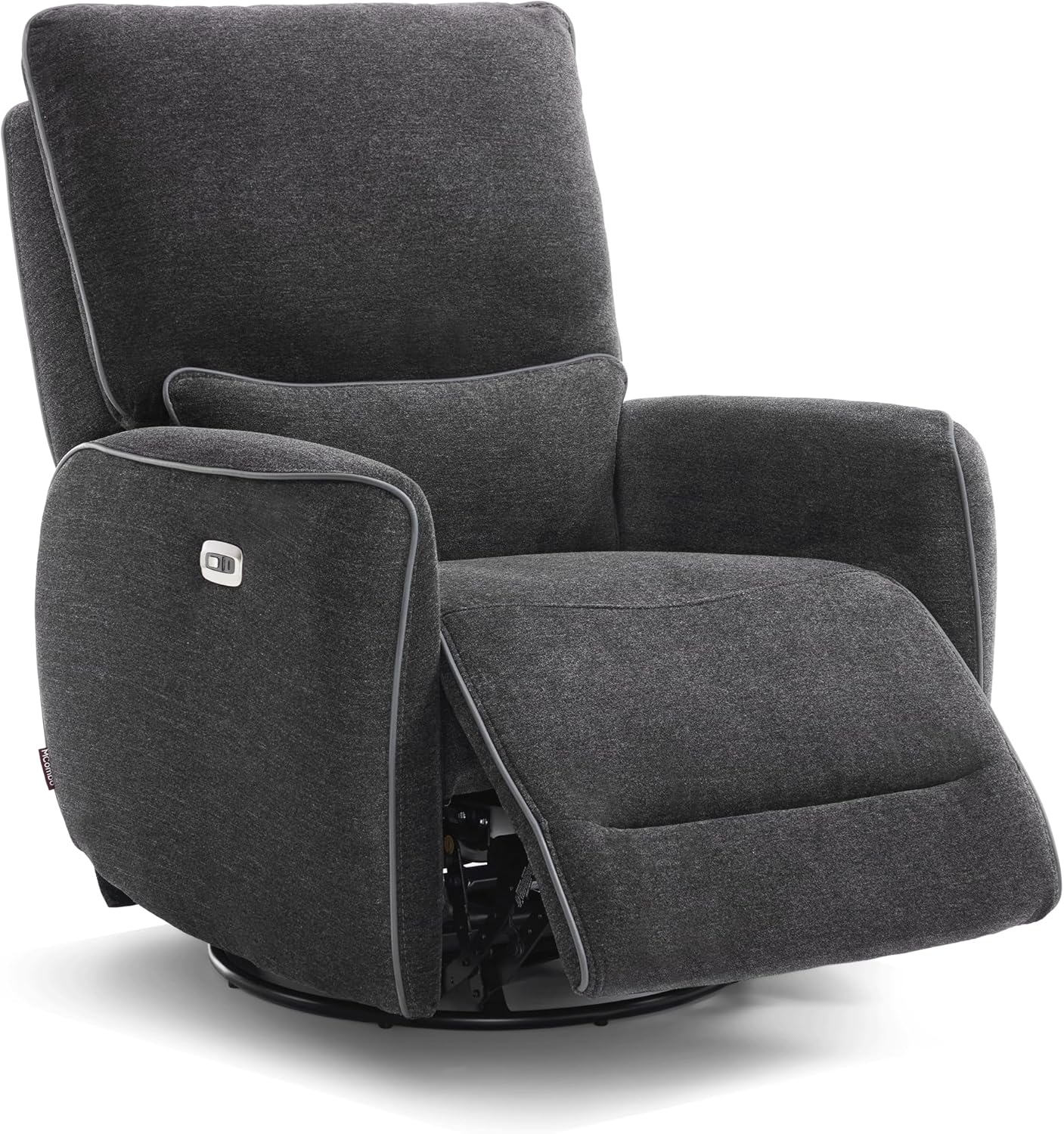

Immagine 1.1: anteriore view of the MCombo Power Swivel Glider Rocker Recliner in Grey.
2. Istruzioni di sicurezza
- Assicurarsi che tutti i componenti siano assemblati saldamente prima dell'uso.
- Durante il funzionamento, tenere mani e piedi lontani dal meccanismo di reclinazione.
- Non permettere ai bambini di giocare sulla poltrona reclinabile o nelle sue vicinanze senza supervisione.
- Evitare di appoggiare oggetti pesanti sul poggiapiedi quando è esteso.
- Use the USB charging ports only for low-power devices.
- Do not expose the electrical components to moisture.
- Capacità di peso massima: 320 libbre.
3. Elenco delle parti
Verify that all parts are present before beginning assembly. The product is shipped in 2 boxes.
- Braccioli (2)
- Schienale (1)
- Fondazione (1)
- Adattatore di alimentazione (1)
- Connecting Wires (various)
Video 3.1: MCombo Zero Gravity Recliner Assembly, ZG334. This video demonstrates the assembly process for a similar MCombo recliner, providing a visual guide to identifying parts and steps.
4. Installazione e assemblaggio
Assembly is designed to be straightforward, typically completed within 15 minutes by most users. Follow these three main steps:
- Installare i braccioli: Attach the armrests to the main seat base. Ensure they are securely fastened.
- Fissare lo schienale: Slide the backrest onto the designated slots on the seat base until it clicks into place.
- Collegare i fili: Connect all necessary electrical wires for the power reclining and USB features. Refer to the included wiring diagram for specific connections.
Video 4.1: "How to install" video by MCombo, demonstrating the assembly process for the recliner.
5. Istruzioni per l'uso
5.1 Power Reclining
The recliner features electric reclining up to 142 degrees. Use the buttons located on the armrest to adjust the recline angle and footrest position. Press the forward button to recline and extend the footrest, and the backward button to return to the upright position.
Image 5.1: Illustration of different recline angles suitable for various activities like feeding, watching TV, and napping.
5.2 Swivel and Gliding Function
The chair swivels 270 degrees and glides smoothly, offering flexibility and comfort. This feature is ideal for nurseries, allowing easy access to items without leaving the chair.
Immagine 5.2: La poltrona reclinabile mostraasing its 270-degree swivel and gentle gliding capabilities.
5.3 porte di ricarica USB
Conveniently located on the armrest, the USB A/C ports allow you to charge low-power devices such as smartphones or tablets without needing to leave the comfort of your chair.

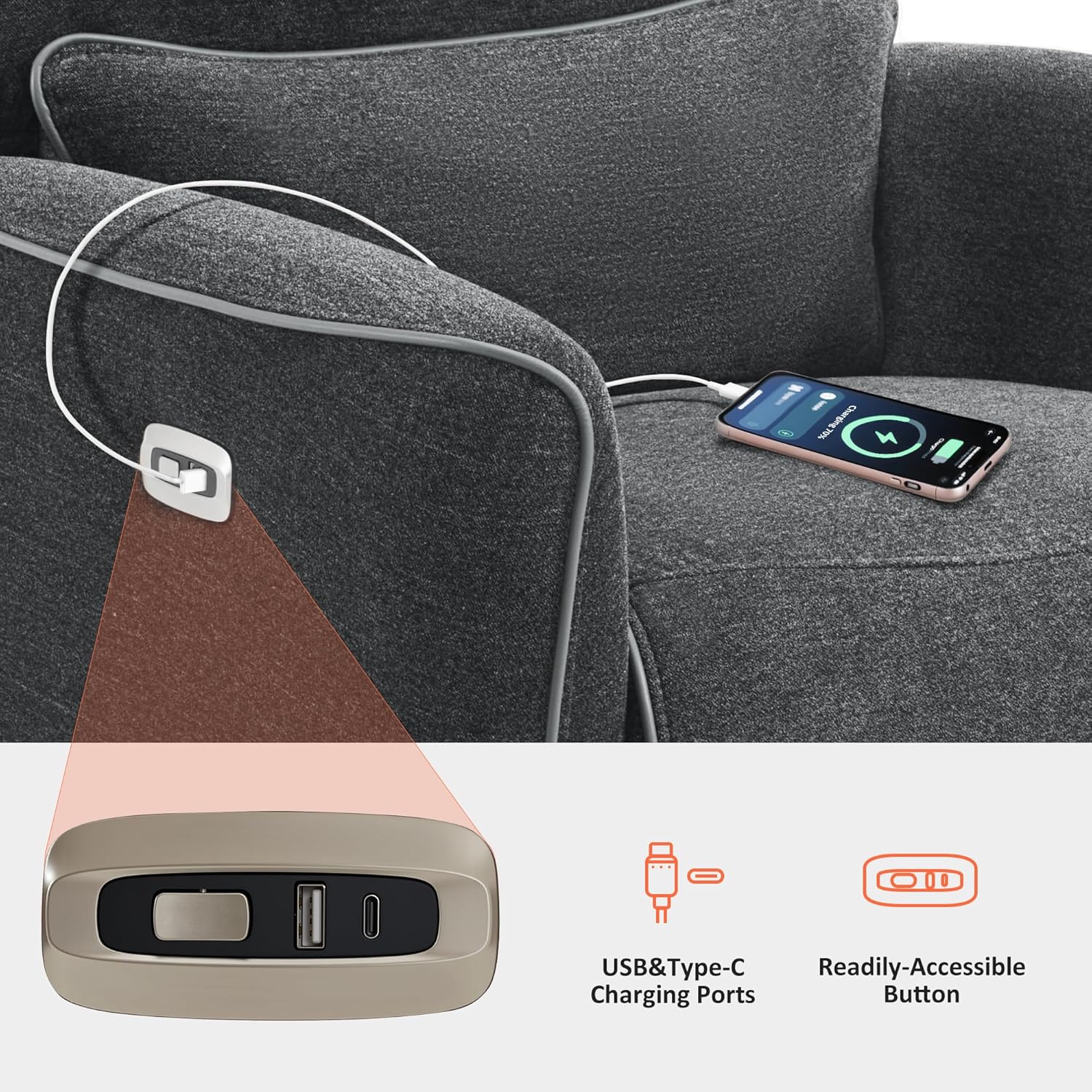

Image 5.3: Detail of the integrated USB A/C charging ports on the armrest.
6. Manutenzione e cura
- Pulizia: Pulisci con un annuncioamp panno. Evitare prodotti chimici aggressivi o detergenti abrasivi.
- Cura del tessuto: The fabric is durable and breathable. For spills, blot immediately with a clean, dry cloth.
- Meccanismo: Controllare periodicamente tutti i bulloni e le viti per assicurarsi che siano ben serrati. Non lubrificare il meccanismo di reclinazione, salvo diversa indicazione del produttore.
- Componenti elettrici: Ensure the power cord is not pinched or damaged. Unplug the recliner from the power outlet when not in use for extended periods or during cleaning.

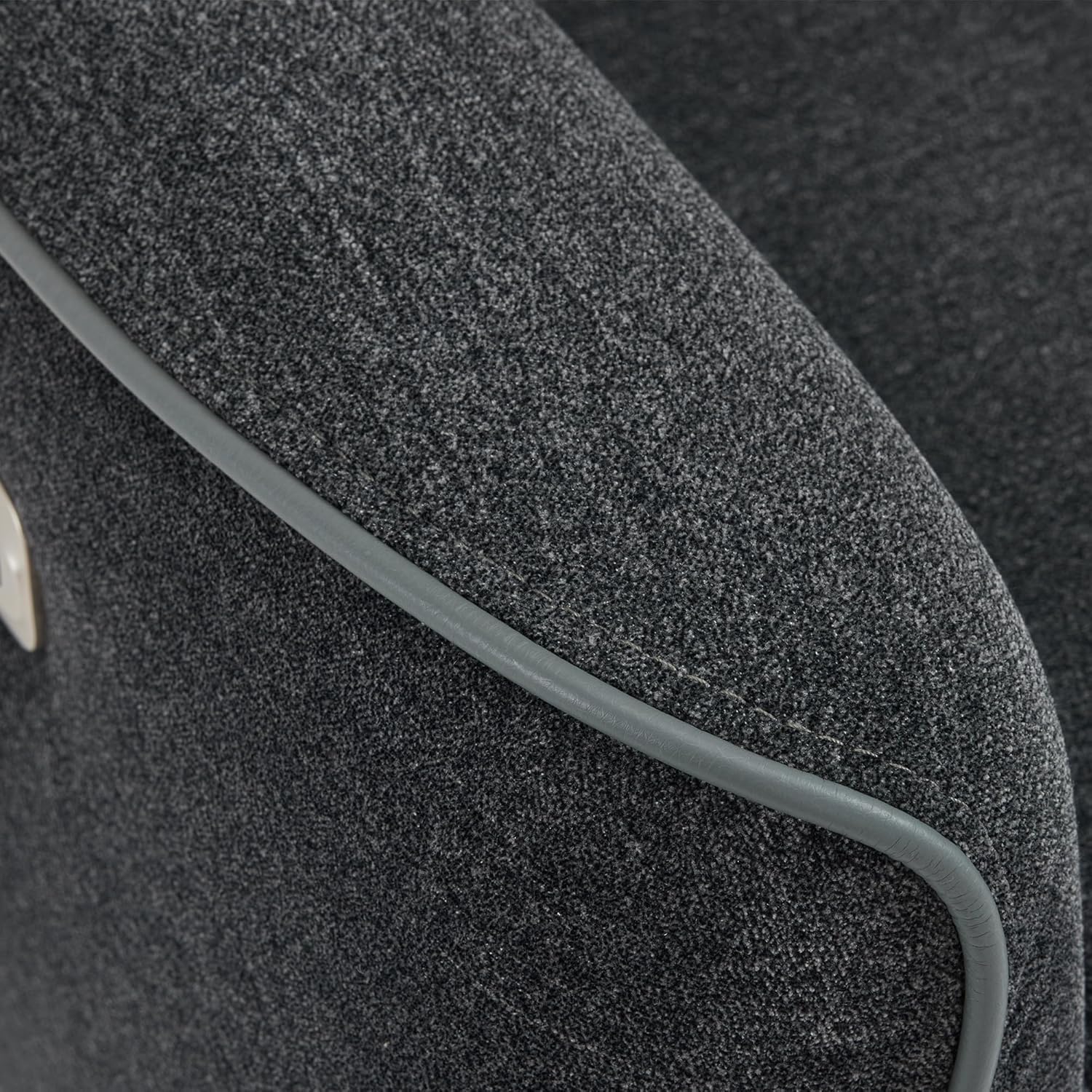

Immagine 6.1: Primo piano view of the recliner's fabric, highlighting its texture and quality.
Image 6.2: OEKO-TEX Standard 100 certification ensures the fabric is safe and free from harmful substances.
7. Risoluzione Dei Problemi
- Recliner not operating: Check if the power cord is securely plugged into both the chair and a working electrical outlet. Ensure no wires are pinched or damaged.
- Rumori insoliti durante il funzionamento: Inspect the reclining mechanism for any obstructions. Ensure all assembly bolts are tight. If noises persist, discontinue use and contact customer support.
- Le porte USB non si caricano: Verify the recliner is powered on. Ensure the device cable is properly connected to both the device and the USB port. Test with a different device or cable to rule out device-specific issues.
8. Specifiche
| Marca | MCombo |
| Nome del modello | 6160-6922 |
| Colore | Grigio |
| Materiale | Textile (Sponge fill) |
| Dimensioni del prodotto | 32"P x 32"L x 40.96"A |
| Peso dell'articolo | 137.3 libbre |
| Peso massimo raccomandato | 320 libbre |
| Conteggio della posizione reclinata | Infinite Position (up to 142°) |
| Angolo di rotazione | 270° |
| Distanza minima dal muro | 12.2 pollici |
| Porte USB | USB A/C ports on armrest |
| Componenti inclusi | Armrests, Backrest, Base |
Image 8.1: Detailed dimensions and operational clearances for the recliner.
9. Garanzia e supporto
This MCombo recliner comes with a Garanzia limitata di 2 anni. For warranty claims, technical support, or any questions regarding your product, please contact MCombo customer support.
Customer Support is available for 30-day easy returns.
Per ulteriore assistenza, visitare il sito MCombo Store.
