OVE Decors Bel 48-inch Frameless Sliding Shower Door Corner Shower Kit

1. Introduzione

The OVE Decors Bel shower kit offers a modern and luxurious addition to your bathroom. This frameless sliding shower door corner kit features high-quality 8mm tempered glass panels, a soft-close mechanism for smooth operation, and a durable shower base with an anti-slip finish and hidden drain design. This manual provides essential information for the safe and proper installation, operation, and maintenance of your new shower kit.

Image 1.1: The OVE Decors Bel 48-inch Frameless Sliding Shower Door Corner Shower Kit, showcasing its modern design and satin nickel finish.

2. Informazioni sulla sicurezza

Please read all instructions carefully before beginning installation. Failure to follow these instructions may result in personal injury or property damage. Always wear appropriate personal protective equipment (PPE) during installation, including safety glasses and gloves. Handle glass panels with extreme care as tempered glass, while strong, can shatter if struck at the edges or corners.

• Assicurarsi che l'area di installazione sia strutturalmente solida e livellata.
• Do not attempt to install this product alone. Two or more people are required for safe handling of glass panels.
• Prima di iniziare il montaggio, verificare che tutti i componenti siano presenti e integri.
• Utilizzare solo l'hardware fornito o specificato dal produttore.
• Durante l'installazione, tenere bambini e animali domestici lontani dall'area di lavoro.

3. Contenuto della confezione

Verifica che tutti i seguenti componenti siano inclusi nel pacchetto:

• Sliding Shower Door Panel (8mm thick clear tempered glass)
• Fixed Shower Door Panel (8mm thick clear tempered glass)
• Side Panel (32-inch, 8mm thick clear tempered glass)
• Shower Base (48 x 32 inch, plastic acrylic with side hidden drain)
• Hardware Kit (includes rollers, handles, tracks, seals, and fasteners)

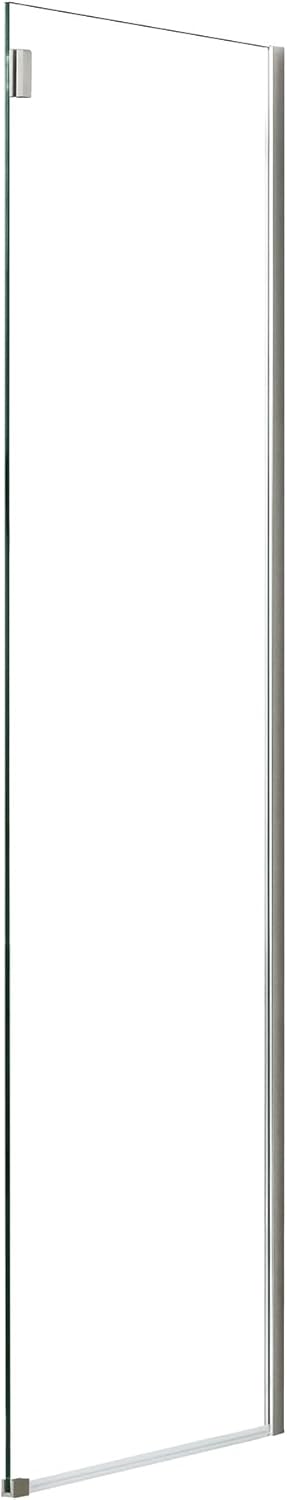

Image 3.1: The 32-inch side panel, made from 8mm clear tempered glass.

4. Configurazione e installazione

Installation of the OVE Decors Bel shower kit requires advanced DIY skills. Professional installation is highly recommended to ensure proper function, water sealing, and safety. The following is a general overview; refer to the detailed installation guide provided with your product for step-by-step instructions and diagrams.

4.1 Controlli pre-installazione

1. Confirm the shower area dimensions match the product specifications (48-inch corner space).
2. Ensure the floor and walls are plumb and level. Out-of-plumb adjustability is provided, but significant deviations can affect installation.
3. Prepare the plumbing for the shower drain according to local codes.

4.2 Procedura di installazioneview

1. Shower Base Installation: Position and level the shower base, connecting it to the drain. Ensure a watertight seal.


Image 4.1: The white acrylic shower base, designed for corner installations.


Image 4.2: Detail of the shower base featuring a sleek hidden drain design.
2. Muro Profile Installazione: Fissare il Wall Profiles to the bathroom walls, ensuring they are plumb and aligned with the shower base.
3. Fixed Panel Installation: Carefully set the fixed glass panel and side panel into the wall profilee proteggerli.
4. Sliding Door Assembly: Attach the rollers and handles to the sliding door panel.


Image 4.3: The oversized vertical bar handle, providing a comfortable grip for the sliding door.

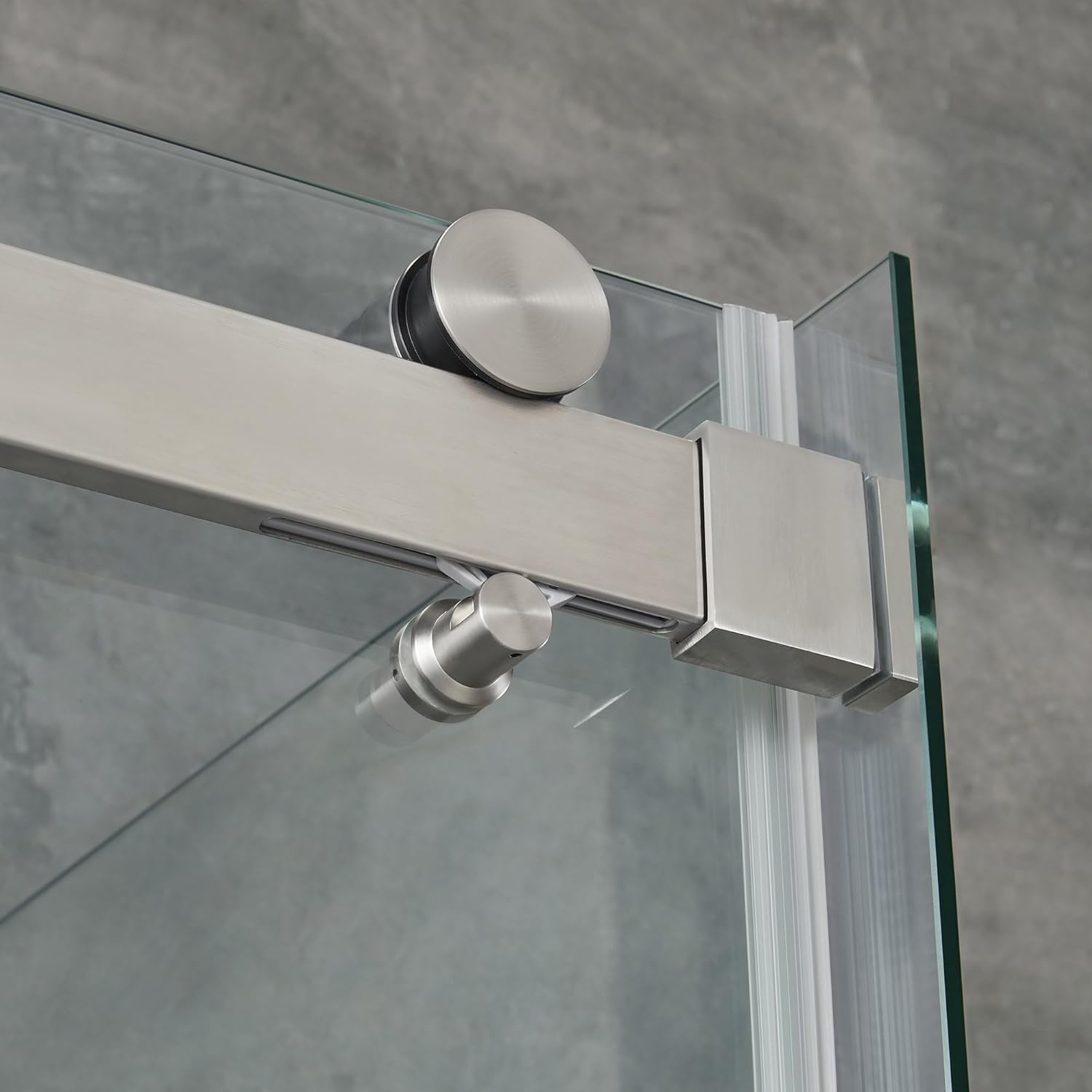

Image 4.4: The premium engineered rolling mechanism system, ensuring smooth and quiet operation.

5. Door Hanging: Mount the sliding door onto the top track.
6. Sigillatura: Apply silicone sealant to all joints and seams to ensure a watertight enclosure. Allow adequate curing time before use.

5. Istruzioni per l'uso

The OVE Decors Bel shower door features a smooth-gliding soft-close mechanism for effortless operation.

• To open the door, gently push or pull the vertical bar handle in the desired direction. The door will glide smoothly along the top track.
• To close the door, gently push or pull it until it approaches the closed position. The soft-close mechanism will engage, slowly and quietly bringing the door to a complete close.
• Avoid forcing the door or applying excessive pressure, as this can damage the rollers or track.

6. Manutenzione e cura

Regular cleaning and maintenance will preserve the appearance and functionality of your shower kit.

6.1 Pannelli in vetro

• Clean glass panels regularly with a soft cloth or sponge and a non-abrasive glass cleaner.
• For hard water spots, use a solution of white vinegar and water. Rinse thoroughly after cleaning.
• Evitare l'uso di detergenti abrasivi, pagliette o prodotti chimici aggressivi, poiché potrebbero graffiare o danneggiare la superficie del vetro.

6.2 Metal Finishes (Satin Nickel)

• Pulire i componenti metallici con un panno morbido eamp panno e sapone neutro.
• Asciugare accuratamente con un panno pulito e morbido per evitare macchie d'acqua.
• Do not use abrasive cleaners, ammonia-based products, or harsh chemicals, as they can damage the satin nickel finish.

6.3 Shower Base

• Clean the acrylic shower base with a non-abrasive bathroom cleaner and a soft cloth or sponge.
• Rinse thoroughly to remove all cleaning product residue.
• Regularly check the drain for blockages and clean as needed.

7. Risoluzione Dei Problemi

This section addresses common issues you might encounter with your shower kit.

7.1 Door Does Not Slide Smoothly

• Controllare eventuali ostruzioni: Inspect the top and bottom tracks for any debris, soap scum, or foreign objects. Clean the tracks thoroughly.
• Ispezionare i rulli: Ensure the rollers are clean and free from hair or grime. Verify they are properly seated in the track.
• Lubrificazione: A silicone-based lubricant can be applied sparingly to the tracks and rollers if friction is present. Do not use oil-based lubricants.

7.2 Water Leaks from Shower Enclosure

• Controllare le guarnizioni: Inspect all rubber seals and sweeps along the bottom and sides of the door and fixed panels. Ensure they are intact and properly positioned. Replace if damaged.
• Silicone sigillante: Examine all silicone sealant lines for cracks, gaps, or deterioration. Reapply silicone sealant as necessary, ensuring the area is clean and dry before application.
• Proper Slope: Ensure the shower base has a slight slope towards the drain to prevent water pooling and overflow.

8. Specifiche

9. Garanzia e supporto

For specific warranty information and customer support, please refer to the documentation included with your purchase or visit the official OVE Decors websito. Conservare la prova d'acquisto per eventuali reclami in garanzia.

For assistance with installation, troubleshooting, or replacement parts, please contact OVE Decors customer service. Contact information can typically be found on the product packaging or the manufacturer's websito.
