Introduzione
Thank you for choosing the TIDRADIO 11-inch AirBand Antenna. This antenna is designed to enhance airband signal reception for compatible walkie-talkies. Please read this manual thoroughly to ensure proper installation and optimal performance.
Specifiche
| Tipo di connettore | SMA-Femmina |
| Gamma di frequenza | Air Band 108-136MHz |
| Guadagno | 3.5dBi |
| ROS | Meno di 1.5 |
| Potenza massima in ingresso | 25W |
| Impedenza | 50 ohm |
| Lunghezza | 28 CM / 11 inches |
| Peso dell'articolo | 1.76 once |
| Dimensioni del pacco | 15.79 x 3.46 x 0.59 pollici |
Istruzioni di installazione
Follow these steps to properly attach your TIDRADIO AirBand Antenna to a compatible device:
- Identificare il connettore: The TIDRADIO 11-inch AirBand Antenna features an SMA-Female connector. Ensure your walkie-talkie or radio has a compatible SMA-Male connector.
- Align the Connectors: Carefully align the SMA-Female connector on the antenna with the SMA-Male connector on your radio.
- Screw On the Antenna: Gently screw the antenna onto the radio's connector in a clockwise direction. Do not overtighten, as this can damage both the antenna and the radio. Tighten until snug.
- Verifica della compatibilità: This antenna is compatible with various models including BAOFENG UV-5R Mini, UV-32, DM-32, F8HP PRO, 5RM, 5RH PRO, K5PLUS, TIDRADIO TD-H3Plus, TD-H3, Quansheng UV-K5/UV-K6/UV-TK11, and Radioddity RT-470/Airband two-way radios.
Funzionamento dell'antenna
Once the antenna is securely attached, your radio is ready for enhanced airband signal reception. The antenna is designed for optimal performance within the 108-136MHz airband frequency range.
- Ricezione del segnale: The 3.5dBi gain of this antenna helps improve the clarity and range of received airband signals.

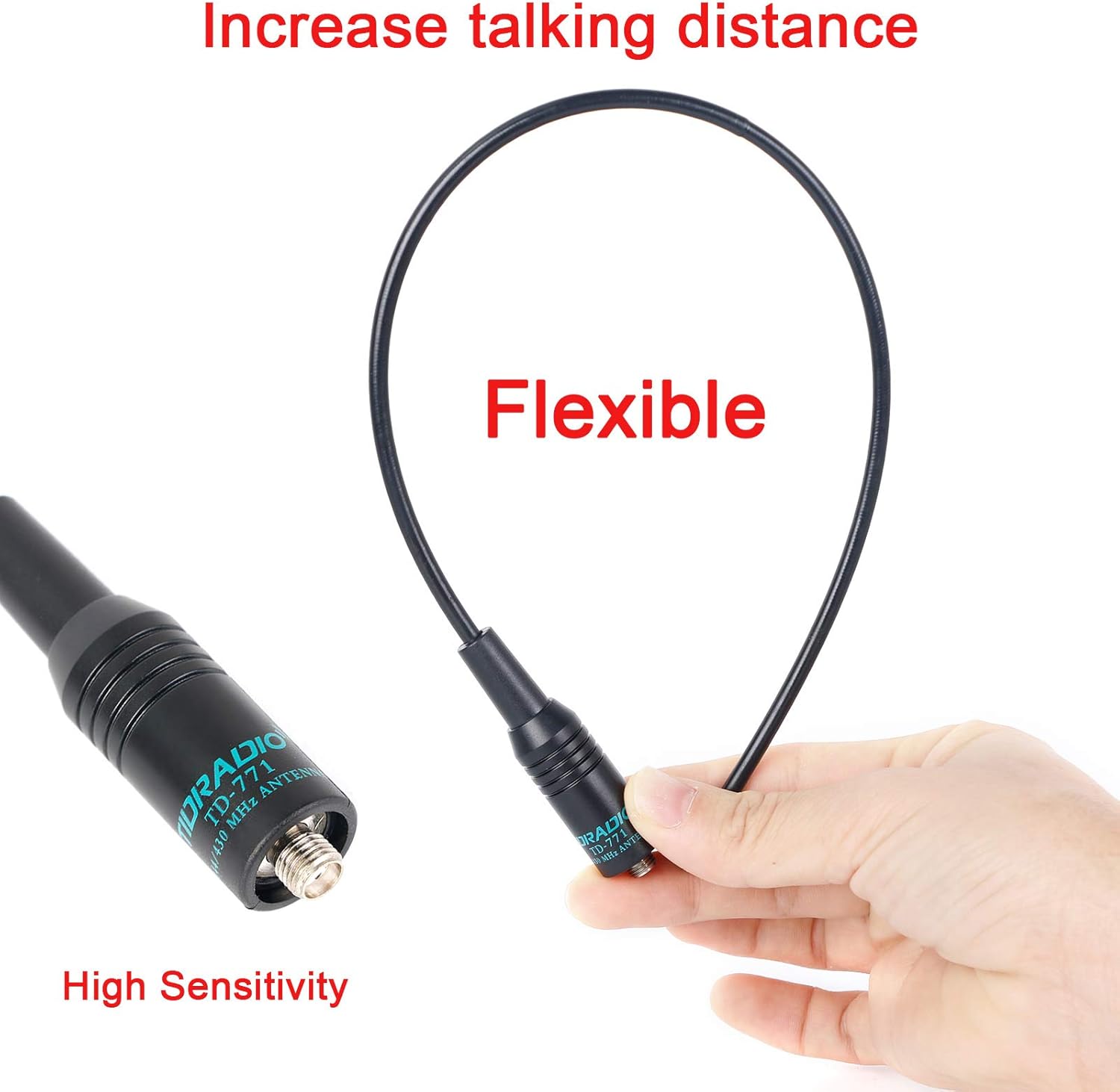

- Flessibilità: The antenna is designed to be flexible, allowing for some bending without damage, which can be beneficial in various operating conditions.
- Gestione della potenza: The antenna can handle a maximum input power of 25W. Ensure your radio's output power does not exceed this limit to prevent damage.
Manutenzione e cura
Proper maintenance ensures the longevity and performance of your antenna:
- Pulizia: Pulisci l'antenna con un panno morbido e asciutto per rimuovere polvere e sporco. Evita di utilizzare prodotti chimici aggressivi o materiali abrasivi.
- Magazzinaggio: Quando non viene utilizzata, conservare l'antenna in un luogo fresco e asciutto, lontano dalla luce solare diretta e da temperature estreme.
- Gestione: While the antenna is designed to be durable and stretchable, avoid excessive bending or sharp impacts that could damage the internal elements or connector.
- Connessione: Periodically check the connection to your radio to ensure it remains snug and free from corrosion.
Risoluzione dei problemi
If you experience issues with signal reception, consider the following:
- Scarsa ricezione del segnale:
- Ensure the antenna is securely attached to your radio. A loose connection can significantly degrade performance.
- Verify that your radio is tuned to the correct airband frequency (108-136MHz).
- Check for environmental obstructions such as large buildings, hills, or dense foliage that might block signals. Try moving to a different location.
- Confirm that your radio's settings are correctly configured for external antenna use, if applicable.
- Danni all'antenna: Inspect the antenna for any visible signs of damage, such as cracks in the casing or a bent connector. If damaged, replace the antenna.
For issues related to your walkie-talkie's functionality, refer to its specific instruction manual.
Garanzia e supporto
TIDRADIO products are manufactured to high-quality standards. For specific warranty information or technical support, please refer to the warranty card included with your purchase or visit the official TIDRADIO website. You may also contact TIDRADIO customer service directly for assistance.
