1. Introduzione
This manual provides detailed instructions for the MACALLY BTZKEY Bluetooth Full-size Keyboard, designed for seamless integration with Apple devices. It features a Japanese layout, a numeric keypad, and multi-pairing capabilities for up to three devices. Please read this manual thoroughly before using the product to ensure proper operation and longevity.
Figure 1: MACALLY BTZKEY Bluetooth Full-size Keyboard
2. Contenuto della confezione
Si prega di controllare il contenuto della confezione per assicurarsi che siano presenti tutti gli articoli:
- MACALLY BTZKEY Bluetooth Full-size Keyboard
- Cavo di ricarica USB-C
- Manuale d'uso
3. Impostazione
3.1 Ricarica della tastiera
The keyboard comes with a built-in 780mAh rechargeable battery. Before initial use, it is recommended to fully charge the keyboard.
- Connect the included USB-C cable to the charging port on the keyboard.
- Connect the other end of the USB-C cable to a USB power adapter (not included) or a powered USB port on your computer.
- La spia di carica si accenderà durante la ricarica e si spegnerà quando la carica sarà completamente completata.
Nota: The USB-C cable provided is for charging only and does not support data transfer.
Figure 2: Charging the MACALLY BTZKEY Keyboard
3.2 Associazione con i dispositivi
The MACALLY BTZKEY keyboard supports pairing with up to three Bluetooth-enabled devices (MacBook, iMac, iPhone, iPad). You can easily switch between these devices.
- Assicurarsi che la tastiera sia carica e accesa.
- Enable Bluetooth on your device (Mac, iPad, iPhone).
- On the keyboard, press and hold one of the dedicated device keys (B1, B2, or B3) for 3-5 seconds until the corresponding indicator light above the key flashes rapidly. This indicates the keyboard is in pairing mode.
- On your device, go to Bluetooth settings and select "BTZKEY" from the list of available devices.
- Once connected, the indicator light will stop flashing and remain solid for a few seconds, then turn off.
- To switch between paired devices, simply press the corresponding device key (B1, B2, or B3). The keyboard will automatically connect to the last paired device on that channel.
Suggerimento per la risoluzione dei problemi: If pairing fails, it is recommended to delete all existing pairing records for the keyboard on your device and attempt to reconnect.
Figure 3: Multi-Sync Bluetooth Functionality
4. Istruzioni per l'uso
4.1 Mac-Specific Layout and Shortcut Keys
This keyboard is designed with a 111-key macOS-specific layout, providing a familiar and efficient typing experience for Apple users. It includes 14 dedicated shortcut keys for quick access to common Mac functions.

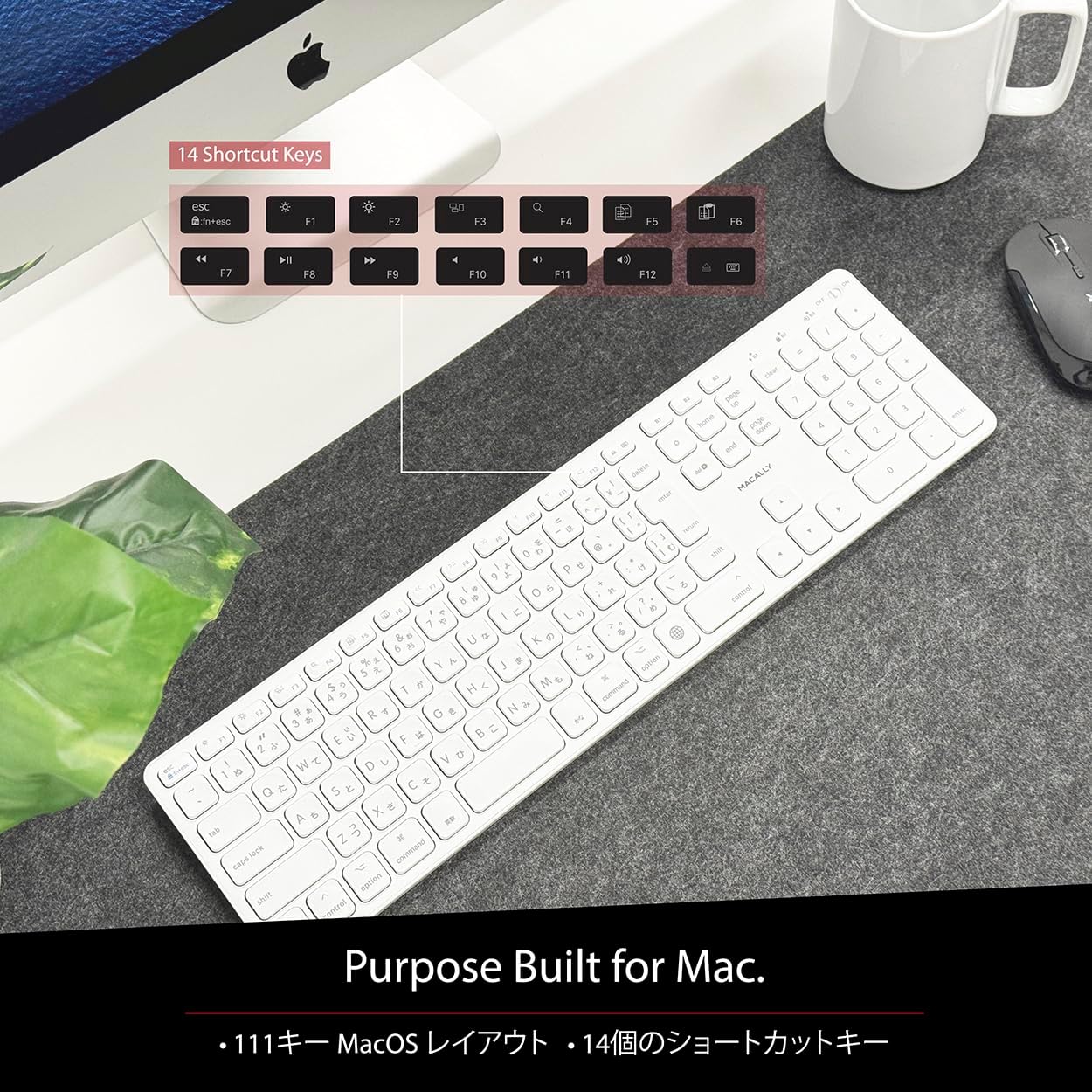

Figure 4: Mac-Specific Layout and Shortcut Keys
4.2 Scissor-Switch Keycaps
The keyboard utilizes quiet scissor-switch keys, offering a smooth, tactile, and quiet typing experience. This design ensures comfortable and efficient typing, whether for extended periods or quick tasks.

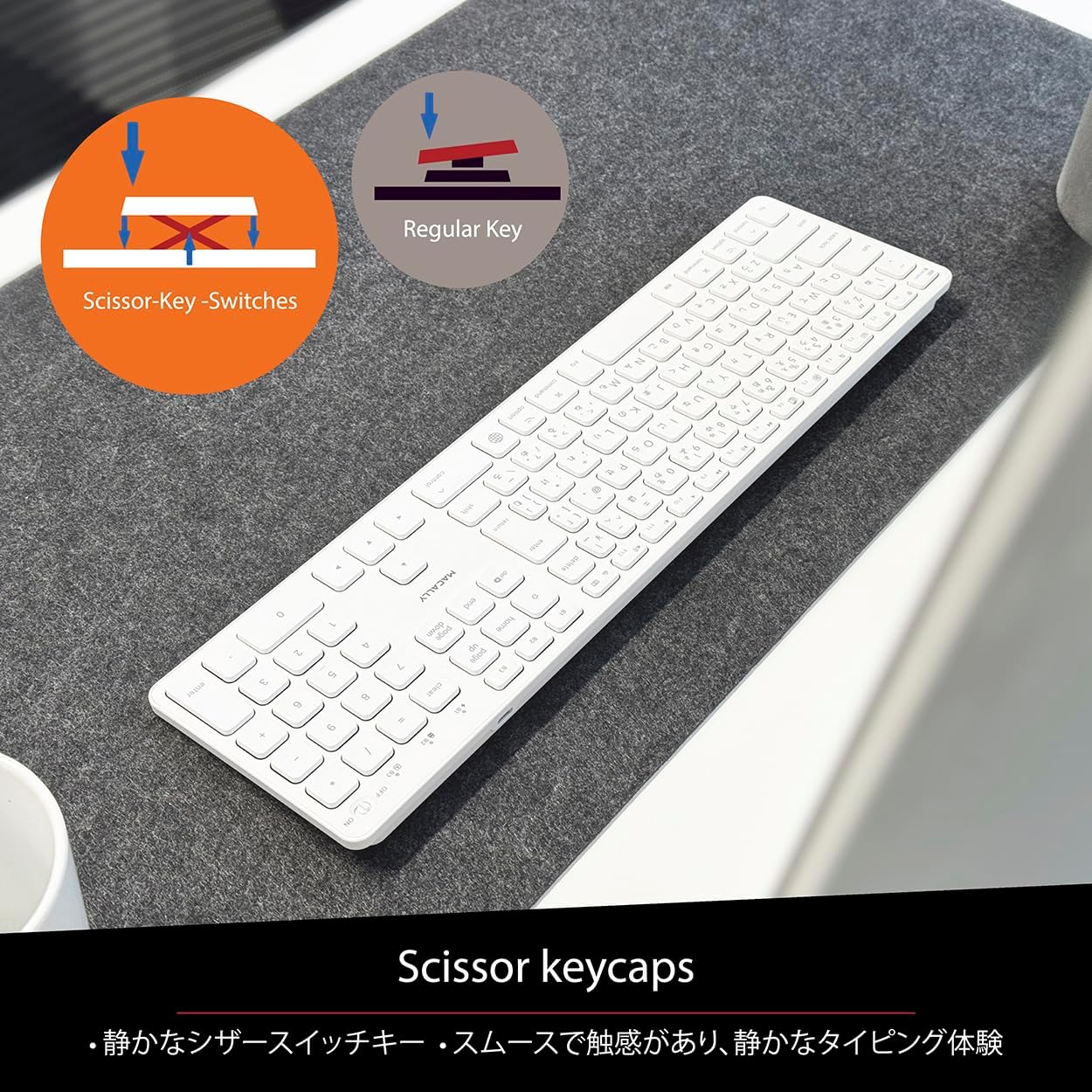

Figure 5: Scissor-Key-Switches Mechanism
4.3 Ergonomics and Design
The keyboard features an integrated kickstand for comfortable typing angles, reducing strain during use. Its slim profile, approximately 0.8 inches (2cm) thick, ensures portability and ergonomic use, complementing any workspace.

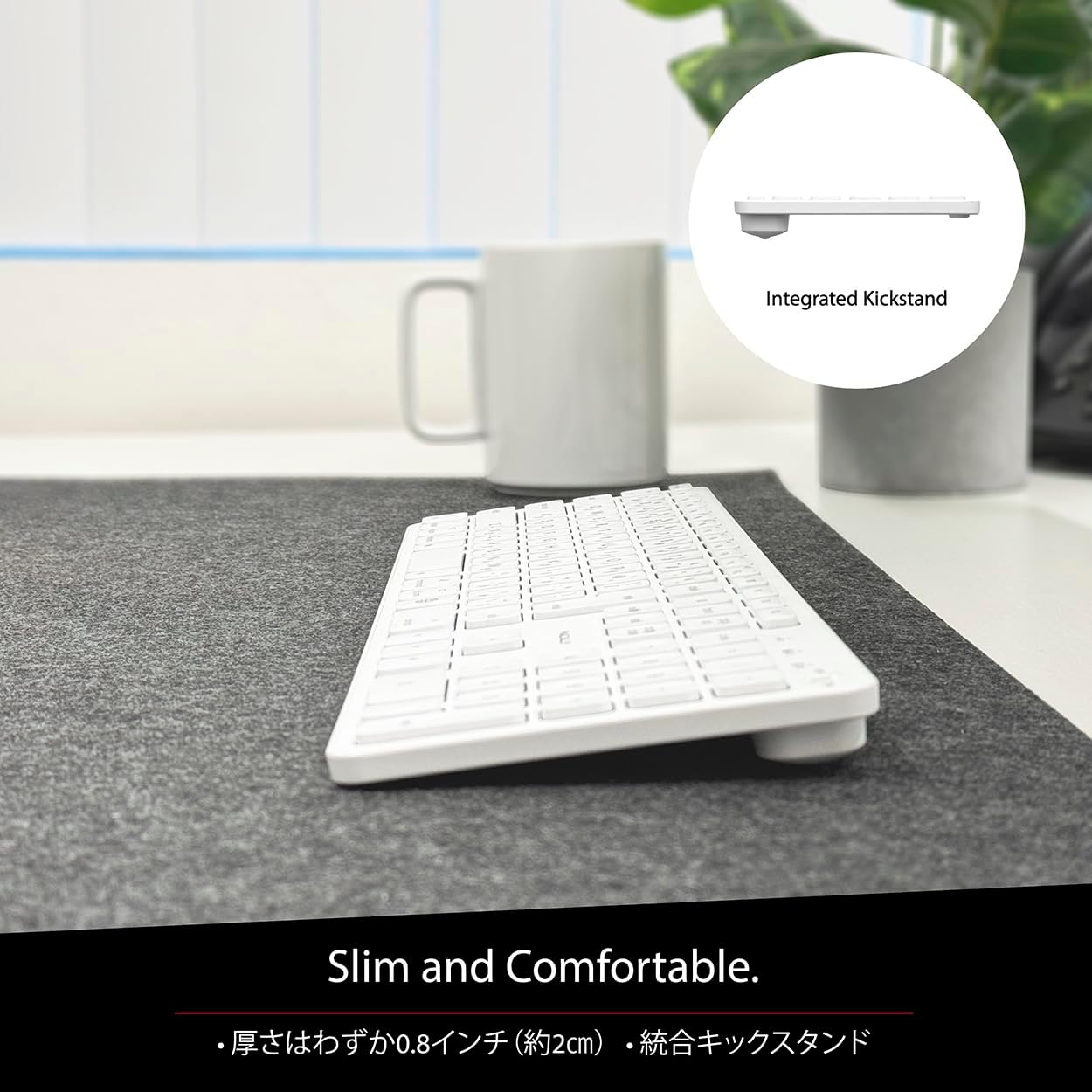

Figure 6: Slim Design with Integrated Kickstand
5. Manutenzione
Per garantire la longevità e le prestazioni ottimali della tastiera, seguire queste linee guida per la manutenzione:
- Pulizia: Utilizzare un panno morbido e privo di lanugine leggermente dampPulire la superficie della tastiera con acqua o una soluzione detergente delicata. Evitare prodotti chimici aggressivi o materiali abrasivi.
- Rimozione della polvere: Utilizzare aria compressa per rimuovere polvere e detriti dagli spazi tra i tasti.
- Cura della batteria: Avoid exposing the keyboard to extreme temperatures. Charge the keyboard regularly, even if not in frequent use, to maintain battery health.
- Magazzinaggio: Quando non si utilizza la tastiera per lunghi periodi, conservarla in un luogo fresco e asciutto, lontano dalla luce solare diretta.
6. Risoluzione Dei Problemi
If you encounter issues with your MACALLY BTZKEY keyboard, please refer to the following common problems and solutions:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Keyboard not connecting/pairing | Bluetooth off, low battery, pairing conflict | Ensure Bluetooth is enabled on device. Charge keyboard. Delete existing pairing records on device and re-pair. |
| Keys unresponsive or repeating characters | Low battery, software glitch, interference | Charge keyboard. Restart device. Re-pair keyboard. Minimize interference from other wireless devices. |
| Impossibile passare da un dispositivo all'altro | Device not properly paired to channel | Ensure each device is paired to a unique channel (B1, B2, B3). Re-pair if necessary. |
| Durata breve della batteria | Frequent use, aging battery | Ensure full charge before use. Reduce backlight usage if applicable (not on this model). Battery life may decrease over time. |
Se il problema persiste dopo aver provato queste soluzioni, contattare l'assistenza clienti.
7. Specifiche
| Caratteristica | Descrizione |
|---|---|
| Marca | mally |
| Produttore | MACALLA |
| Serie | BTZKEY |
| Dimensioni del prodotto (L x P x A) | Dimensioni: 42 x 14 x 2 cm |
| Numero di modello del prodotto | BTZKEY |
| Colore | Bianco |
| Batterie incluse | SÌ |
| Pacco batteria al litio | Batterie contenute nell'apparecchiatura |
| Peso della batteria al litio | 2 grammi |
| Peso dell'articolo | 610 grammi |
| Dispositivi compatibili | Laptop (MacBook Pro/Air, iMac, Mac Mini, Mac Pro, iPad, iPhone) |
| Tecnologia di connettività | Bluetooth |
| Descrizione della tastiera | Tastiera da ufficio |
| Usi consigliati per il prodotto | Attività commerciale |
| Caratteristica speciale | Ricaricabile |
| Numero di chiavi | 111 |
| Componenti inclusi | Cavo USB |
8. Garanzia e supporto
For detailed warranty information, technical support, and customer service, please refer to the official MACALLY website or contact their support channels directly. It is recommended to keep your purchase receipt as proof of purchase for any warranty claims.
9. Video ufficiali dei prodotti
Official product videos, if available and relevant, would be embedded here to provide visual guidance on setup, features, or troubleshooting. Please note that video content is subject to availability and may require an internet connection to view.
(No official seller videos were available in the provided product data to embed at this time.)
