The Acouto D-Loop Strike Plate (Model: Acoutowrm7vp821f, OE: 5423020000) is a replacement component designed for use with bonded frameless glass rear doors on various truck caps and covers. This plate serves as a crucial part of the door's latching mechanism, providing a secure point for the door's striker to engage, ensuring proper closure and stability.

Constructed from durable plastic material, this D-loop plate is engineered for impact resistance and longevity in diverse environmental conditions. Its precise design facilitates straightforward installation and contributes to the overall integrity of the vehicle's door system.

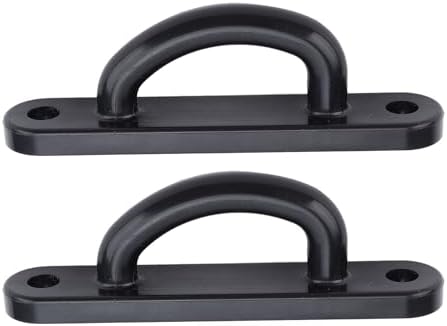

Image: Two Acouto D-Loop Strike Plates, showing their design and finish.

Compatibilità e montaggio

This D-loop plate is specifically designed for use on most bonded frameless glass rear doors. Compatible truck cap and cover manufacturers include, but are not limited to, Century, LEER (models 100LE, 100XL), Glasstite, ARE, Ranch, and Jason.

It is essential to verify the OE (Original Equipment) number 5423020000 to ensure compatibility with your specific vehicle application. Matching the OE number helps guarantee a correct fit and optimal performance.

Image: D-Loop Strike Plate with a truck cap, illustrating its intended application and highlighting the OE number for fitment verification.

Installazione

Installation of the D-Loop Strike Plate is generally straightforward, designed as a direct replacement for the original part. Basic hand tools are typically required.

Strumenti richiesti (tipici):

• Screwdriver (appropriate type for existing fasteners)
• Chiave inglese (se si utilizzano i dadi)
• Panno per la pulizia

Fasi di installazione:

1. Preparazione: Ensure the vehicle's glass door is securely propped open or supported to prevent accidental closure during installation. Clean the area where the strike plate will be mounted to remove any dirt or debris.
2. Rimuovere la vecchia targa: Carefully unscrew and remove the existing D-loop strike plate from the door frame or mounting surface. Retain any fasteners if they are to be reused.
3. Posizionare la nuova targa: Align the new Acouto D-Loop Strike Plate with the existing mounting holes. Ensure the plate is oriented correctly for the door's latching mechanism.
4. Piastra di sicurezza: Insert and tighten the appropriate fasteners (screws or bolts) to secure the new strike plate firmly in place. Do not overtighten, as this may damage the plate or mounting surface.
5. Funzionalità di prova: Gently close the glass door to ensure the latch engages smoothly and securely with the new D-loop plate. Verify that the door closes completely and latches without excessive force or binding. Adjust if necessary.

Image: The D-Loop Strike Plate shown in context with a truck's rear door, illustrating the typical installation location.

Operazione

The D-Loop Strike Plate functions as a stationary component that provides the necessary engagement point for the door's latch or striker. When the glass door is closed, the latch mechanism extends and hooks onto or around the D-loop, securing the door in its closed position. This ensures the door remains shut during vehicle operation and provides a stable seal.

Proper operation relies on the correct alignment of the strike plate with the door's latch. A well-installed strike plate allows for smooth, effortless closing and opening of the door, contributing to the overall functionality and security of the truck cap or cover.

Manutenzione

Regular maintenance of the D-Loop Strike Plate is minimal but important for ensuring its longevity and continued performance.

• Pulizia: Periodically wipe down the strike plate with a damp cloth to remove dirt, dust, or grime that may accumulate. Avoid abrasive cleaners that could damage the plastic material.
• Ispezione: Regularly inspect the strike plate for any signs of wear, cracks, or damage. Check the mounting screws for tightness and re-tighten if necessary.
• Lubrificazione (facoltativa): While not typically required for the strike plate itself, ensuring the door's latch mechanism is clean and lightly lubricated (if recommended by the door manufacturer) can improve overall door operation and reduce wear on the strike plate.

Risoluzione dei problemi

If you encounter issues with your D-Loop Strike Plate or the associated door mechanism, consider the following troubleshooting steps:

• La porta non si chiude correttamente:
  • Check the alignment of the strike plate with the door's latch. Minor adjustments to the strike plate's position (if possible) or the latch mechanism may be needed.
  • Inspect the latch mechanism on the door itself for any obstructions, damage, or wear that might prevent it from engaging the strike plate.
• Excessive Play or Rattling:
  • Ensure all mounting screws for the strike plate are securely tightened.
  • Check for any looseness in the door's hinges or frame that could affect the strike plate's stability.
• Cracks or Breakage:
  • If the plastic strike plate shows signs of cracking or has broken, it indicates the need for replacement. Continued use of a damaged plate can compromise door security and functionality.

If issues persist after troubleshooting, it is recommended to consult with a professional automotive technician or contact Acouto customer support for further assistance.

Specifiche

Image: Detailed dimensions of the D-Loop Strike Plate.

Garanzia e supporto

Acouto is committed to providing high-quality products and services. While specific warranty details are not provided in this manual, Acouto strives for customer satisfaction and product reliability.

For any questions regarding product quality, installation, or performance, please contact Acouto customer support. When contacting support, please have your product model number (Acoutowrm7vp821f) and OE number (5423020000) available.

You can find more information about Acouto and their products by visiting their official store page on Amazon: Acouto Store.
