Macally Bluetooth Keyboard for Tablet

1. Introduzione

The Macally Bluetooth Keyboard for Tablet (Model BTTABKEYBATBR) is a versatile wireless keyboard designed for seamless use across multiple devices. Featuring a built-in stand, portable design, and rechargeable battery, it enhances productivity for tablets, smartphones, PCs, and smart TVs. This manual provides essential information for setup, operation, maintenance, and troubleshooting.

2. Prodotto finitoview

This compact keyboard offers a comfortable and efficient typing experience with its 78-key layout and responsive scissor-switch keys. It includes 13 dedicated shortcut/media keys for quick access to common functions. The integrated 10.5-inch slot serves as a convenient stand for your smartphone or tablet, allowing for an ergonomic viewangolo di ing.

Image: Macally Bluetooth Keyboard with an iPad positioned in its integrated stand.

Caratteristiche principali:

• Connettività multi-dispositivo: Pair and switch between up to three Bluetooth-enabled devices (e.g., iPad, iPhone, PC, Smart TV).
• Supporto integrato: Built-in 10.5-inch slot securely holds your smartphone or tablet for optimal viewing.
• Portatile e ricaricabile: Compact design with a 280mAh rechargeable battery for on-the-go use.
• Efficient Layout: 78-key layout with 13 shortcut/media keys for enhanced productivity.
• Digitazione reattiva: Scissor-switch keys provide a comfortable and semi-silent typing experience.

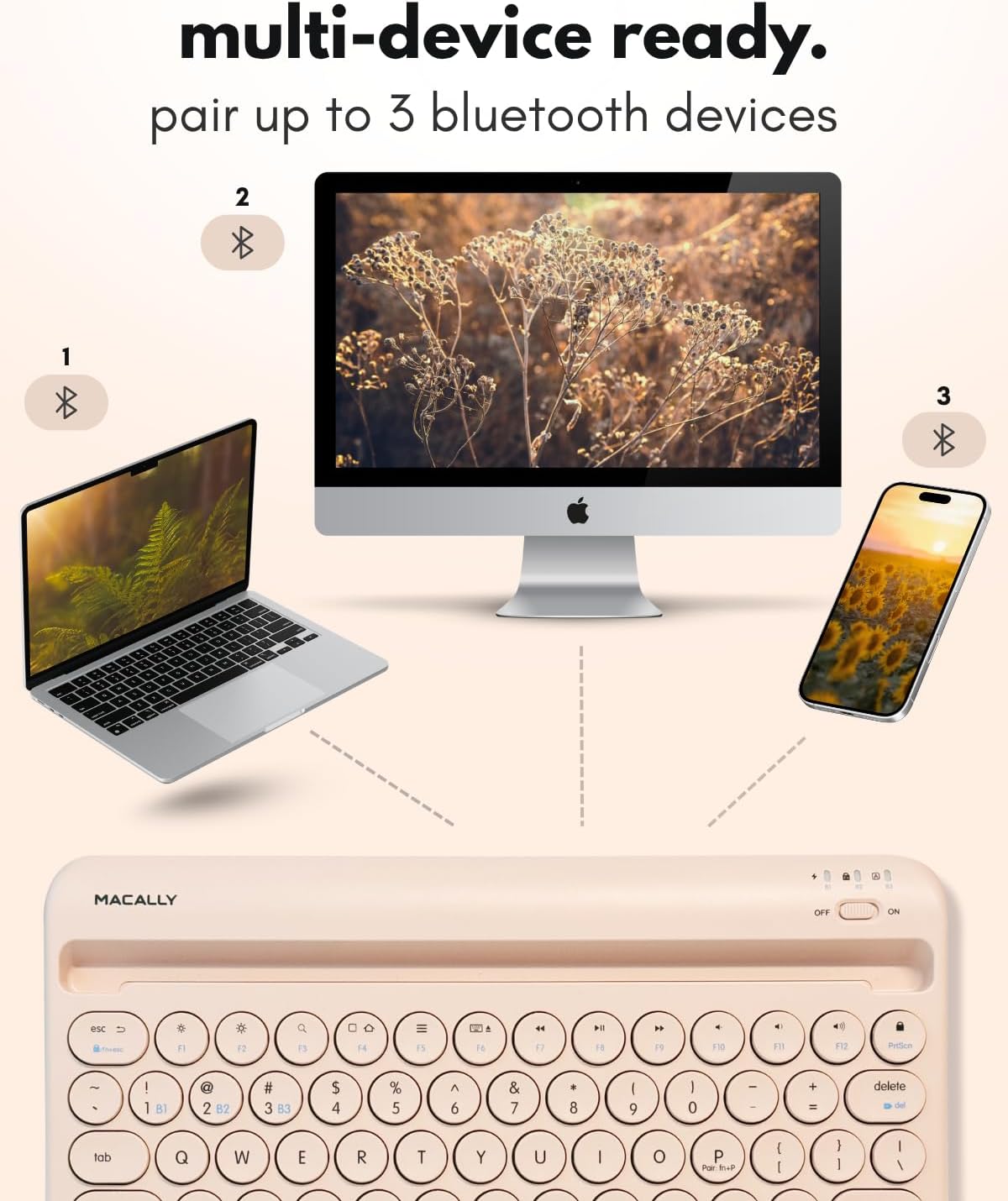

Image: The Macally keyboard demonstrating multi-device connectivity to a laptop, desktop computer, and smartphone.

3. Istruzioni per l'installazione

3.1. Ricarica della tastiera

The keyboard features a 280mAh rechargeable battery. Use the included charging cable to power the device. The LED indicator will show the charging status:

• LED rosso: Ricarica in corso.
• Red LED Off: Completamente carico.

Immagine: un primo piano view of the Macally keyboard highlighting the charging port and a battery icon, indicating its rechargeable nature.

3.2. Accensione/spegnimento

Locate the power switch on the top right side of the keyboard. Slide it to the 'ON' position to power on the keyboard and to 'OFF' to power it down.

3.3. Accoppiamento Bluetooth

The keyboard can pair with up to three devices. Follow these steps to pair your device:

1. Assicurati che la tastiera sia accesa.
2. Select a Bluetooth channel (B1, B2, or B3) by pressing the Fn key simultaneously with the desired channel key (e.g., Fn + B1). The corresponding LED (B1, B2, or B3) will flash.
3. To initiate pairing mode, press and hold Fn + P simultaneously. The selected channel's LED will flash rapidly, indicating it is ready to pair.
4. On your device (tablet, smartphone, PC), go to its Bluetooth settings and search for 'BTTABKEYBAT' (or similar).
5. Select the keyboard from the list of available devices to complete the pairing process. The LED will stop flashing once successfully paired.

4. Istruzioni per l'uso

4.1. Passaggio da un dispositivo all'altro

After pairing multiple devices, you can easily switch between them by pressing the Fn key along with the corresponding channel key (B1, B2, O B3) for the desired device.

4.2. Utilizzo dei tasti di scelta rapida

The keyboard includes 13 shortcut/media keys (F1-F12, and a lock key) that provide quick access to various functions depending on your operating system. Refer to your device's operating system documentation for specific functions of these keys.

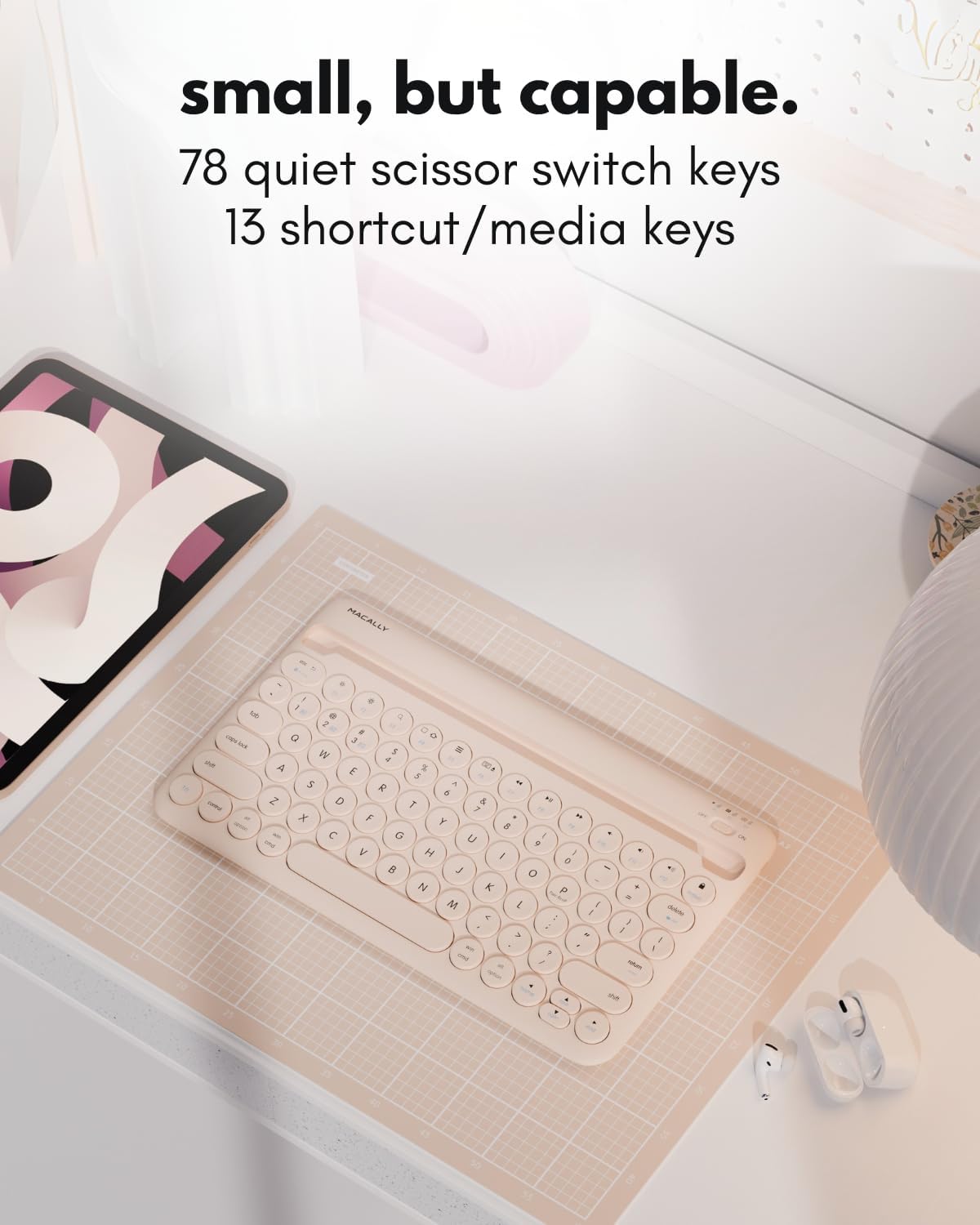

Immagine: Un dettaglio view of the Macally keyboard, emphasizing its 78-key layout and the inclusion of 13 shortcut/media keys.

5. Manutenzione

To ensure the longevity and optimal performance of your Macally Bluetooth Keyboard, follow these maintenance guidelines:

• Pulizia: Utilizzare un morbido, damp panno per pulire la superficie della tastiera. Evitare prodotti chimici aggressivi o materiali abrasivi.
• Magazzinaggio: Conservare la tastiera in un luogo fresco e asciutto, lontano dalla luce solare diretta e da temperature estreme.
• Cura della batteria: Per una durata ottimale della batteria, evitare di scaricarla completamente frequentemente. Caricarla regolarmente, anche se non la si utilizza costantemente.
• Protezione: When traveling, consider using a protective sleeve or case to prevent scratches or damage.

6. Risoluzione Dei Problemi

6.1. Keyboard Not Pairing

• Assicurarsi che la tastiera sia accesa e completamente carica.
• Verifica che il Bluetooth sia abilitato sul tuo dispositivo.
• Make sure the keyboard is in pairing mode (LED flashing rapidly after pressing Fn + P).
• If previously paired, try unpairing the keyboard from your device's Bluetooth settings and then re-pairing.
• Move the keyboard closer to your device to ensure it's within the 30ft wireless range.

6.2. I tasti non rispondono

• Check if the keyboard is connected to the correct device channel (B1, B2, or B3).
• Assicurarsi che la batteria della tastiera non sia eccessivamente scarica.
• Restart both the keyboard and your connected device.

6.3. Problemi di ricarica

• Confirm the charging cable is securely connected to both the keyboard and a power source.
• Prova a utilizzare un cavo di ricarica o una porta USB diversi.
• Assicurarsi che la fonte di alimentazione sia attiva.

7. Specifiche

Image: A diagram illustrating the physical dimensions of the Macally Bluetooth Keyboard.

8. Garanzia e supporto

Macally offers dedicated U.S. based support and service for its products. For warranty registration and additional support, please visit:

• Registrazione della garanzia: vip.macally.com
• Supporto tecnico: supporto tecnico@macally.com
