DWVO Aquarium Stand

DWVO 55-75 Gallon Aquarium Stand with Power Outlet User Manual

1. Introduzione

Thank you for choosing the DWVO 55-75 Gallon Aquarium Stand with Power Outlet. This stand is designed to provide a stable and functional base for your aquarium, turtle tank, or reptile terrarium, offering convenient storage and integrated power solutions. Please read this manual thoroughly before assembly and use to ensure proper installation and safe operation.

2. Informazioni sulla sicurezza

3. Contenuto della confezione

Verify that all components are present before beginning assembly. Refer to the included parts list in your packaging for detailed identification.

I componenti tipici includono:

4. Istruzioni di montaggio

Assembly typically requires two people. Follow the numbered steps provided in the separate assembly diagram for your specific model. Ensure all connections are secure before placing any weight on the stand.

Montaggio passo dopo passoview:

  1. Disimballare e identificare le parti: Lay out all components on a clean, soft surface to prevent scratches. Compare with the parts list.
  2. Montare il telaio di base: Connect the bottom panel to the lower sections of the side frames using the provided hardware.
  3. Installa scaffali: Attach the various shelf panels to the side frames according to the diagram. Ensure they are oriented correctly for the multi-layer storage design.
  4. Fissare il pannello superiore: Secure the top panel to the upper sections of the side frames.
  5. Installare la presa di corrente: Carefully insert the power outlet unit into its designated slot on the top panel or a shelf, securing it with screws if applicable. Route the power cable as intended.
  6. Dispositivo antiribaltamento sicuro: Attach the anti-tip device to the back of the stand and to a wall stud using appropriate hardware.
  7. Controllo finale: Verify all screws are tightened and the stand is stable.
DWVO Aquarium Stand in a living room setting with an aquarium on top.

Figure 1: Assembled DWVO Aquarium Stand in a living room environment.

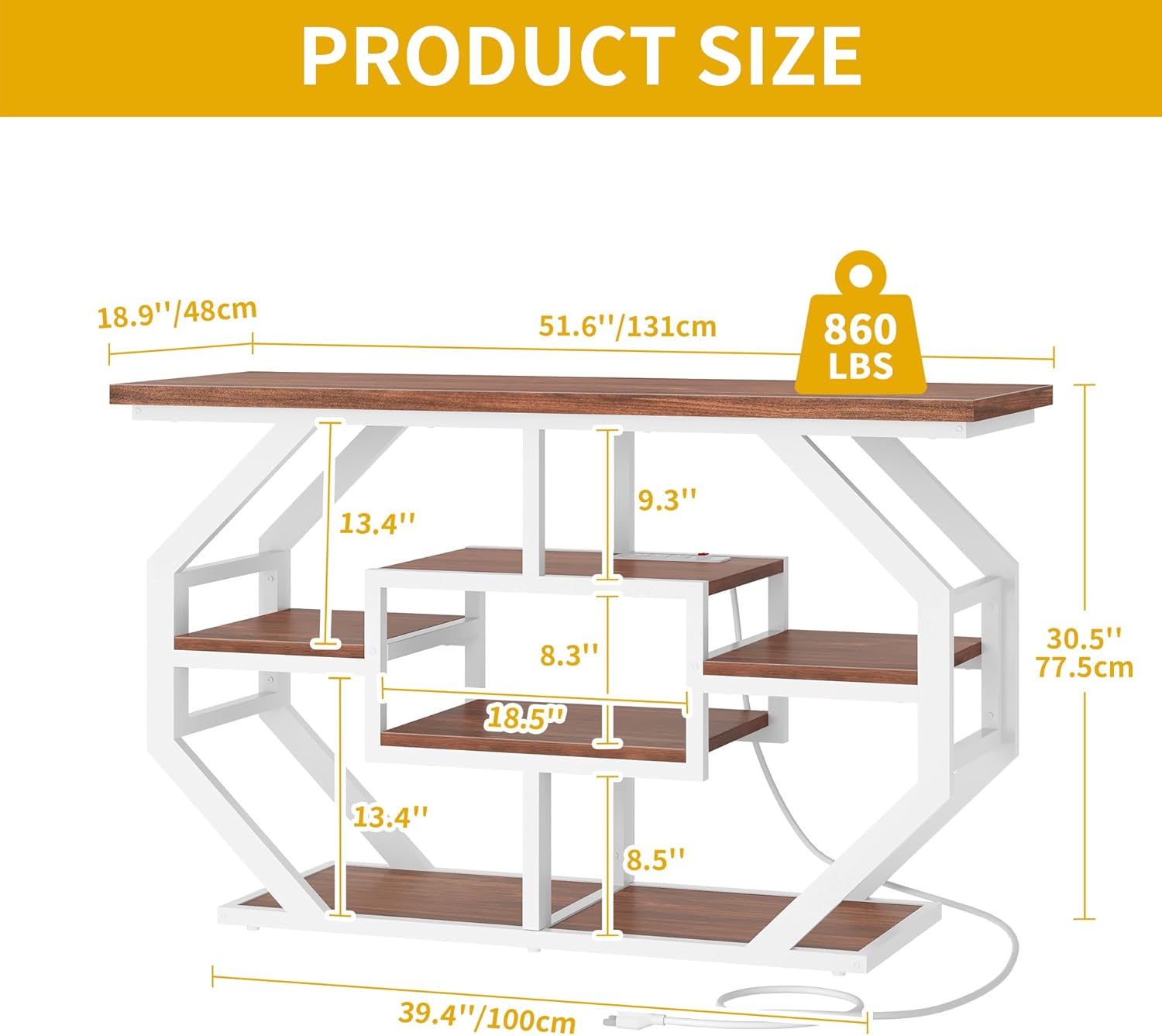

Diagram showing the dimensions of the DWVO Aquarium Stand.

Figure 2: Product dimensions for the DWVO 55-75 Gallon Aquarium Stand.

5. Istruzioni per l'uso

Using the Integrated Power Outlet:

The DWVO Aquarium Stand features a built-in power outlet with 2 USB ports, 3 AC outlets, and a power switch. This allows for convenient power access for your aquarium equipment.

  1. Collegare alla presa a muro: Plug the stand's main power cord (78.74” white wire) into a grounded wall outlet.
  2. Accensione/spegnimento: Use the red switch on the power outlet unit to turn the power to the outlets ON or OFF.
  3. Connetti dispositivi: Plug your aquarium lights, heaters, oxygen pumps, or other electronic devices into the AC outlets. Use the USB ports for charging compatible devices.

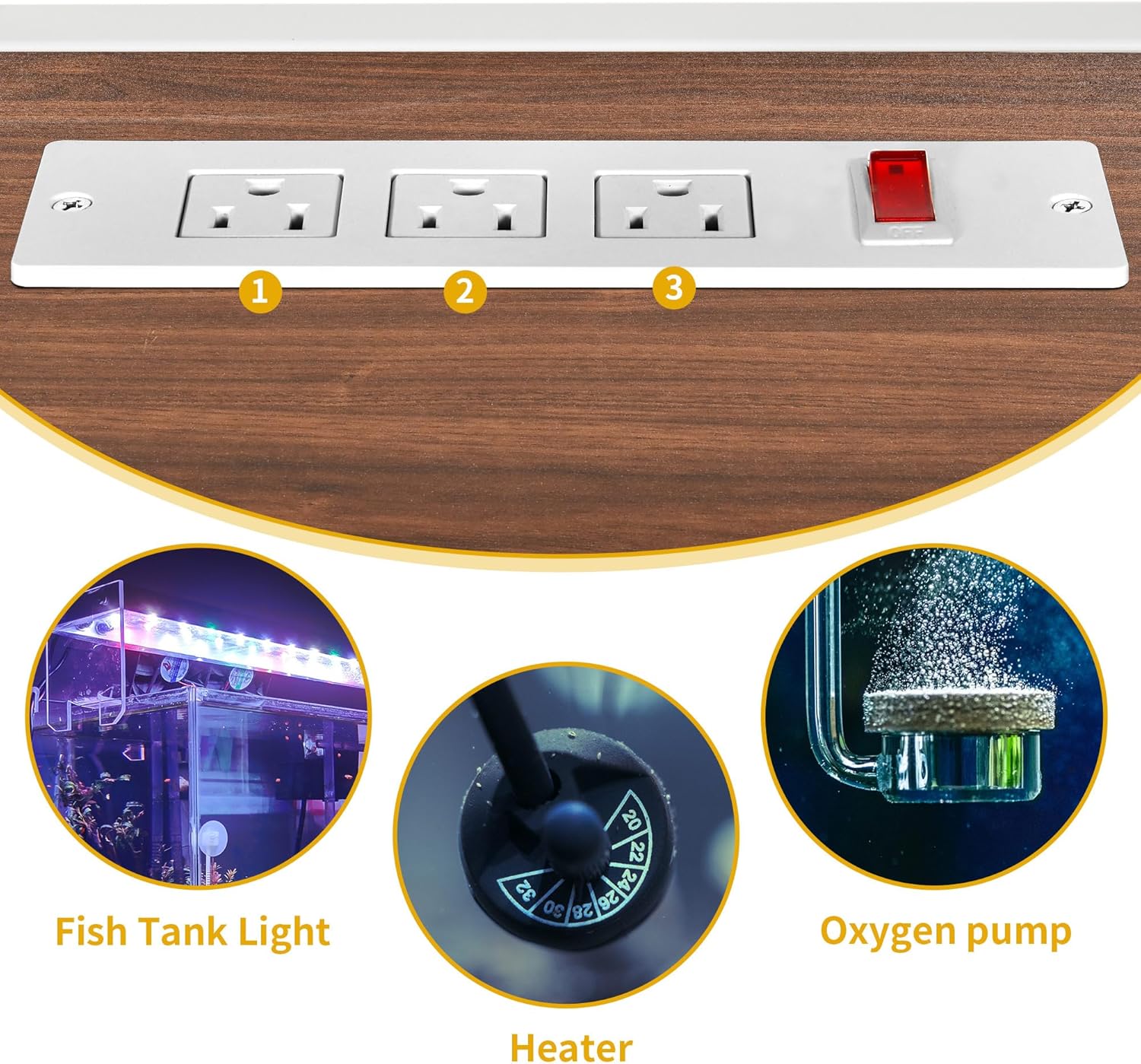

Avvicinamento view of the integrated power outlet with three AC sockets and a red power switch. Below are examples of devices like a fish tank light, heater, and oxygen pump.

Figure 3: Integrated power outlet for connecting aquarium accessories.

Utilizzo dello spazio di archiviazione:

The stand offers multiple storage compartments for organizing fish food, cleaning tools, and other accessories.

Diagram illustrating the multi-layer storage space of the aquarium stand, highlighting the large desktop, two-tier storage, middle layer storage, and bottom storage areas.

Figure 4: Multi-layer storage space for organizing various items.

Video 1: This video demonstrates the DWVO 55-75 Gallon Aquarium Stand with Power Outlet, showcasing its design, integrated power strip, and various storage compartments in a home setting.

6. Manutenzione

Close-up of the 15mm P2 grade particle board surface of the stand.

Figure 5: The stand is constructed with 15mm P2 grade particle board for durability.

7. Risoluzione Dei Problemi

8. Specifiche

CaratteristicaDettaglio
Numero di modelloSupporto per acquario
Dimensioni (L x P x A)51.6 x 18.9 x 30.5 pollici (131 x 48 x 77.5 cm)
Capacità di peso860 libbre (390 kg)
MaterialeIron + P2 Grade Particle Board
ColoreWhite + Walnut
Presa elettrica3 prese CA, 2 porte USB
Lunghezza del cavo di alimentazione78.74 pollici (200 cm)
Assemblaggio richiesto
Caratteristica specialeAnti-tip devices included

9. Garanzia e supporto

This DWVO product comes with a 1-year manufacturer's warranty. For warranty claims, missing parts, or technical support, please contact DWVO customer service. Keep your purchase receipt for warranty validation.

Produttore: DWVO

Codice UPC: 197839446649

ASIN: B0D63222KB
