Yaheetech 5-Tier Adjustable Metal Shelving Unit Instruction Manual

1. Introduzione

Thank you for choosing the Yaheetech 5-Tier Adjustable Metal Shelving Unit. This heavy-duty utility rack is designed for versatile storage solutions in various environments such as garages, workshops, kitchens, and offices. Its boltless design allows for easy assembly and adjustable shelves to accommodate items of different sizes. Please read this manual thoroughly before assembly and use to ensure safe and correct installation and operation.

2. Informazioni sulla sicurezza

• Always wear appropriate safety gear, such as gloves, during assembly to prevent injuries.
• Prima di iniziare il montaggio, assicurarsi che tutti i componenti siano presenti e integri. Non utilizzare parti danneggiate.
• Montare l'unità su una superficie piana e stabile.
• Do not exceed the maximum weight capacity per shelf (386 lb / 175 kg). Distribute weight evenly.
• Secure the shelving unit to a wall if there is any risk of tipping, especially in areas with children or pets, or if storing heavy items on upper shelves.
• Tenere i bambini e gli animali domestici lontani dall'area di raccolta.
• Avoid climbing on the shelving unit.
• Per una stabilità ottimale, posizionare gli oggetti più pesanti sui ripiani più bassi.

3. Elenco delle parti

Verifica che tutti i seguenti componenti siano inclusi nel pacchetto:

• Upright Posts (Vertical Supports)
• Long Support Beams (Horizontal for length)
• Short Support Beams (Horizontal for width)
• MDF Boards (Shelves)
• Rubber Foot Pads (for bottom of upright posts)
• Connectors (for joining upright posts if assembling as two smaller units)
• Gloves (for assembly)

A rubber mallet (not included) is recommended for smoother assembly.

4. Installazione e assemblaggio

The Yaheetech shelving unit features a boltless design for straightforward assembly. Follow these steps carefully:

4.1. Preparazione

• Predisporre un'area spaziosa per l'assemblea.
• Disporre tutti i componenti e verificarli rispetto all'elenco delle parti.
• Put on the provided gloves.

4.2. Assemblaggio del telaio

1. Attach the rubber foot pads to the bottom of each upright post.
2. Begin by connecting two upright posts using one long support beam and one short support beam for the bottom shelf. Ensure the tabs on the beams align with the keyhole slots on the posts. Gently tap with a rubber mallet to secure.
3. Repeat this process to create the rectangular base frame for the first shelf.
4. Continue adding upright posts and beams to form the desired height and number of shelves. The keyhole slots allow for height adjustment in 1.5-inch increments.
5. If assembling two smaller units, use the provided connectors to join the upright posts at the desired height.

Image: Key features of the shelving unit, highlighting adjustable height, galvanized surface, and boltless assembly.

Immagine: dettagliata view of the galvanized surface, boltless connection, and protective foot pads.

4.3. Installazione di pannelli MDF

1. Once the frame for a shelf is complete, carefully place an MDF board onto the support beams. Ensure it sits flush and securely within the frame.
2. Repeat for all desired shelves.

Image: Demonstrates adjustable shelves and various assembly configurations, including a full-height unit and two workbench-style units.

5. Funzionamento e utilizzo

The Yaheetech shelving unit offers flexibility for various storage needs:

5.1. Regolazione dell'altezza del ripiano

• Per regolare uno scaffale, per prima cosa rimuovi tutti gli oggetti che contiene.
• Carefully lift the MDF board and then detach the support beams from the upright posts by gently tapping upwards with a rubber mallet.
• Reattach the support beams at the desired height by aligning the tabs with the keyhole slots and tapping them securely into place.
• Place the MDF board back onto the re-positioned support beams.

Image: Illustration of the 1.5-inch increment height adjustment mechanism for shelves.

5.2. Versatile Configurations

This shelving unit can be assembled in multiple ways to suit your space and storage requirements:

• Tall Unit: Assemble all five tiers vertically for maximum storage height.
• Workbench Style: The unit can be split into two smaller, shorter units (e.g., a 3-tier and a 2-tier) to function as workbenches or lower storage racks.

Immagine: Examples of the shelving unit configured as a tall 5-tier unit and as two separate workbench-style units.

Image: Various assembly options and the maximum load capacity per shelf.

5.3. Usi consigliati

This shelving unit is suitable for a wide range of applications:

• Garage: Conserva attrezzi, forniture per autoveicoli e attrezzature pesanti.
• Cucina/Dispensa: Organize food items, small appliances, and cookware.
• Warehouse/Storage Room: Efficiently store inventory or bulk items.
• Ufficio/Studio: Keep documents, books, and office supplies tidy.
• Soggiorno: Display decorative items or store household essentials.

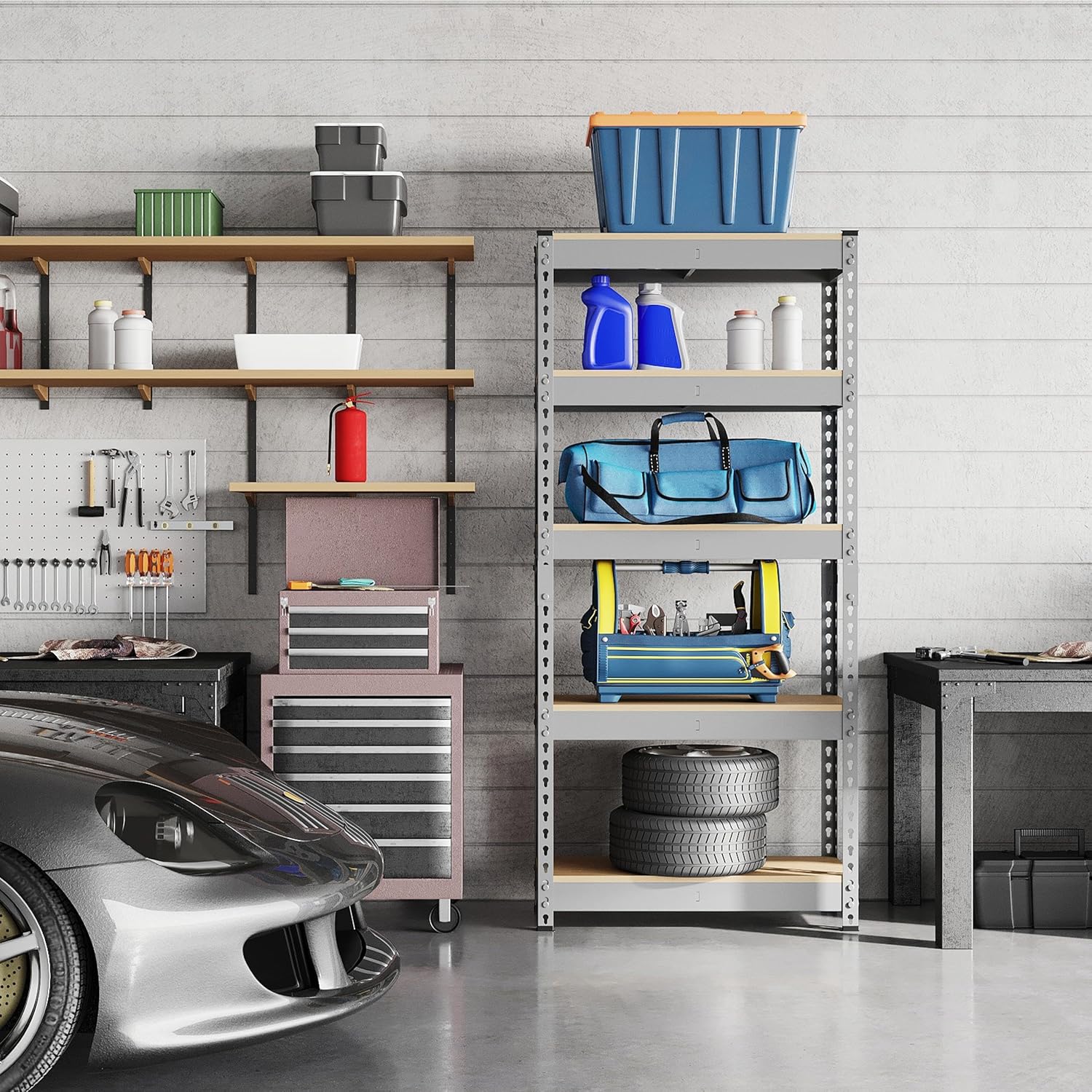

Image: Shelving unit in a garage, demonstrating its utility for storing tools and equipment.

Immagine: Examples of the shelving unit's multiple uses in a living room, garage, and supermarket.

6. Manutenzione

Proper care will extend the life of your Yaheetech shelving unit:

• Pulizia: Wipe the metal frame and MDF boards with a dry cloth to remove dust and debris. For stubborn dirt, a slightly damp È possibile utilizzare un panno e asciugare immediatamente. Evitare detergenti abrasivi o prodotti chimici aggressivi.
• Ispezione: Periodically check all connections to ensure they remain secure. Re-tap with a rubber mallet if any beams feel loose.
• Gestione del carico: Always adhere to the maximum weight capacity per shelf. Overloading can cause damage to the unit and pose a safety risk.
• Ambiente: While the galvanized surface offers some protection, avoid prolonged exposure to excessive moisture or extreme temperatures to prevent potential damage to the MDF boards.

7. Risoluzione Dei Problemi

Ecco le soluzioni ai problemi più comuni che potresti riscontrare:

8. Specifiche

Key specifications for the Yaheetech 5-Tier Adjustable Metal Shelving Unit:

Immagine: Tabella delle specifiche del prodotto.

Image: Dimensions and load capacity details.
