Sony 65-inch 4K Mini LED TV BRAVIA K-65XR90 User Manual

1. Prodotto finitoview

The Sony 65-inch 4K Mini LED TV BRAVIA K-65XR90 offers an exceptional viewing experience with its advanced display and audio technologies. This flagship 4K LCD TV features Mini LED backlighting, precisely controlled by Sony's proprietary technology to deliver stunning brightness and deep, rich blacks, resulting in unparalleled image beauty.

Caratteristiche principali

• Mini LED Backlight Control: Sony's unique LED driver precisely controls the Mini LED backlight, achieving unprecedented brightness and deep, tight blacks for overwhelming image quality.
• Processore cognitivo XR: Equipped with the Cognitive Processor "XR" and Sony's advanced backlight control technology, the Mini LED backlight is meticulously controlled. This allows for dazzling brightness and deep blacks, enabling an overwhelming contrast expression.
• Largo Viewing Angle & Low Reflection: Sony's proprietary wide viewing angle technology ensures high-quality images from any perspective. The low-reflection panel suppresses reflections from external light sources like sunlight or indoor lamps, preventing dark scenes from appearing washed out and minimizing reflections in bright environments.
• Immersive 3D Sound: Sound is reflected off the ceiling, enhancing three-dimensional audio and improving sound localization and spaciousness. This creates powerful, high-quality sound that feels as if it's emanating directly from the screen.
• SONY PICTURES CORE & Studio Quality Mode: Features Sony's exclusive content service, "SONY PICTURES CORE." The Studio Quality Mode allows you to enjoy movies with the picture quality intended by the creators.

Figure 1.1: Sony 65-inch 4K Mini LED TV BRAVIA K-65XR90

2. Impostazione

2.1 Disimballaggio

Estrarre con cautela il televisore e tutti gli accessori dall'imballaggio. Assicurarsi che tutti i componenti elencati nella lista di imballaggio siano presenti. Conservare l'imballaggio per eventuali trasporti o interventi di assistenza futuri.

2.2 Installazione dello stand

The TV features a versatile 4-way stand designed to adapt to various installation environments, including optimal placement for a soundbar. Follow the instructions provided in the separate stand assembly guide for your preferred configuration.

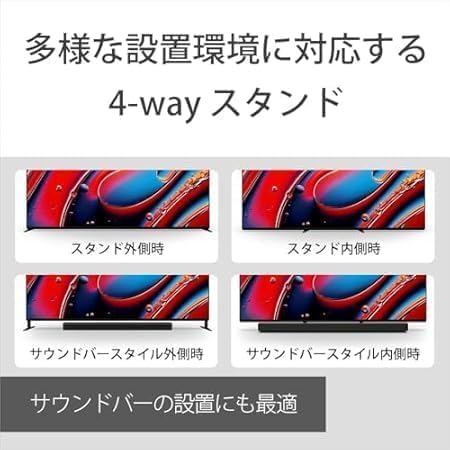

Figure 2.1: The 4-way stand allows for flexible placement, including configurations for soundbars.

2.3 Cavi di collegamento

Connect your external devices to the appropriate ports on the TV. The TV is equipped with multiple input/output terminals:

• HDMI ports: 4
• Video input: 1
• Optical Digital audio output: 1
• Center Speaker input: 1
• Headphone output: 1
• Porte USB: 2
• LAN port: 1
• Antenna (Terrestrial) input: 1
• Antenna (BS/110CS) input: 1

Note: An antenna cable is not included with this product. Please ensure you have one or consider purchasing an antenna cable set separately if needed for broadcast reception.

Figura 2.2: Posteriore view of the TV showing various input and output terminals.

Figure 2.3: Important notice regarding the antenna cable not being included.

2.4 Accensione iniziale e configurazione

After connecting all necessary cables, plug the TV into a power outlet. Press the power button on the remote control or the TV. Follow the on-screen instructions to complete the initial setup, including network connection, Google account login, and channel scanning.

3. Istruzioni per l'uso

3.1 telecomando

Use the provided remote control to navigate the TV's interface. It features dedicated buttons for popular streaming services and voice control. Insert two AAA batteries (included) into the remote control.

Figure 3.1: The TV remote control with dedicated service buttons.

3.2 Funzionalità di Google TV

The TV runs on Google TV, providing access to a wide range of online video services and apps. Easily browse and discover content from platforms like Netflix, Prime Video, Hulu, YouTube, and more.

Figure 3.2: Google TV interface showing various supported streaming services.

3.3 Controllo vocale

Utilize the hands-free voice search feature with "OK Google." Simply say "OK Google" followed by your command or search query to find content, control playback, or adjust settings.

Figure 3.3: Hands-free voice search functionality for easy content discovery.

3.4 Casting from Smartphone

Easily display content from your smartphone on the large TV screen using Apple AirPlay or Chromecast built-in. This allows for seamless sharing of photos, videos, and music.

Figure 3.4: Illustrates casting content from a smartphone to the TV.

3.5 Controllo genitori

The TV supports parental control features, including integration with the LINE app, to help manage children's viewing habits. You can monitor TV usage and send messages to prevent excessive screen time.

Figure 3.5: Parental control features using the LINE application.

3.6 Caratteristiche audio

Experience enhanced audio with Sony's unique sound technologies. The TV's beam tweeter reflects sound off walls and the ceiling to create an immersive three-dimensional soundstage. Voice Zoom technology ensures human voices are clear and distinct, even in complex audio environments.

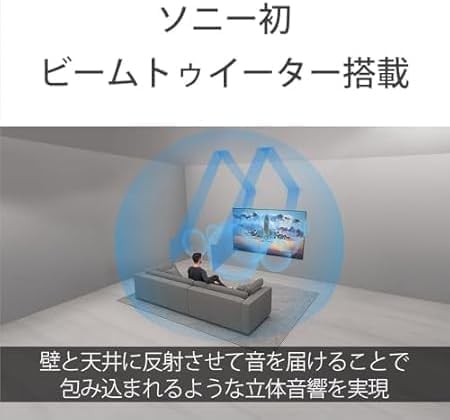

Figure 3.6: Illustration of sound projection using the beam tweeter for immersive audio.

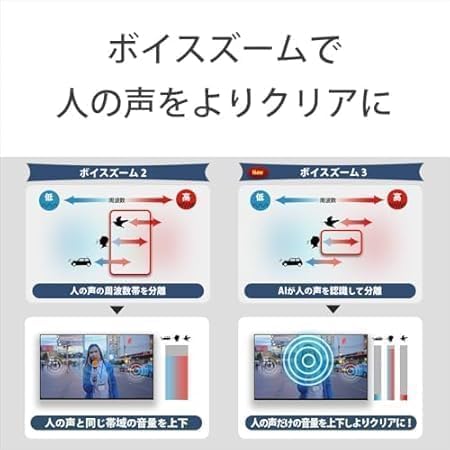

Figure 3.7: Voice Zoom technology enhances clarity of human voices.

4. Manutenzione

4.1 Pulizia del televisore

Per pulire lo schermo, strofinarlo delicatamente con un panno in microfibra morbido e asciutto. Per le macchie ostinate, strofinare leggermenteampen the cloth with water or a screen-safe cleaning solution. Avoid using harsh chemicals, abrasive materials, or direct spraying onto the screen. For the TV body, use a soft, dry cloth to wipe away dust. Do not use solvents or alcohol-based cleaners.

4.2 Aggiornamenti software

Ensure your TV's software is up to date for optimal performance and access to the latest features. The TV can automatically check for and install updates when connected to the internet. You can also manually check for updates through the TV's settings menu.

5. Risoluzione Dei Problemi

If you encounter issues with your TV, refer to the following common troubleshooting steps before contacting support.

5.1 Nessun potere

• Controllare che il cavo di alimentazione sia collegato saldamente sia al televisore sia alla presa a muro.
• Assicurarsi che la presa a muro funzioni collegandovi un altro dispositivo.
• Try pressing the power button on the TV itself, not just the remote control.

5.2 Nessuna immagine / scarsa qualità dell'immagine

• Verificare che sia selezionata la sorgente di ingresso corretta (ad esempio, HDMI 1, TV).
• Controllare che tutti i collegamenti dei cavi (HDMI, antenna) non siano allentati o danneggiati.
• Se si utilizza un dispositivo esterno, assicurarsi che sia acceso e funzioni correttamente.
• Regolare le impostazioni dell'immagine (luminosità, contrasto, colore) nel menu TV.

5.3 Nessun suono / scarsa qualità del suono

• Aumentare il volume sia della TV che di tutti i dispositivi audio collegati.
• Controlla se l'audio della TV è disattivato.
• Verificare i collegamenti dei cavi audio.
• Se si utilizzano altoparlanti esterni, assicurarsi che siano accesi e configurati correttamente.

5.4 Il telecomando non risponde

• Sostituire le batterie del telecomando.
• Assicurarsi che non vi siano ostacoli tra il telecomando e il sensore IR del televisore.
• Puntare il telecomando direttamente verso la TV.

5.5 Problemi di connessione di rete

• Riavvia il router e il modem.
• Check the Wi-Fi password and ensure it is entered correctly.
• Se si utilizza una connessione cablata, assicurarsi che il cavo LAN sia collegato saldamente.
• Try moving the TV closer to the Wi-Fi router or using a Wi-Fi extender.

6. Specifiche

Figure 6.1: Detailed product specifications for the Sony K-65XR90 TV.

Figure 6.2: Screen size, recommended room size, and viewing distance for the 65-inch model.

7. Garanzia e supporto

7.1 Informazioni sulla garanzia

This product comes with a 1-year warranty from the date of purchase against natural defects, valid only for use within the country of purchase. The warranty is applicable only when purchased from a manufacturer-authorized dealer.

7.2 Assistenza clienti

For technical assistance, service requests, or further inquiries, please contact Sony customer support. Refer to the warranty card or Sony's official websito per i dettagli di contatto specifici della tua regione.
