Manuale di istruzioni per il comò a 6 cassetti AKORD CL6

1. Introduzione

Thank you for choosing the AKORD CL6 6-Drawer Commode. This versatile piece of furniture is designed to provide additional storage in various rooms of your home, including the living room, bedroom, or hallway. Its compact design makes it suitable for smaller spaces, while its six spacious drawers offer ample storage for clothing, accessories, or household items. This manual provides essential information for safe assembly, proper use, and effective maintenance of your new commode.

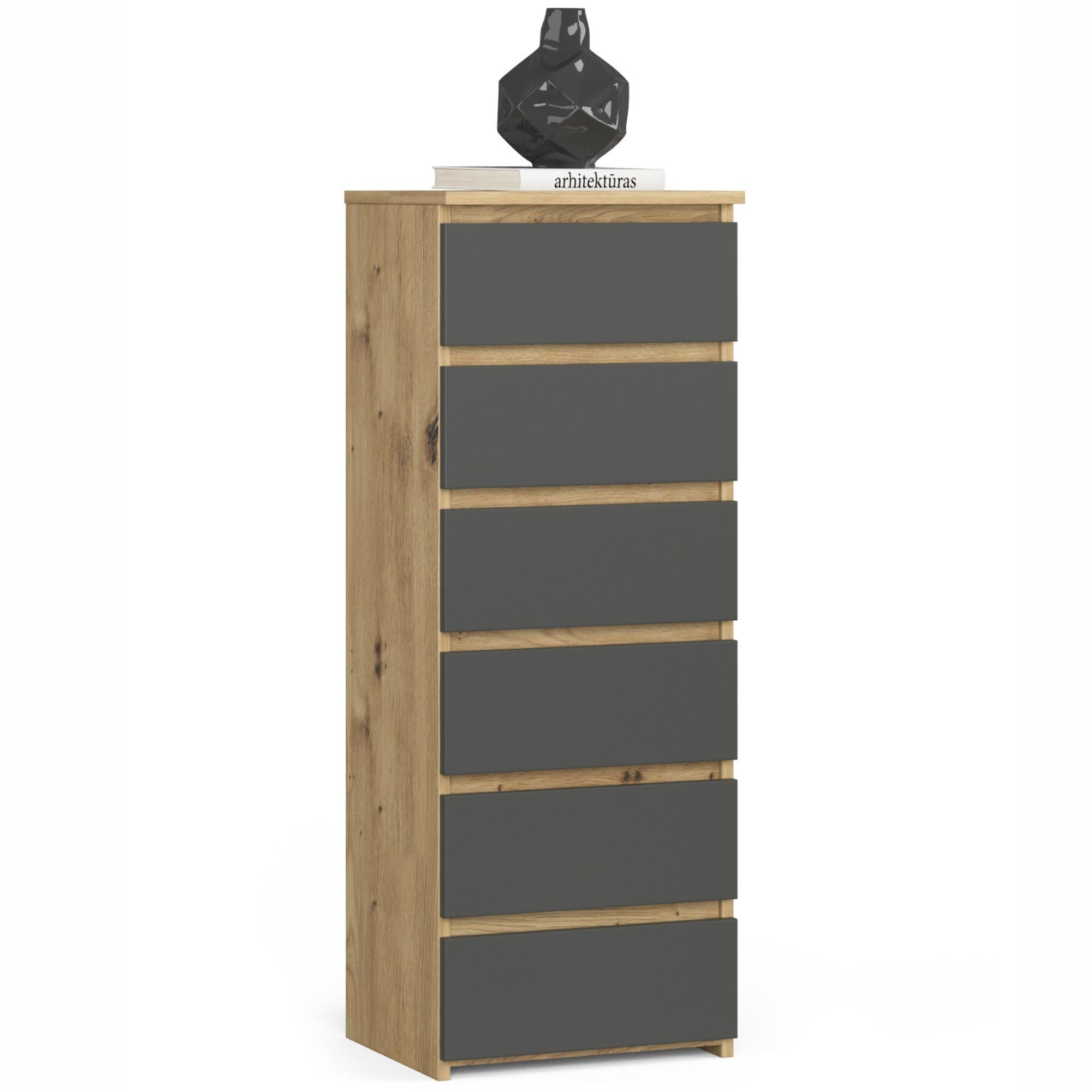

Image 1.1: The AKORD CL6 6-Drawer Commode, showcasing its design and potential placement in a living area. The commode features a light oak finish with graphite grey drawer fronts, complementing modern and classic interiors.

2. Informazioni sulla sicurezza

• Leggere attentamente tutte le istruzioni prima del montaggio e dell'uso.
• Tenere tutte le piccole parti e i materiali di imballaggio lontano dalla portata dei bambini e degli animali domestici per evitare rischi di soffocamento.
• Assemble the commode on a soft, clean surface to prevent scratches.
• Assicurarsi che tutte le viti e gli elementi di fissaggio siano ben serrati prima dell'uso. Controllare periodicamente e serrare nuovamente se necessario.
• Non sovraccaricare i cassetti. Distribuire il peso in modo uniforme per mantenere la stabilità.
• For added safety, consider anchoring the commode to a wall, especially if children are present. Wall anchoring hardware is typically not included and may need to be purchased separately.
• Do not stand or climb on the commode.

3. Contenuto della confezione

Before beginning assembly, verify that all components are present and undamaged. The commode is delivered completely disassembled. It is recommended to sort all parts and accessories before starting the assembly process.

Componenti previsti:

• Commode panels (top, bottom, sides, back)
• 6 drawer panels (fronts, sides, backs, bottoms)
• Drawer roller slides (12 pieces for 6 drawers)
• Ferramenta di montaggio (viti, tasselli, serrature a camma, ecc.)
• Manuale di istruzioni

If any parts are missing or damaged, please contact AKORD customer support for assistance.

4. Istruzioni per l'installazione e il montaggio

Assembly of the AKORD CL6 commode is designed to be straightforward, though careful attention to the instructions is required. It is recommended to have a second person assist with assembly for easier handling of larger panels.

Strumenti necessari (non inclusi):

• Cacciavite con testa a croce
• Martello (per tasselli e chiodi del pannello posteriore)

Fasi di assemblaggio:

1. Disimballare e ordinare: Carefully unpack all components and lay them out on a clean, soft surface. Sort all hardware into separate piles to easily identify them during assembly.
2. Assemblare il telaio principale: Follow the provided graphical instructions to connect the side panels, top, and bottom panels using the designated hardware (dowels, cam locks, screws). Ensure all connections are secure.
3. Installare le guide dei cassetti: Attach the drawer slides to the inner sides of the commode frame. Pay close attention to the orientation of the slides (left/right, front/back) as indicated in the manual.
4. Montare i cassetti: For each of the six drawers, assemble the side, front, and back panels. Insert the drawer bottom panel into the grooves. Attach the remaining drawer slide components to the sides of each drawer.
5. Inserisci cassetti: Carefully slide each assembled drawer into its corresponding slot in the commode frame. Ensure they glide smoothly on the roller slides.
6. Fissare il pannello posteriore: Secure the back panel to the commode frame using the provided small nails or screws.
7. Controlli finali: Verify that all parts are securely fastened and the commode is stable.

Image 4.1: Technical drawing illustrating the overall dimensions of the commode (400mm width, 350mm depth, 1090mm height) and internal drawer dimensions (310mm depth, 315mm width, 70mm height). This diagram is crucial for understanding component orientation during assembly.

5. Funzionamento e utilizzo

The AKORD CL6 commode is designed for convenient storage and organization. Its six drawers operate on durable roller slides, ensuring smooth opening and closing.

Punti chiave di utilizzo:

• Funzionalità del cassetto: Gently pull the drawer fronts to open and push to close. Avoid forcing drawers, especially if they feel stiff, and check for obstructions.
• Magazzinaggio: Utilize the six drawers for storing clothes, linens, documents, or other household items. Distribute weight evenly across drawers to prevent strain on the slides and maintain stability.
• Posizionamento: The commode's compact dimensions make it suitable for various rooms. It can serve as a standalone storage unit in a living room or hallway, or as a functional bedside table in a bedroom.
• Combination with Other Furniture: The design allows for combination with other AKORD furniture pieces like wardrobes or display cabinets for a cohesive look.

Image 5.1: The commode with drawers open, demonstrating the ample storage capacity and the smooth operation of the roller slides. The interior of the drawers is finished in a light wood tone.

6. Manutenzione

Proper care will ensure the longevity and appearance of your AKORD CL6 commode. The commode is constructed from high-quality laminated board, resistant to scratches and abrasion, with ABS edges for enhanced durability.

Istruzioni per la pulizia:

• Pulizia generale: Pulire le superfici con un panno morbido, damp panno. Evitare l'uso di detergenti abrasivi, prodotti chimici aggressivi o solventi, poiché possono danneggiare la finitura.
• Fuoriuscite: Immediately wipe up any spills with a dry cloth to prevent moisture absorption.
• No Impregnation Needed: The laminated surface does not require any special impregnation or polishing.
• Controllo hardware: Controllare periodicamente tutte le viti e gli elementi di fissaggio per assicurarsi che siano ben serrati. Serrarli nuovamente se necessario per preservare l'integrità strutturale.

7. Risoluzione Dei Problemi

Se si riscontrano problemi durante il montaggio o l'uso, fare riferimento alle seguenti soluzioni comuni:

• Difficoltà durante il montaggio:
  • Unsorted Parts: Before starting, sort all hardware and panels. This will significantly simplify the process.
  • Complicated Instructions: Review the graphical instructions carefully. If a step is unclear, try to visualize how the components fit together. Sometimes, a fresh look or a second pair of eyes can help.
  • Drawer Mounting Issues: Ensure drawer slides are correctly oriented and aligned. Double-check that all screws are in the correct positions and fully tightened. Misalignment can cause drawers to stick or not fit properly.
• I cassetti non scorrono fluidamente:
  • Controllare che non vi siano ostruzioni all'interno del cassetto o sulle guide.
  • Ensure the commode is on a level surface. Uneven flooring can cause the frame to twist slightly, affecting drawer operation.
  • Verify that all drawer slide screws are tight and the slides are properly installed on both the drawer and the commode frame.
• Commode Instability:
  • Assicurarsi che tutte le viti e gli elementi di fissaggio siano ben serrati.
  • Place the commode on a flat, level surface. Use furniture levelers if necessary.
  • Consider using wall anchoring hardware for enhanced stability, especially in households with children.

If problems persist, please contact AKORD customer support.

8. Specifiche

9. Garanzia e supporto

The AKORD CL6 6-Drawer Commode comes with a Garanzia di 24 mesi dalla data di acquisto. La presente garanzia copre i difetti di fabbricazione e i difetti dei materiali in condizioni di normale utilizzo.

Cosa non copre la garanzia:

• Danni causati da un montaggio o un'installazione impropri.
• Danni derivanti da uso improprio, abuso, negligenza o incidenti.
• Normale usura.
• Danni derivanti da riparazioni o modifiche non autorizzate.

Assistenza clienti:

For warranty claims, missing parts, or any questions regarding your AKORD CL6 commode, please contact AKORD customer support through the retailer where the product was purchased. Please have your proof of purchase and model information (CL6) ready when contacting support.
