1. Introduzione
Thank you for choosing the CROWN 30" Stainless Steel Electric Range. This freestanding oven is designed to provide a versatile and powerful cooking experience, perfect for baking, roasting, and frying. With its sleek design and advanced features like self-clean and air fry, it integrates seamlessly into any modern kitchen. This manual provides essential information for the safe and efficient operation, installation, maintenance, and troubleshooting of your new appliance.
Immagine: Frontale view of the CROWN 30" Stainless Steel Electric Range, highlighting the Air Fry function on the oven door.
2. Informazioni importanti sulla sicurezza
Please read all instructions carefully before using this appliance to reduce the risk of fire, electric shock, injury to persons, or damage when using the range.
- Requisiti elettrici: Ensure the range is connected to a properly grounded 240V electrical outlet as specified. Do not use extension cords.
- Installazione: This appliance must be installed by a qualified technician in accordance with all local codes and ordinances. Ensure proper anti-tip bracket installation.
- Sicurezza dei bambini: Do not leave children unattended in an area where the range is in use. Do not allow them to sit or stand on any part of the range.
- Superfici calde: The cooktop and oven surfaces become hot during use. Use pot holders and avoid touching hot surfaces. Allow the range to cool before cleaning.
- Materiali infiammabili: Keep flammable materials such as paper, plastic, and cloth away from the range. Do not store flammable liquids or aerosols near the appliance.
- Ventilazione adeguata: Ensure adequate ventilation in the kitchen area during operation, especially when using the oven or cooktop for extended periods.
- Ciclo di autopulizia: Remove all racks and large food particles before starting a self-cleaning cycle. Do not use oven cleaners during the self-cleaning cycle.
3. Configurazione e installazione
The CROWN ARE3001 is a freestanding electric range designed for easy integration into your kitchen. Professional installation is recommended.
Disimballaggio e posizionamento
- Carefully remove all packaging materials and protective films from the range.
- Position the range in its desired location, ensuring adequate clearance from walls and cabinets.
- Note: Major appliances are typically delivered only to the front of the house; carriers do not deliver inside or assist with installation.
Connessione elettrica
This range requires a 240V electrical supply. Ensure the electrical connection is performed by a certified electrician in compliance with all local electrical codes.
Immagine: Frontale view of the CROWN Electric Range with key dimensions (29 7/8" width, 36" height, 29 3/8" depth) indicated.

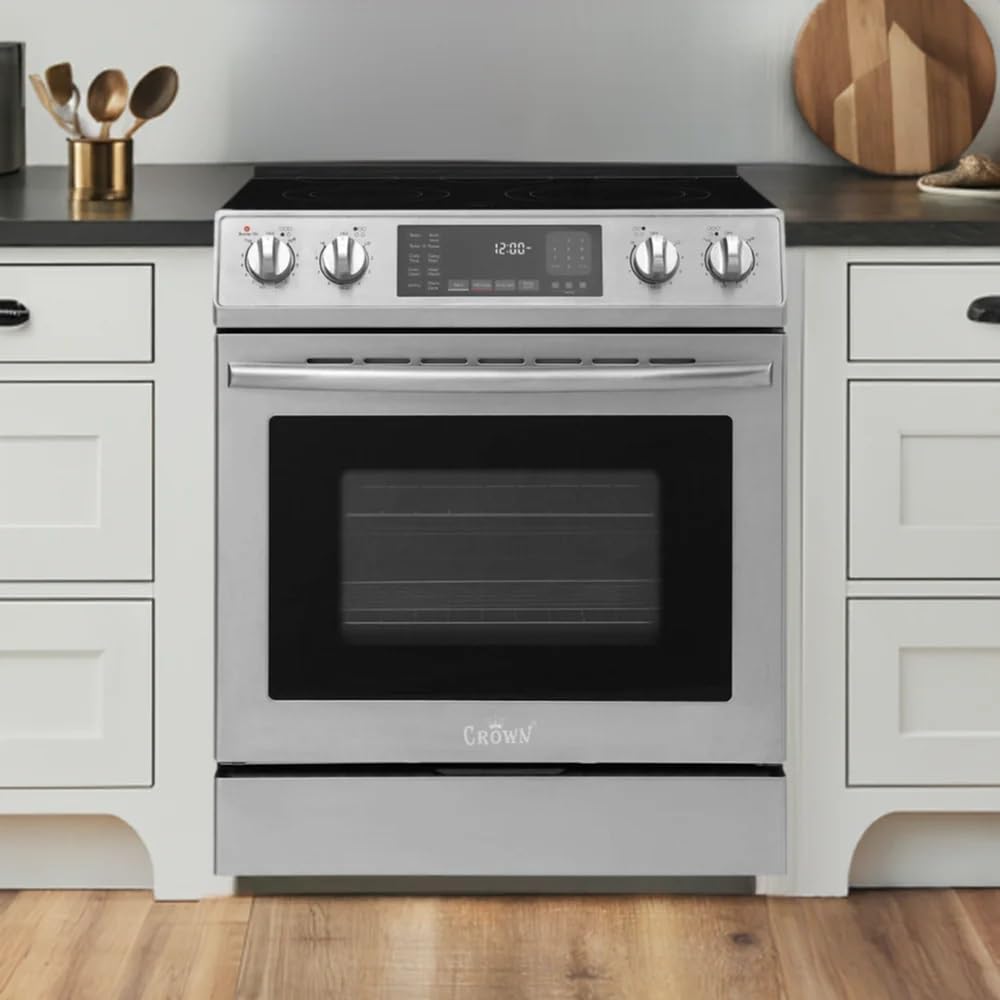

Image: The CROWN Electric Range seamlessly integrated into a kitchen with white cabinets and dark countertops.
4. Istruzioni per l'uso
Your CROWN Electric Range features intuitive knob controls and a digital display for precise cooking.
Pannello di controllo Fineview
The control panel features five zinc control knobs for the cooktop burners and oven functions, along with a digital display for settings and timer.
Immagine: Fronte angolato view of the range, providing a clear view of the control knobs and digital display.
Funzionamento del piano di cottura
The polished black glass ceramic cooktop features five powerful heating elements:
- Anteriore destro: Dual-zone (12"/9" with 1200W and 3000W) for versatile pot and pan sizes.
- Anteriore sinistro: Adjustable from 9" to 6" for precise heat control.
- Bruciatori posteriori: Two 6" 1200W burners for smaller cookware.
- Mezzo: 7" 100W warming element to keep food warm.
Turn the corresponding knob to the desired heat setting (Low, Medium, High) to activate the burner. The cooktop surface will indicate when it is hot.
Immagine: dall'alto view of the black ceramic cooktop, showing the layout of the five heating elements, including the warming zone.
Funzionamento del forno
The spacious 4.8 cu. ft. black porcelain oven offers multiple cooking modes:
- Cottura al forno: Utilizes a hidden 3000W bake element for even heating.
- Grigliare: Uses a powerful 3500W broil element for searing and browning.
- Cottura/arrosto a convezione: The commercial convection fan ensures even air circulation, reducing cooking times and delivering consistent results.
- Frittura all'aria: Allows you to enjoy crispy, delicious meals with minimal oil. Use with an air fry basket for best results.
- Cottura lenta: Ideal for low-temperature, long-duration cooking.
- Autopulente: A convenient function that saves time and effort by eliminating the need for scrubbing.
To operate the oven, select the desired mode and temperature using the control knobs. The integrated timer ensures dishes are cooked to perfection.
Image: The spacious oven interior, illuminated, showing multiple baking dishes on different racks, demonstrating its capacity.
Image: A close-up of the oven interior, featuring an air fry basket filled with crispy fries and other air-fried items.
Immagine: dettagliata view of the oven's rear wall, highlighting the commercial convection fan for even heat distribution.
5. Manutenzione e pulizia
Regular cleaning and maintenance will ensure the longevity and optimal performance of your CROWN Electric Range.
Funzione autopulente
The self-cleaning function uses high temperatures to burn off food residue, turning it into ash that can be easily wiped away. Before starting a self-clean cycle:
- Remove all oven racks and any large food particles.
- Wipe up any spills that may cause excessive smoke.
- Assicurarsi che la cucina sia ben ventilata durante il ciclo.
Pulizia generale
- Piano cottura: For the black glass ceramic cooktop, use a ceramic cooktop cleaner and a soft cloth. Avoid abrasive cleaners or scouring pads.
- Superfici in acciaio inossidabile: Clean with a stainless steel cleaner and a soft cloth, wiping in the direction of the grain to prevent streaks.
- Oven Interior (after self-clean): Once the oven has cooled, wipe away any ash with a damp stoffa.
- Manopole di controllo: Remove knobs by pulling them straight off, wash with warm soapy water, and dry thoroughly before replacing.
6. Risoluzione Dei Problemi
Per i problemi più comuni e le possibili soluzioni, fare riferimento alla tabella sottostante.
| Problema | Possibile causa | Soluzione |
|---|---|---|
| La gamma non si accende | Nessuna alimentazione; interruttore automatico scattato | Controllare il collegamento del cavo di alimentazione; ripristinare l'interruttore automatico. |
| Il bruciatore non si riscalda | Incorrect knob setting; burner element issue | Ensure knob is set correctly; contact service if problem persists. |
| Forno non riscaldante | Incorrect oven setting; door not closed properly | Verify oven mode and temperature; ensure oven door is fully closed. |
| Cottura irregolare | Improper rack position; pan size/type | Adjust rack position; use recommended bakeware; preheat oven fully. |
| Excessive smoke during self-clean | Excessive food residue in oven | Wipe out large spills before self-clean; ensure good ventilation. |
Se il problema persiste dopo aver provato queste soluzioni, contattare personale di assistenza qualificato.
7. Specifiche
Detailed specifications for the CROWN 30" Stainless Steel Electric Range, Model ARE3001.
| Caratteristica | Specificazione |
|---|---|
| Nome del modello | ARE3001 |
| Materiale | Acciaio inossidabile |
| Tipo di finitura | Spazzolato |
| Tipo di carburante | Elettrico |
| Fattore di forma | Libera installazione |
| Tipo di controllo | Manopola |
| Elementi riscaldanti | 5 (including dual-zone and warming element) |
| Capacità del forno | 4.8 piedi cubi |
| Potenza dell'elemento di cottura | 3000W (hidden) |
| Potenza dell'elemento grill | 3500W |
| Dimensioni del prodotto (P x L x A) | 63.5D x 76.2W x 91.4H centimetri |
| Peso dell'articolo | 80 chilogrammi |
| Certificazione | Certificato UL |
8. Garanzia e supporto
Specific warranty details for the CROWN 30" Stainless Steel Electric Range (Model ARE3001) are not provided in this manual. For information regarding warranty coverage, service, or technical support, please refer to the documentation included with your purchase or contact the retailer or manufacturer directly.
Manufacturer: AFG Corp
