Manuale utente dell'avviatore di emergenza per auto NEXPOW NP2 e X7

Introduzione

Welcome to the user manual for your NEXPOW NP2 and X7 Car Battery Jump Starter. This comprehensive guide provides essential information for the safe operation, proper maintenance, and effective troubleshooting of your device. Please read this manual thoroughly before using the product to ensure optimal performance and safety.

Informazioni importanti sulla sicurezza

Osservare sempre le seguenti precauzioni di sicurezza per evitare lesioni o danni al dispositivo e al veicolo:

• Leggere attentamente tutte le istruzioni prima dell'uso.
• Indossare protezioni per gli occhi quando si lavora con le batterie.
• Non cortocircuitare la batteria clamps.
• Tenere il dispositivo lontano dalla portata dei bambini.
• Non esporre il dispositivo a pioggia, acqua o temperature estreme.
• Garantire una ventilazione adeguata durante l'uso.
• Non tentare di avviare una batteria congelata.
• If the device becomes excessively hot, discontinue use immediately.

Contenuto della confezione

Verifica che tutti gli articoli elencati di seguito siano inclusi nel tuo pacchetto:

Image: Contents of the NEXPOW X7 Jump Starter package, including the main unit, cables, and accessories.

1. X7 Jump Starter Unit
2. Cavo da USB-C a USB-C
3. Batteria Clamps with Starter Cable
4. Convertitore accendisigari
5. Manuale d'uso
6. Zipper Carry Case

Prodotto finitoview

The NEXPOW NP2 and X7 are versatile devices designed to provide reliable power for various automotive and portable charging needs.

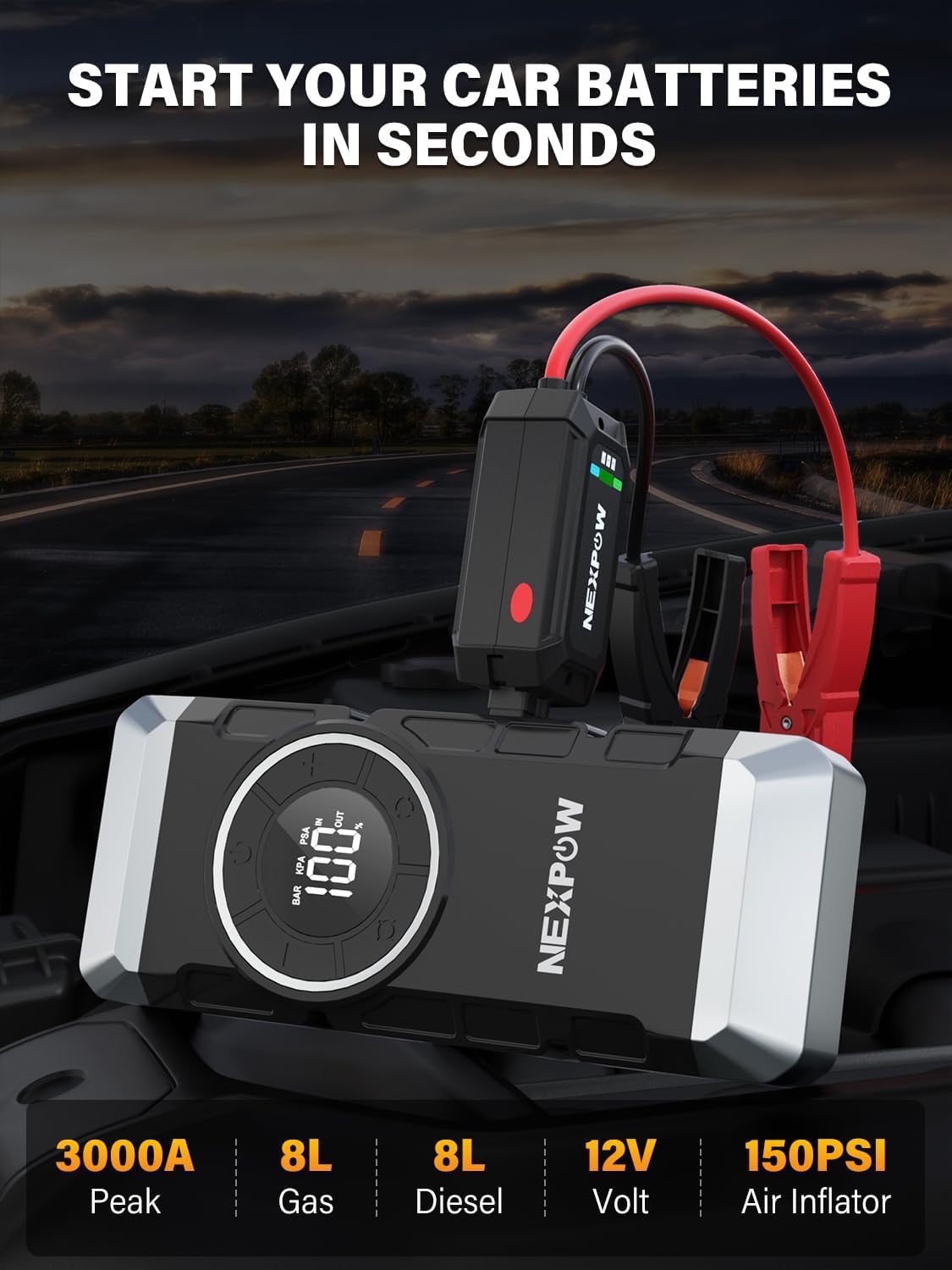

Image: The NEXPOW X7 and NP2 jump starters, highlighting their distinct designs and functionalities.

NEXPOW X7 Jump Starter Features

• Upgraded System Protections: Features 8 types of protection, including spark-proof, reverse polarity, low/high temperature, and overload protection for safe operation.
• 3.2-Inch LED Display: Clearly shows remaining battery capacity, charging status, and other vital information.
• 60W PD Two-Way Quick Charging: Equipped with a PD60W Type-C IN/OUT port for rapid recharging of the unit and fast charging of compatible devices.
• Uscite multiple: Includes 1x USB-A Output and 1x DC Output for charging various electronic devices.
• Torcia LED integrata: Offers Lighting, Strobe, and SOS modes for emergency situations.

NEXPOW NP2 Jump Starter with Air Compressor Features

• Compressore d'aria da 150 PSI: Integrated air compressor capable of inflating tires from 0 to 20 PSI in minutes, with an automatic stop function.
• Schermo LCD: Provides clear readings of remaining power and output mode.
• Intelligent Protection Systems: Ensures safe and reliable operation during jump starting and inflation.
• Additional Nozzles: Includes 3 extra nozzles for inflating sports balls, air mattresses, and other inflatables.

Caricamento del dispositivo

Before first use, fully charge your NEXPOW jump starter. Regular charging ensures the device is ready when needed.

Image: The NEXPOW X7 unit being charged via its Type-C port, with the display indicating charging progress.

1. Connect the provided USB-C to USB-C cable to the Type-C IN/OUT port on the jump starter.
2. Connect the other end of the cable to a compatible USB wall adapter (not included) or a car charger. For optimal charging speed, use a PD60W compatible charger.
3. The LED display will indicate the charging status and battery level. The device is fully charged when the display shows 100%.
4. A full charge from 0% to 80% can take approximately 1 hour with a 60W Quick Charge power source.

Istruzioni per l'uso

Jump Starting a Vehicle (X7)

The NEXPOW X7 can jump start 12V vehicles with up to 12L Gas and 10L Diesel engines.

Image: The NEXPOW X7 jump starter connected to a car battery, illustrating the setup for jump starting.

1. Assicurarsi che l'avviatore di emergenza sia sufficientemente carico (almeno al 50%).
2. Collegare il rosso (+) clamp al terminale positivo della batteria del veicolo.
3. Collegare il nero (-) clamp al terminale negativo della batteria del veicolo.
4. Garantire il clamps are securely attached and the indicator light on the smart cable is green.
5. Avviare il motore del veicolo.
6. Una volta avviato il veicolo, scollegare immediatamente il polo nero (-)amp, quindi il rosso (+) clamp dalla batteria.

Using the Air Compressor (NP2)

The NEXPOW NP2 features an integrated 150 PSI air compressor for inflating tires and other items.

Image: The NEXPOW NP2 jump starter actively inflating a car tire, demonstrating its air compressor function.

1. Connect the air hose to the air compressor port on the NP2 unit.
2. Attach the nozzle to the tire valve or inflatable item.
3. Power on the NP2 and use the controls to set the desired pressure (PSI, BAR, KPA).
4. Premere il pulsante di avvio per iniziare il gonfiaggio. Il compressore si arresterà automaticamente una volta raggiunta la pressione preimpostata.
5. Disconnect the nozzle and store the hose.

Using as a Portable Power Bank (X7 & NP2)

Both NEXPOW units can serve as portable power banks to charge your electronic devices.

Image: The NEXPOW X7 unit demonstrating its capability to charge multiple portable electronic devices.

• Uscita USB-A: Connect your device's USB charging cable to the USB-A port for standard charging.
• Type-C IN/OUT (PD60W): Use this port with a compatible USB-C cable for fast charging of laptops, tablets, and smartphones.
• Uscita CC: Connect compatible 12V devices to the DC output port.

Using the LED Flashlight (X7)

The NEXPOW X7 includes a multi-mode LED flashlight for various lighting needs.

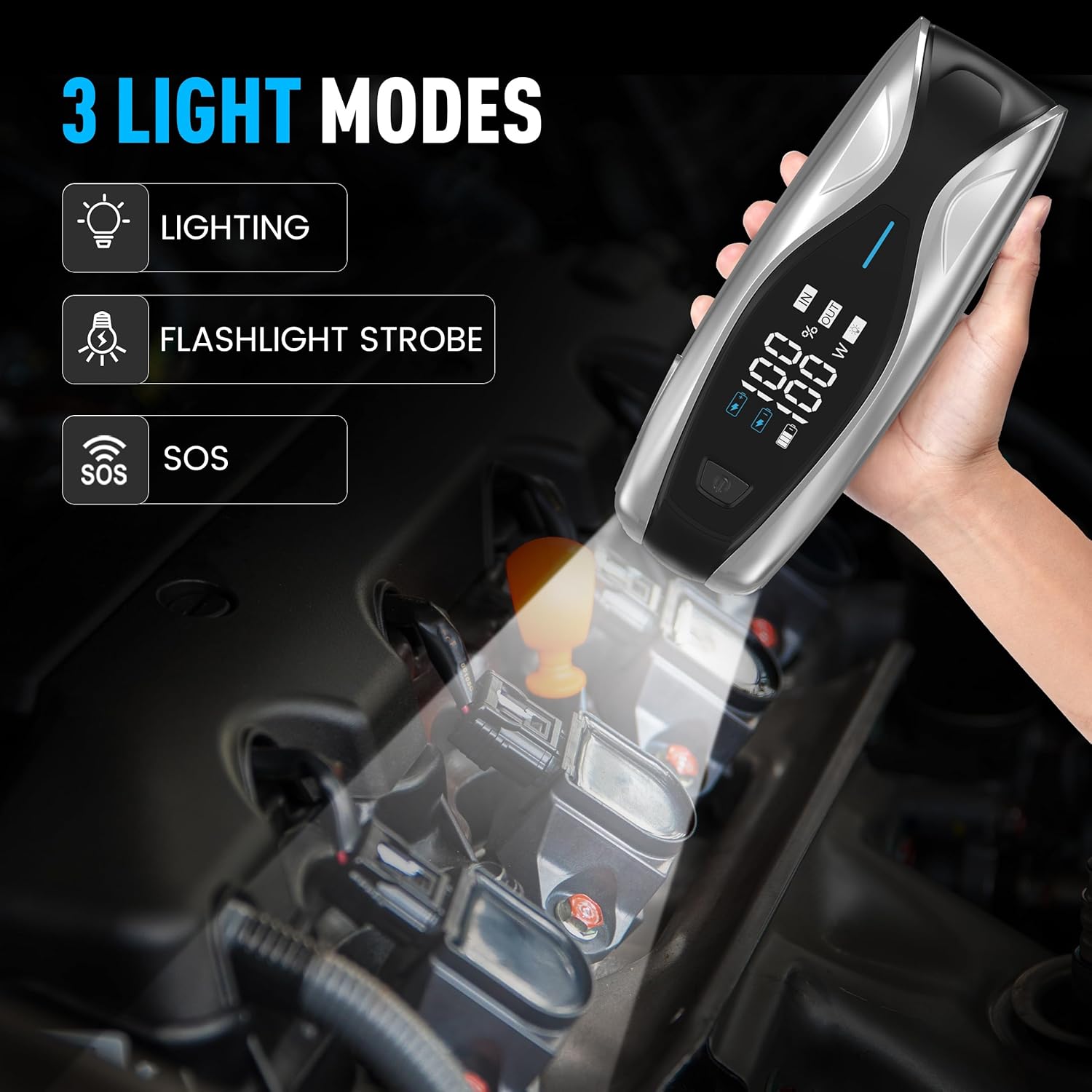

Image: The NEXPOW X7 unit showcasing its three distinct LED flashlight modes for different situations.

1. Press and hold the flashlight button to turn on the standard lighting mode.
2. Press the button again to cycle through the Flashlight Strobe mode.
3. Press the button a third time to activate the SOS signal mode.
4. Premere e tenere premuto nuovamente il pulsante per spegnere la torcia.

Manutenzione

Proper maintenance will extend the lifespan of your NEXPOW jump starter:

• Pulizia: Pulisci il dispositivo con un panno asciutto e morbido. Non utilizzare prodotti chimici aggressivi o detergenti abrasivi.
• Magazzinaggio: Store the device in a cool, dry place, away from direct sunlight and moisture. Use the provided zipper carry case for protection.
• Ricarica: For optimal battery health, recharge the jump starter every 3-6 months, even if not in use. This prevents deep discharge and prolongs battery life.
• Temperatura: Avoid storing or operating the device in extreme temperatures outside the recommended range (-4°F to 104°F).

Risoluzione dei problemi

If you encounter issues with your NEXPOW jump starter, refer to the table below for common problems and solutions:

Specifiche

Key technical specifications for the NEXPOW NP2 and X7 models:

Garanzia e supporto

NEXPOW products are designed for reliability and performance. For warranty information, technical support, or any inquiries regarding your device, please refer to the warranty card included in your package or visit the official NEXPOW store on Amazon:

Visit the NEXPOW Store on Amazon
