VOLTWORKS 4000 Watt Pure Sine Wave Power Inverter User Manual

1. Introduzione

This manual provides essential information for the safe and efficient operation of your VOLTWORKS 4000 Watt Pure Sine Wave Power Inverter, Model VS-4000KAR. This inverter converts 12V DC battery power to 110V/120V AC household power, suitable for a wide range of applications including RVs, boats, off-grid solar systems, and emergency backup power.

The inverter delivers 4000 watts of continuous power and can handle a surge peak power of 7000 watts for up to 2 seconds, making it suitable for high-power inductive loads such as air conditioners, refrigerators, and power tools. It features an adjustable input voltage function for enhanced compatibility with various battery types, including lithium batteries, to optimize battery health and lifespan.

Image 1.1: The VOLTWORKS 4000 Watt Pure Sine Wave Power Inverter with its accompanying cables and remote control.

2. Informazioni sulla sicurezza

Leggere attentamente tutte le istruzioni di sicurezza prima dell'installazione e dell'uso. La mancata osservanza di queste istruzioni può causare scosse elettriche, incendi o lesioni gravi.

• Ventilazione: Assicurare un'adeguata ventilazione attorno all'inverter. Non ostruire le aperture di ventilazione.
• Ambiente: Utilizzare l'inverter in un luogo asciutto, fresco e ben ventilato, lontano dalla luce solare diretta, da fonti di calore e da materiali infiammabili.
• Messa a terra: Always ensure the inverter is properly grounded. Refer to the setup section for grounding instructions.
• Connessioni: Use appropriate cable gauges for connections. Ensure all connections are tight and secure to prevent overheating and arcing. Input cable connections are covered with plastic caps for protection against shorts.
• Utilizzo iniziale: Before using the inverter for the first time, or after a long period of inactivity, operate it without a load for 30-60 minutes. This allows internal capacitors to charge properly, preventing potential damage.
• Caratteristiche di protezione: L'inverter è dotato di molteplici protezioni di sicurezza:
  • Protezione da cortocircuito
  • Sovravolume in ingressotage/sotto-voltage protezione
  • Protezione da cortocircuito in uscita
  • Protezione da sovraccarico
  • Protezione da sovratemperatura
  • Low-input alarm
  • Low-Output Voltage Protezione
  • Protezione da inversione di polarità
• Componenti interni: The inverter features an ETL listed transformer, UL458 listed fuses, and a UL458 listed PCB for enhanced safety and fire protection. It is FCC approved for anti-interference.

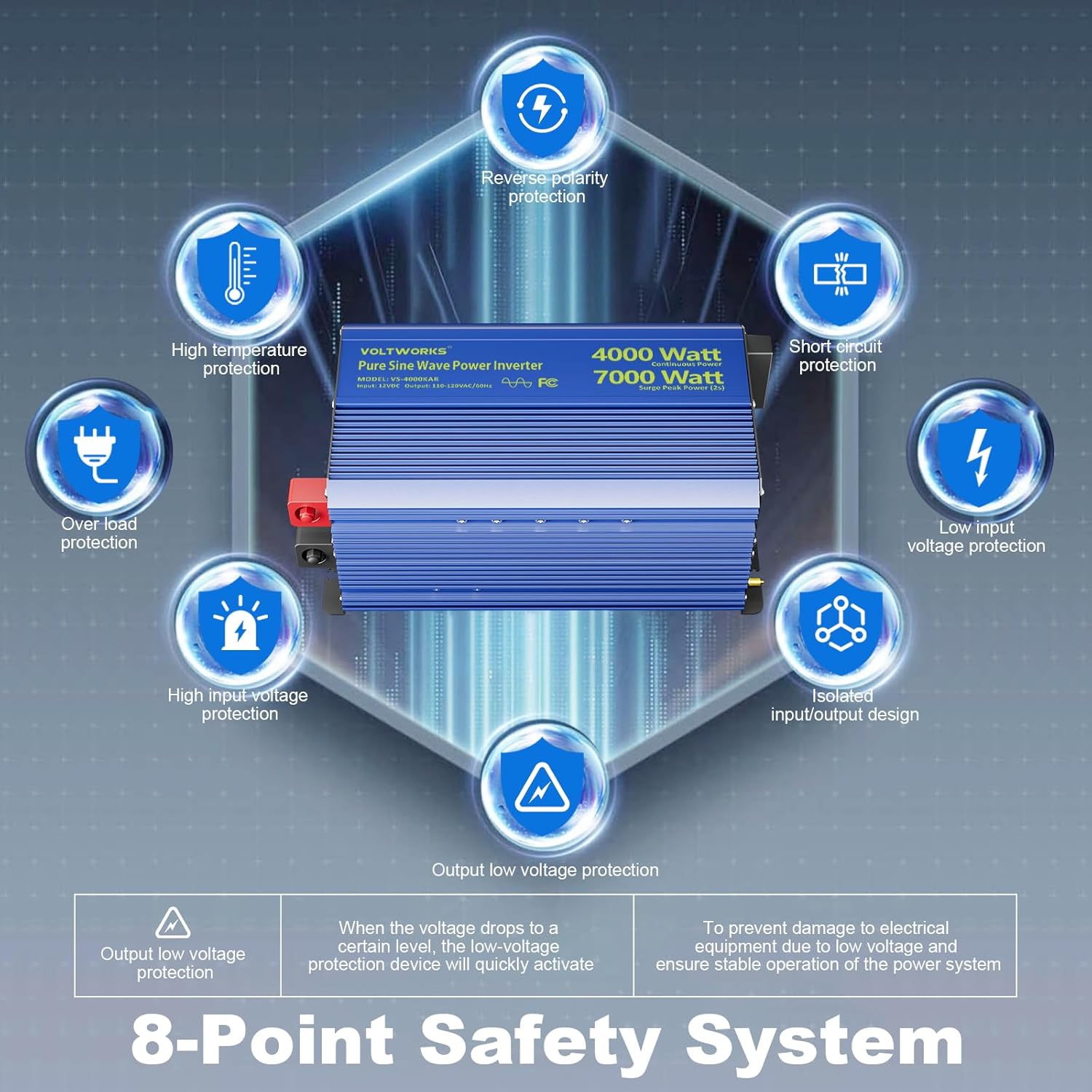

Immagine 2.1: Passoview of the inverter's 8-point safety system, including protections against short circuits, over-voltage, sotto-volumetage, sovraccarico e temperatura elevata.

3. Impostazione

Proper setup is crucial for the inverter's performance and safety.

3.1 Disimballaggio e ispezione

Upon receiving your inverter, carefully unpack all components and inspect for any shipping damage. The package should include:

• 1 x VOLTWORKS 4000W Pure Sine Wave Inverter
• 1 x 30ft Remote Controller (4P4C RJ10)
• 1 filo di terra da 3 piedi
• 4 pairs of 2ft Battery Cables (4AWG)
• Manuale di istruzioni
• Shockproof Pads

Image 3.1: The inverter and its included accessories, such as battery cables, remote controller, and grounding wire.

3.2 Montaggio dell'inverter

Scegliere una posizione di montaggio che sia:

• Asciutto e protetto dall'umidità.
• Cool and well-ventilated.
• Lontano dalla luce solare diretta e da fonti di calore.
• Secure and stable to prevent movement.

3.3 Collegamento della batteria

Connect the inverter to your 12V DC battery bank. Ensure the battery bank can provide sufficient current for the inverter's rated output. Use the provided 4AWG battery cables or thicker cables if necessary for longer runs or higher current demands. Always connect the positive (+) terminal of the inverter to the positive (+) terminal of the battery and the negative (-) terminal of the inverter to the negative (-) terminal of the battery. Ensure all connections are tight.

It is recommended to install appropriate fuses and breakers between the battery and the inverter for added safety.

3.4 Messa a terra

Connect the inverter's grounding terminal to a reliable earth ground using the provided earth wire. This is a critical safety step to prevent electric shock.

3.5 Volume di ingresso regolabiletage for Battery Compatibility

The inverter features an adjustable input voltage function, enhancing compatibility with various battery types, including lead-acid (GEL, SLA, FLD, AGM) and lithium (Li, LiFePo4) batteries. This function allows you to customize the low voltage shutdown value to protect battery health and extend lifespan. Refer to the manual for specific instructions on adjusting this setting.

Image 3.2: The inverter supports various battery types, including GEL, SLA, LI, FLD, AGM, and LiFePo4, with an adjustable low voltage shutdown setting.

3.6 Collegamento del telecomando

Connect the 30ft remote controller to the designated port on the inverter. This allows for convenient remote power control and battery monitoring.

4. Istruzioni per l'uso

Follow these steps for safe and effective operation of your inverter.

4.1 Accensione/Spegnimento

1. Assicurarsi che tutte le connessioni siano sicure e corrette.
2. Press the power button on the inverter or the remote controller to turn the unit on. The LCD display will illuminate.
3. Per spegnere, premere nuovamente il pulsante di accensione.

4.2 Display LCD e monitoraggio

The integrated LCD display provides real-time operational status:

• Stato della batteria
• Ingresso DC voltage
• Uscita AC voltage
• Load watts
• Protection codes (for troubleshooting)

The LCD screen will automatically shut down after one minute of no operation to conserve power. The remote controller also offers battery monitoring, helping to prevent battery damage from frequent low power conditions.

Image 4.1: The inverter's LCD display provides real-time operational data, including battery level, voltage, e potenza in uscita.

4.3 Collegamento degli apparecchi AC

The inverter is equipped with 4 AC outlets and a 40A hardwire terminal. Connect your AC appliances to these outlets. The pure sine wave output is suitable for sensitive electronics and high-power inductive loads.

Image 4.2: The pure sine wave output of the inverter is ideal for powering a wide range of sensitive electronics and appliances.

Image 4.3: The inverter's ability to handle 7000W surge peak power for 2 seconds allows it to start high-demand inductive loads like air compressors.

4.4 Ricarica USB

The inverter includes a PD36W USB-C port and a 3.6A USB-A port for charging smartphones, tablets, and other mobile devices.

Image 4.4: The inverter features both PD36W USB-C and 3.6A USB-A ports for convenient device charging.

5. Manutenzione

Una manutenzione regolare garantisce prestazioni ottimali e longevità del vostro inverter.

• Pulizia: Mantenere l'inverter pulito e privo di polvere e detriti. Utilizzare un panno asciutto per pulire l'esterno. Non utilizzare detergenti liquidi.
• Ventilazione: Periodically check that the ventilation openings are clear and unobstructed.
• Connessioni: Regularly inspect all electrical connections (battery terminals, AC outlets, grounding wire) to ensure they remain tight and free from corrosion.
• Sostituzione fusibile: In the event of a blown fuse, replacement may be necessary. This typically involves unscrewing the output side plate's 4 screws and carefully sliding out the center panel of the top plate after disconnecting the display cable. Refer to the full product manual for detailed instructions or contact customer support. Use only fuses of the specified rating.

6. Risoluzione Dei Problemi

Questa sezione affronta i problemi più comuni che potresti riscontrare con il tuo inverter.

6.1 L'inverter non si accende

• Controllare i collegamenti della batteria: Ensure battery cables are securely connected to both the inverter and the battery terminals.
• Volume batteriatage: Verificare che la batteria voltage is within the operational range (12V nominal). If the battery is too low, the inverter's low-input voltagLa protezione si attiverà.
• Fusibili: Check the internal fuses. If a fuse is blown, replace it with one of the correct rating (refer to Maintenance section).

6.2 No AC Output

• Protezione da sovraccarico: If the connected load exceeds the inverter's continuous or surge rating, the overload protection will activate. Reduce the load and restart the inverter.
• Protezione da sovratemperatura: If the inverter overheats due to poor ventilation or excessive load, it will shut down. Allow it to cool down, ensure proper ventilation, and reduce the load.
• Protezione da cortocircuito: If a short circuit is detected in the output, the inverter will shut down. Disconnect all AC loads, check for faults, and restart.
• Vol. ingresso basso/altotage: L'inverter si spegnerà se la tensione CC in ingressotage is too low or too high. Check your battery voltage.
• Codici di protezione: The LCD display may show specific protection codes. Consult the full instruction manual for a detailed explanation of these codes and corresponding troubleshooting steps.

6.3 Inverter Fans Not Running

The cooling fans operate based on load and internal temperature. They may not run continuously, especially under light loads or in cool environments. This is normal operation.

7. Specifiche

8. Garanzia e supporto

VOLTWORKS is committed to providing reliable products and excellent customer service.

• Garanzia: This product comes with an 18-month warranty.
• Responsabilità del prodotto: Product liability insurance is covered by AIG insurance company.
• Assistenza clienti: For any questions, technical assistance, or warranty claims, please contact VOLTWORKS customer service. We offer 24/7 real-person customer service.
• Risorse online: Visitare il VOLTWORKS Store on Amazon per ulteriori informazioni e supporto sul prodotto.
