FiveWillowise 47.2" W Storage Cabinet with 3 Drawers (Model C7C002YM0M) - Instruction Manual

Introduzione

Thank you for choosing the FiveWillowise 47.2" W Storage Cabinet. This manual provides detailed instructions for the assembly, operation, and maintenance of your new furniture. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

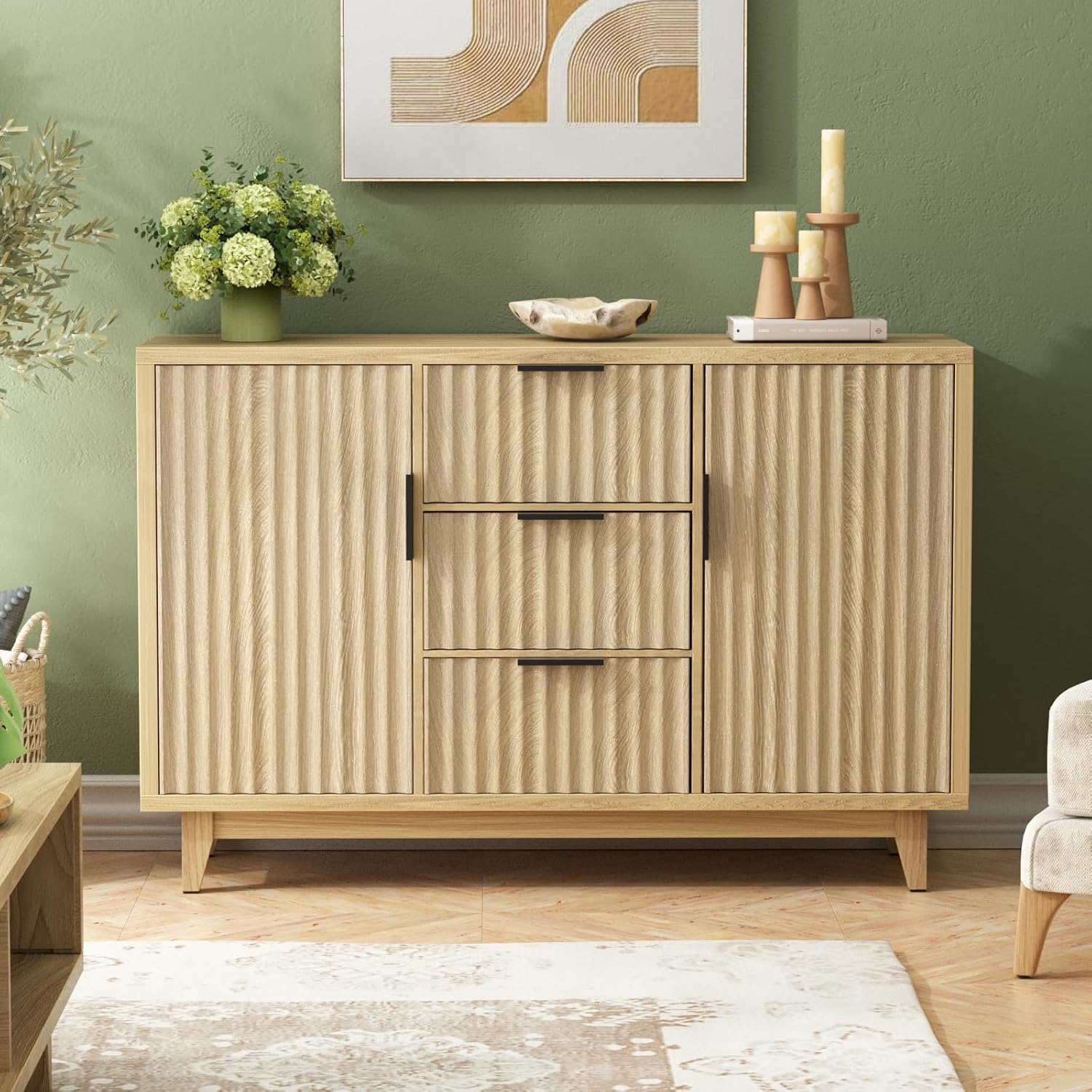

Figure 1: The FiveWillowise 47.2" W Storage Cabinet with 3 Drawers, showcasing its natural finish and fluted design.

Informazioni importanti sulla sicurezza

• Montare sempre l'unità su una superficie morbida e pulita per evitare graffi.
• Assicurarsi che tutti i componenti siano ben fissati prima dell'uso. Non serrare eccessivamente le viti.
• Do not stand on the unit or allow children to climb on it.
• Use the included anti-tip mechanism to secure the cabinet to a wall, preventing potential injuries from tipping.
• The maximum weight capacity for the tabletop is 100 pounds. Distribute weight evenly.
• Durante il montaggio, tenere le parti di piccole dimensioni lontano dalla portata dei bambini.

Contenuto della confezione

Prima del montaggio, verificare che tutti i componenti elencati di seguito siano presenti e integri. Se qualche componente risulta mancante o danneggiato, contattare l'assistenza clienti.

Hardware e strumenti:

• Assorted screws, dowels, and connectors (individually labeled in bags A-Z, etc.)
• Drawer slides (L1, L2)
• Maniglie in metallo
• Magnetic catches
• Kit anti-ribaltamento
• Chiave esagonale (chiave a brugola)
• Screwdriver (not included, but recommended)

Wooden Panels:

Refer to the "Board Identification" image in the assembly video for specific panel numbers and quantities.

Figure 2: Key features of the cabinet including the fluted door panel, black metal handles, solid wood legs, and adjustable shelves.

Istruzioni di montaggio

Follow the steps below carefully. It is recommended to have a second person assist with assembly for easier handling of larger components.

Video ufficiale dell'Assemblea:

Guida passo passo:

1. Prepare the Drawers: Assemble the three drawers using the designated panels (13x3, 15x3, 16x3, 14x3, 17x3) and hardware (K, A, F, B, Y, J). Attach the drawer slides (L1, L2) to the drawer sides.
2. Assemblare i pannelli laterali: Attach the magnetic catches and hinges to the side panels (11, 12) as indicated in the manual.
3. Construct the Base Frame: Assemble the solid wood legs (18x2, 19x2) to form the base frame using screws (Q, S, X).
4. Installare i supporti per cassetti: Attach the drawer support panels (7x2) to the main cabinet structure (5) using dowels (B, Z, Y).
5. Connect Main Panels: Secure the main cabinet panels (3, 4) together using dowels (B, Z, Y).
6. Fissare il pannello posteriore: Secure the back panel (2) to the assembled cabinet structure using screws (Z, D, X).
7. Monta la base: Carefully align and attach the assembled base frame to the bottom of the cabinet using screws (C, A1).
8. Installa le porte: Attach the prepared doors (11, 12) to the cabinet hinges using screws (F).
9. Inserisci cassetti: Slide the assembled drawers into their respective tracks.
10. Regola i ripiani: Place the adjustable shelves (E) into the desired positions within the cabinet.

Istruzioni per l'uso

The FiveWillowise Storage Cabinet is designed for versatile use and easy access to your stored items.

• Cassetti: The three drawers are designed for smooth operation. Pull gently on the black metal handles to open and push to close.
• Ante degli armadi: The two cabinet doors open to reveal spacious compartments. They are equipped with magnetic catches for secure and quiet closing.
• Ripiani regolabili: The internal shelves can be adjusted to three different heights, each with a 2-inch difference. To adjust, remove the shelf, reposition the shelf pins to the desired height, and reinsert the shelf. This allows for customized storage to accommodate various item sizes.

Figure 3: The cabinet interior with adjustable shelves, demonstrating its large storage capacity.

Manutenzione

Proper care will ensure the longevity and appearance of your FiveWillowise Storage Cabinet.

• Pulizia: Pulire le superfici con un panno morbido, damp panno. Evitare prodotti chimici aggressivi o detergenti abrasivi, poiché potrebbero danneggiare la finitura.
• Fuoriuscite: Immediately wipe up any spills to prevent staining or water damage. The MDF material is waterproof and anti-scratch for durability.
• Ispezione: Controllare periodicamente tutte le viti e i collegamenti per assicurarsi che siano ben serrati. Serrare nuovamente se necessario.
• Esposizione alla luce solare: Evitare l'esposizione prolungata alla luce solare diretta per evitare lo sbiadimento o lo scolorimento della finitura del legno.

Risoluzione dei problemi

Se riscontri problemi con il tuo mobile, consulta i problemi più comuni e le relative soluzioni riportati di seguito.

• Mobiletto traballante: Ensure all screws are tightened. Check that the cabinet is placed on a level surface. Adjust the anti-tip mechanism if needed.
• I cassetti non scorrono fluidamente: Verify that the drawer slides are correctly installed and free of obstructions. Ensure screws on the slides are not overtightened.
• Le porte non si chiudono correttamente: Check the alignment of the hinges and magnetic catches. Adjust hinge screws if necessary to ensure proper door closure.
• Parti mancanti: If any parts are missing upon unboxing, refer to the "Package Contents" section and contact customer support for replacements.

Specifiche

Garanzia e supporto

FiveWillowise is committed to providing high-quality home products. For any questions, concerns, or assistance with your product, please contact our customer support team. While specific warranty details are not provided in this manual, our team is available to resolve any issues within 24 hours.

Si prega di fare riferimento alla documentazione di acquisto o al rivenditore websito per termini e condizioni di garanzia specifici.
