Cort G250 SE Electric Guitar Instruction Manual

1. Introduzione

Welcome to your new Cort G250 SE 6-String Solid-Body Electric Guitar. This instrument is designed for guitarists seeking a simple, utilitarian guitar with classic styling, incorporating essential advanced components for enhanced playability and enjoyment. Its finishes offer a vintage-modern aesthetic. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your guitar.

2. Prodotto finitoview

The Cort G250 SE features a Basswood body, Roasted Maple neck, and a 2-Point Tremolo with Bent Steel Saddles. It is equipped with Cort Voiced Tone VTS63 & VTH77 Pickups and a double cutaway design for comfortable access to upper frets.

Caratteristiche principali

• Basswood Body
• Roasted Maple Neck
• 2-Point Tremolo w/Bent Steel Saddles
• Cort Voiced Tone VTS63 & VTH77 Pickups
• Double Cutaway

Figura 2.1: Fronte view of the Cort G250 SE electric guitar, showcasing its Olive Dark Green finish, pickups, and bridge.

3. Impostazione

3.1 Disimballaggio

Carefully remove your guitar from its packaging. Inspect for any signs of damage during transit.

3.2 Accordatura

The guitar is equipped with sealed tuners for stable tuning. Gently turn the tuning pegs to bring each string to the desired pitch.

Figure 3.1: Close-up of the guitar's headstock and sealed tuners, showing the string winding posts.

3.3 String Installation

To change strings, thread the new string through the appropriate hole in the 2-Point Tremolo bridge. Wind the string around the tuning post, ensuring a few wraps for stability, then tune to pitch.

Figura 3.2: dettagliata view of the 2-Point Tremolo bridge with bent steel saddles, showing string attachment points.

3.4 Regolazione dell'azione

The string action (height above the fretboard) can be adjusted at the bridge. Use an appropriate Allen wrench to raise or lower the bridge saddles for individual string height or the entire bridge for overall action.

3.5 Intonation Adjustment

The 2-Point Tremolo bridge features adjustable saddles for intonation. Use a small screwdriver to move each saddle forward or backward until the 12th fret harmonic matches the fretted note at the 12th fret.

4. Come usare la chitarra

4.1 Connessione a un Amppiù vivace

Connect a standard 1/4-inch instrument cable from the guitar's output jack to your ampcontributo del lificatore.

Figure 4.1: Close-up of the guitar's output jack, located on the side of the body.

4.2 Controlli

Your G250 SE features a single volume and a single tone knob to shape your sound.

• Manopola del volume: Controlla il livello di uscita complessivo della chitarra.
• Manopola del tono: Adjusts the treble response, allowing you to achieve brighter or warmer tones.

Figura 4.2: View of the volume and tone control knobs on the guitar body.

4.3 Tecniche di gioco

Experiment with different picking and strumming techniques, as well as finger placement on the fretboard, to explore the full range of sounds your guitar can produce.

5. Manutenzione

5.1 Pulizia

Regularly wipe down your guitar with a soft, lint-free cloth after playing to remove sweat and oils. Use a guitar-specific polish for the body and a fretboard conditioner for the Roasted Maple fretboard as needed.

5.2 Cura delle corde

Change strings regularly to maintain optimal tone and playability. Old strings can sound dull and be harder to keep in tune.

5.3 Cura della tastiera

The Roasted Maple fretboard requires minimal maintenance. If it appears dry, apply a small amount of fretboard conditioner.

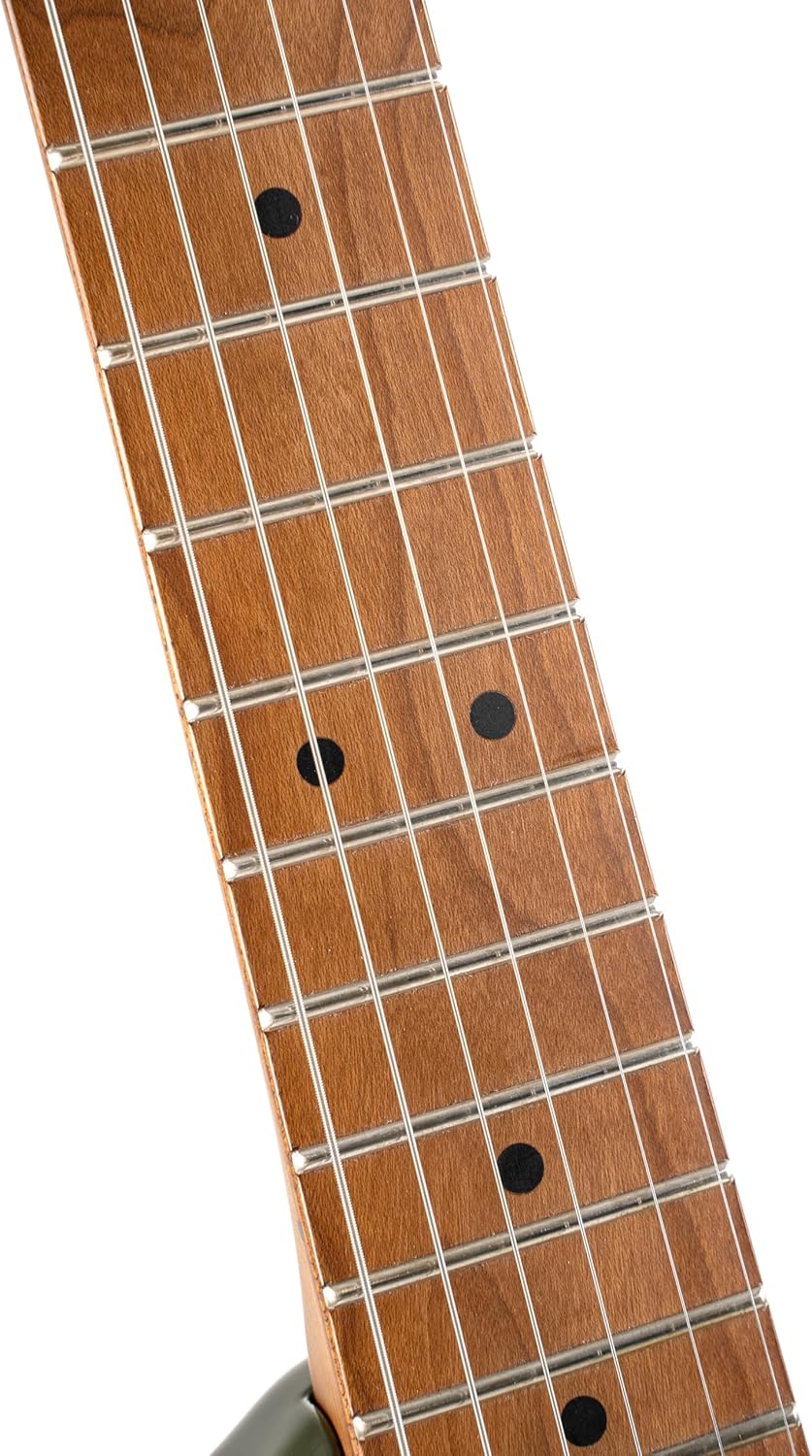

Figure 5.1: Close-up of the Roasted Maple fretboard with frets.

5.4 Conservazione

Store your guitar in a stable environment, away from extreme temperature changes and humidity fluctuations, to prevent wood warping or cracking. A guitar case or gig bag is recommended for protection.

6. Risoluzione Dei Problemi

6.1 Instabilità di sintonizzazione

• Check Strings: Ensure strings are properly stretched and wound around tuning posts. Old strings can cause tuning issues.
• Nut Lubrication: Apply a small amount of graphite or specialized nut lubricant to the nut slots to reduce friction.
• Tuner Inspection: Verify that all tuners are functioning smoothly. If a tuner feels loose or binds, it may need adjustment or replacement.

6.2 No Sound from Amppiù vivace

• Controllo del cavo: Assicurarsi che il cavo dello strumento sia collegato saldamente sia alla chitarra che al amplifier. Try a different cable to rule out a faulty one.
• Amplificatore Potenza: Confermare il amplifier is powered on and its volume is not set to zero.
• Volume della chitarra: Check that the guitar's volume knob is turned up.

6.3 Fret Buzz

• Regolazione dell'azione: Slightly raise the string action at the bridge.
• Sollievo per il collo: If buzz persists, the neck relief may need adjustment via the truss rod. This is best performed by a qualified guitar technician.

7. Specifiche

Note: Best Sellers Rank and Date First Available are subject to change and may not reflect current market data.

8. Garanzia e supporto

For warranty information and customer support, please visit the official Cort websito o contattare il rivenditore autorizzato.
