ATLETICA R8-Bradley Power Rack with Cable Cross - User Manual

1. Introduzione

Thank you for choosing the ATLETICA R8-Bradley Power Rack with Cable Cross. This versatile fitness equipment combines the stability of a power rack with the functionality of a cable cross machine, designed for comprehensive strength training in a home gym environment. This manual provides essential information for safe assembly, operation, and maintenance of your R8-Bradley system. Please read it thoroughly before use and retain it for future reference.

2. Informazioni sulla sicurezza

AVVERTIMENTO: Serious injury or death can occur if safety precautions are not followed.

• Consultare un medico prima di iniziare qualsiasi programma di esercizi.
• Leggere e comprendere tutte le istruzioni contenute nel presente manuale prima del montaggio o dell'uso.
• Tenere i bambini e gli animali domestici lontani dall'apparecchiatura durante l'uso.
• Prima di ogni utilizzo, assicurarsi che tutti i bulloni e i dadi siano ben serrati.
• Inspect the equipment for worn or damaged parts before each use. Do not use if damaged.
• Utilizzare l'attrezzatura su una superficie piana e stabile.
• Do not exceed the maximum weight capacity of the equipment (refer to Specifications).
• Indossare calzature e abbigliamento sportivo adeguati.
• Eseguire gli esercizi con movimenti controllati. Evitare movimenti bruschi o bruschi.
• Always use spotters or safety catches when lifting heavy weights.

3. Contenuto della confezione

Verify that all components are present before beginning assembly. Refer to the included assembly diagram for a complete list of parts.

• Main Power Rack Frame components
• 2 x 90 kg Lateral Weight Stacks
• Cable Pulleys and Cables
• J-Hooks and Safety Spotter Arms
• Barra per trazioni
• Ferramenta di montaggio (bulloni, dadi, rondelle)
• Tools for Assembly (wrenches, allen keys - may be included or required separately)
• Manuale dell'utente (questo documento)

4. Installazione e assemblaggio

Assembly requires at least two people due to the size and weight of the components. Clear a large, open area for assembly.

1. Disimballare i componenti: Carefully remove all parts from the packaging. Lay them out and compare with the parts list in the assembly diagram to ensure nothing is missing or damaged.
2. Montare il telaio di base: Connect the base stabilizers to the uprights using the provided hardware. Ensure all connections are finger-tight before final tightening.
3. Installa i montanti: Attach the main uprights to the base frame. The R8-Bradley is designed with the R8 modular principle, allowing for expansion with attachments on six uprights.
4. Mount Crossmembers and Pull-up Bar: Secure the top crossmembers and the pull-up bar to the uprights.
5. Install Weight Stacks: The 90 kg lateral weight stacks can be installed at three R8 series depths: 42 cm, 78 cm, and 108 cm. Follow the specific instructions in the assembly diagram for cable routing and weight stack installation. Lateral installation of the weight stacks enhances stability.
6. Fissare pulegge e cavi: Route the cables through the pulley system as shown in the assembly diagram. Ensure cables are not twisted and move freely. The cable guidance and roller mechanism are consistent with Atletica R8 Alpha systems.
7. Serraggio finale: Once all components are in place, systematically tighten all bolts and nuts using the appropriate tools. Do not overtighten.
8. Controllo di stabilità: Gently shake the assembled rack to ensure it is stable and all connections are secure.

Immagine: Frontale view of the Atletica R8-Bradley Power Rack with Cable Cross, showing the main frame and cable system. This image illustrates the overall structure of the equipment after assembly.

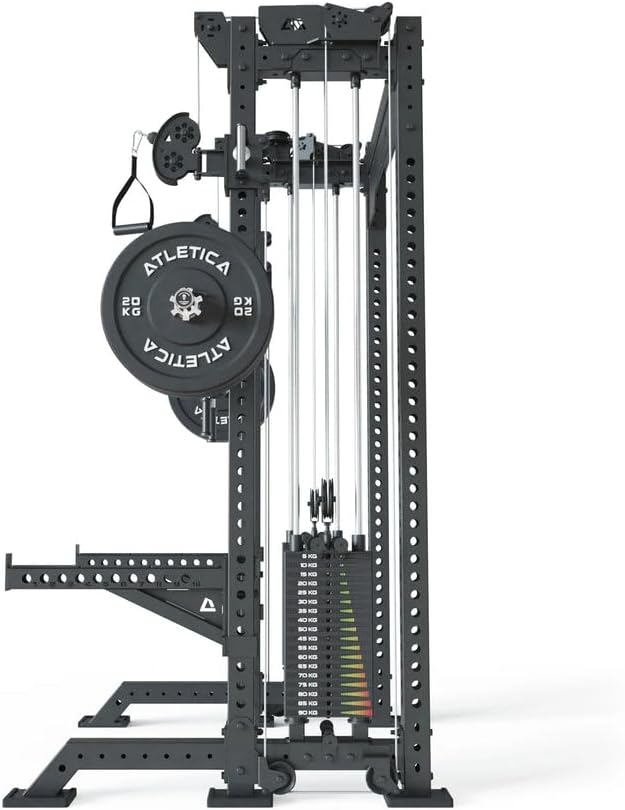

Immagine: Lato view of the Atletica R8-Bradley Power Rack, highlighting the integrated weight stack and pulley system. This view demonstrates the lateral placement of the weight stacks for enhanced stability.

5. Istruzioni per l'uso

The R8-Bradley offers a wide range of exercises. Always ensure proper form and controlled movements.

5.1. Using the Cable Cross System

• Regolazione del peso: Select the desired weight by inserting the magnetic metal pin into the corresponding weight plate on the stack. The weight stacks are easily accessible and adjustable.
• Accessori di fissaggio: Connect desired cable attachments (handles, ankle straps, etc.) to the carabiners on the cable ends.
• Pulley Height Adjustment: Adjust the height of the pulleys by pulling the adjustment pin and sliding the pulley mechanism along the uprights to the desired position. Ensure the pin fully engages.
• Exercise Execution: Perform exercises with smooth, controlled motions. The continuous design of the R8-Bradley Cable Cross allows for various exercises and accommodates a weight bench.

5.2. Using the Power Rack

• J-Hooks and Safety Spotter Arms: Insert J-hooks and safety spotter arms into the desired height holes on the uprights. Ensure they are securely seated before loading weight. Always use safety spotter arms when performing heavy lifts.
• Esercizi con bilanciere: Use the J-hooks to rack and unrack barbells for squats, bench presses, and other exercises.
• Barra per trazioni: The integrated pull-up bar can be used for various bodyweight exercises.
• Compatibilità degli accessori: The front uprights are compatible with various R8 series accessories, including jammer arms, J-hooks, jump platforms, and boxing bag mounts.

Image: A user performing cable curls using the Atletica R8-Bradley Power Rack's cable cross system. This demonstrates the equipment in active use for strength training.

Immagine: Primo piano view of the Atletica R8-Bradley's cable pulley system and attachment point. This shows the detail of the adjustable pulley mechanism and the carabiner for attaching accessories.

Immagine: Primo piano view of the Atletica R8-Bradley's weight stack, showing the individual plates and the magnetic pin for weight selection. This illustrates how to adjust the resistance for cable exercises.

6. Manutenzione

Una manutenzione regolare garantisce la longevità e il funzionamento sicuro delle vostre apparecchiature.

• Quotidiano: Pulisci l'attrezzatura con un pannoamp panno dopo ogni utilizzo per rimuovere sudore e polvere.
• Settimanale: Inspect all bolts, nuts, and connections for tightness. Retighten as necessary.
• Mensile: Check cables for fraying, kinks, or wear. Inspect pulleys for smooth operation. Lubricate moving parts with a silicone-based lubricant if needed.
• Annuale: Perform a thorough inspection of the entire frame for any signs of structural damage or corrosion.
• Replace any worn or damaged parts immediately. Do not use the equipment until repairs are made.

7. Risoluzione Dei Problemi

8. Specifiche

• Modello: ATLETICA R8-Bradley
• Numero modello: 555-1767
• Colore: Nero
• Misurare: Short (Kurz)
• Pacchi pesi: 2 x 90 kg (Lateral)
• Peso dell'articolo: Circa 285.5 kg
• Compatible Depths for Weight Stacks: 42 cm, 78 cm, 108 cm (R8 Series)
• Produttore: ATLETICA
• ASIN: B0DDQKF712
• Data prima disponibilità: 20 agosto 2024

Immagine: dall'alto verso il basso view of the Atletica R8-Bradley Power Rack, illustrating its footprint and structural design. This perspective helps in understanding the space requirements and overall layout.

Immagine: Posteriore view of the Atletica R8-Bradley Power Rack, showing the back of the frame and cable routing. This view can be useful for understanding cable management and rear access.

9. Garanzia e supporto

For warranty information and customer support, please refer to the documentation provided with your purchase or contact Atletica customer service directly.

Informazioni sui contatti: Please visit the official Atletica website or refer to your purchase receipt for specific contact details.
