Bosch SMS6ECC12E Series 6 Freestanding Dishwasher User Manual

Introduzione

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Bosch SMS6ECC12E Series 6 Freestanding Dishwasher. Please read these instructions carefully before first use and keep them for future reference.

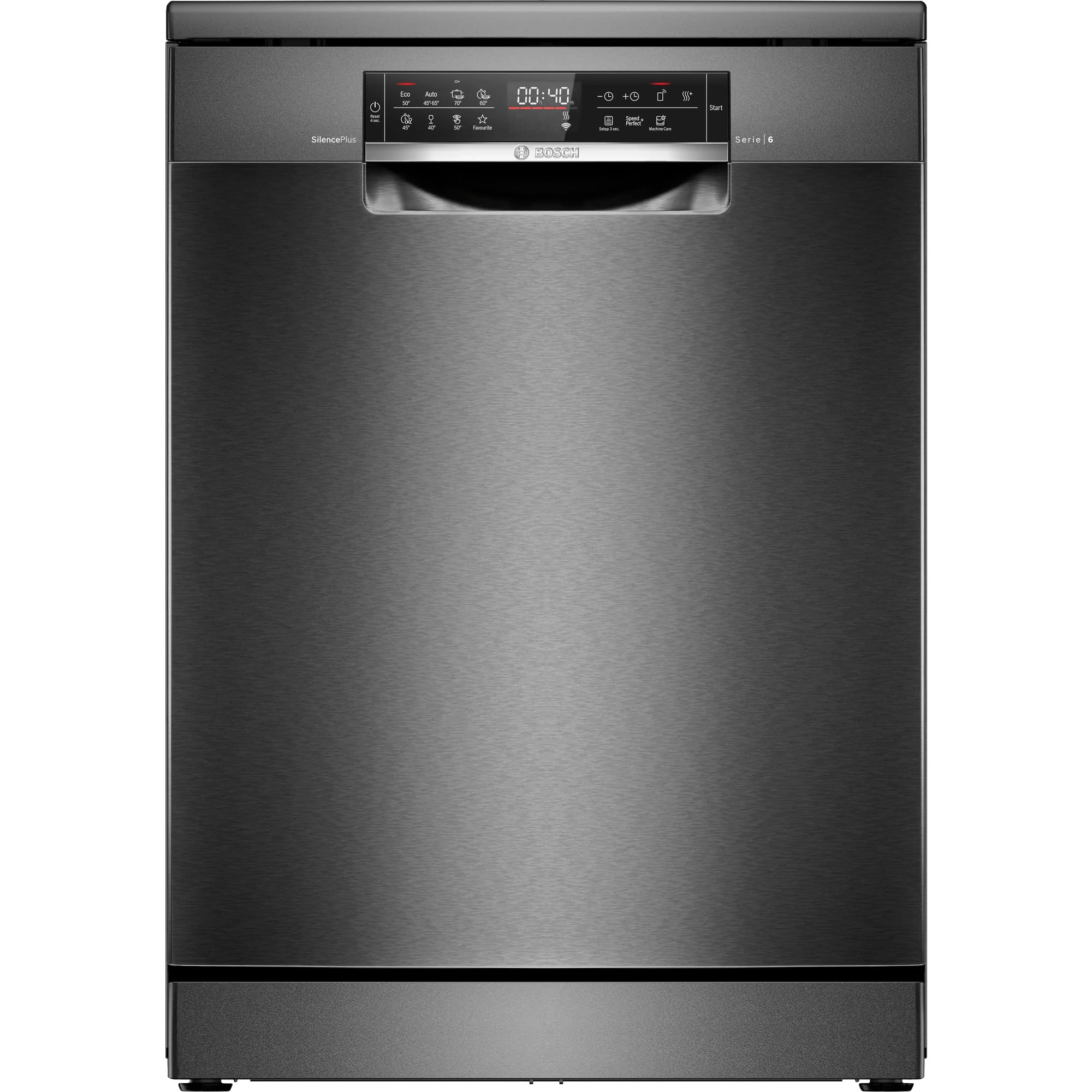

Figura 1: Fronte view of the Bosch SMS6ECC12E freestanding dishwasher in brushed black steel.

Informazioni sulla sicurezza

Per evitare incidenti e danni all'apparecchio, osservare sempre le seguenti istruzioni di sicurezza:

• Ensure the dishwasher is properly installed and grounded before use.
• Non permettere ai bambini di giocare con la lavastoviglie o di utilizzarla.
• Utilizzare solo detersivi e brillantanti specifici per lavastoviglie.
• Evitare di toccare l'elemento riscaldante durante o subito dopo un ciclo di lavaggio.
• Do not overload the dishwasher or place items that are not dishwasher-safe.
• In case of malfunction, disconnect the appliance from the power supply before attempting any repairs. Contact authorized service personnel.

Configurazione e installazione

Disimballaggio e posizionamento

Carefully remove all packaging materials. Position the freestanding dishwasher on a level, stable surface. Ensure there is adequate space for door opening and proper ventilation. The appliance dimensions are 60D x 60W x 84H Centimeters.

Figure 2: The Bosch SMS6ECC12E freestanding dishwasher integrated into a modern kitchen setting.

Collegamenti idrici e di scarico

Connect the water inlet hose to a cold water supply with a 3/4-inch thread. Ensure the drain hose is securely connected to a suitable drain point, preventing kinks or blockages. Refer to local plumbing codes for proper installation.

Connessione elettrica

Connect the dishwasher to a grounded electrical outlet. The appliance operates on 240 Volts and has a wattage of 2400 Watt Hours. Do not use extension cords or adapters.

Figura 3: Posteriore view of the Bosch SMS6ECC12E dishwasher, showing water inlet, drain hoses, and power cable connections.

Initial Setup and Home Connect

Your dishwasher includes a WLAN Module for Home Connect functionality. Download the Home Connect app on your smartphone to connect the appliance to your home network. This enables remote control, access to the digital manual, and useful application tips.

Istruzioni per l'uso

Caricamento della lavastoviglie

Arrange dishes, glasses, and cutlery to ensure water can reach all surfaces. Avoid overcrowding. The dishwasher features a MaxFlex Basket System and Variolade for flexible loading. The capacity is 14 place settings.

Figure 4: The Bosch SMS6ECC12E dishwasher with its door open, revealing the three flexible baskets for loading.

Figure 5: Lower basket of the dishwasher loaded with plates and a pot, demonstrating efficient space utilization.

Figure 6: Upper basket of the dishwasher loaded with glasses and cups, showing the flexible rack design.

Figure 7: Top cutlery drawer of the dishwasher, organized with various utensils and small cups.

Aggiunta di detersivo e brillantante

Open the detergent dispenser and add the recommended amount of dishwasher detergent. If using a tablet, place it in the designated compartment. Ensure the rinse aid dispenser is filled for optimal drying results.

Figure 8: Detergent dispenser compartment, showing a dishwasher tablet and rinse aid.

Selezione di un programma

Use the touch controls to select a wash program. The dishwasher offers various programs, including the "Extra Clean Zone" for intensive washing of heavily soiled items in the top basket. You can also download additional programs via the Home Connect app.

Figura 9: primo piano view of the Extra Clean Zone in the upper basket, designed for intensive cleaning of heavily soiled items.

The Laundry Assistant feature in the Home Connect app can suggest the most suitable program based on simple questions about your load.

Avvio di un ciclo di lavaggio

Close the dishwasher door firmly. Press the Start button to begin the selected program. The dishwasher will automatically proceed through the wash, rinse, and dry cycles.

Manutenzione e cura

Pulizia dei filtri

Regularly check and clean the filter system at the bottom of the dishwasher. Remove any food particles or debris to ensure optimal washing performance and prevent blockages.

Ricarica sale e brillantante

Monitor the indicator lights for dishwasher salt and rinse aid. Refill these compartments as needed to maintain water softening and streak-free drying.

Pulizia esterna

Pulire le superfici esterne della lavastoviglie con un panno morbido eamp cloth. Avoid abrasive cleaners that could damage the brushed black steel finish.

Risoluzione dei problemi

Prima di contattare l'assistenza, riview i seguenti problemi comuni e le relative soluzioni:

• La lavastoviglie non si avvia: Controllare l'alimentazione, assicurarsi che lo sportello sia completamente chiuso e che il programma sia selezionato.
• Risultati di pulizia scadenti: Verify proper loading, check detergent levels, clean filters, and ensure spray arms are not blocked.
• L'acqua non scarica: Controllare che il tubo di scarico non sia piegato o ostruito e pulire il sistema di filtraggio.
• Perdite: Check hose connections, door seal, and ensure proper loading to prevent water spray towards the door.

For more complex issues, the Home Connect app allows Bosch technical support to remotely access your dishwasher (with your permission) to diagnose problems and provide guidance. If a remote solution is not possible, a service appointment can be scheduled.

Specifiche tecniche

Garanzia e supporto

For warranty information, please refer to the documentation provided with your purchase or contact Bosch customer service. Bosch technical support is available to assist with any issues. You can utilize the Home Connect app for remote diagnostics and support, or visit the official Bosch website for service contact details.

Per ulteriore assistenza, visitare il sito Negozio Bosch su Amazon o il Bosch ufficiale websito.
