1. Introduzione
This manual provides detailed instructions for the safe and effective use of your Telbum DJ Lights with Stand RGBW LED Derby Par Light Set. Please read this manual thoroughly before operating the device and retain it for future reference.
The Telbum DJ Light Set combines 2 RGB Derby lights, 6 RGBW Par lights, and 21 white LED strobe lights to create dynamic lighting effects. It features automated and sound-activated programs and includes a portable tripod stand for versatile placement.
2. Informazioni sulla sicurezza
Per garantire un funzionamento sicuro ed evitare danni, osservare le seguenti precauzioni:
- Alimentazione elettrica: Utilizzare solo l'adattatore di alimentazione specificato. Assicurarsi che il volumetage soddisfa i requisiti del dispositivo.
- Ventilazione: Non ostruire le aperture di ventilazione. Garantire un adeguato flusso d'aria attorno all'unità per evitare il surriscaldamento.
- Umidità: Keep the device away from water, high humidity, and liquids. Do not operate in rain or damp ambienti.
- Temperatura: Evitare di esporre l'unità a temperature estreme o alla luce solare diretta.
- Gestione: Maneggiare l'unità con cura. Evitare di farla cadere o di sottoporla a forti urti.
- Pulizia: Scollegare l'alimentazione prima della pulizia. Utilizzare un panno morbido e asciutto. Non utilizzare prodotti chimici aggressivi o detergenti abrasivi.
- Manutenzione: Non tentare di riparare o modificare l'unità autonomamente. Per qualsiasi intervento di assistenza, rivolgersi a personale qualificato.
- Sicurezza degli occhi: Evitare l'esposizione diretta degli occhi alla fonte luminosa, poiché potrebbe essere intensa.
- Stabilità del supporto: Ensure the tripod stand is fully extended and stable on a flat surface before mounting the light bar. Do not use in windy conditions outdoors.
3. Cosa c'è nella scatola
Verificare che tutti i componenti siano presenti al momento del disimballaggio:
- 1 x LED PartyBAR (Light Set)
- 1 x Tripod Lighting Stand
- 1 x telecomando
- 1 x Manuale utente
This image displays the LED PartyBAR, tripod stand, remote control, and user manual, which are included in the product package.
4. Istruzioni per l'installazione
Follow these steps to assemble and set up your Telbum DJ Light Set:
- Montare il treppiede:
- Aprire le gambe del treppiede finché non sono completamente estese e stabili.
- Adjust the height of the stand using the locking mechanisms on the central pole. Ensure all locks are securely tightened.
- Fissare la barra luminosa:
- Carefully place the Telbum LED PartyBAR onto the top mounting bracket of the tripod stand.
- Secure the light bar to the stand using the provided screws or locking pins, ensuring it is firmly attached and cannot wobble.
- Connetti alimentazione:
- Plug the power cable into the power input port on the back of the LED PartyBAR.
- Connect the other end of the power cable to a suitable electrical outlet.
- Posizionamento:
- Place the assembled light set on a flat, stable surface.
- Ensure there is sufficient space around the unit for proper ventilation and light projection.
This image shows the Telbum DJ light bar securely mounted on its tripod stand, ready for operation. A remote control is also visible, along with examples of the light's color output.
This diagram provides the physical dimensions of the light bar and illustrates the adjustable height and foldable nature of the tripod stand for easy setup and transport.
5. Istruzioni per l'uso
The Telbum DJ Light Set can be controlled using the included IR remote control. Ensure the remote is aimed at the signal receiver on the light bar for proper function.
5.1 Funzioni del telecomando

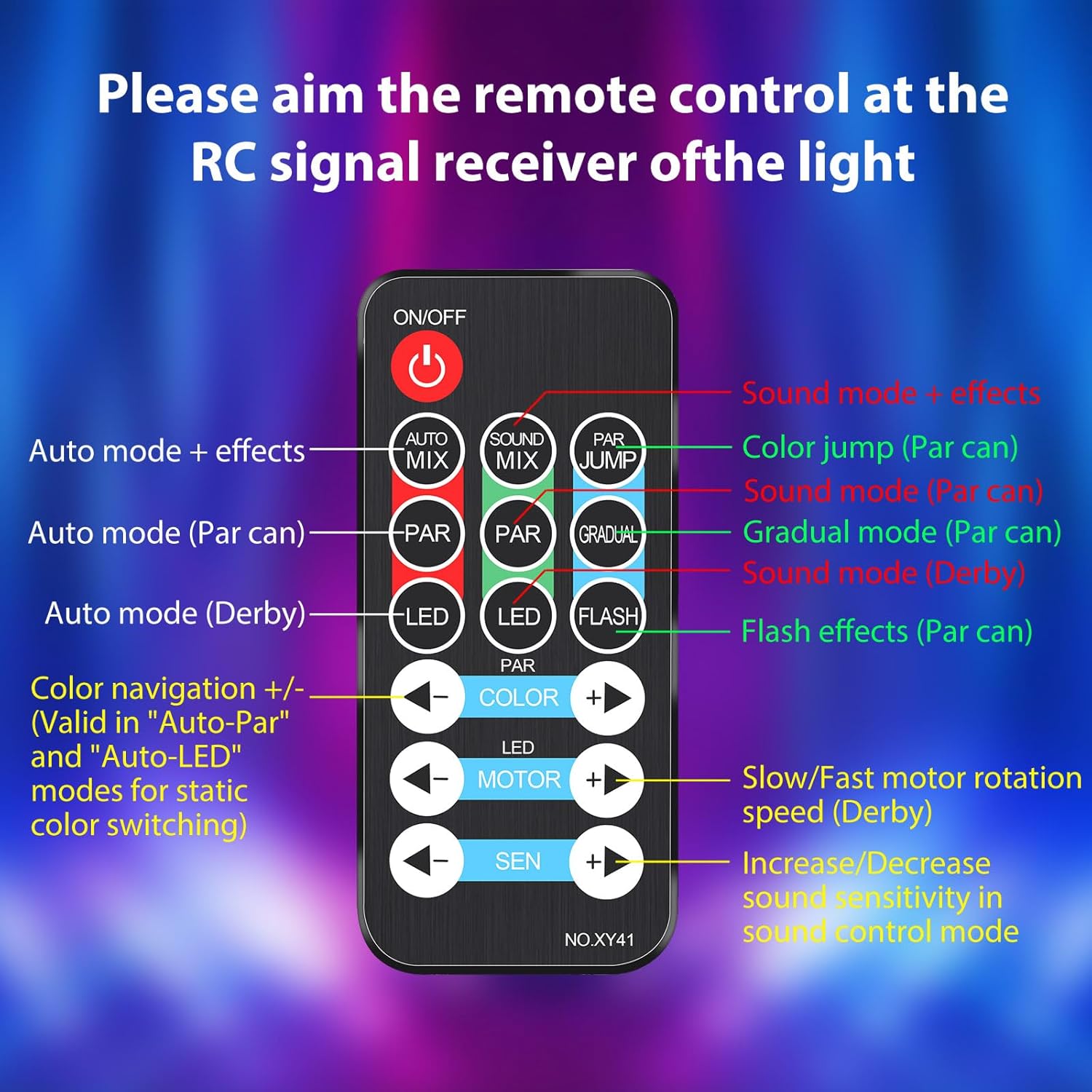

Questa immagine fornisce una descrizione dettagliata view of the remote control, indicating the function of each button for easy operation.
- ACCESO/SPENTO: Accende o spegne l'unità.
- AUTO MIX: Activates Auto-Play mode with mixed effects.
- SOUND MIX: Activates Sound-Activated mode with mixed effects.
- PAR JUMP: Initiates a color jump effect for the Par lights.
- PAR: Cycles through Auto mode for Par lights.
- SOUND (PAR): Activates Sound mode for Par lights.
- GRADUAL (PAR): Activates Gradual mode for Par lights.
- GUIDATO: Cycles through Auto mode for Derby lights.
- SOUND (DERBY): Activates Sound mode for Derby lights.
- VELOCE: Activates flash effects for Par lights (strobe).
- COLORE +/-: Navigates through colors in Auto-Par and Auto-LED modes for static color switching.
- MOTOR +/-: Adjusts the rotation speed of the Derby light motor (slow/fast).
- SEN +/-: Increases or decreases sound sensitivity in sound control mode.
Modalità operative 5.2
The light set offers various modes to suit different event needs:
- Auto-Play Mode: The lights cycle through pre-programmed patterns and color changes automatically.
- Modalità attivata dal suono: The lights react to music and sounds, changing patterns and colors in sync with the rhythm. The built-in microphone detects audio.
- Derby Light Effects: Projects criss-cross multi-color beams.
- Par Light Effects: Creates exciting color washes.
- Strobe Light Effects: The 21 white LEDs provide a super bright strobe effect. Note: The strobe effect in the built-in automated programs cannot be turned off independently.
This image illustrates various colorful light patterns created by the Telbum DJ lights, showcasing the dynamic visual effects possible. Optimal effects are achieved in a smoke environment.
This image demonstrates the integrated automated and sound-activated programs, showing a red light effect, a white light effect, and a multi-color effect. It also notes that the strobe effect is integrated into these programs.
6. Manutenzione
Proper maintenance ensures the longevity and optimal performance of your Telbum DJ Light Set.
6.1 Pulizia
- Scollegare sempre l'alimentazione prima della pulizia.
- Use a soft, lint-free cloth to wipe the exterior of the light bar and stand.
- Per sporco ostinato, leggermente dampLavare il panno con acqua. Evitare l'uso di detergenti abrasivi, solventi o prodotti chimici aggressivi, poiché possono danneggiare la finitura.
- Gently clean the light lenses to ensure clear light projection.
6.2 Conservazione
- When not in use, store the light set in a cool, dry place, away from direct sunlight and extreme temperatures.
- If possible, use the original packaging or a protective case to prevent dust accumulation and physical damage.
- Ensure the tripod stand is folded and secured to prevent accidental unfolding or damage.
7. Risoluzione Dei Problemi
If you encounter issues with your Telbum DJ Light Set, refer to the following common problems and solutions:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| La luce non si accende. | Nessuna alimentazione elettrica. Faulty power cable/outlet. | Ensure the power cable is securely plugged into both the light bar and a working electrical outlet. Test the outlet with another device. |
| Il telecomando non risponde. | Batteria del telecomando scarica. Ostruzione tra il telecomando e la luce. Remote not aimed correctly. | Replace the remote control battery. Ensure there are no obstructions. Aim the remote directly at the IR receiver on the light bar. |
| La modalità attivata dal suono non funziona. | Microphone blocked. Sound level too low. Impostazione della sensibilità troppo bassa. | Ensure the microphone on the light bar is not covered. Increase the volume of the music. Adjust the 'SEN +' button on the remote to increase sensitivity. |
| Light effects are dim or unclear. | Lenti sporche. Luce ambientale troppo intensa. | Clean the light lenses as described in the Maintenance section. Operate the lights in a darker environment for best results. |
| Tripod stand is unstable. | Gambe non completamente estese/bloccate. Superficie irregolare. | Ensure all tripod legs are fully extended and the locking mechanisms are tightened. Place the stand on a flat, level surface. |
Se il problema persiste dopo aver provato queste soluzioni, contattare l'assistenza clienti.
8. Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Numero di modello | PL-29Z |
| Marca | Telbum |
| Colore | Colore RGBW |
| Materiale | Plastica |
| Tipo di finitura | Dipinto |
| Tipo di sorgente luminosa | Diodo ad emissione luminosa (LED) |
| Fonte di alimentazione | Elettrico con cavo |
| Cosatage | 50 watt |
| Numero di sorgenti luminose | 29 (2 Derby, 6 Par, 21 Strobe) |
| Dimensioni del prodotto (barra luminosa) | 21 cm L x 10 cm P x 4.7 cm A |
| Peso dell'articolo | 5.34 libbre |
| Tipo di montaggio | Floor Mount (with tripod) |
| Caratteristiche della lampadina | Sound Activated, Automated Lighting Effects, Color Changing |
| Componenti inclusi | 1*Derby Par Light Set, 1*Remote Control, 1*Tripod Lighting Stand, 1*User Manual |
9. Garanzia e supporto
Telbum products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official Telbum brand store.
For technical support, troubleshooting assistance beyond this manual, or inquiries about replacement parts, please contact Telbum customer service through their official channels. You can find more information and contact options on the Telbum Brand Store on Amazon.
