1. Introduzione
Image: The MiBOXER C3 CCT Color Temperature Remote Controller in black.
This user manual provides detailed instructions for the MiBOXER C3 CCT Color Temperature Remote Controller. The C3 remote is designed for precise control over color temperature (CCT) and brightness in single-zone lighting setups. It utilizes 2.4GHz wireless technology for reliable operation.
Si prega di leggere attentamente il presente manuale prima di utilizzare il prodotto per garantirne il corretto funzionamento e massimizzarne la durata.
2. Caratteristiche del prodotto
- Single-Zone Control: Dedicated for one-zone lighting setups.
- CCT & Brightness Adjustment: Fine-tune color temperature and brightness with ease.
- Tecnologia wireless a 2.4 GHz: Ensures reliable, long-range connectivity.
- Design nero elegante: Modern, minimalist appearance.
- Interfaccia intuitiva: Simple layout for quick adjustments.
3. Contenuto della confezione
Verificare che tutti gli articoli siano presenti nel pacco:
- MiBOXER C3 CCT Color Temperature Remote Controller (Black)
- Manuale d'uso
Image: The MiBOXER C3 remote control, its retail packaging, and the included user manual.
4. Impostazione
4.1 Powering the Remote
The MiBOXER C3 remote does not require batteries. It is designed to operate without external power, likely drawing power from the connected lighting system or having an internal, non-replaceable power source.
4.2 Linking the Remote to a Light Fixture
To control a light fixture, the C3 remote must be linked. The linking process typically involves a sequence of actions on both the remote and the light fixture. Refer to your specific MiBOXER light fixture's manual for detailed linking instructions, as this process can vary.
General Linking Procedure (may vary):
- Ensure the light fixture is powered off.
- Power on the light fixture.
- Within 3 seconds of powering on the light, short press the "ON" button on the C3 remote 3 times.
- The light should flash 3 times slowly, indicating successful linking.
4.3 Unlinking the Remote from a Light Fixture
To unlink the remote from a light fixture, follow a similar procedure:
- Ensure the light fixture is powered off.
- Power on the light fixture.
- Within 3 seconds of powering on the light, short press the "ON" button on the C3 remote 5 times.
- The light should flash 10 times quickly, indicating successful unlinking.
5. Istruzioni per l'uso
Immagine: Frontale view of the MiBOXER C3 remote control, highlighting the Brightness/CCT control slider and the ON/OFF buttons.
5.1 Accensione/spegnimento
- Per accendere la luce ON, premere il tasto ON pulsante.
- Per accendere la luce SPENTO, premere il tasto SPENTO pulsante.
5.2 Adjusting Brightness and Color Temperature (CCT)
The long vertical bar on the remote serves as the control for both brightness and color temperature.
- Controllo della luminosità: Slide your finger along the vertical bar to adjust the brightness level. Sliding towards the top (sun icon) increases brightness, and sliding towards the bottom (dim sun icon) decreases brightness.
- Color Temperature (CCT) Control: While the light is on, short press the ON button again to switch the function of the vertical bar to CCT adjustment. Slide your finger along the vertical bar to change the color temperature from warm white (yellow end) to cool white (blue end).
6. Manutenzione
The MiBOXER C3 remote requires minimal maintenance.
- Pulizia: Use a soft, dry cloth to wipe the surface of the remote. Do not use abrasive cleaners, solvents, or harsh chemicals, as these may damage the finish or internal components.
- Magazzinaggio: Conservare il telecomando in un luogo asciutto, lontano dalla luce solare diretta e da temperature estreme.
- Esposizione all'acqua: Questo dispositivo non è impermeabile. Evitare di esporlo all'acqua o a umidità elevata.
7. Risoluzione Dei Problemi
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Il telecomando non controlla la luce. | Remote is not linked to the light fixture. | Follow the "Linking the Remote to a Light Fixture" instructions in Section 4.2. |
| Intermittent control or poor range. | Interference from other 2.4GHz devices; Obstructions between remote and light. | Reduce interference by moving other wireless devices; Ensure clear line of sight or reduce distance. |
| Brightness or CCT adjustment is not responsive. | Remote may be in an unresponsive state; Light fixture issue. | Try pressing ON/OFF buttons to reset; Check the light fixture's power supply. |
8. Specifiche
| Attributo | Valore |
|---|---|
| Modello | C3 |
| Marca | MiBOXER |
| Colore | Nero |
| Materiale | Plastica |
| Tecnologia senza fili | 2.4GHz |
| Zone di controllo | 1 Zona |
| Fonte di alimentazione | No batteries required (internal power) |
| Temperatura di esercizio | Fino a 40°C (104°F) |
| Peso dell'articolo | 2.08 once (59 grammi) |
| Dimensioni del pacco | 5.63 x 1.69 x 0.75 pollici (14.3 x 4.3 x 1.9 cm) |

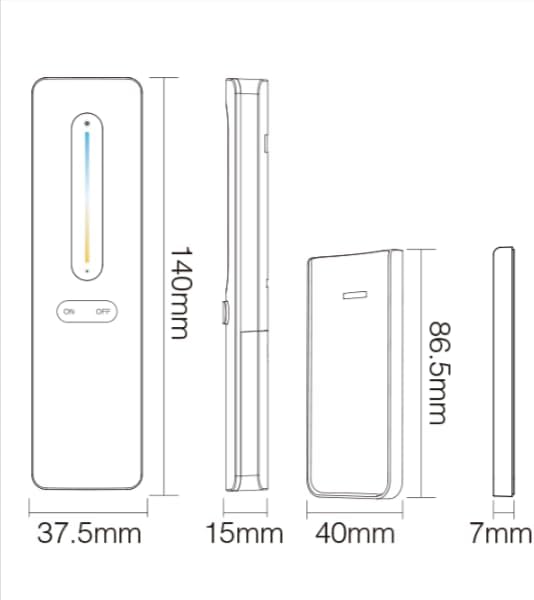

Image: Technical drawing illustrating the dimensions of the MiBOXER C3 remote control and its magnetic wall mount.
Image: Diagram showing the dimensions of the retail packaging for the MiBOXER C3 remote control.
9. Garanzia e supporto
Specific warranty information for the MiBOXER C3 CCT Color Temperature Remote Controller is not provided in the product details. Please refer to the retailer or manufacturer's official websito per i termini e le condizioni della garanzia.
For technical support or further assistance, please contact MiBOXER customer service through their official channels. Contact information can typically be found on the manufacturer's websito o sulla confezione del prodotto.
