Manuale utente del telecomando per la temperatura del colore MiBOXER C1 2.4G

1. Introduzione

This manual provides comprehensive instructions for the MiBOXER C1 Color Temperature Remote 2.4G. This device is designed for intuitive control over color temperature (CCT) and brightness of compatible MiBOXER lighting products. Please read this manual thoroughly before use to ensure proper operation and to maximize the product's lifespan.

Immagine 1.1: anteriore view of the MiBOXER C1 Color Temperature Remote.

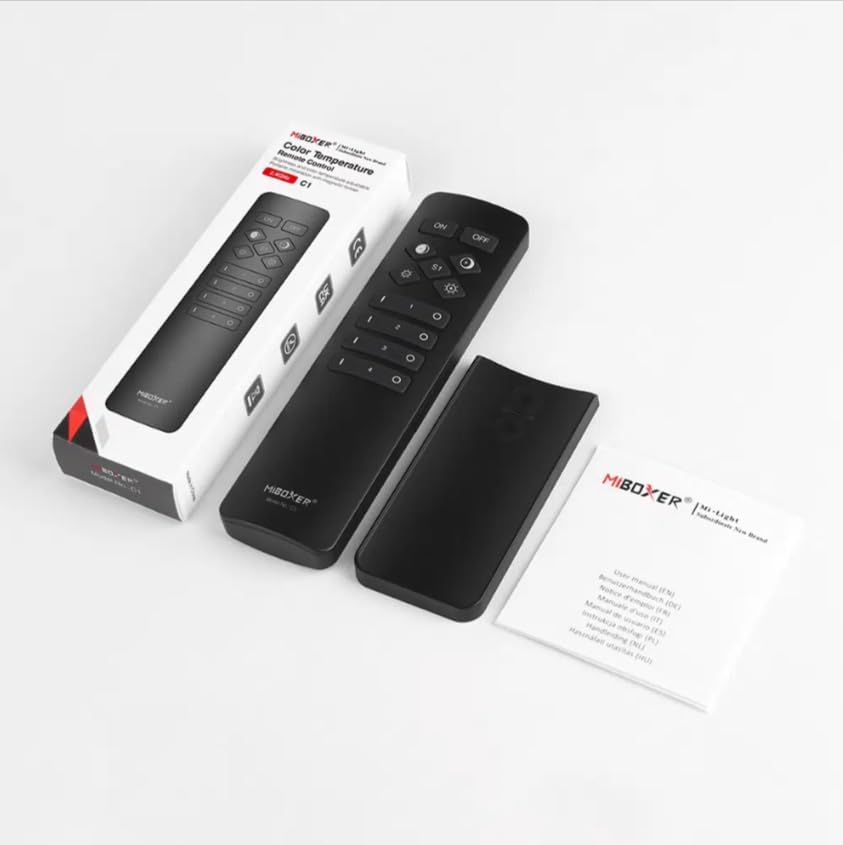

Image 1.2: MiBOXER C1 Remote, its packaging, and included user manual.

Caratteristiche principali:

• Controllo della temperatura del colore: Adjust CCT for optimal lighting warmth.
• Tecnologia wireless a 2.4 GHz: Reliable, long-range connectivity.
• Design intuitivo: Simple, intuitive interface for easy adjustments.
• Compatto ed ergonomico: Comfortable and portable for daily use.
• Compatibilità versatile: Works with various MiBOXER lighting products.

2. Impostazione

2.1 Installazione della batteria

1. Individuare il coperchio del vano batterie sul retro del telecomando.
2. Far scorrere o sollevare delicatamente il coperchio per aprirlo.
3. Inserire due batterie AAA, assicurandosi della corretta polarità (+ e -).
4. Riposizionare il coperchio del vano batteria finché non scatta saldamente in posizione.

2.2 Linking the Remote to Lighting Devices

The C1 remote uses 2.4GHz wireless technology to communicate with compatible MiBOXER lighting devices. Follow these steps to link the remote:

1. Ensure the lighting device you wish to control is powered off.
2. Power on the lighting device. Within 3 seconds of powering on, press the "ON" button for the desired zone (1-4) on the C1 remote tre volte.
3. The lighting device should flash three times, indicating successful linking.
4. If the linking fails, power off the lighting device and repeat the process.

2.3 Unlinking the Remote from Lighting Devices

To unlink a lighting device from a specific zone on the C1 remote:

1. Ensure the lighting device you wish to unlink is powered off.
2. Power on the lighting device. Within 3 seconds of powering on, press the "ON" button for the desired zone (1-4) on the C1 remote cinque volte.
3. The lighting device should flash ten times, indicating successful unlinking.

3. Istruzioni per l'uso

Familiarize yourself with the button layout and functions of your MiBOXER C1 remote:

Image 3.1: Detailed button description for the MiBOXER C1 Remote.

3.1 Funzioni dei pulsanti

• SOPRA: Turns all linked lights ON.
• OFF: Turns all linked lights OFF.
• Warmer white (left diamond button): Increases the color temperature towards warmer tones.
• Cooler white (right diamond button): Increases the color temperature towards cooler tones.
• Brightness - (left gear button): Decreases the brightness level.
• Brightness + (right gear button): Increases the brightness level.
• S1 (Scene button): Activates a pre-set scene or mode (functionality may vary with specific lighting devices).
• Zone 1-4 ON (I): Turns ON lights linked to the specific zone. Also used for linking/unlinking.
• Zone 1-4 OFF (O): Turns OFF lights linked to the specific zone.

3.2 Adjusting Color Temperature and Brightness

1. Seleziona Zona: Press the "I" button for the desired zone (1-4) to select it. To control all linked lights, ensure no specific zone is selected or press the main "ON" button.
2. Regola la temperatura del colore: Use the "Warmer white" (left diamond) and "Cooler white" (right diamond) buttons to fine-tune the color temperature.
3. Regola luminosità: Use the "Brightness -" (left gear) and "Brightness +" (right gear) buttons to set the desired light intensity.

4. Manutenzione

4.1 Pulizia

To maintain the appearance and functionality of your remote:

• Pulisci il telecomando con un panno morbido e asciutto.
• Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the surface or internal components.

4.2 Sostituzione della batteria

Replace batteries when the remote's response becomes sluggish or if the indicator light (if present) signals low power. Refer to Section 2.1 for battery installation instructions.

4.3 Conservazione

When not in use for extended periods, store the remote in a cool, dry place. If storing for several months, it is recommended to remove the batteries to prevent leakage.

5. Risoluzione Dei Problemi

5.1 Il telecomando non risponde

• Controllare le batterie: Assicurarsi che le batterie siano inserite correttamente e non siano scariche. Sostituirle se necessario.
• Allineare: Confirm the remote is within the effective operating range of the lighting device.
• Interferenza: Minimize potential 2.4GHz interference from other wireless devices.

5.2 Linking Issues

• Tempistiche: Ensure the "ON" button is pressed within 3 seconds of powering on the lighting device.
• Ripetizione: Confirm the "ON" button is pressed exactly three times for linking or five times for unlinking.
• Compatibilità: Verify that the lighting device is compatible with the MiBOXER C1 remote.

6. Specifiche

Image 6.1: Dimensional diagram of the MiBOXER C1 Remote.

Image 6.2: Packaging dimensions for the MiBOXER C1 Remote.

7. Garanzia e supporto

MiBOXER products are designed for reliability and performance. For specific warranty information, please refer to the warranty card included with your product or contact your retailer. For technical support, product inquiries, or to explore other MiBOXER products, please visit the official MiBOXER store or websito.
