Uckazy 12.3 Inch Car Stereo Instruction Manual

Introduzione

This manual provides detailed instructions for the installation, operation, and maintenance of your Uckazy 12.3 Inch Car Stereo. This device is specifically designed to upgrade the multimedia capabilities of BMW X3 F25 models manufactured between 2010 and 2013, equipped with the original CIC system. It integrates advanced features such as wireless Apple CarPlay, wireless Android Auto, and a high-resolution touch screen while retaining the original vehicle functions.

Compatibilità

This car stereo is compatible with BMW X3 F25 models from 2010-2013 that feature the original CIC system. Before installation, verify your vehicle's system type. The device is not compatible with NBT systems.

Figura 1: Compatible Models & Year. This image illustrates the visual difference between a compatible CIC system (4-pin LVDS port) and an incompatible NBT system (6-pin LVDS port) for BMW X3 F25 (2010-2013).

Cosa c'è nella scatola

Prima di iniziare l'installazione, assicurarsi che tutti i componenti siano presenti:

• Plug and play power Cable
• Schermo ultra sottile da 12.3" in-cell
• Cavo USB/AUX/RCA
• Telaio
• Strumenti di installazione e penna touch

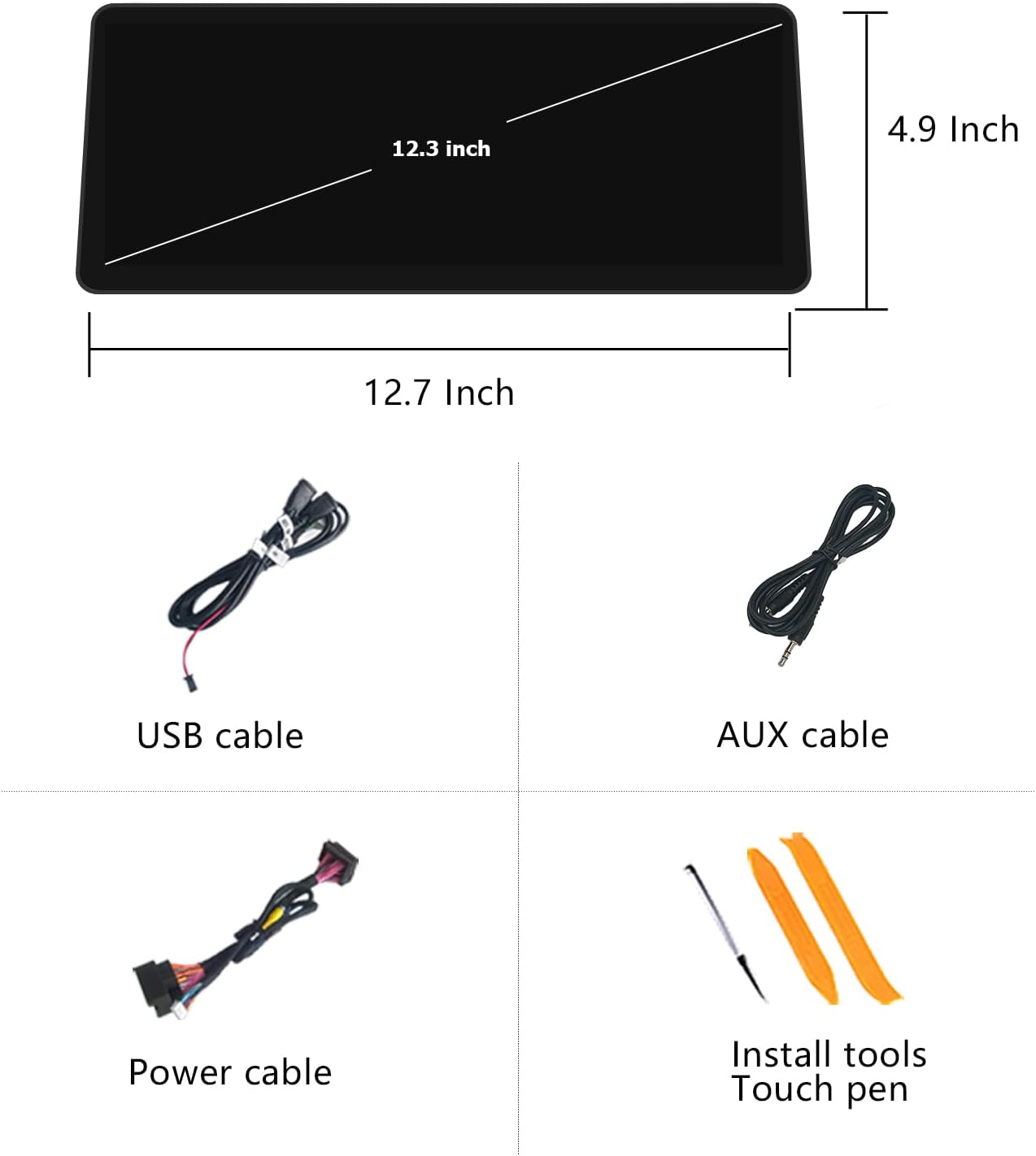

Figura 2: Package Contents. This image displays the main components included in the box: the 12.3-inch screen, USB cable, AUX cable, power cable, and installation tools with a touch pen.

Configurazione e installazione

The Uckazy car stereo is designed for plug-and-play installation, retaining most original vehicle functions. However, careful attention to wiring and settings is crucial for optimal performance.

1. Collegamenti elettrici

Refer to the provided wiring diagram and ensure all cables are securely connected. Pay close attention to the fiber optic and power cable connections.

Figura 3: Wire Definition and Linking. This diagram illustrates how to connect the various cables, including power, USB, AUX, and fiber optic, to the car machine system.

Fiber Optic Cable Transfer

If your original car CD player uses fiber optic cables, you must transfer them to the new system's harness to ensure proper audio functionality.

Collegamento del cavo di alimentazione

Connect the provided power cable to the original car's power interface. Ensure a secure connection.

USB Connection for Wired CarPlay/Android Auto

For wired CarPlay or Android Auto functionality, use USB IN 1. USB IN 2 is for read storage links.

Figura 4: USB Connection for CarPlay/Android Auto. This image clarifies which USB port (USB IN 1) should be used for connecting wired CarPlay or Android Auto.

2. Impostazioni iniziali del sistema

AUX Audio Setup

To ensure audio output from the new system, the original AUX input must be enabled and configured.

1. Plug into the stock AUX port (located in the manual gear position or passenger side storage box).
2. Vai a Setup > Car Settings > Auto Switch to AUX.
3. Select your head unit type (Harman or Alpine).
4. In the original car system, go to Main menu > Multimedia > External devices.
5. Long press button '8' until you hear a tone, then release. This activates the AUX input for the new system's sound.

Figura 5: AUX Setup. This image shows the location of the AUX port and the menu path to configure the 'Auto Switch to AUX' setting for audio output.

Screen Resolution Settings

To ensure correct display of original car information, set the OEM resolution in the system settings.

1. Vai a Impostazioni > Impostazioni auto > Risoluzione schermo auto originale.
2. Select the correct resolution for your OEM display. If unsure, try each option until the display is correct.

Figura 6: OEM Resolution Settings. This image displays the menu for adjusting the original car's screen resolution to ensure proper display of OEM information.

Impostazioni della fotocamera

Configure camera settings for proper reverse camera functionality.

1. Vai a Setup > Car Settings > Reversing Settings > Camera Type.
2. Selezionare Fotocamera originale or Aftermarket Camera based on your setup. Incorrect selection will prevent the reverse camera from working.

Figura 7: Camera Type Settings. This image shows the menu for selecting the camera type (original or aftermarket) to ensure correct reverse camera operation.

Istruzioni per l'uso

Your Uckazy car stereo offers a seamless integration of a Linux-based system with your original BMW CIC system.

1. Dual System Operation

The device supports one-click switching between the new Linux system and the original car system, allowing you to access all original functions.

Figura 8: One-Click Switching Between Dual Systems. This image demonstrates the ease of switching between the original BMW interface and the new Linux system.

2. CarPlay wireless e Android Auto

Connect your smartphone wirelessly to access navigation, phone contacts, messages, music, and more via voice assistants like Siri or Google Voice Assistant.

1. Ensure the necessary wires are connected on the machine before attempting wireless connection.
2. Turn on Bluetooth on your smartphone and the car stereo.
3. Find the car stereo's Bluetooth connection (e.g., 'CAR-BT-78C0') on your phone and pair.
4. Open Siri voice assistant on your iPhone for CarPlay.
5. Allow all permissions for the connection to establish.

Figura 9: Wireless CarPlay and Android Auto. This image demonstrates the wireless connectivity features, showing both CarPlay and Android Auto interfaces on the screen.

3. Impostazioni audio (DSP)

The built-in Digital Signal Processor (DSP) with 16 EQ segments allows for detailed sound customization. Adjust the overall sound quality and speaker positioning to your preference.

4. Caratteristiche dello schermo

The 12.3-inch IN-CELL screen features full lamination technology for enhanced clarity and reduced reflection. It also includes automatic light sensitivity, adjusting day and night modes based on your car's original headlights.

Figura 10: Day and Night Mode. This image demonstrates the automatic light sensitivity feature, showing how the display adjusts between bright day mode and dimmed night mode.

5. Retained Original Features

The upgraded system retains all original car functions, including:

• Autoradio originale e ampfunzione lifier
• Factory steering wheel controls
• Original iDrive controller (mouse knob)
• Display of speed, fuel level, oil pressure, safety warnings
• Original reverse camera compatibility
• Funzionalità Bluetooth originale

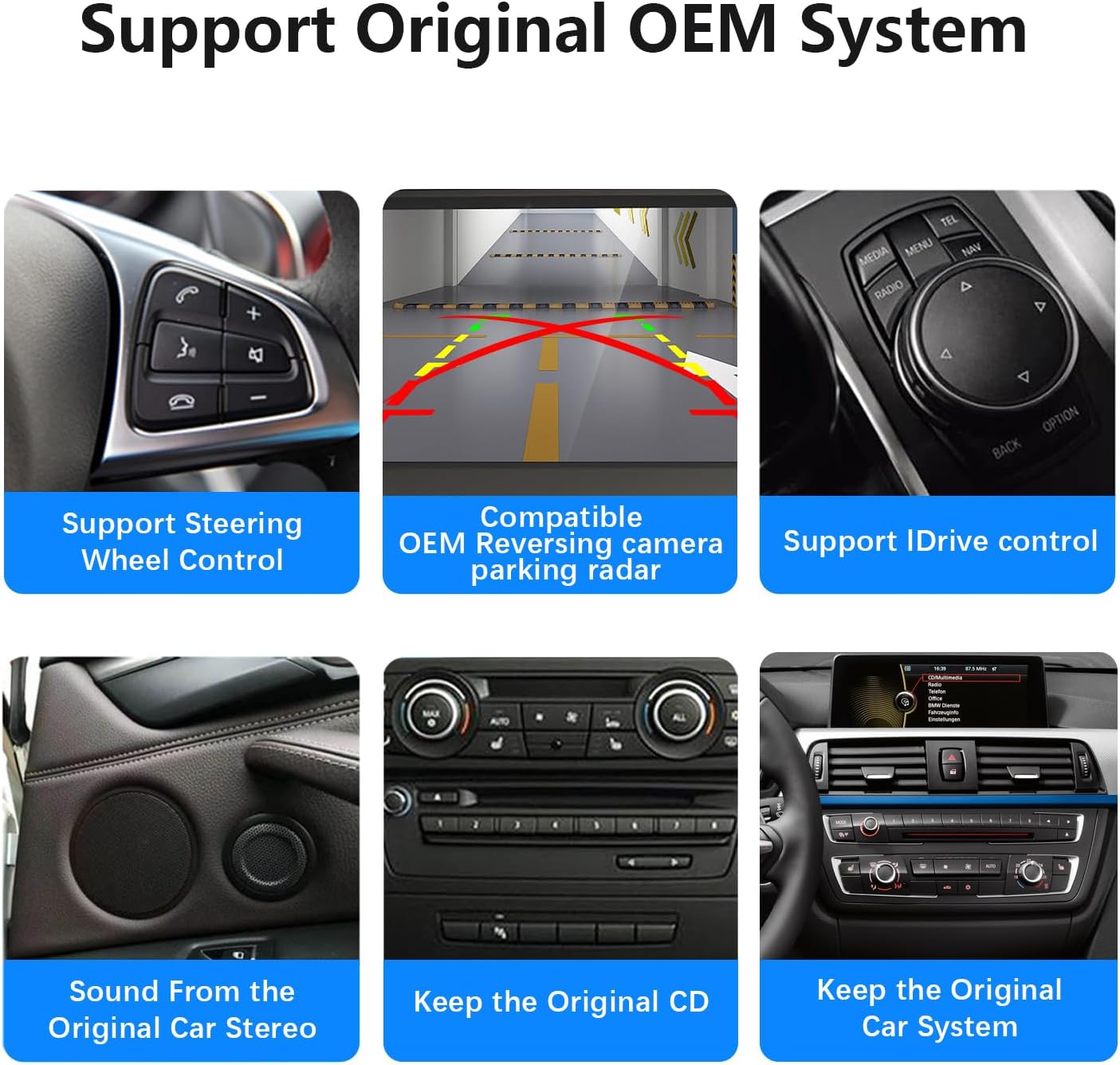

Figura 11: Support Original OEM System. This image highlights the various original BMW features that are fully supported and integrated with the new car stereo system.

Manutenzione

To ensure the longevity and optimal performance of your Uckazy car stereo:

• Pulire regolarmente lo schermo con un panno morbido e privo di lanugine. Evitare detergenti abrasivi.
• Tenere l'unità lontana da polvere e umidità eccessive.
• Avoid exposing the screen to direct sunlight for prolonged periods when the vehicle is parked.

Risoluzione dei problemi

If you encounter issues with your Uckazy car stereo, refer to the following common solutions:

• Nessuna uscita audio: Ensure the fiber optic cables from the original car CD player are correctly transferred to the new system's harness. Also, verify the AUX audio setup is completed as described in the Sezione di configurazione.
• Original Car Information Not Displayed Correctly: Regolare il Original Car's Screen Resolution in the system settings (Sezione di configurazione).
• Reverse Camera Not Working: Controllare il Tipo di fotocamera impostazione sotto Impostazioni di inversione in the system menu (Sezione di configurazione) and ensure it matches your camera type (Original or Aftermarket).
• Distorted Sound (Noise) from CarPlay/Android Auto: If you experience noise, ensure the 'AB' connection is properly made as indicated in the wiring diagrams.
• General Installation or Operation Issues: If you are unsure about installation or encounter problems not covered here, please contact customer support for assistance.

Specifiche

Garanzia e supporto

Informazioni sulla garanzia

Your purchase includes a 30-day refund/replacement policy. Additionally, protection plans are available for extended coverage:

• Piano di protezione biennale
• Piano di protezione biennale
• Complete Protect (fatturazione mensile)

Please refer to your purchase documentation for specific terms and conditions of these plans.

Assistenza clienti

For any technical assistance, installation queries, or troubleshooting not covered in this manual, please contact the seller, Uckzay Factory Outlet, directly. They can provide specialized support to resolve your issues.

You can typically find a link to 'Ask a question' on the seller's page where you purchased the product. For direct access to the Uckazy store, visit: Uckazy Store

Figura 12: Technical Support Information. This image emphasizes contacting the seller for support regarding installation, sound, or display issues.
