1. Introduzione
Grazie per l'acquistoasing the BALMUDA TableStove KGS01JP-BK. This instruction manual provides essential information for the safe and efficient use of your new table stove. Please read this manual thoroughly before use and keep it for future reference.
The BALMUDA TableStove is designed for convenient cooking and heating at your table, featuring a compact design and robust construction.
2. Informazioni sulla sicurezza
Always prioritize safety when operating gas appliances. Failure to follow these instructions may result in fire, explosion, or serious injury.
- Ventilazione: Use the stove only in well-ventilated areas. Do not use indoors for extended periods without proper ventilation.
- Gas Canister: Use only specified butane gas canisters. Ensure the canister is correctly inserted and sealed before ignition. Do not use damaged or expired canisters. Cassette gas cylinders are not included with the main unit.
- Posizionamento: Place the stove on a stable, level, and heat-resistant surface. Keep it away from flammable materials, walls, and curtains.
- Pot Size: Do not use pots or pans larger than 30 cm in diameter, or those that cover the gas canister compartment, as this can lead to overheating and dangerous conditions.
- Bambini e animali domestici: Keep the stove out of reach of children and pets during operation and when cooling down.
- Funzione di sicurezza automatica: The stove is equipped with a pressure-sensing safety device that automatically extinguishes the flame if abnormal pressure is detected, preventing overheating. If this occurs, turn off the stove, remove the gas canister, and allow the unit to cool before inspecting for issues.
- Pulizia: Ensure the stove is completely cool before cleaning.
3. Contenuto della confezione
The BALMUDA TableStove KGS01JP-BK package includes:
- BALMUDA TableStove Main Unit (KGS01JP-BK)
- Manuale di istruzioni
Nota: Butane gas canisters are not included and must be purchased separately.
4. Impostazione
- Disimballaggio: Carefully remove the stove from its packaging. Retain packaging for storage or transport.
- Posizionamento: Place the stove on a flat, stable, and heat-resistant surface, ensuring adequate clearance from walls and flammable objects. The stove's low profile, with a height of 73mm from the table surface to the top of the trivet, allows for comfortable use.
- Insert Gas Canister: Open the gas canister cover. Align the nozzle of a new butane gas canister with the stove's gas inlet and push firmly until it clicks into place. Close the cover securely.
Image: The BALMUDA TableStove KGS01JP-BK main unit in black, showcasinil suo design elegante.
Image: The BALMUDA TableStove KGS01JP-BK positioned on a wooden table, ready for use.
5. Istruzioni per l'uso
- Accensione: Turn the control knob counter-clockwise to the 'ON' position. You should hear a click as the igniter sparks and the burner lights. If it doesn't light immediately, repeat the process.
- Regolazione della fiamma: The stove offers two flame settings: 'Strong' and 'Weak'. Rotate the control knob to select the desired heat level.
- Cucina: Place your pot or pan on the trivet. The stove is designed to accommodate large pots and pans up to 30 cm in diameter, making it suitable for various dishes and gatherings.
- Disattivazione: After cooking, turn the control knob clockwise to the 'OFF' position until the flame extinguishes completely.
Image: The BALMUDA TableStove KGS01JP-BK actively cooking with a pot, demonstrating its functionality.

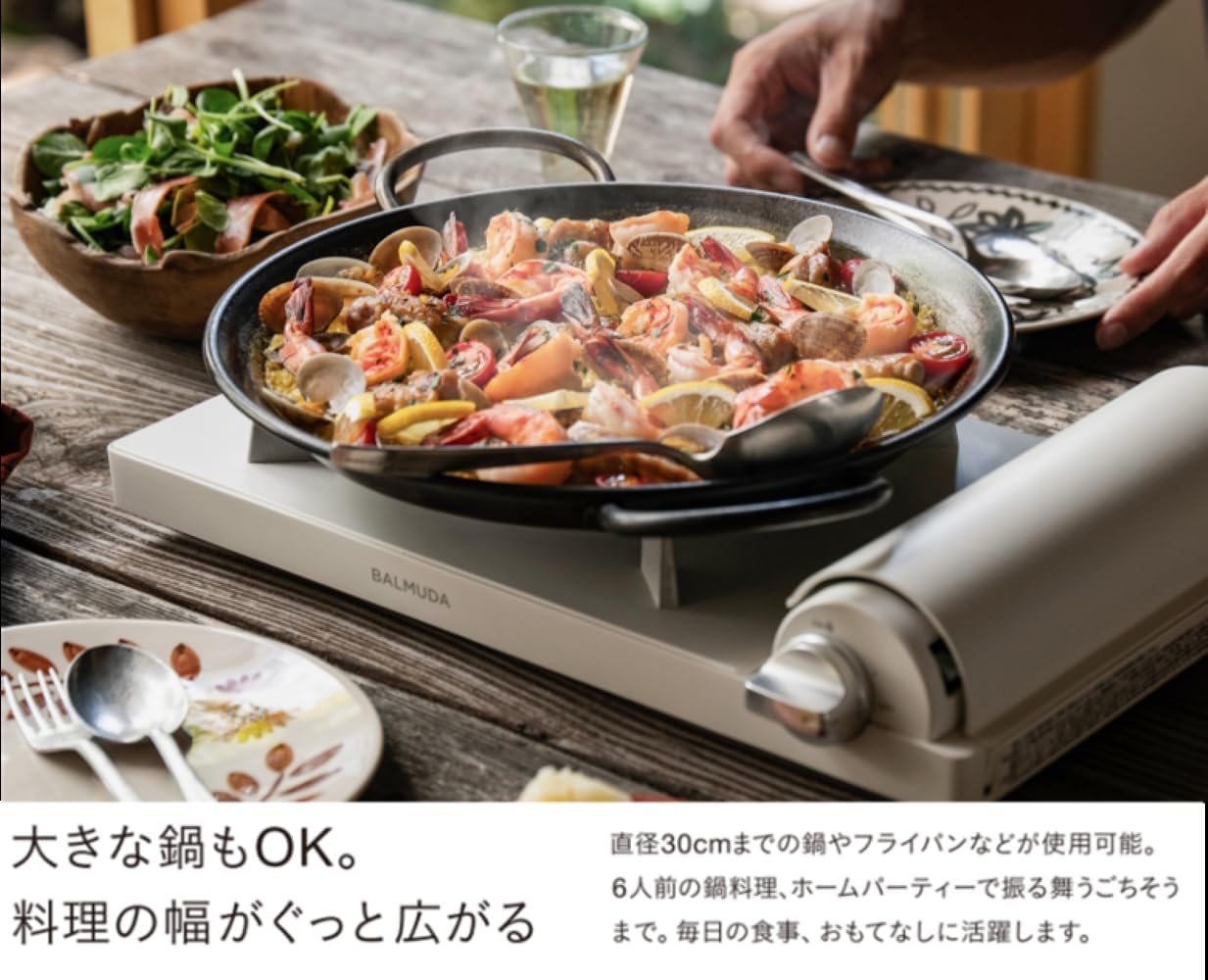

Image: A large paella pan being used on the BALMUDA TableStove KGS01JP-BK, highlighting its capacity for wide cookware.

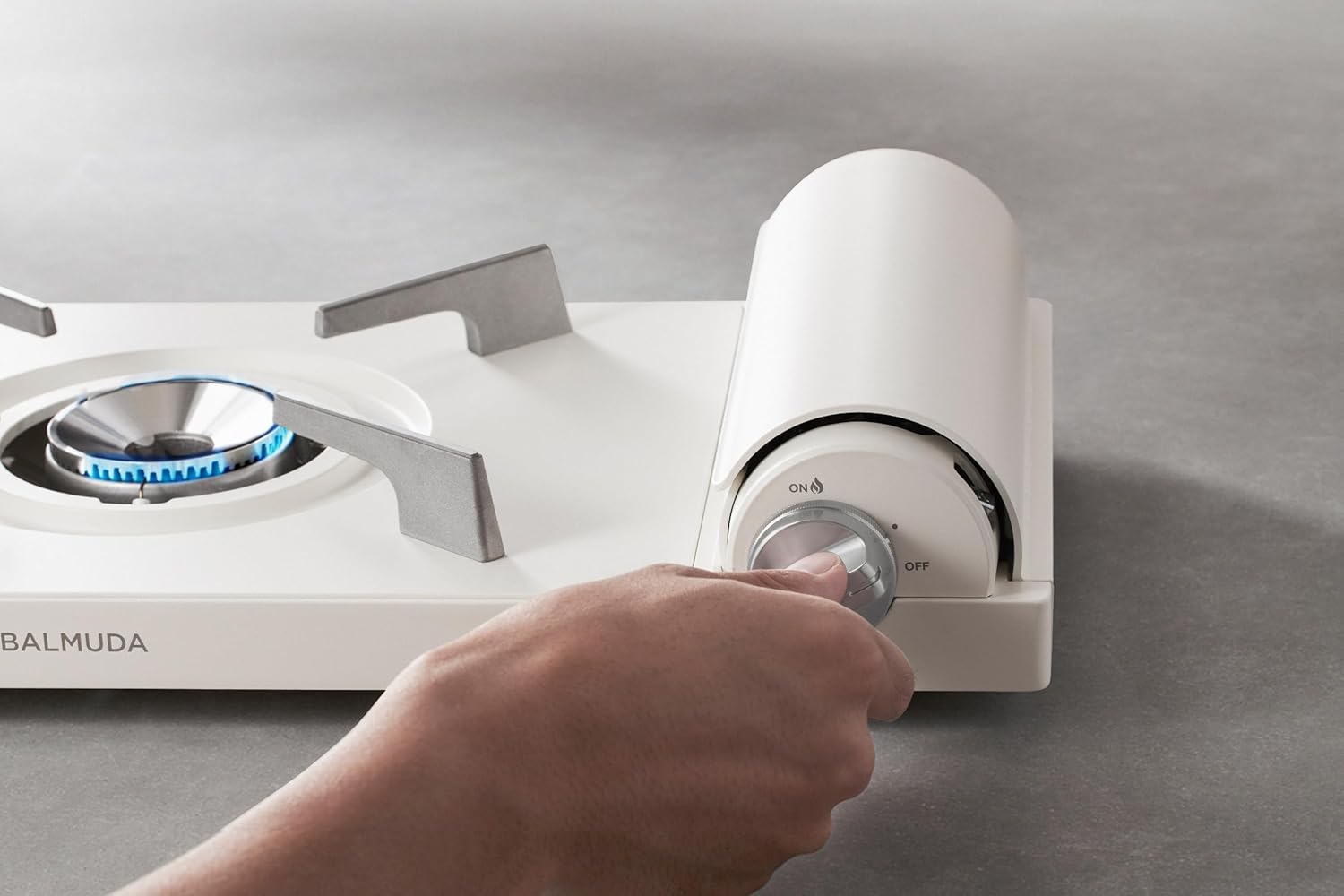

Image: A hand turning the control knob of the BALMUDA TableStove KGS01JP-BK to adjust the flame.
6. Manutenzione e pulizia
Regular cleaning ensures the longevity and safe operation of your TableStove.
- Raffreddare: Always ensure the stove is completely cool before attempting any cleaning.
- Pulizia esterna: The aluminum die-cast body and flat design make cleaning simple. Wipe the exterior surfaces with a soft, damp panno. Per le macchie ostinate, utilizzare un detergente delicato e poi pulire con un panno pulito eamp stoffa.
- Burner and Trivet: Remove the trivet and burner components for cleaning. Wash them with warm, soapy water, rinse thoroughly, and dry completely before reassembling. Ensure no food debris blocks the burner holes.
- Magazzinaggio: Store the stove in a dry, cool place away from direct sunlight and moisture when not in use. Remove the gas canister before storing.
Image: A hand wiping the surface of the BALMUDA TableStove KGS01JP-BK, demonstrating its ease of cleaning.
7. Risoluzione Dei Problemi
If you encounter issues with your TableStove, refer to the following common problems and solutions:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| La stufa non si accende. | Gas canister not properly inserted or empty. Igniter malfunction. | Ensure gas canister is correctly inserted and has fuel. Check for blockages in the gas inlet. If problem persists, contact customer support. |
| La fiamma è debole o incostante. | Low gas in canister. Blocked burner holes. | Replace gas canister. Clean burner holes. Ensure proper ventilation. |
| Stove automatically shuts off. | Overheating due to abnormal pressure (safety feature activated). | Turn off the stove, remove the gas canister, and allow it to cool completely. Check for obstructions or improper pot placement. Reinsert canister and try again. If issue persists, discontinue use and contact support. |
8. Specifiche
| Caratteristica | Specificazione |
|---|---|
| Numero di modello | KGS01JP-BK |
| Marca | Balmuda |
| Colore | Nero |
| Dimensioni del prodotto (L x P x A) | Dimensioni: 42.5 cm x 27.4 cm x 9.2 cm |
| Peso del prodotto | 2.5 kg |
| Materiale | Alluminio |
| Fonte di alimentazione | Alimentato a gas |
| Tipo di carburante | Butano |
| Impostazioni della fiamma | Strong, Weak (2 stagè) |
| Max Pot Diameter | 30 centimetri |
| Caratteristiche di sicurezza | Pressure-sensing automatic fire extinguishing |
9. Garanzia e supporto
Your BALMUDA TableStove KGS01JP-BK comes with a manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions, including the warranty period and coverage details.
For technical support, troubleshooting assistance beyond this manual, or warranty claims, please contact BALMUDA customer service through their official websito o le informazioni di contatto fornite con la documentazione del prodotto.
