TOOLCY 3400 PSI Gas Pressure Washer (Model RM) Instruction Manual

1. Introduzione

Thank you for choosing the TOOLCY 3400 PSI Gas Pressure Washer. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your new pressure washer. Please read this manual thoroughly before operating the unit and keep it for future reference.

This powerful gas pressure washer is designed for tough cleaning jobs, delivering 3400 PSI and 2.8 GPM, powered by a 212cc 4-stroke engine. It is suitable for cleaning driveways, siding, patios, decks, fences, and vehicles.

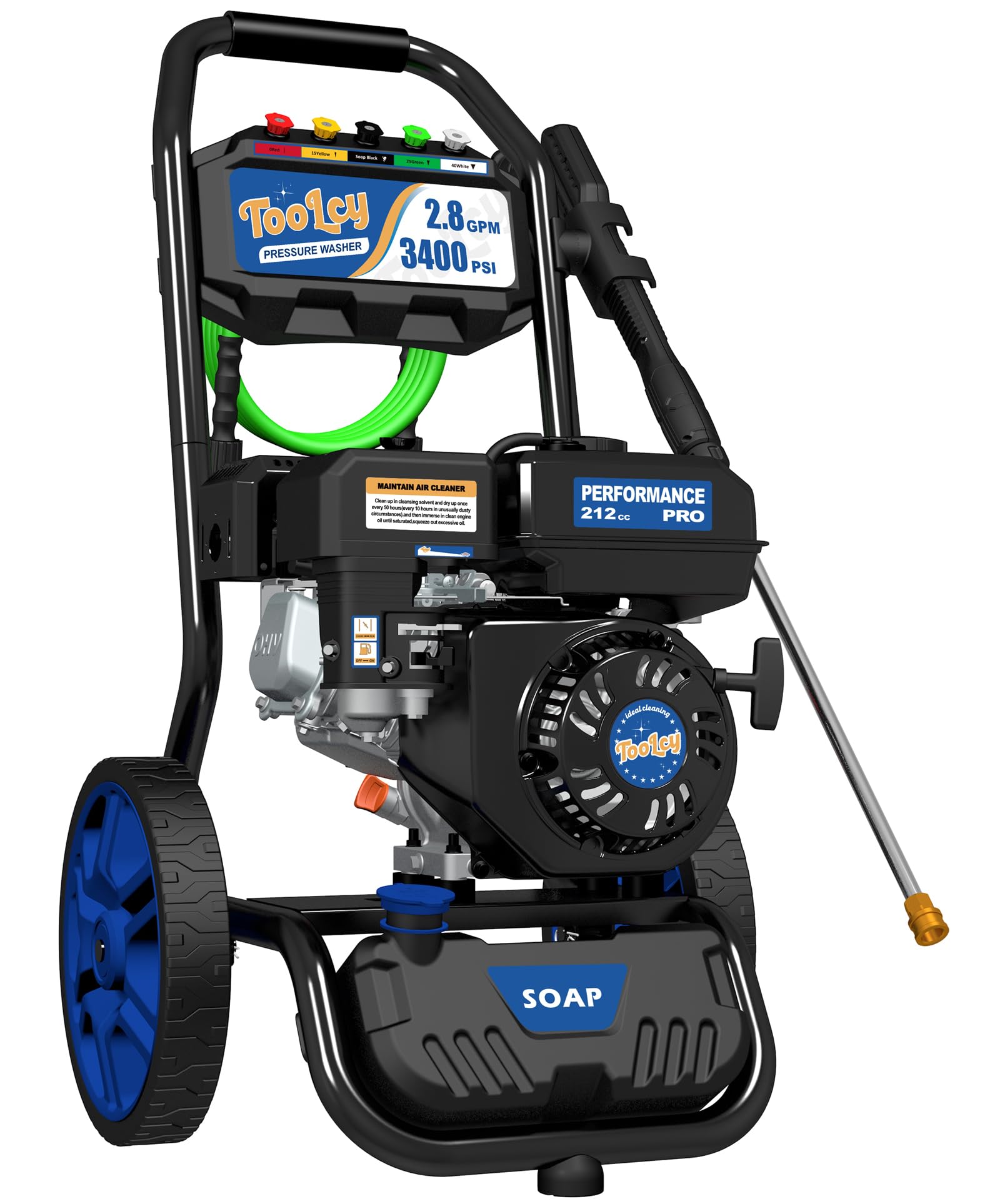

Figure 1: TOOLCY 3400 PSI Gas Pressure Washer

2. Informazioni importanti sulla sicurezza

AVVERTENZA: leggere tutte le avvertenze e le istruzioni di sicurezza. La mancata osservanza delle avvertenze e delle istruzioni può causare scosse elettriche, incendi e/o lesioni gravi.

• Indossare sempre dispositivi di protezione individuale (DPI) adeguati, tra cui occhiali di sicurezza, protezioni acustiche e indumenti protettivi.
• Non puntare mai la pistola a spruzzo verso persone, animali domestici o prese elettriche.
• Prima di avviare l'unità, assicurarsi che tutti i collegamenti siano saldi.
• Utilizzare l'idropulitrice in un'area ben ventilata per evitare l'avvelenamento da monossido di carbonio.
• Do not operate the unit on slopes exceeding 20 degrees, as this may trigger the oil sensor protector.
• Do not touch the high-pressure hose to hot surfaces such as the muffler and water pump.
• Always turn off the engine and relieve pressure before performing any maintenance or changing accessories.

3. Contenuto della confezione

Your TOOLCY Gas Pressure Washer package includes the following items:

• Gas Pressure Washer Unit (pre-assembled)
• Ergonomic Spray Gun with Swivel Connector
• High-Quality Metal Extension Wand
• 35-Foot High-Pressure Hose
• 5 Quick-Connect Nozzle Tips (0°, 15°, 25°, 40°, Soap)
• Imbuto per olio
• Manuale di istruzioni

Figura 2: Accessori inclusi

4. Assemblaggio

Your TOOLCY Gas Pressure Washer comes mostly pre-assembled for quick setup. Follow these steps to complete the assembly:

1. Fissare la maniglia: Slide the upper handle assembly onto the main unit's frame until it clicks into place. No bolts or tools are required for this step.
2. Install Hose Hook: Attach the hose hook to the designated slots on the handle panel.
3. Collegare il tubo flessibile ad alta pressione: Connect one end of the 35-foot high-pressure hose to the pump outlet on the pressure washer unit and the other end to the spray gun. Ensure connections are hand-tightened securely.
4. Collegare la prolunga: Screw the metal extension wand onto the spray gun.
5. Insert Nozzle Tip: Select the desired quick-connect nozzle tip and insert it into the end of the extension wand until it locks into place.

Video 1: TOOLCY Gas Powered Pressure Washer Unboxing and Assembly Guide. This video demonstrates the simple assembly process, highlighting the quick-connect features and ease of setup.

5. Configurazione iniziale

1. Aggiungere olio motore: Using the provided oil funnel, add 10W-30 engine oil to the engine crankcase. Do NOT overfill. The unit is shipped without engine oil to prevent leaks during transit.
2. Aggiungere carburante: Riempire il serbatoio del carburante con benzina fresca senza piombo.
3. Collegare l'alimentazione idrica: Connect a standard garden hose to the water inlet on the pressure washer pump. Ensure the garden hose is free of kinks and has a minimum diameter of 5/8 inch.
4. Attivare l'erogazione idrica: Fully open the water faucet to ensure a steady flow of water to the pressure washer.
5. Spurgare l'aria dal sistema: Squeeze the trigger on the spray gun to purge air from the pump and hose. Continue until a steady stream of water flows from the nozzle.

Figure 3: High-Performance 212cc 4-Stroke OHV Engine

6. Istruzioni per l'uso

1. Avviare il motore:
   • Ruotare l'interruttore del motore in posizione 'ON'.
   • Move the throttle lever to the 'LEFT' position.
   • Turn the fuel shut-off valve to the 'RIGHT' position.
   • Individuare la corda di avviamento e tirarla lentamente fino a sentire resistenza. A questo punto, tirare rapidamente per avviare il motore.
   • Once the engine starts, turn the choke lever to the 'RIGHT' position.
2. Seleziona ugello: Choose the appropriate quick-connect nozzle tip for your cleaning task. The 0° (red) nozzle provides a concentrated stream for tough stains, while the 40° (white) nozzle offers a wider spray for general cleaning. The black nozzle is for soap application.
3. Applicare il detersivo (facoltativo): If using detergent, fill the 0.88-gallon onboard soap tank with pressure washer-safe detergent. Attach the black soap nozzle. The pressure washer will automatically mix the detergent with water at low pressure.
4. Inizia la pulizia: Hold the spray gun firmly with both hands and maintain a safe distance from the surface being cleaned. Start spraying from a distance and move closer as needed, ensuring not to damage the surface.
5. Stop the Engine: To stop the engine, turn the engine switch to the 'OFF' position. Turn off the water supply and squeeze the spray gun trigger to release any remaining pressure.

Figure 4: 0° Nozzle for concentrated cleaning

Figure 5: 15° Nozzle for heavy moss removal

Figure 6: 25° Nozzle for blasting stains

Figure 7: 40° Nozzle for car washing

Figure 8: Soap Nozzle for detergent application

Video 2: TOOLCY 3400 PSI Gas Power Washer in Action. This video demonstrates the pressure washer's performance on various surfaces, including its swivel gun and 35ft hose.

7. Manutenzione

Una manutenzione regolare garantisce la longevità e le prestazioni ottimali della tua idropulitrice.

7.1 Manutenzione del motore

• Controllare il livello dell'olio: Check the engine oil level before each use. The built-in Smart Oil Sensor protects the engine from low oil levels.
• Cambio olio: Change the engine oil after the first 5 hours of use, then every 50 hours or annually.
• Filtro dell'aria: Pulire o sostituire regolarmente il filtro dell'aria, soprattutto in ambienti polverosi.
• Candela: Ispezionare e pulire la candela una volta all'anno. Sostituirla se necessario.

7.2 Manutenzione della pompa

• The reinforced axial-cam pump is designed to be maintenance-free.
• winterization: In freezing temperatures, use a pump protector or antifreeze to prevent damage to the pump.

7.3 Manutenzione generale

• Ugelli puliti: Rimuovere eventuali ostruzioni dalle punte degli ugelli utilizzando l'apposito strumento di pulizia in dotazione.
• Ispezionare i tubi flessibili: Regularly check the high-pressure hose and garden hose for kinks, cuts, or leaks. Replace damaged hoses immediately.
• Magazzinaggio: Store the pressure washer in a clean, dry area, protected from extreme temperatures.

8. Risoluzione Dei Problemi

9. Specifiche

10. Garanzia e supporto

TOOLCY is committed to delivering superior quality products. For warranty information, technical support, or to purchase replacement parts, please visit the official TOOLCY Store or contact customer service.

Negozio online: TOOLCY Store on Amazon

For additional assistance, refer to the FAQs section on the TOOLCY brand story page.
