Manuale utente del telecomando Full Touch RGB+CCT FUT088

1. Introduzione

The MiBOXER FUT088 RGB+CCT Full Touch Remote is an advanced wireless controller designed for seamless management of RGB+CCT (Color Changing + Tunable White) lighting systems. This remote provides intuitive control and customization of your lighting environment, allowing for dynamic and personalized ambiance.

It features a sleek, ergonomic design with a responsive full-touch interface, utilizing 2.4GHz RF technology for reliable wireless connectivity up to 30 meters. The FUT088 is compatible with MiBoxer/Mi-Light 2.4G series products, offering control over 16 million colors, brightness, color temperature, and saturation.

2. Prodotto finitoview

2.1 Caratteristiche principali

• 2.4G RF Wireless Transmission: Ensures strong anti-interference and a control distance of up to 30 meters.
• RGB+CCT Control: Full control over 16 million colors, brightness, color temperature (2700K-6500K), and saturation.
• Full-Touch Interface: Responsive touch-sensitive controls for intuitive operation.
• Compatibilità multizona: Can be paired with multiple lights or zones for synchronized or independent control (requires compatible MiBoxer/Mi-Light 2.4G series products).
• Modalità di illuminazione dinamica: Includes pre-set lighting effects.
• Supporto oscuramento: Flicker-free, stepless dimming for precise light adjustment.
• Funzione di spegnimento ritardato: Convenient 60-second or 10-minute delay off options.

2.2 Disposizione del telecomando

The FUT088 remote features a clear and intuitive layout. Refer to the diagram below for an understanding of each control element.

Figure 1: FUT088 Remote Control Function Diagram. This diagram illustrates the various touch and button controls on the remote, including the Color Ring, Saturation/CCT Control, Dimming Slider, and individual function buttons.

• Anello colorato: Touch to select any of 16 million colors.
• Spia luminosa: Illuminates to confirm button presses or touch input.
• Controllo saturazione/CCT: Slide to adjust color saturation or color temperature (Cool White to Warm White).
• Cursore di oscuramento: Slide to adjust brightness from 1% to 100%.
• ON / Link (Unlink): Press to turn lights ON. For linking/unlinking, see Section 3.2.
• W (White): Press to switch to pure white light mode.
• OFF: Press to turn lights OFF.
• R (rosso): Press for static red light.
• SOL (verde): Press for static green light.
• B (Blu): Press for static blue light.
• S- / 60s Delay OFF: In dynamic mode, press to decrease speed. Long press for 60-second delay off.
• M (Modalità): Press to cycle through various dynamic lighting modes.
• S+ / 10min Delay OFF: In dynamic mode, press to increase speed. Long press for 10-minute delay off.

3. Impostazione

3.1 Installazione della batteria

The FUT088 remote requires 2x AAA batteries (not included). Follow these steps to install them:

1. Individuare il coperchio del vano batterie sul retro del telecomando.
2. Per aprire il vano, far scorrere il coperchio verso il basso.
3. Inserire 2 batterie AAA, assicurandosi che la polarità sia corretta (+ e -) come indicato all'interno del vano.
4. Far scorrere il coperchio della batteria in posizione finché non scatta in modo sicuro.

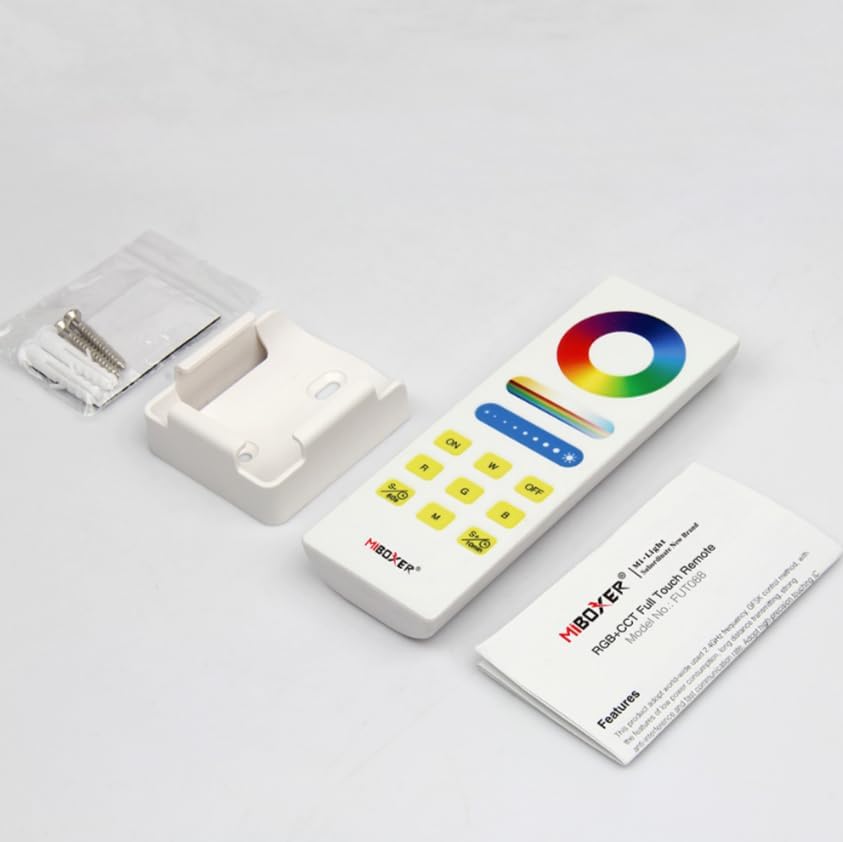

Figure 2: FUT088 Remote with included accessories, including the wall mount.

3.2 Linking (Pairing) the Remote with Lights

To control your MiBoxer/Mi-Light 2.4G series products, the remote must be linked to them. This process typically involves the following steps:

1. Ensure the light fixture you wish to control is powered off.
2. Turn the light fixture ON.
3. Within 3 seconds of turning the light ON, press the "ON" button on the FUT088 remote tre volte.
4. The light should flash slowly three times, indicating successful linking.

If the light does not flash, repeat the linking process. Ensure the remote is within range of the light fixture.

3.3 Unlinking (Unpairing) the Remote from Lights

To unlink the remote from a light fixture, follow these steps:

1. Ensure the light fixture you wish to unlink is powered off.
2. Turn the light fixture ON.
3. Within 3 seconds of turning the light ON, press the "ON" button on the FUT088 remote cinque volte.
4. The light should flash quickly ten times, indicating successful unlinking.

4. Istruzioni per l'uso

Once linked, the FUT088 remote provides comprehensive control over your lighting. Refer to the "Remote Control Layout" in Section 2.2 for button locations.

4.1 Controllo di base

• Accensione/spegnimento: Premere il tasto ON button to turn lights on, and the SPENTO button to turn lights off.
• Regolazione della luminosità: Fai scorrere il dito lungo il Cursore di oscuramento to increase or decrease the brightness level.
• Selezione del colore: Tocca il Anello di colore to select any desired color from the 16 million available options.
• Modalità luce bianca: Premere il tasto W button to switch to pure white light.
• Regolazione della temperatura del colore: Fai scorrere il dito lungo il Saturazione / Controllo CCT to adjust the color temperature from warm white (2700K) to cool white (6500K) when in white light mode.
• Regolazione della saturazione: Fai scorrere il dito lungo il Saturazione / Controllo CCT to adjust the saturation of the selected color.
• Colori statici: Premere R for Red, G for Green, and B for Blue.

4.2 Modalità dinamiche e controllo della velocità

• Selezione della modalità: Premere il tasto M button to cycle through various pre-programmed dynamic lighting modes (e.g., color fades, jumps, flashes).
• Regolazione della velocità: While in a dynamic mode, press S+ to increase the speed of the effect, and S- per diminuire la velocità.

4.3 Funzione di spegnimento ritardato

The remote includes a convenient delay off feature:

• Ritardo di spegnimento di 60 secondi: Premere a lungo il tasto S- / 60s button. The lights will automatically turn off after 60 seconds.
• 10-Minute Delay Off: Premere a lungo il tasto S+ / 10min button. The lights will automatically turn off after 10 minutes.

Figure 3: Delay Off Light Function. This image highlights the buttons used for setting a 60-second or 10-minute delay before the lights turn off.

5. Specifiche

6. Risoluzione Dei Problemi

• Le luci non rispondono al telecomando:
  • Assicurarsi che le batterie siano installate correttamente e non siano scariche. Sostituirle se necessario.
  • Verify the remote is properly linked to the light fixture (refer to Section 3.2).
  • Check if the light fixture is powered on and functioning correctly.
  • Ensure the remote is within the 30-meter control range and there are no significant obstructions.
• La spia luminosa del telecomando non si illumina:
  • Controllare l'installazione delle batterie e sostituirle.
• Inconsistent control or flickering lights:
  • Interference from other 2.4GHz devices might be present. Try moving the remote or light fixture.
  • Ensure the light fixture is compatible with the FUT088 remote.

7. Manutenzione

• Pulizia: Pulisci il telecomando con un panno morbido e asciutto. Non utilizzare detergenti abrasivi o solventi.
• Magazzinaggio: Conservare il telecomando in un luogo fresco e asciutto, lontano dalla luce solare diretta e da temperature estreme.
• Cura della batteria: Rimuovere le batterie se il telecomando non viene utilizzato per un periodo prolungato per evitare perdite.

8. Garanzia e supporto

Per informazioni sulla garanzia e supporto tecnico, fare riferimento al sito ufficiale MiBOXER websito o contattare il rivenditore. Conservare la ricevuta d'acquisto come prova d'acquisto per eventuali reclami in garanzia.

Per ulteriore assistenza, puoi visitare il Negozio MiBOXER su Amazon.
