1. Introduzione
This manual provides detailed instructions for the assembly, operation, and maintenance of your DEWINNER Bed with Base 160 x 200 cm. This modern bed frame features a unique floating design with hidden legs and integrated smart LED lighting, enhancing both aesthetics and functionality. Please read this manual thoroughly before assembly and use to ensure safe and proper operation.
Image 1.1: The DEWINNER Bed with Base, showcasing its floating design and integrated LED lighting.
Image 1.2: Visual comparison illustrating the hidden support legs of the floating bed design versus exposed legs of a regular bed, highlighting the design's benefit in avoiding accidental bumps.
2. Informazioni sulla sicurezza
Per evitare lesioni o danni al prodotto, osservare le seguenti precauzioni di sicurezza:
- Capacità di carico: Do not exceed the maximum load capacity of 400 kg (approximately 880 lbs). Overloading can lead to structural failure and injury.
- Bordi taglienti: Exercise caution during assembly and handling, as some components may have sharp edges.
- Montaggio: Assemble the bed frame carefully and precisely according to the instructions. Improper assembly can result in instability or collapse.
- Bambini e animali domestici: Tenere i bambini piccoli e gli animali domestici lontani dall'area di montaggio per evitare incidenti con piccoli pezzi o utensili.
- Utensili: Use only the provided tools or appropriate household tools for assembly.
3. Contenuto della confezione
Before beginning assembly, verify that all parts and tools listed below are present. If any items are missing or damaged, please contact customer support.
- Bed Frame Components (various metal parts)
- Metal Rib Bars / Slats
- Striscia luminosa a LED e controller
- Ferramenta di montaggio (viti, bulloni, dadi, rondelle)
- Strumenti di montaggio (ad esempio, chiave a brugola, chiave inglese)
- Manuale di istruzioni (questo documento)
4. Installazione e assemblaggio
The DEWINNER bed frame is designed for straightforward assembly, typically completed within an hour. Follow these steps carefully:
- Preparazione: Predisporre uno spazio adeguato per il montaggio. Disporre tutti i componenti su una superficie morbida e pulita per evitare graffi.
- Assemblaggio del telaio: Begin by connecting the main frame sections using the provided hardware. Ensure all connections are secure but do not fully tighten bolts until the frame is fully assembled.
- Gambe di supporto: Attach the hidden support legs to the designated points on the frame. Ensure protective pads are in place to prevent floor scratches.
- Installazione delle doghe: Insert the metal rib bars (slats) into their respective slots or attach them to the frame. Ensure the crossbars with rubber tips are correctly positioned for silent movement.
- Attacco per striscia LED: Carefully attach the LED light strip to the designated area under the bed frame, typically along the inner perimeter. Ensure the strip is securely adhered and the wiring is neatly routed.
- Serraggio finale: Once the entire frame is assembled and stable, go back and fully tighten all bolts and screws.
- Posizionamento: Spostare con cautela la struttura del letto assemblata nella posizione desiderata.

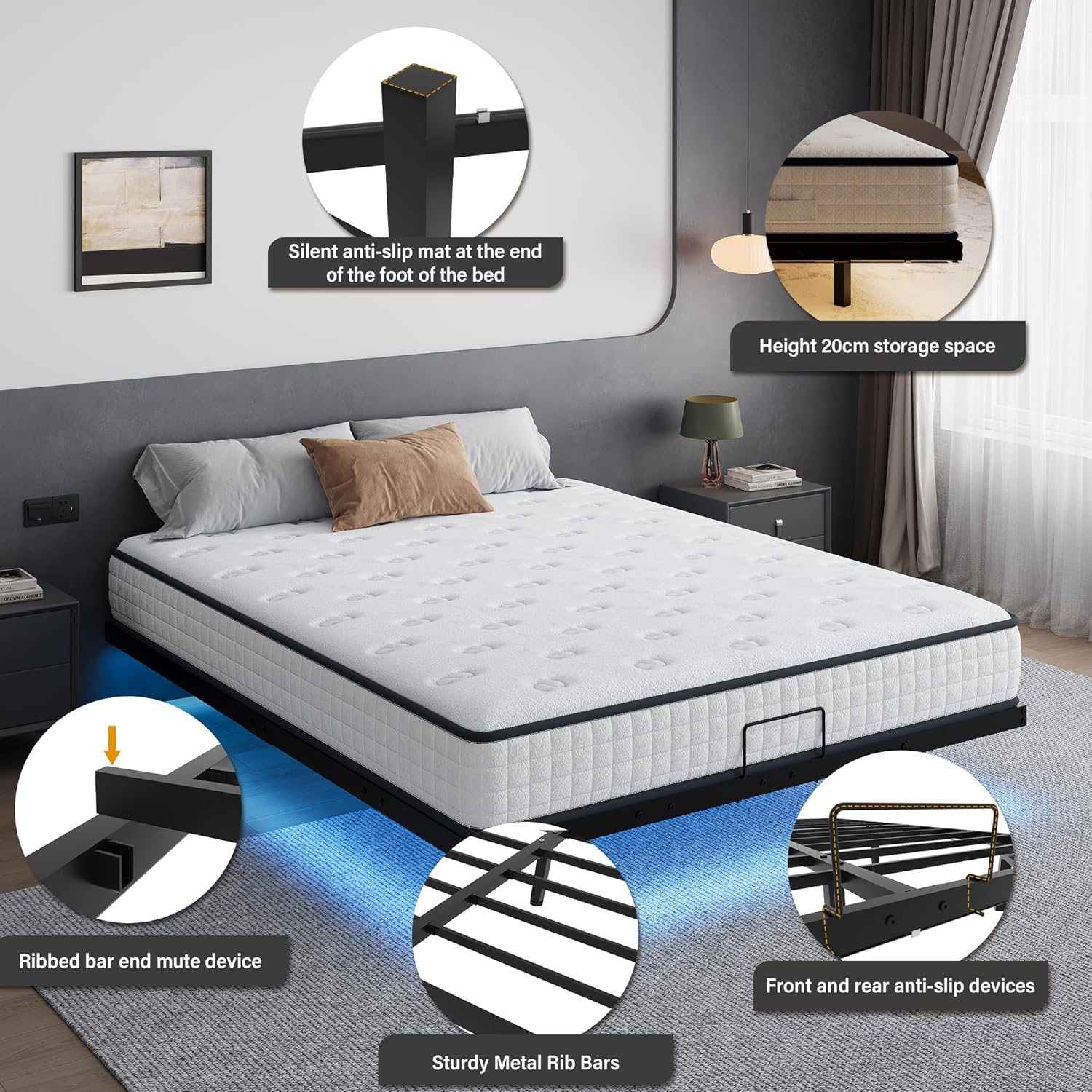

Immagine 4.1: Primo piano view of key structural features including silent anti-slip mats, ribbed bar end mute devices, sturdy metal rib bars, and front/rear anti-slip devices, all contributing to the bed's stability and quiet operation.
5. Operating the LED Lighting
Your DEWINNER bed frame is equipped with advanced LED lighting offering extensive customization options.
5.1. Metodi di controllo
- Telecomando: Use the included remote control to power on/off, change colors (60,000 options), adjust brightness, and select various lighting modes.
- Applicazione mobile: Download the dedicated mobile app (refer to the QR code or app store link provided in the LED kit packaging) to access advanced features. The app allows for precise color selection, brightness adjustment, music synchronization, microphone mode, and timing functions.
5.2. Caratteristiche di illuminazione
- 60,000 Colori: Choose from a vast spectrum of colors to match your mood or room decor.
- Regolazione della luminosità: Abbassa o aumenta l'intensità delle luci a tuo piacimento.
- Modalità di sincronizzazione della musica: The lights can pulsate and change color in rhythm with music played through your device or detected by the microphone.
- Modalità microfono: The lights react to ambient sounds detected by your phone's microphone (when using the app).
- Modalità di cronometraggio: Imposta orari per l'accensione e lo spegnimento automatico delle luci.
Image 5.1: Illustration of the LED lighting system, showing control via remote and mobile app, along with icons representing features like APP Control, Over 60000 Colors, Mic Mode, Music Sync, Timing Mode, and Bright Adjustment.
6. Manutenzione
Una corretta manutenzione prolungherà la durata e l'aspetto della struttura del letto.
- Pulizia: Pulisci la struttura metallica con un panno morbido eamp panno. Evitare detergenti abrasivi o prodotti chimici aggressivi che potrebbero danneggiare la finitura verniciata.
- Elementi di fissaggio: Controllare periodicamente tutti i bulloni e le viti per assicurarsi che siano ben serrati. Serrarli nuovamente se necessario per mantenere la stabilità.
- Striscia LED: Keep the LED strip free from dust. Do not attempt to remove or replace the LED strip unless instructed by customer support.
- Protezione del pavimento: Ensure the protective pads under the support legs are intact to prevent floor scratches. Replace if worn.
7. Risoluzione Dei Problemi
If you encounter issues with your DEWINNER bed frame, refer to the following common problems and solutions:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| La struttura del letto è traballante o instabile. | Bulloni allentati o montaggio non corretto. | Assicurarsi che tutti i bulloni siano completamente serrati.view assembly instructions to confirm correct part placement. |
| Scricchiolii provenienti dal letto. | Loose connections; missing or displaced rubber tips on crossbars. | Tighten all connections. Verify that rubber tips on crossbars are properly seated. |
| Le luci LED non si accendono. | Power connection issue; remote control battery dead; LED strip not properly connected. | Check power adapter connection. Replace remote control battery. Ensure LED strip is securely plugged into the controller. |
| Remote control or app not working. | Battery issue (remote); app not paired; interference. | Replace remote battery. Re-pair the app with the LED controller. Ensure no strong interference sources are nearby. |
8. Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Numero di modello | XFC-N |
| Marca | DEWINNER |
| Misurare | Dimensioni: 160 x 200 cm |
| Dimensioni del prodotto (L x P x A) | 78.74" x 62.99" x 7.87" (200 cm x 160 cm x 20 cm) |
| Colore | Nero |
| Tipo di finitura | Dipinto |
| Fattore di forma | Galleggiante |
| Caratteristica speciale | Illuminazione LED integrata |
| Capacità di carico massima | 400 kg (circa 880 libbre) |
| Assemblaggio richiesto | SÌ |
| Peso dell'articolo | 46.2 libbre |
Image 8.1: Diagram illustrating the dimensions of the bed frame (160cm x 200cm) and the 20cm height of the bed frame, indicating the applicable mattress size.
9. Garanzia e supporto
DEWINNER products are manufactured to high-quality standards. For specific warranty information, please refer to the warranty card included with your product or visit the official DEWINNER website. If you require assistance with assembly, have questions about operation, or need to report missing/damaged parts, please contact DEWINNER customer support through the contact information provided on the product packaging or the brand's official channels.
