1. Introduzione
This manual provides essential information for the assembly, operation, and maintenance of your Bush Business Furniture Move 60 Series L-Shaped Standing Desk. This electric sit-stand desk is designed to offer a versatile and ergonomic workspace, allowing for seamless transitions between sitting and standing positions. Please read these instructions thoroughly before use to ensure safe and optimal performance.

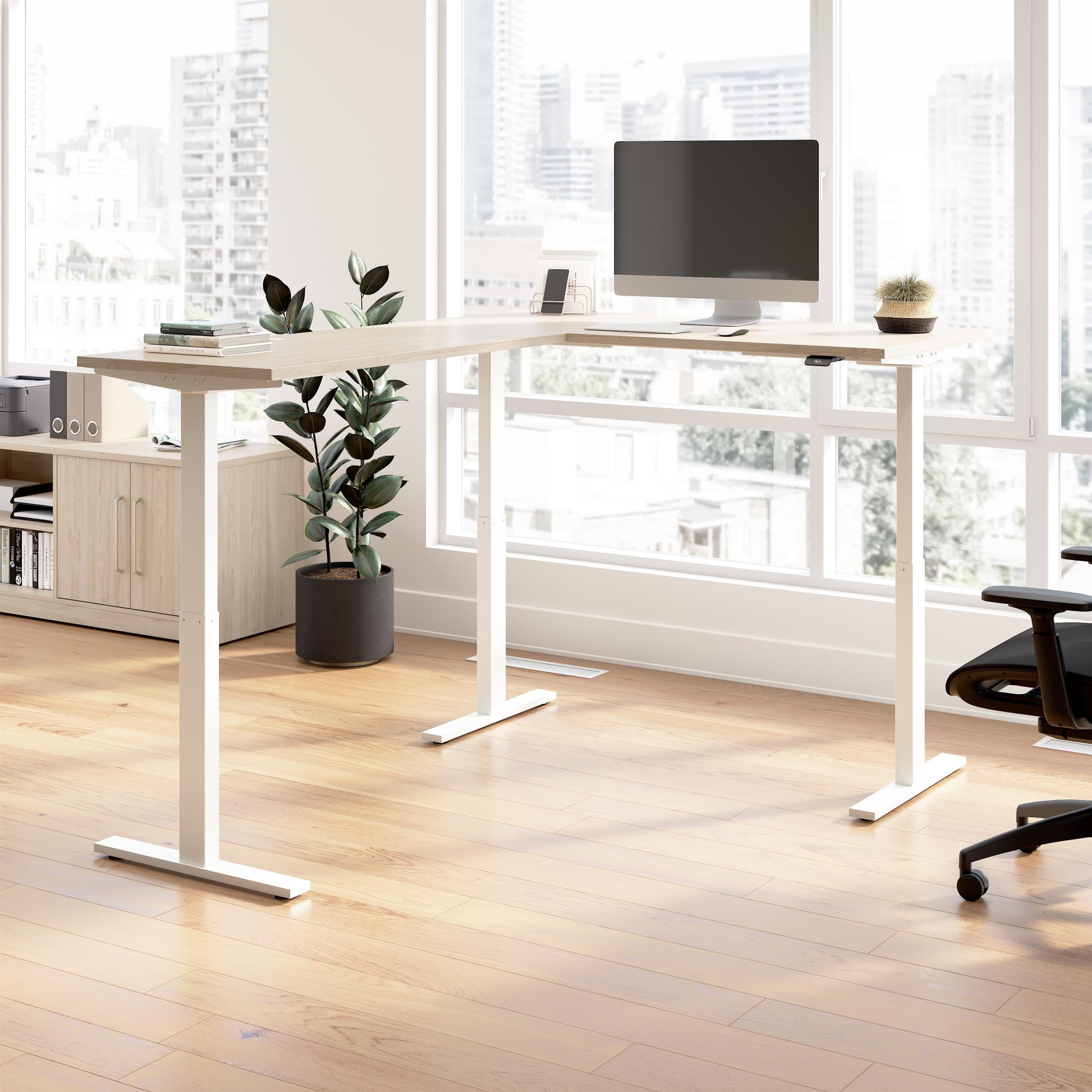

Image 1.1: The Bush Business Furniture Move 60 Series L-Shaped Standing Desk, Natural Elm with White Base.
2. Informazioni sulla sicurezza
- Capacità di peso: Do not exceed the maximum weight capacity of 200 pounds (90.7 kg) on the desk surface. Overloading can cause damage or injury.
- Punti critici: Keep hands, feet, and other objects clear of moving parts during height adjustments to prevent pinching or crushing.
- Collegamento elettrico: Ensure the desk is plugged into a standard, grounded electrical outlet. Do not use damaged power cords or adapters.
- Ostruzioni: Before adjusting the desk height, verify there are no obstructions above or below the desk that could impede movement. The desk features an anti-collision sensor to help prevent damage, but user vigilance is still required.
- Bambini e animali domestici: Tenere bambini e animali domestici lontani dalla scrivania durante il funzionamento.
- Montaggio: Assembly requires two people. Follow all assembly instructions carefully.
3. Contenuto della confezione
Please verify that all components are present before beginning assembly. Refer to the detailed parts list included in your product packaging for specific item counts and identifiers.
- L-Shaped Desk Surface (Natural Elm)
- Electric Height-Adjustable Legs (White Base)
- Pannello di controllo con display digitale
- Cavo di alimentazione
- Pacchetto hardware (viti, bulloni, utensili)
- Passacavi per la gestione dei cavi
4. Istruzioni di montaggio
Assembly of the Move 60 Series L-Shaped Standing Desk requires two individuals. Detailed, step-by-step instructions with diagrams are provided in the separate assembly guide included with your product. Please follow these instructions precisely to ensure proper construction and functionality.
Punti chiave di assemblaggio:
- Prima di iniziare, disporre tutti i componenti e l'hardware.
- Assicurarsi che tutti i collegamenti siano sicuri e adeguatamente serrati.
- Attach the control unit and cable management components as directed.
Immagine 4.1: Dimensionale sopraview of the L-shaped standing desk.
Image 4.2: Cable management grommet for organized wiring.
5. Istruzioni per l'uso
The Move 60 Series desk features an electric lift system for easy height adjustment and programmable memory settings.
5.1. Regolazione dell'altezza
To adjust the desk height, use the control panel located on the front edge of the desk. Press and hold the UP or GIÙ arrow buttons until the desired height is reached. The digital display will show the current height in inches.
5.2. Preimpostazioni di memoria
The desk allows you to save two preferred height settings (seated and standing) for quick recall.
- Regolare la scrivania all'altezza desiderata utilizzando i pulsanti SU/GIÙ.
- Premere il tasto M button, then immediately press either the 1 or 2 button to save the current height to that preset.
- To recall a saved height, press and Presa il corrispondente 1 or 2 button until the desk reaches the saved position.
5.3. Custom Alert
Set a custom alert to remind you to change positions. Refer to your detailed assembly guide for specific instructions on programming this feature.
5.4. Anti-Collision Sensor
The desk is equipped with an anti-collision sensor that automatically stops movement if an obstruction is detected during height adjustment. If the desk stops unexpectedly, remove any obstructions and resume adjustment.
Image 5.1: Digital control panel for height adjustment and presets.
Image 5.2: Key features of the Move 60 Series L-Shaped Standing Desk.
Video 5.3: Official product video demonstrating the Bush Business Furniture Move 60 Collection, including height adjustment functionality.
6. Manutenzione
Per mantenere l'aspetto e la funzionalità della tua scrivania:
- Pulizia: Wipe the desk surface and base with a damp panno. Evitare prodotti chimici aggressivi o detergenti abrasivi che potrebbero danneggiare la finitura.
- Ispezioni: Controllare periodicamente tutte le viti e i collegamenti per assicurarsi che siano sempre ben serrati.
- Gestione dei cavi: Ensure cables are properly routed through the grommets and are not tangled or pinched, especially during height adjustments.
7. Risoluzione Dei Problemi
Se riscontri problemi con la tua scrivania, fai riferimento alle seguenti soluzioni comuni:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| La scrivania non si muove. | Nessuna alimentazione, collegamento allentato, errore del motore. | Check power cord connection to outlet and desk. Ensure all cables are securely connected to the control unit. Unplug and replug the desk after 30 seconds. |
| La scrivania si muove in modo irregolare o produce rumori insoliti. | Obstruction, uneven load, loose components. | Remove any obstructions. Redistribute weight evenly on the desk. Check and tighten all assembly screws. |
| Il display digitale mostra un codice di errore. | Malfunzionamento del sistema. | Refer to the detailed troubleshooting section in your assembly guide or contact customer support. |
| Electronic devices on desk experience interference during movement. | Electromagnetic interference from control unit. | If possible, reposition sensitive electronics away from the central control unit. Applying aluminum foil as a shield between the control unit and the device may reduce interference. |
8. Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Nome del modello | Move 60 Series |
| Numero di modello | M6SL6078NEWK |
| Tipo di scrivania | Scrivania in piedi elettrica a forma di L |
| Dimensioni (P x L x A) | 76.97" x 59.45" x 27.44" (altezza minima) |
| Intervallo di altezza | Da 27 pollici a 46.7 pollici |
| Capacità di peso | 200 libbre (90.7 kg) |
| Materiale superiore | Thermally Fused Laminate Engineered Wood |
| Materiale di base | Welded 16-gauge Steel |
| Colore | Natural Elm (top) with White Base |
| Assemblaggio richiesto | Sì (si consigliano 2 persone) |
| Certificazioni | ANSI/BIFMA quality standards, UL Listed |
9. Garanzia e supporto
This Bush Business Furniture Move 60 Series L-Shaped Standing Desk is backed by a Garanzia del produttore di 5 anniLa presente garanzia copre i difetti di materiali e di fabbricazione in normali condizioni di utilizzo.
For warranty claims, technical support, or replacement parts, please contact Bush Business Furniture customer service. Refer to your product packaging or the Bush Furniture official websito per le informazioni di contatto più aggiornate.
Conservare la prova d'acquisto per la convalida della garanzia.
