Jura S8 Chrome Automatic Coffee Machine Instruction Manual

1. Introduzione

The Jura S8 Chrome automatic coffee machine offers a premium coffee experience with its sleek design, intuitive controls, and advanced technology. This compact machine is capable of preparing 27 different coffee specialties, ranging from espresso to flat white, with exceptional precision. Navigation and customization are made easy through its 4.3-inch high-resolution touchscreen, which provides a smartphone-like interface. Additionally, the J.O.E.® app allows for remote control, access to instructional videos, and various recipes.

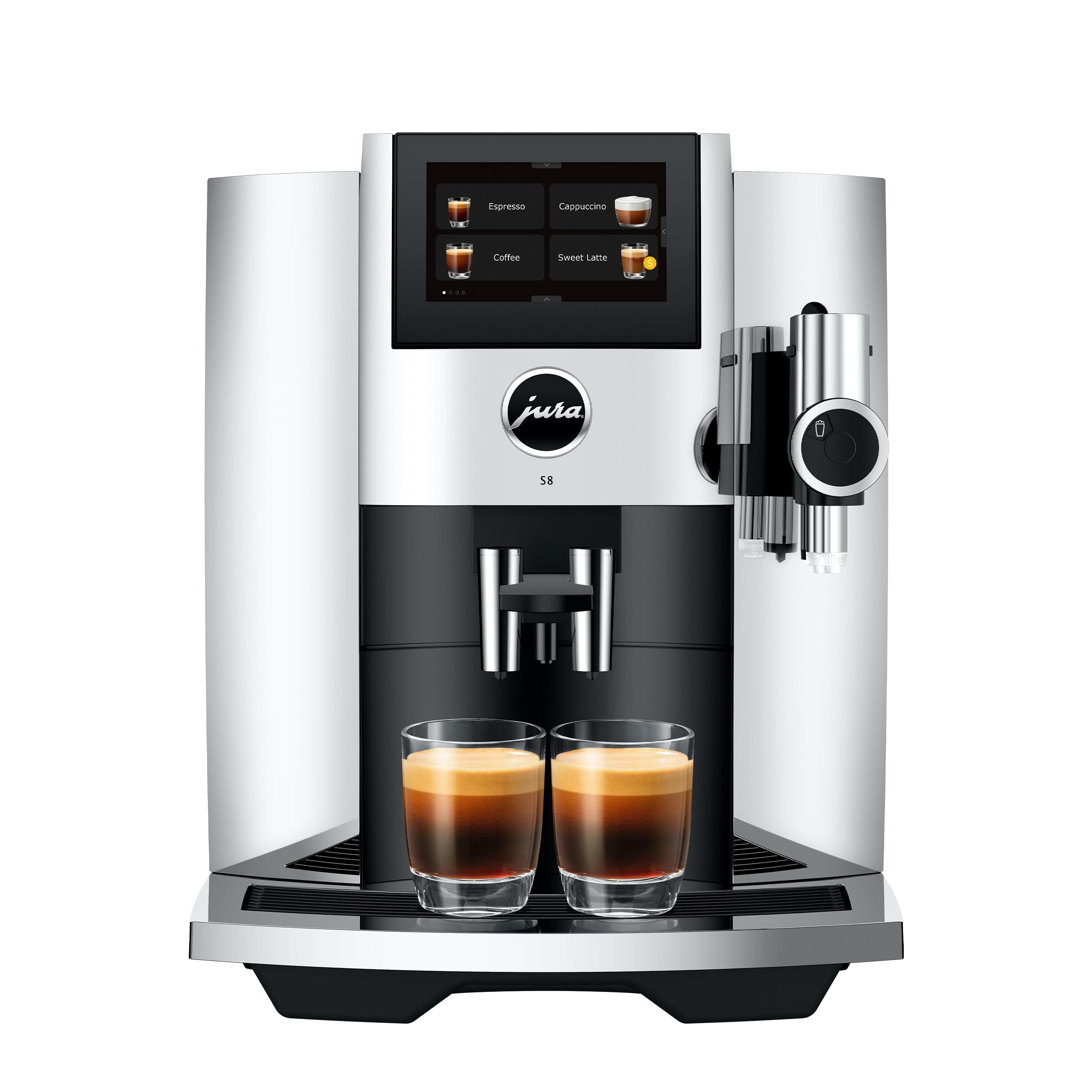

Figure 1: Jura S8 Chrome Automatic Coffee Machine, front view.

2. Configurazione iniziale

Before first use, ensure the machine is placed on a stable, level surface and connected to a power source. Follow these steps for initial preparation:

1. Riempimento del serbatoio dell'acqua: The water reservoir is located on the side of the machine. Remove the tank, fill it with fresh, cold water, and reinsert it securely. The machine includes a filter for water purification.


Figura 2: lato view che mostra il serbatoio dell'acqua rimovibile.

2. Riempimento della tramoggia di fagioli: Open the lid on top of the machine to access the bean hopper. Fill it with your preferred whole coffee beans. The integrated P.A.G.2 grinder ensures fresh grinding for each beverage.

Figura 3: in alto view of the machine, showing the bean hopper.
3. Risciacquo iniziale: Upon powering on, the machine will guide you through an initial rinsing process to prepare the system for use.

3. Istruzioni per l'uso

The Jura S8 offers a wide range of coffee specialties and customization options:

• Selezione di bevande: Use the 4.3-inch touchscreen display to select from 27 different coffee specialties, including Espresso, Coffee, Cappuccino, Flat White, Latte Macchiato, Americano, Lungo, and Sweet Latte.

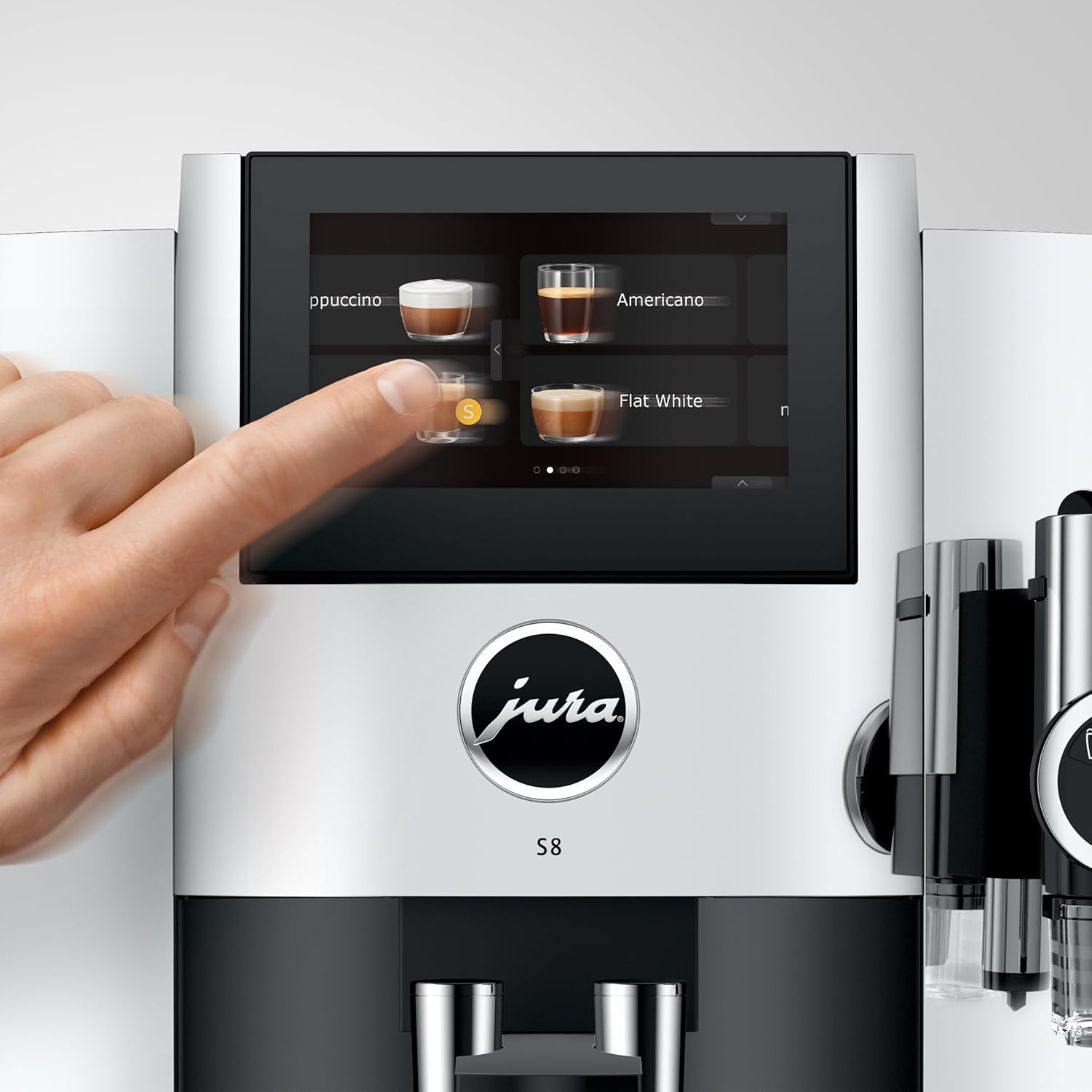

Figure 4: Touchscreen display for beverage selection.

• Personalizzazione: For each specialty, you can easily program various options such as coffee strength, volume, and the amount of milk or milk foam. The P.A.G.2 grinder and 3D brewing technology ensure optimal flavor extraction.


Figure 5: Adjusting the grinder settings for desired coffee intensity.

• Sweet Foam Function: The exclusive Sweet Foam function allows for the creation of milk foam with added syrup. Connect the syrup attachment, fill it with your desired syrup, and select a Sweet Latte specialty.

Figure 6: Sweet Foam being dispensed for a specialty drink.
• J.O.E.® App: Control your coffee machine remotely, access recipes, and view instructional videos through the J.O.E.® app on your smartphone.

4. Manutenzione

Regular maintenance ensures the longevity and optimal performance of your Jura S8 Chrome machine. The machine's display will prompt you for necessary cleaning and maintenance tasks.

• Vassoio raccogligocce e contenitore per fondi di caffè: The machine will indicate when the drip tray and coffee grounds container need to be emptied. These components are easily removable for cleaning. Wash them with warm, soapy water and allow them to air dry completely before reinserting.


Figure 7: Sweet Foam attachment being cleaned, similar to other removable parts.

• Cleaning the Coffee System: The machine will prompt you to perform a cleaning cycle using Jura cleaning tablets. Follow the on-screen instructions for this process, which typically takes about 20 minutes.
• Pulizia del sistema del latte: For milk-based specialties, regular cleaning of the milk system is crucial. The machine will guide you through this process, which involves using Jura milk system cleaning products and fresh water. This helps prevent residue buildup and maintains hygiene.
• Sostituzione del filtro: The water tank contains a filter that needs periodic replacement. The machine's display will notify you when a filter change is due.

5. Risoluzione Dei Problemi

The Jura S8 Chrome is designed with intelligent diagnostics. If an issue arises, the display will show a message indicating the problem and often suggest a solution. Common messages include:

• "Empty Drip Tray": Remove, empty, clean, and reinsert the drip tray and coffee grounds container.
• "Fill Water Tank": Remove, fill with fresh water, and reinsert the water tank.
• "Add Beans": Refill the coffee bean hopper.
• "Clean Machine" / "Clean Milk System": Follow the on-screen prompts to initiate the respective cleaning programs using Jura maintenance products.

For any persistent issues not resolved by on-screen guidance, please refer to the comprehensive manual provided with your machine or contact Jura customer support.

6. Specifiche

7. Garanzia e supporto

For detailed warranty information, product registration, and customer support, please visit the official Jura website or contact their customer service department. Keep your purchase receipt and product model number (S8, 15653) handy for any inquiries.
