1. Introduzione
Thank you for choosing the Pipishell O-Shaped Soft-Close Toilet Lid. This manual provides essential information for the safe and correct installation, operation, and maintenance of your new toilet lid. Please read these instructions thoroughly before installation and retain them for future reference.
This toilet lid is designed for comfort and durability, featuring a slow-close mechanism to prevent slamming and reduce noise. Constructed from high-quality MDF, it offers a stable and long-lasting solution for your bathroom.
2. Informazioni sulla sicurezza
- Prima dell'installazione, assicurarsi che tutti i componenti siano presenti e integri.
- Do not overtighten screws during installation, as this may damage the product.
- Tenere le parti piccole lontano dalla portata dei bambini per evitare rischi di soffocamento.
- Do not stand on the toilet lid or seat. It is designed for sitting only.
- Use only mild cleaning agents as specified in the maintenance section. Harsh chemicals can damage the finish.
3. Contenuto della confezione
Si prega di verificare che tutti i seguenti articoli siano inclusi nel pacchetto:
- Pipishell O-Shaped Toilet Lid and Seat Assembly
- Metal Hinges (pre-attached or separate)
- Rubber Buffers (pre-attached or separate)
- Mounting Hardware (screws, washers, nuts, fixing plates)
- Istruzioni per l'installazione (questo manuale)
4. Specifiche
| Caratteristica | Dettaglio |
|---|---|
| Numero di modello | PIBTC06 |
| Dimensioni esterne (L x P) | 43.5 cm x 37.5 cm (17.1 pollici x 14.8 pollici) |
| Dimensioni interne (L x P) | 27 cm x 23 cm (10.6 pollici x 9.1 pollici) |
| Materiale | Legno ingegnerizzato (MDF) |
| Spessore | 50 mm (2 pollici) (Note: Product description states 15mm, feature bullets state 50mm. Using 50mm as per feature bullets for robust quality.) |
| Forma | O-shaped / Oval |
| Capacità di peso | Fino a 150 kg (330 libbre) |
| Materiale della cerniera | Metallo |

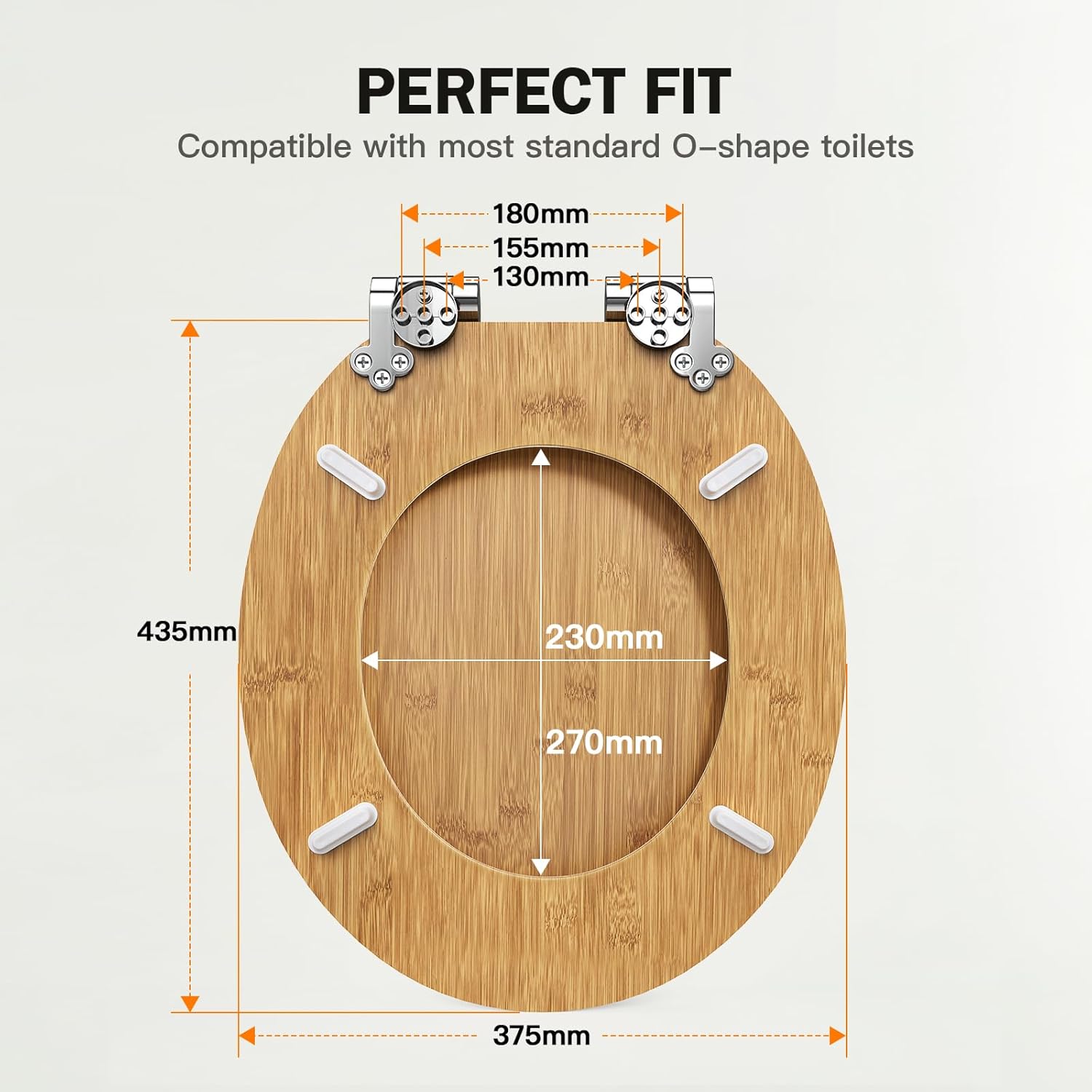

Image: Detailed dimensions of the Pipishell O-shaped toilet lid for compatibility check.

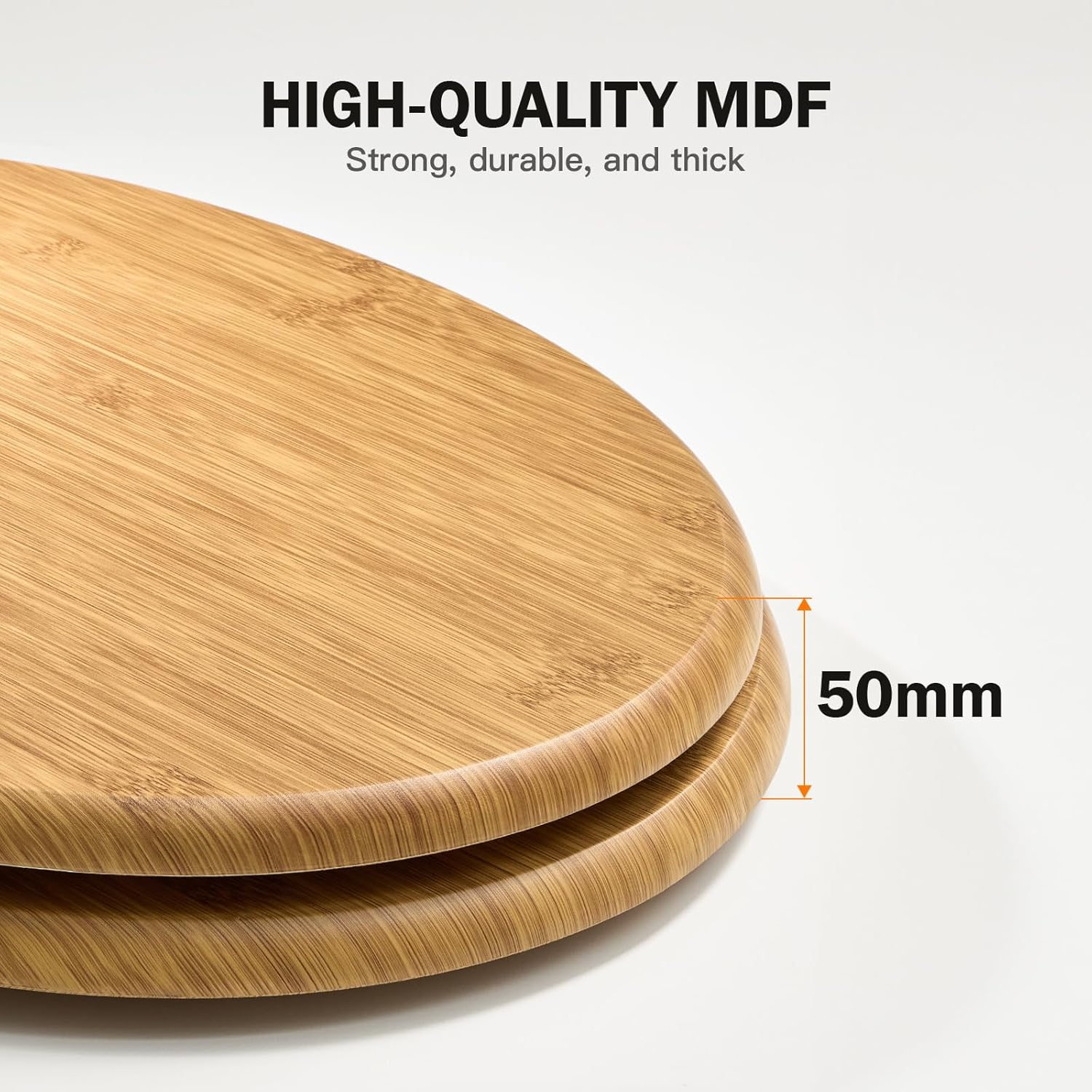

Image: Close-up of the toilet lid's thickness, indicating robust MDF construction.
5. Guida all'installazione
Follow these steps for a quick and easy installation of your new toilet lid.
- Preparare il bagno: Assicurarsi che il water sia pulito e asciutto. Se si sostituisce un vecchio sedile, rimuoverlo completamente e pulire la zona di montaggio.
- Posizionare le cerniere: Place the metal hinges into the mounting holes on the toilet bowl. Ensure the hinges are aligned correctly with the toilet seat.
- Fissare l'hardware di montaggio: Insert the screws through the hinges and the toilet bowl holes. From underneath the toilet, attach the washers and nuts to the screws.
- Fissare il posto: Place the toilet lid and seat assembly onto the hinges. Adjust the position of the seat to ensure it is centered and aligned with the bowl.
- Stringere le viti: Once aligned, carefully tighten the nuts from underneath the toilet. Do not overtighten; ensure the seat is secure but not stressed.
- Controllare la stabilità: Verificare delicatamente la stabilità del sedile. Non deve oscillare o spostarsi.
Image: Visual guide for the effortless setup of the toilet lid.
6. Istruzioni per l'uso
The Pipishell toilet lid features a soft-close mechanism for quiet and gentle operation.
6.1 Funzione Soft-Close
To engage the soft-close function, simply push the lid or seat downwards gently. The integrated mechanism will slowly and quietly lower the lid and seat to the closed position without slamming. Avoid forcing the lid or seat down, as this can damage the soft-close mechanism over time.

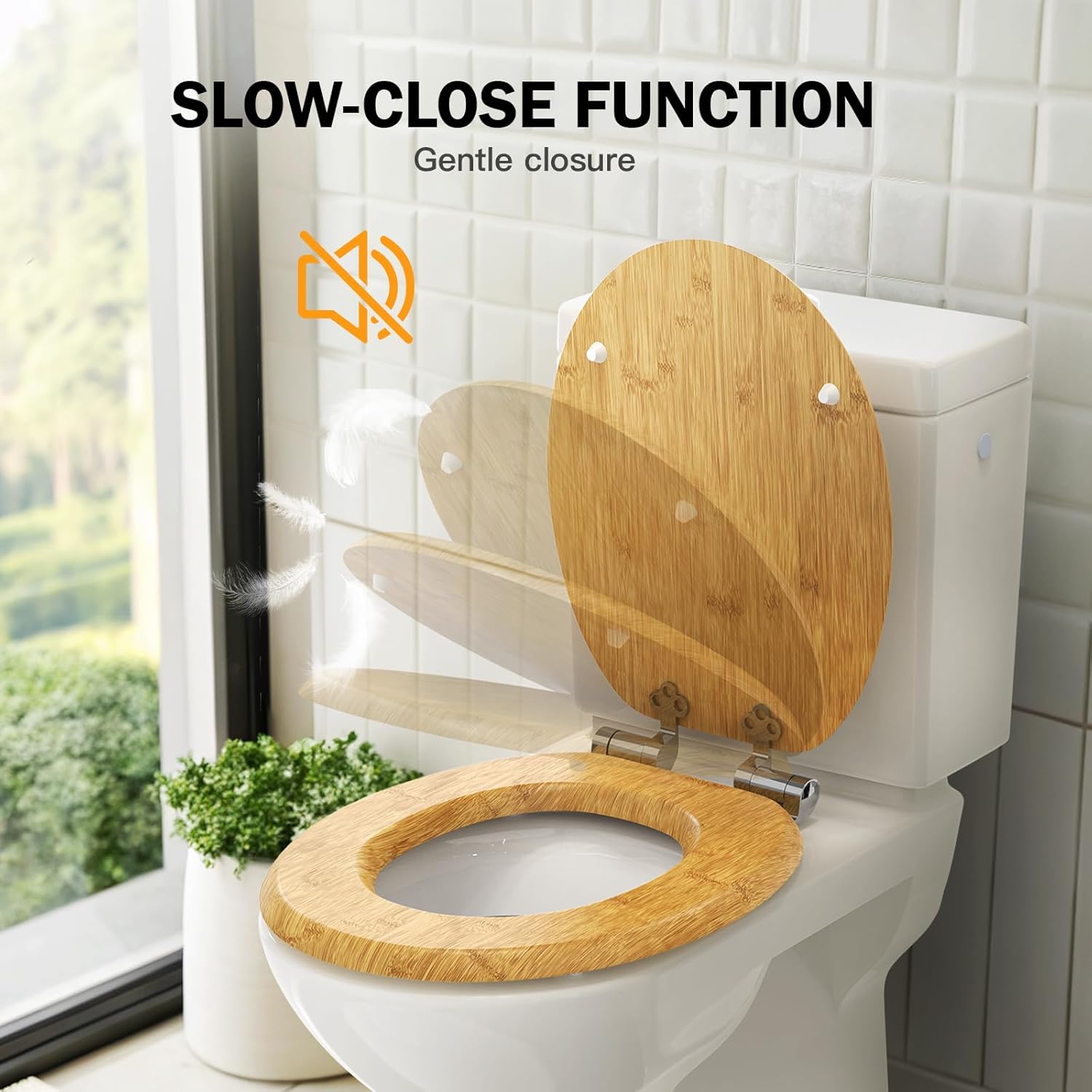

Image: Illustration of the soft-close function, ensuring a gentle and quiet closure.
6.2 Rubber Buffers and Metal Hinges
The toilet lid is equipped with robust rubber buffers on the underside of the seat to prevent direct impact between the seat and the toilet bowl, enhancing durability and stability. The premium metal hinges ensure smooth movement and stable attachment.
Image: Details of the durable metal hinges and protective rubber buffers.
7. Manutenzione e pulizia
Proper care will ensure the longevity and appearance of your Pipishell toilet lid.
- Pulizia regolare: Clean the toilet lid regularly with a soft cloth, warm water, and a mild, non-abrasive soap.
- Evitare prodotti chimici aggressivi: Do not use abrasive cleaners, scouring pads, strong acids, alkalis, or chlorine-based products. These can damage the MDF material and the finish of the hinges.
- Essiccazione: After cleaning, wipe the seat and hinges dry with a clean, soft cloth to prevent water spots and moisture damage.
- Cura delle cerniere: Periodically check the tightness of the hinge screws. If they become loose, gently retighten them to maintain stability.
8. Risoluzione Dei Problemi
If you encounter any issues with your toilet lid, refer to the following common problems and solutions:
| Problema | Possibile causa | Soluzione |
|---|---|---|
| Toilet lid wobbles or shifts. | Le viti di montaggio sono allentate. | Tighten the mounting screws underneath the toilet bowl. Do not overtighten. |
| Soft-close function is not working or is too fast. | Mechanism may be damaged or obstructed. | Ensure no debris is obstructing the hinges. Avoid forcing the lid down. If the issue persists, contact customer support. |
| Lid does not align correctly with the toilet bowl. | Hinges are not properly positioned. | Loosen the mounting screws slightly, adjust the position of the lid and hinges, then retighten the screws. |
| Scratches or discoloration on the surface. | Utilizzo di detergenti abrasivi o oggetti taglienti. | Per la pulizia utilizzare sempre un sapone delicato e un panno morbido. Evitare materiali abrasivi. |
9. Assistenza clienti
For further assistance or inquiries, please contact Pipishell customer support through your purchase platform or visit the official Pipishell websito.
Websito: www.pipishell.com
