Manuale d'uso

1. Prodotto finitoview

The Tryme Solar Lights are versatile outdoor lighting solutions designed for various applications, including gardens, fences, gates, patios, and more. Featuring both solar and USB charging capabilities, an adjustable octopus-style stand, and three intelligent lighting modes with motion sensing, these lights provide efficient and adaptable illumination. Their IP65 waterproof rating ensures durability in diverse weather conditions.

2. Cosa c'è nella scatola

The package for your Tryme Solar Lights includes all necessary components for immediate use and flexible installation. You will find the main light units, the unique octopus-style flexible stands, a USB-C charging cable, and mounting hardware for alternative installation methods.

• 2 x Tryme Solar Light Units
• 2 x Octopus-Style Flexible Stands
• Cavo di ricarica 1 x USB-C
• Hardware di montaggio (viti e tasselli)

3. Istruzioni per l'installazione

The Tryme Solar Lights offer flexible setup options. You can easily attach the light unit to the octopus stand for versatile placement or use the included mounting hardware for a more permanent wall installation.

1. Attach Octopus Stand:

   Screw the top of the octopus stand onto the threaded insert at the base of the solar light unit. Ensure it is securely tightened. The flexible legs allow you to wrap the light around poles, branches, fences, or use it as a freestanding tripod.

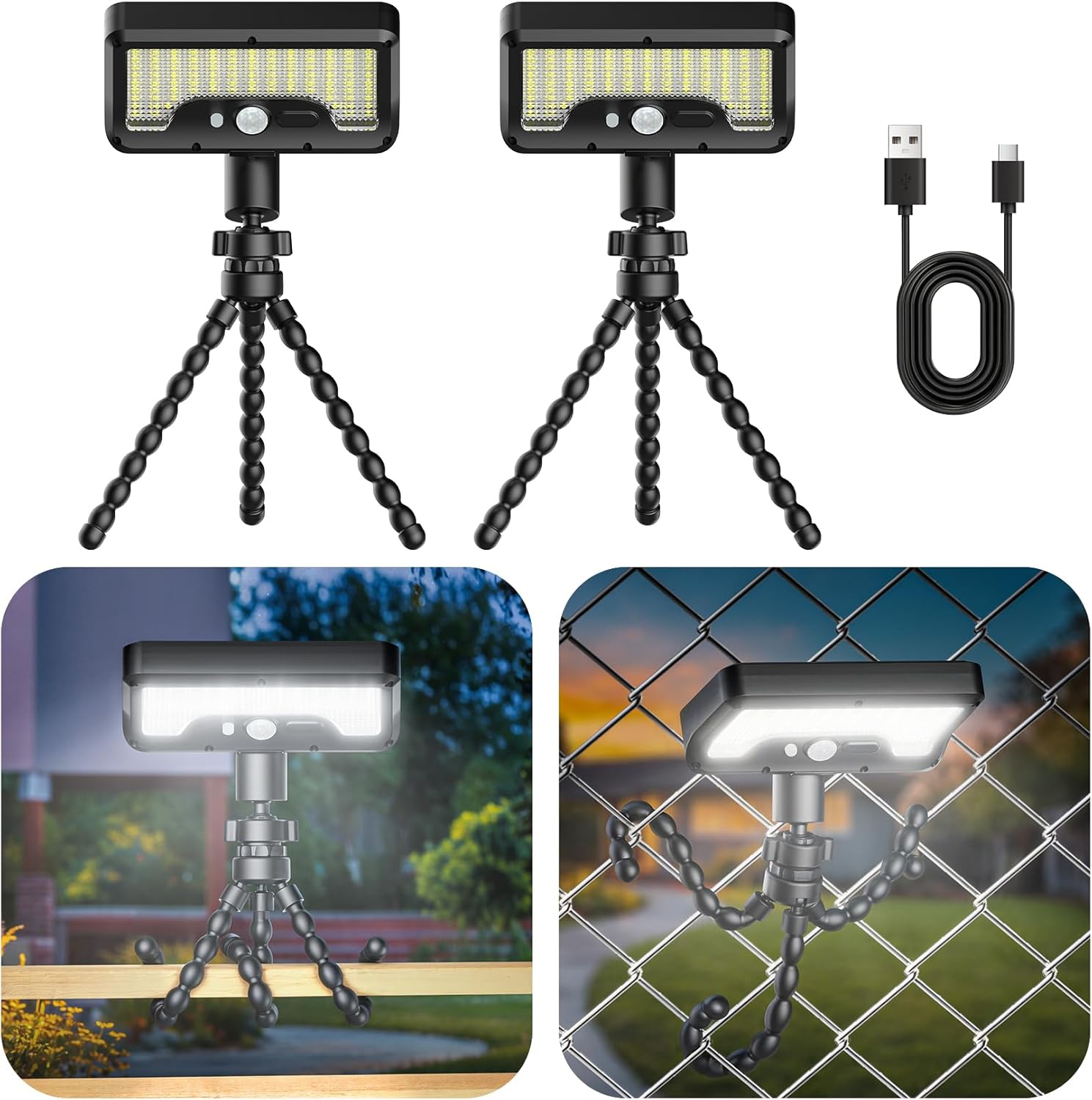

   Images illustrating the flexible octopus stand in various outdoor and indoor settings.
2. Regola l'angolo:

   The light head can be rotated 360 degrees and adjusted 45 degrees up and down. Loosen the adjustment knob, position the light as desired, and then tighten the knob to secure the angle.



   The adjustable head allows for precise light direction.

3. Montaggio a parete (opzionale):

   If you prefer a fixed installation, use the provided screws and anchors to mount the light directly to a wall or other flat surface. Ensure the solar panel faces direct sunlight for optimal charging.

4. Istruzioni per l'uso

The Tryme Solar Lights feature a single button for mode selection and a motion sensor for intelligent operation. Press the button to cycle through the three distinct lighting modes and to turn the light off.

Visual representation of the three intelligent lighting modes.

1. Mode 1: Strong Light Sensor Mode & Dim Light Mode

   (Press button once) The light stays on all night at a dim level (approx. 30% brightness). When motion is detected, it brightens to 100% for a set duration, then returns to dim light.

2. Modalità 2: Modalità sensore di luce intensa

   (Press button twice) The light remains off until motion is detected. When motion is detected, it turns on at 100% brightness for a set duration, then turns off completely.

3. Mode 3: Constantly on Dim Mode

   (Press button three times) The light turns on at night and stays on continuously at a dim level (approx. 30% brightness) for 6-8 hours, without motion sensor activation.
4. Spegnere:

   (Press button four times) The light will turn off completely.

The integrated motion sensor automatically detects movement within its range, triggering the light according to the selected mode. For optimal performance, ensure the sensor is not obstructed.

5. Ricarica

Your Tryme Solar Lights are designed for dual charging convenience, utilizing both solar power and USB charging.

Ricarica solare: For outdoor use, position the solar panel on top of the light unit in a location that receives direct sunlight for most of the day. The high-efficiency solar panel (up to 22% conversion rate) will automatically charge the internal battery during daylight hours.

Ricarica USB: For indoor use or during prolonged cloudy periods, the light can be recharged via the included USB-C cable. Connect the cable to the USB port on the light and to a 5V2A USB charger (not included). This ensures continuous operation regardless of sunlight availability.

6. Caratteristiche e vantaggi

• Octopus-Style Flexible Stand & Adjustable Head: Mount it anywhere – wrap it on fences, branches, or stand it freely. Designed with 360° degree rotation and 45° degree adjustable up and down, light up your space your way. This unique design offers unparalleled versatility in placement.
• IP65 impermeabile: Crafted with premium ABS and PC materials, these lights are built to withstand harsh outdoor elements. The IP65 rating ensures protection against dust and water jets, making them suitable for all-weather use, including rain and snow.


  The IP65 rating ensures durability in all weather conditions.
• Optical Diffusion Lens: The advanced optical diffusion lens boosts illumination, providing a wider and more even light spread compared to standard solar lights. This enhances visibility and coverage in your outdoor areas.
• Uso interno ed esterno: Beyond outdoor security and accent lighting, the flexible stand allows these lights to function as portable table lamps for indoor activities, camping o illuminazione di emergenza.

7. Specifiche

8. Manutenzione

• Pannello solare pulito: Pulire regolarmente il pannello solare con un panno morbido e asciutto.amp cloth to remove dust, dirt, or debris. A clean panel ensures optimal sunlight absorption and charging efficiency.
• Controllare le connessioni: Periodically inspect all connections, especially if the light is frequently repositioned, to ensure they remain secure.
• Cura della batteria: While the batteries are designed for longevity, prolonged periods of no sunlight or extreme temperatures may affect performance. Ensure the light receives adequate charging.
• Magazzinaggio: If storing the lights for an extended period, ensure they are fully charged and store them in a cool, dry place. Recharge them periodically to maintain battery health.

9. Risoluzione Dei Problemi

10. Garanzia e supporto

For information regarding product warranty, returns, or technical support, please refer to the purchase documentation or contact the seller directly. Keep your proof of purchase for any warranty claims.

For additional support or inquiries, please visit the official Tryme Store on Amazon: Tryme Store
