Manuale di istruzioni per box doccia angolare OVE Decors Breeze da 36 pollici con base

1. Introduzione

This manual provides comprehensive instructions for the safe and correct installation, operation, and maintenance of your OVE Decors Breeze 36-inch Corner Shower Enclosure. Please read all instructions carefully before beginning installation and retain this manual for future reference. Proper installation is crucial for the product's functionality and longevity.

2. Informazioni sulla sicurezza

WARNING: Improper installation or use can result in injury or product damage.

• Durante l'installazione, indossare sempre dispositivi di protezione individuale (DPI) adeguati, tra cui occhiali e guanti di sicurezza.
• Maneggiare i pannelli di vetro con estrema cura. Il vetro temperato, pur essendo resistente, può frantumarsi se colpito ai bordi o agli angoli.
• Ensure the installation surface is level and structurally sound to support the weight of the shower enclosure.
• Per garantire sicurezza e prestazioni ottimali, si consiglia l'installazione da parte di un professionista.
• Do not use abrasive cleaners or tools on glass or hardware, as this can cause damage.

Figure 2.1: Premium 5/16 inch (8mm) tempered safety glass is used for enhanced durability and safety.

3. Contenuto della confezione

Verify that all components are present and undamaged before beginning installation. If any parts are missing or damaged, contact OVE Decors customer support.

• Pannello della porta in vetro
• Inline Glass Panel
• Pannello laterale in vetro
• Shower Base Pan (36 in. x 36 in. x 2 3/4 in.)
• Hardware Kit (hinges, handle, magnetic strips, seals, fasteners)

Figure 3.1: Included components for the OVE Decors Breeze shower enclosure.

4. Specifiche

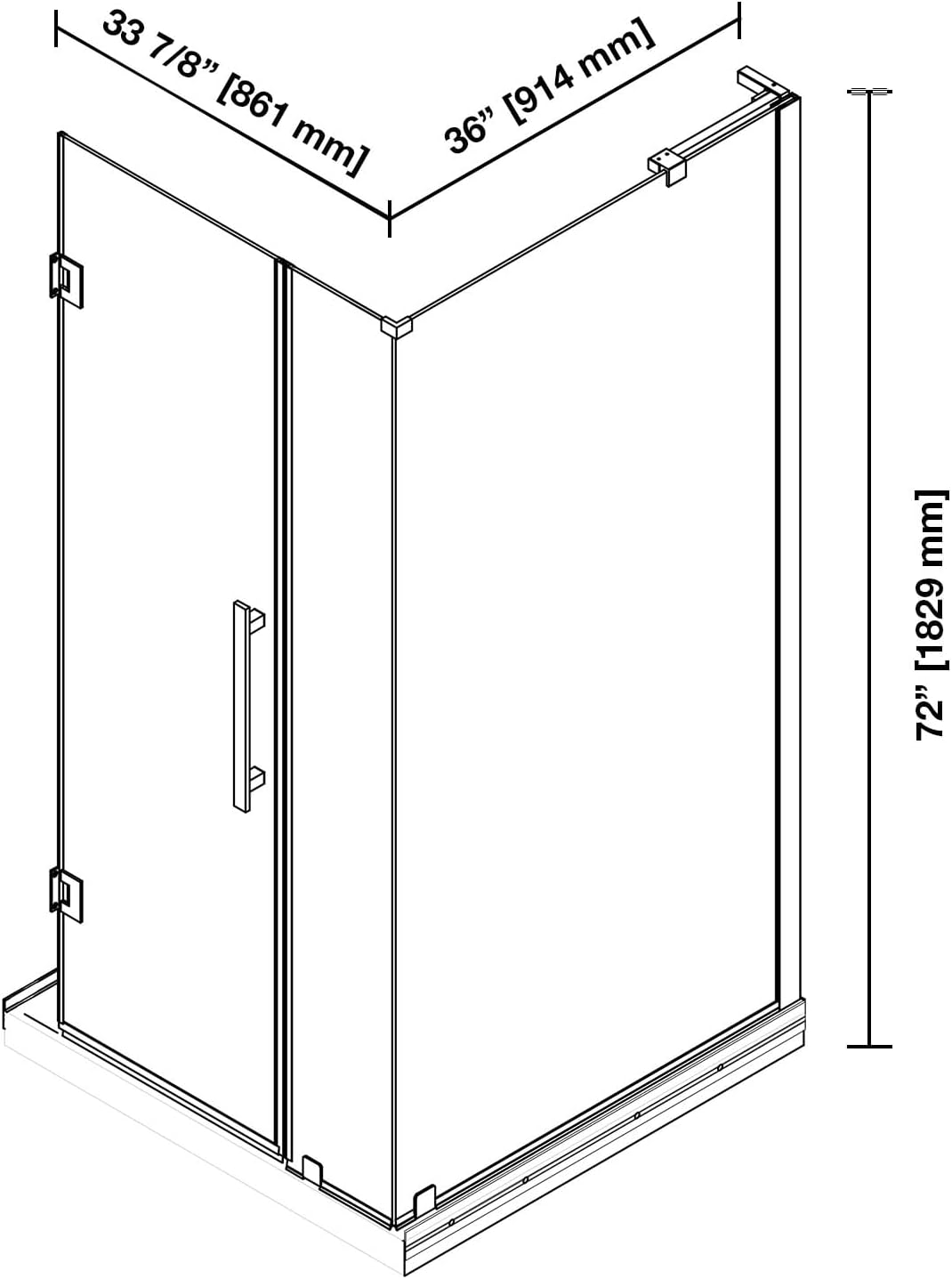

Figure 4.1: Dimensional diagram of the OVE Decors Breeze 36-inch Corner Shower Enclosure.

5. Configurazione e installazione

This section outlines key aspects of the shower enclosure setup. Refer to the detailed installation guide provided with your product for step-by-step instructions.

5.1. Controlli pre-installazione

• Ensure the shower area is properly prepared, including plumbing for the drain and finished walls.
• Confirm the floor is level and capable of supporting the enclosure.
• Gather all necessary tools as specified in the detailed installation guide.

5.2. Shower Base Installation

The shower base is constructed from 5-layer fiberglass and resin, featuring a sturdy high-support ring design for stability. It is designed to fit a standard 2-inch compression fitted drain (drain not included). A mortar base is required for proper installation.

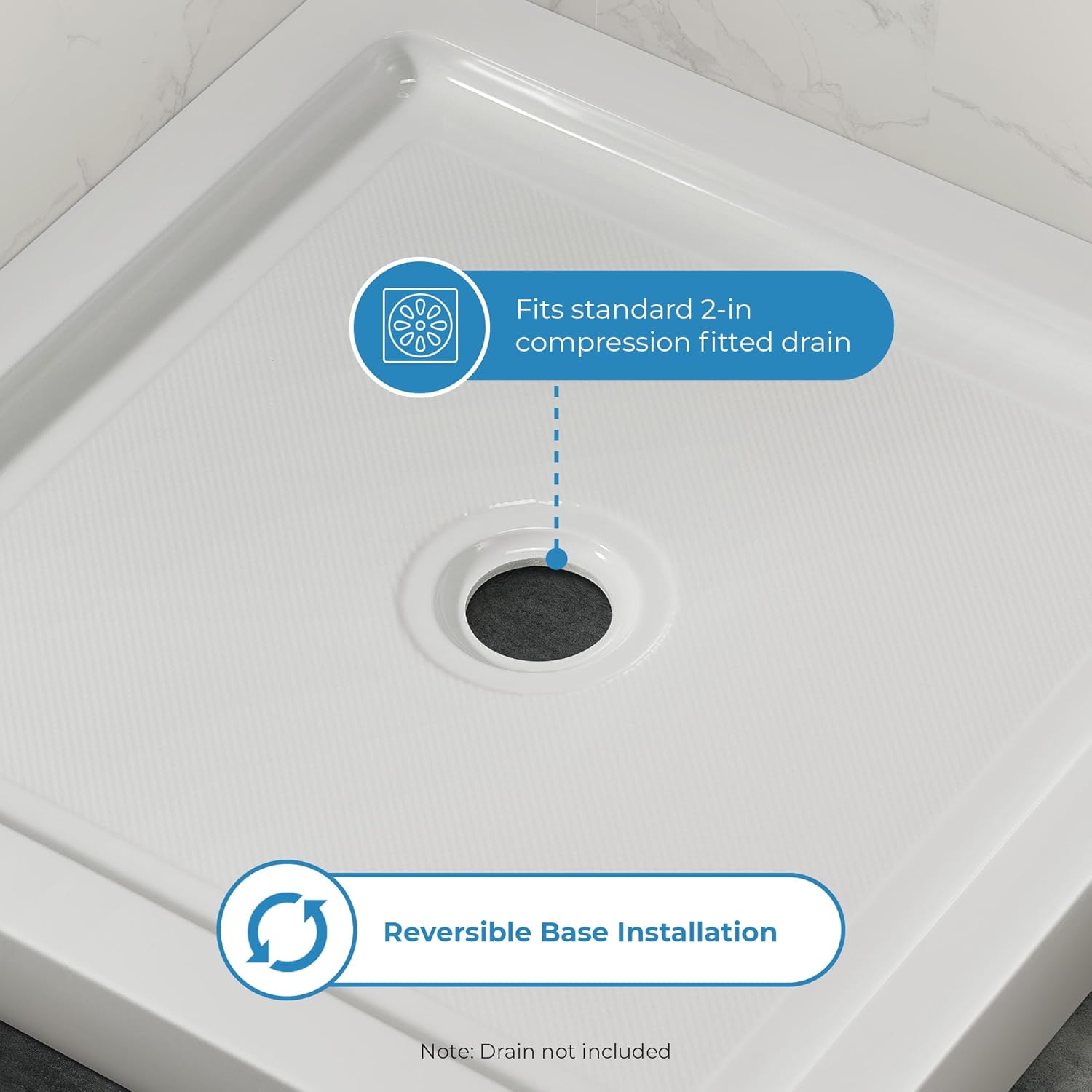

Figure 5.1: Shower base drain compatibility.

Figure 5.2: Shower base construction details.

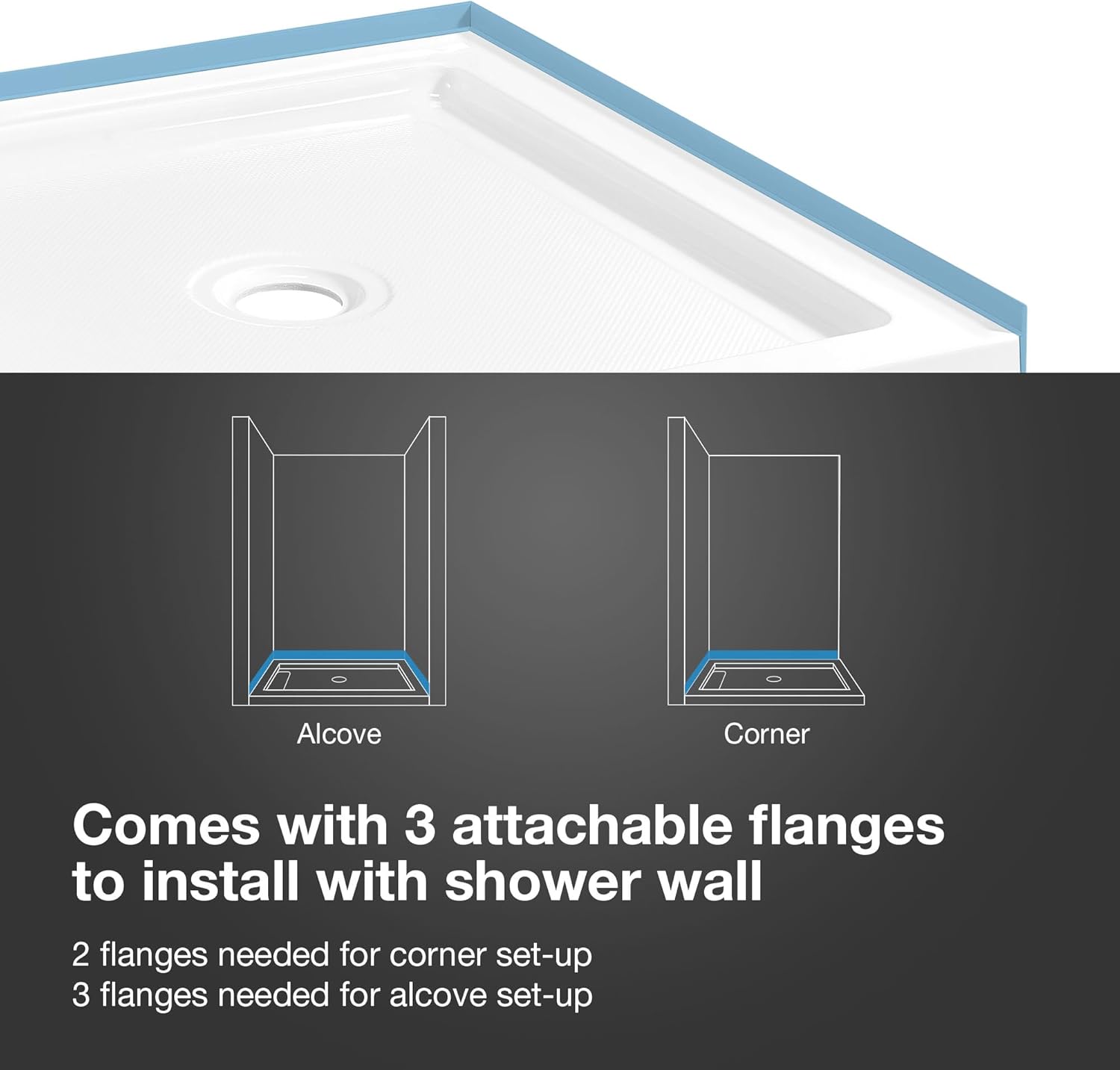

The shower base comes with 3 attachable flanges, allowing for installation in both corner and alcove setups. Two flanges are needed for a corner setup, and three for an alcove setup.

Figure 5.3: Flange installation for different shower configurations.

5.3. Door and Panel Installation

The frameless design features a Panama Hinge-to-Wall Shower Door System, ensuring a modern aesthetic and reliable function. The door and base are reversible, allowing for left or right wall installation and flexible drain placement.

Figure 5.4: Detail of the Panama Hinge-to-Wall Shower Door System hardware.

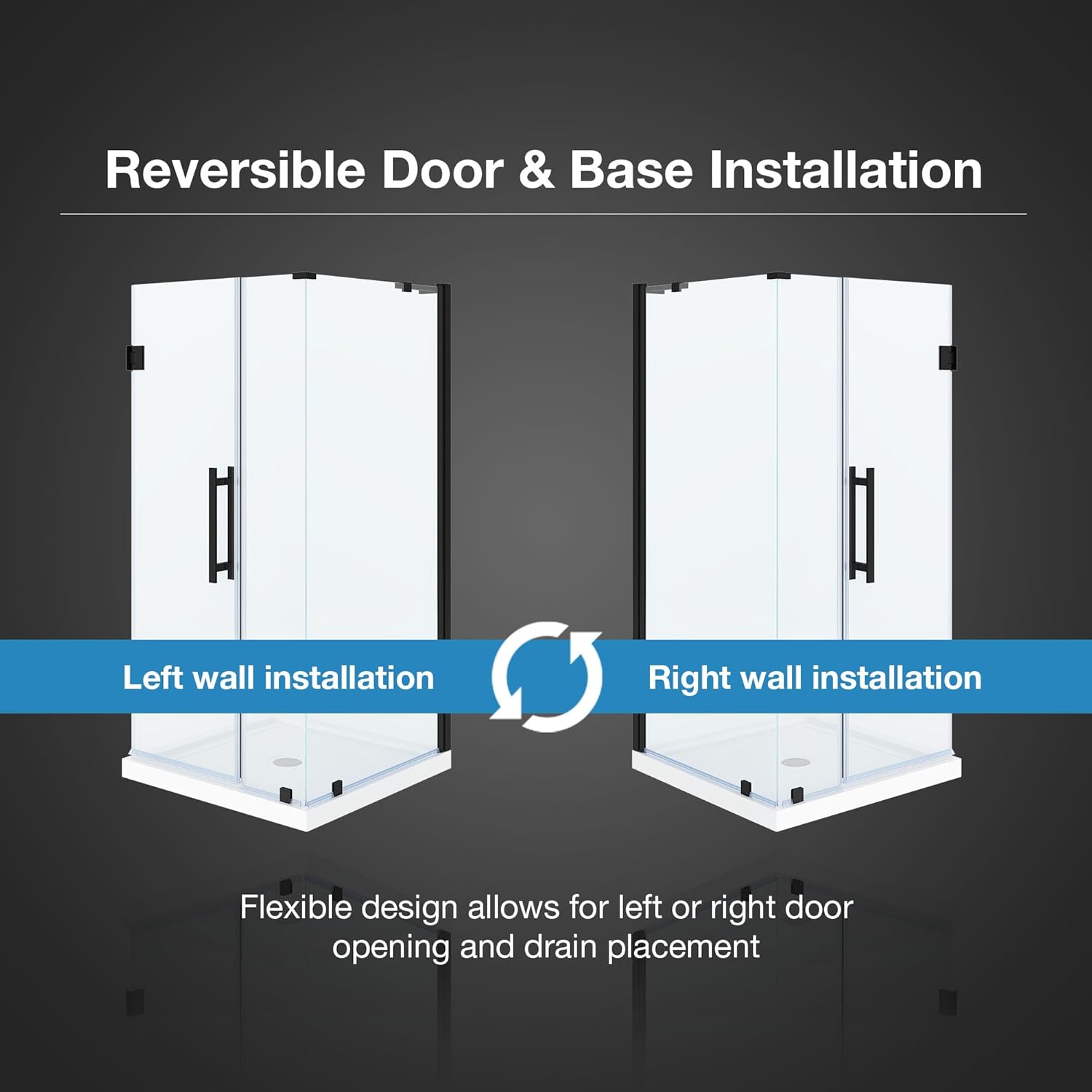

Figure 5.5: Reversible door and base installation options.

The door features a built-in magnetic strip for a secure and tight close, preventing leaks and ensuring a dry bathroom floor.

Figure 5.6: Magnetic strip for secure door closure.

6. Istruzioni per l'uso

The OVE Decors Breeze shower door operates on a hinge system. To open, gently pull the handle outwards. To close, push the door until the magnetic strips engage, ensuring a complete seal. Avoid forcing the door or allowing it to slam shut to prevent damage to the glass or hardware.

7. Manutenzione

Regular cleaning and maintenance will preserve the appearance and functionality of your shower enclosure.

7.1. Pulizia del vetro

• Use a soft cloth or sponge with a non-abrasive glass cleaner or a solution of mild soap and water.
• Wipe down the glass after each use to prevent water spots and soap scum buildup.
• Avoid harsh chemicals, abrasive pads, or scouring powders, as these can scratch the glass or damage protective coatings.

7.2. Pulizia dell'hardware

• Clean metal hardware (hinges, handle) with a soft, damp panno e sapone neutro.
• Asciugare accuratamente per evitare macchie d'acqua.
• Do not use abrasive cleaners, ammonia-based products, or harsh chemicals on the hardware finish.

7.3. Shower Base Cleaning

• The fiberglass-reinforced acrylic base has an easy-to-clean construction. Use non-abrasive bathroom cleaners.
• Regularly clean the drain area to prevent blockages.

8. Risoluzione Dei Problemi

Questa sezione affronta i problemi più comuni che potresti incontrare.

8.1. Perdite

• Problema: Water leaking from around the door or panels.
  Soluzione: Check that all seals and magnetic strips are properly aligned and free from debris. Ensure the door closes completely and the magnetic strip engages. Verify that all silicone seals applied during installation are intact.

8.2. La porta non si chiude correttamente

• Problema: Door does not align or close securely.
  Soluzione: Inspect hinges for proper alignment and tightness. Ensure the magnetic strips are clean and making full contact. Check for any obstructions in the door's path.

8.3. Water Spots on Glass

• Problema: Mineral deposits or water spots on glass.
  Soluzione: Use a squeegee after each shower. For existing spots, use a specialized glass cleaner designed for hard water stains.

9. Garanzia e supporto

For warranty information or technical assistance, please contact OVE Decors customer support. Keep your proof of purchase and model number (15SKS-PANA36-BLKWM) readily available when contacting support.
