1. Introduzione
This manual provides essential instructions for the installation, operation, and maintenance of your Shelly X Smart Thermostat ST1820 PBS. Please read this guide thoroughly before using the device to ensure proper function and safety.
2. Caratteristiche del prodotto
The Shelly X Smart Thermostat ST1820 PBS is designed for intelligent climate control within your home. Key features include:
- Precise control of floor heating valves, supporting up to 2A ohmic or 1A inductive loads.
- Integrated potential-free relay for controlling external heat sources such as gas boilers or pellet stoves.
- Communication capabilities with other Shelly relays for automated heating adjustments based on temperature settings.
- Built-in anti-freeze function to protect your system.
- Integrated humidity sensor for optimized heating performance.
- Adjustable temperature and humidity offsets for calibration.
- No central hub required; features direct Wi-Fi and Bluetooth connectivity.
- Functions as a Wi-Fi range extender and BLE gateway.
- Interfaccia user-friendly per un facile utilizzo.
- Control via the Shelly Smart Control application, various smart home platforms, and voice assistants.
3. Contenuto della confezione
La confezione del prodotto in genere include:
- Shelly X Smart Thermostat ST1820 PBS unit
- Manuale d'uso
4. Impostazione
Follow these general steps for initial setup. Consult a qualified electrician for electrical installation if you are unsure.
4.1. Installazione fisica
Mount the thermostat in a suitable location, away from direct sunlight, drafts, or heat sources that could affect temperature readings. Connect the device to your heating system and power supply according to the wiring diagram provided in the separate installation guide.

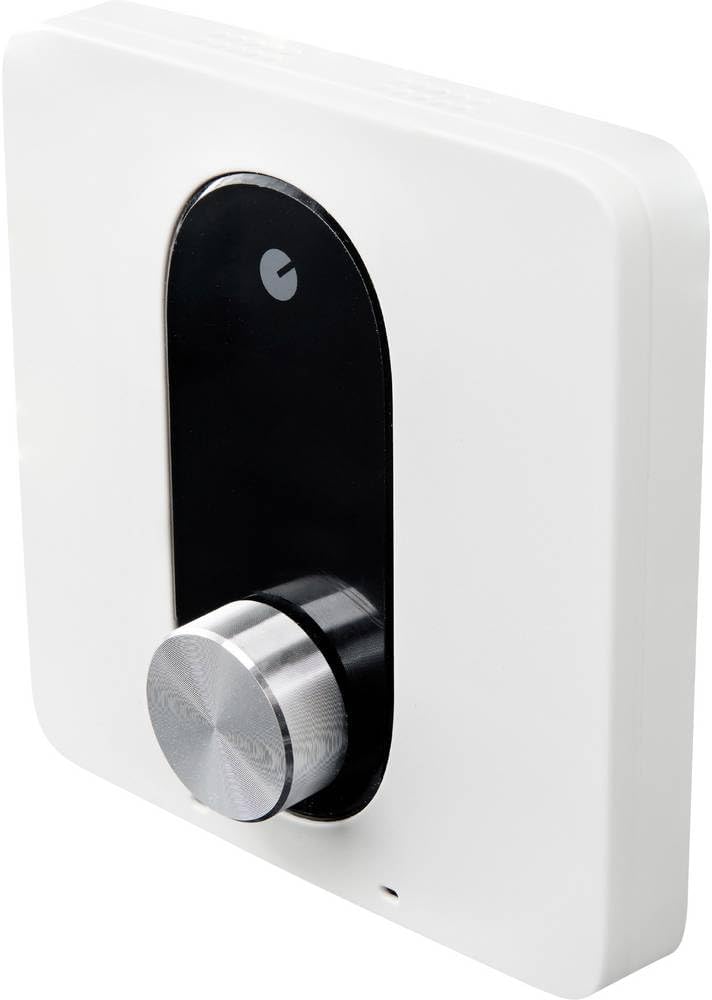

This image displays the Shelly X Smart Thermostat ST1820 PBS. It is a white, square-shaped device featuring a prominent black vertical panel on its front. A silver, textured rotary knob is positioned at the bottom of this black panel, used for adjusting settings. A small indicator light or sensor is visible at the bottom edge of the white casing.
4.2. Connessione di rete
- Accendere il termostato.
- Download the Shelly Smart Control application from your device's app store.
- Follow the in-app instructions to add your new device. This typically involves connecting to the thermostat's Wi-Fi hotspot and then configuring it to join your home Wi-Fi network.
- Ensure the device is successfully connected and visible in the app.
5. Istruzioni per l'uso
The Shelly X Smart Thermostat ST1820 PBS offers multiple ways to control your heating system.
5.1. Controllo manuale
Use the rotary knob on the device to manually adjust the target temperature. The display will show the current and target temperatures.
5.2. Controllo app
The Shelly Smart Control app provides comprehensive control over your thermostat:
- Regolazione della temperatura: Set desired temperatures remotely.
- Pianificazione: Create custom heating schedules for different times of the day and week.
- Selezione della modalità: Switch between heating, anti-freeze, or off modes.
- Monitoraggio dell'umidità: View current humidity levels and configure settings related to humidity.
- Temperature/Humidity Offsets: Calibrate sensor readings if necessary.
5.3. Controllo vocale
Integrate your thermostat with compatible voice assistants (e.g., Amazon Alexa, Google Assistant) to control settings using voice commands.
6. Manutenzione
To ensure optimal performance and longevity of your Shelly X Smart Thermostat ST1820 PBS:
- Pulizia: Pulire delicatamente il dispositivo con un panno morbido e asciutto. Non utilizzare detergenti abrasivi o solventi.
- Aggiornamenti software: Regularly check for and install firmware updates via the Shelly Smart Control app to benefit from new features and security enhancements.
- Posizionamento del sensore: Ensure the thermostat's location remains free from obstructions that could impede accurate temperature or humidity readings.
7. Risoluzione Dei Problemi
Se riscontri problemi con il termostato, fai riferimento alle seguenti soluzioni comuni:
| Problema | Possibile causa/soluzione |
|---|---|
| Dispositivo non connesso al Wi-Fi | Ensure your Wi-Fi network is 2.4GHz. Check Wi-Fi signal strength. Restart your router and the thermostat. Verify Wi-Fi password. |
| Letture della temperatura imprecise | The thermostat may require calibration. Use the temperature offset feature in the Shelly app (typically between -5/+5°C) to adjust readings. Ensure the device is not exposed to external heat/cold sources. |
| Thermostat feels warm to the touch or reads high temperatures (e.g., above 24°C) | Some internal components may generate minor heat during operation, which can slightly influence the internal temperature sensor. If readings are consistently high and cannot be corrected with the offset, ensure proper ventilation around the device and consider its placement relative to heat-generating equipment. If the issue persists, contact support. |
| Il sistema di riscaldamento non risponde | Check wiring connections. Verify the thermostat is in heating mode and the target temperature is set above the current room temperature. Ensure the external heat source (boiler, etc.) is powered on and functional. |
8. Specifiche
| Attributo | Dettaglio |
|---|---|
| Marca | Conchiglia |
| Numero di modello | Shelly_PbS_ST_ST1820 |
| Colore | Bianco |
| Dimensioni (L x P x A) | Dimensioni: 9.8 x 5.7 x 9.8 cm |
| Peso | 115 grammi |
| Caratteristica speciale | Sensore di umidità |
| Tecnologia di connettività | Wifi bluetooth |
| Tipo di controllore | App, Controllo vocale |
| Tipo di controllo della temperatura | Intelligente/Remoto |
| Fonte di alimentazione | Cavo elettrico |
| Componenti inclusi | Thermostat, User Manual |
| Numero di modello del produttore | 3800235260630 |
9. Garanzia e supporto
For detailed warranty information, please refer to the official documentation provided with your product or visit the manufacturer's website. If you require technical assistance or have questions not covered in this manual, please contact Shelly customer support through their official channels.
