Manuale di istruzioni del braccio ammortizzatore SMALLRIG Mini

1. Prodotto finitoview

The SMALLRIG Mini Shock Absorber Arm is designed to provide stable and smooth footage when mounting action cameras on vehicles. It features a double shock absorption structure with high rebound springs and a hydraulic damping system, effectively reducing vertical vibration. The robust 4-inch vacuum suction cup ensures secure attachment to smooth surfaces.

Figura 1.1: Oltreview of the SMALLRIG Mini Shock Absorber Arm, showing the main unit, suction cup, and various mounting options.

2. Caratteristiche principali

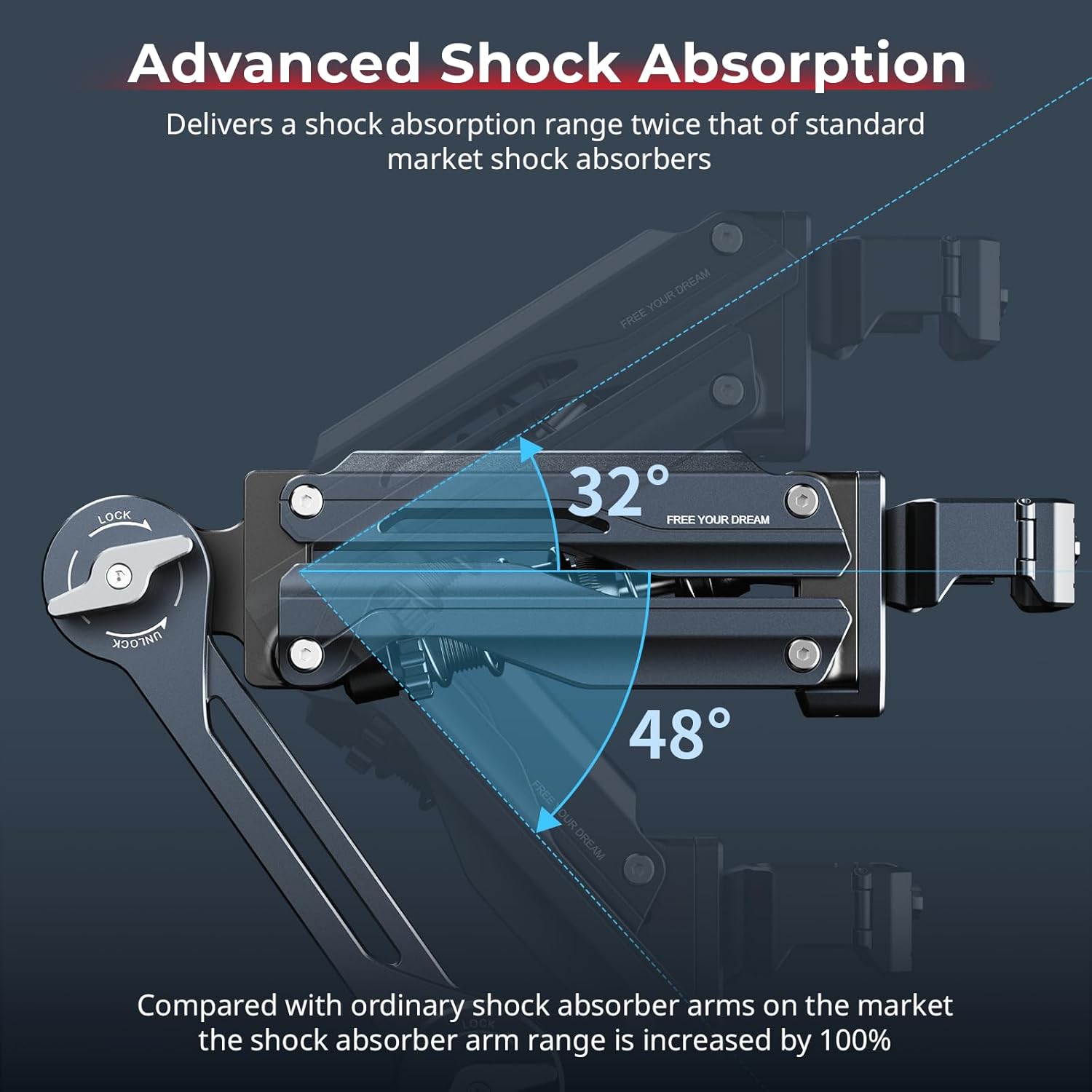

• Double Shock Absorption Structure: Incorporates high rebound springs and a hydraulic damping system, offering an 80-degree shock absorption range to minimize vertical vibration during vehicle-mounted shooting. Damping is adjustable to suit various terrains.
• Vacuum Suction Cup: Features a 4-inch vacuum suction cup for strong adhesion to smooth surfaces, supporting loads up to 600g. Includes a dust cover for protection and extended lifespan.
• Ampia compatibilità: Designed for DJI Osmo Pocket 3, GoPro HERO 13/12/11/10/9, Insta360 X4/X3, and other action cameras with 1/4"-20 threaded holes. Adapters allow for multi-scene creation.
• Archiviazione portatile: Supplied with a durable storage bag for organized transport of the shock absorber arm, suction cup, and accessories.

Figure 2.1: Illustration of the vertical shock absorption mechanism and maximum load-bearing capacity of 600g.

Figure 2.2: The advanced shock absorption system provides a wide range of motion for stability.

Figure 2.3: The damping knob allows for customized settings to adapt to different driving conditions.

3. Contenuto della confezione

Verifica che tutti gli articoli elencati di seguito siano presenti nel tuo pacco:

• Shock Absorber arm × 1
• Suction Cup × 1
• Suction Cup Dust Cover × 1
• Extension Arm × 1
• Adattatore × 1
• Piastra di montaggio × 1
• Contrappeso × 1
• Hexagonal Wrench × 1
• Borsa portaoggetti × 1

Figura 3.1: Tutti i componenti inclusi nella confezione del prodotto.

4. Configurazione e installazione

4.1 Attaching the Suction Cup

1. Ensure the mounting surface (e.g., car hood, roof, window) is clean, dry, and smooth.
2. Place the 4-inch vacuum suction cup firmly onto the desired surface.
3. Press the button on the suction cup to create a secure vacuum seal. Ensure the cup is fully engaged and stable before proceeding.

Figure 4.1: Proper method for securing the vacuum suction cup and releasing its seal.

4.2 Assembling the Shock Absorber Arm

1. Attach the shock absorber arm to the suction cup base.
2. Select the appropriate camera mount:
   • For DJI Osmo Pocket 3: Use the dedicated mount.
   • For GoPro HERO series, Insta360 X series, and other action cameras: Use the universal mount plate with the 1/4"-20 threaded hole.
3. Securely attach your camera to the chosen mount.
4. If using lightweight equipment, attach the provided 100g counterweight to stabilize the setup.

Figure 4.2: The mounting system supports various action cameras with dedicated and universal plates.

Figure 4.3: Key components including the counterweight for balancing, dust cover for protection, and the storage bag.

5. Istruzioni per l'uso

5.1 Adjusting Damping

The shock absorber arm features an adjustable damping knob. Rotate the knob to increase or decrease damping based on the terrain:

• È aumentatoampin: For bumpy or uneven terrain, rotate the knob to increase damping. This helps to absorb more significant shocks and reduce excessive movement.
• Reduce Dampin: For flat or smooth surfaces, rotate the knob to reduce damping. This allows for more subtle movements and can be preferred for less aggressive stabilization.

Experiment with the damping settings to find the optimal balance for your specific shooting environment and camera weight.

5.2 Adjusting Arm Angles

The joints on the shock absorber arm are adjustable, allowing you to position your camera at various angles for optimal shot composition. Loosen the locking mechanisms, adjust the arm to the desired angle, and then securely tighten the locks.

Figura 5.1: Esamples of various mounting positions and adjustable angles on a vehicle.

6. Manutenzione e cura

• Pulizia: Regularly clean the suction cup and all components with a soft, damp panno. Evitare detergenti abrasivi o solventi.
• Cura della ventosa: Always use the provided dust cover when the suction cup is not in use. This prevents dust and debris from accumulating on the suction surface, which can compromise its sealing ability and extend its service life.
• Magazzinaggio: Store the shock absorber arm and its accessories in the provided storage bag to protect them from damage and dust.
• Ispezione: Periodically inspect all moving parts and connections for any signs of wear or looseness. Ensure all screws and knobs are securely tightened before each use.

7. Risoluzione Dei Problemi

This section addresses common issues you might encounter. If you experience problems not covered here, please contact SMALLRIG customer support.

8. Specifiche

9. Garanzia e supporto

For warranty information and technical support, please refer to the official SMALLRIG webo contattare direttamente il servizio clienti. Conservare la ricevuta d'acquisto come prova d'acquisto per eventuali reclami in garanzia.

SMALLRIG Official Websito: www.smallrig.com
