1. Introduzione
The ALLmeter Digital Angle Finder with Laser, Model ALL066, is a high-precision inclinometer designed for accurate angle measurements in various applications, including woodworking, construction, and general DIY tasks. This device combines advanced digital measurement technology with practical features to enhance efficiency and accuracy.
Caratteristiche principali:
- Misurazione ad alta precisione: Achieves 0.05° resolution and ±0.2° accuracy for reliable readings.
- 4-Sided Magnetic Base: Equipped with strong rare-earth magnets on all four sides for secure attachment to metal surfaces, enabling hands-free operation.
- Dual Laser Lines: Features two Class 2 certified laser lines (less than 1mW power) for extended projection and precise alignment.
- USB-C ricaricabile: Integrated 340mAh rechargeable battery provides up to 7 hours of operation and charges fully in approximately 2.5 hours via Type-C port.
- Backlit Reversible Display: High-contrast black-on-white display ensures clear visibility in various lighting conditions. The display automatically rotates for easy reading from any orientation.
- Funzioni aggiuntive: Includes data hold, degrees/percentage conversion, zeroing for relative measurements, and automatic shut-off.
- Design durevole: IP54 rated for dust and light rain resistance.
Figure 1: ALLmeter Digital Angle Finder and included accessories.
2. Contenuto della confezione
- ALLmeter Digital Angle Finder (Model ALL066)
- Cavo di ricarica USB-C
- Custodia A Sacchetto
- Manuale d'uso
Figura 2: Contenuto completo della confezione.
3. Impostazione
3.1 Ricarica del dispositivo
Before initial use, fully charge the Digital Angle Finder. Connect the provided USB-C cable to the charging port on the device and to a standard USB power source (e.g., computer, wall adapter). The battery indicator on the display will show charging status. A full charge takes approximately 2.5 hours.
Figura 3: Collegamento del cavo di ricarica USB-C.
4. Istruzioni per l'uso
4.1 Accensione/spegnimento
Premere il tasto ACCESO/SPENTO button to turn the device on. The backlit display will illuminate. To turn off the device, press and hold the ACCESO/SPENTO button. The device also features an automatic shut-off function after 3 minutes of inactivity to conserve battery life.
4.2 Basic Angle Measurement
Place the base of the Digital Angle Finder firmly on the surface you wish to measure. The display will show the angle relative to gravity. The display automatically rotates for easy reading when the device is inverted.
Figure 4: Clear and readable backlit display.
4.3 Zeroing for Relative Measurement
To measure a relative angle, place the device on your reference surface and press the ZERO button. The display will reset to 0.00°, allowing you to measure the angle of subsequent surfaces relative to your chosen reference.
4.4 Unit Conversion (Degrees / Percentage)
Premere il tasto Tilt% button to switch between angle measurement in degrees (°) and percentage(%).

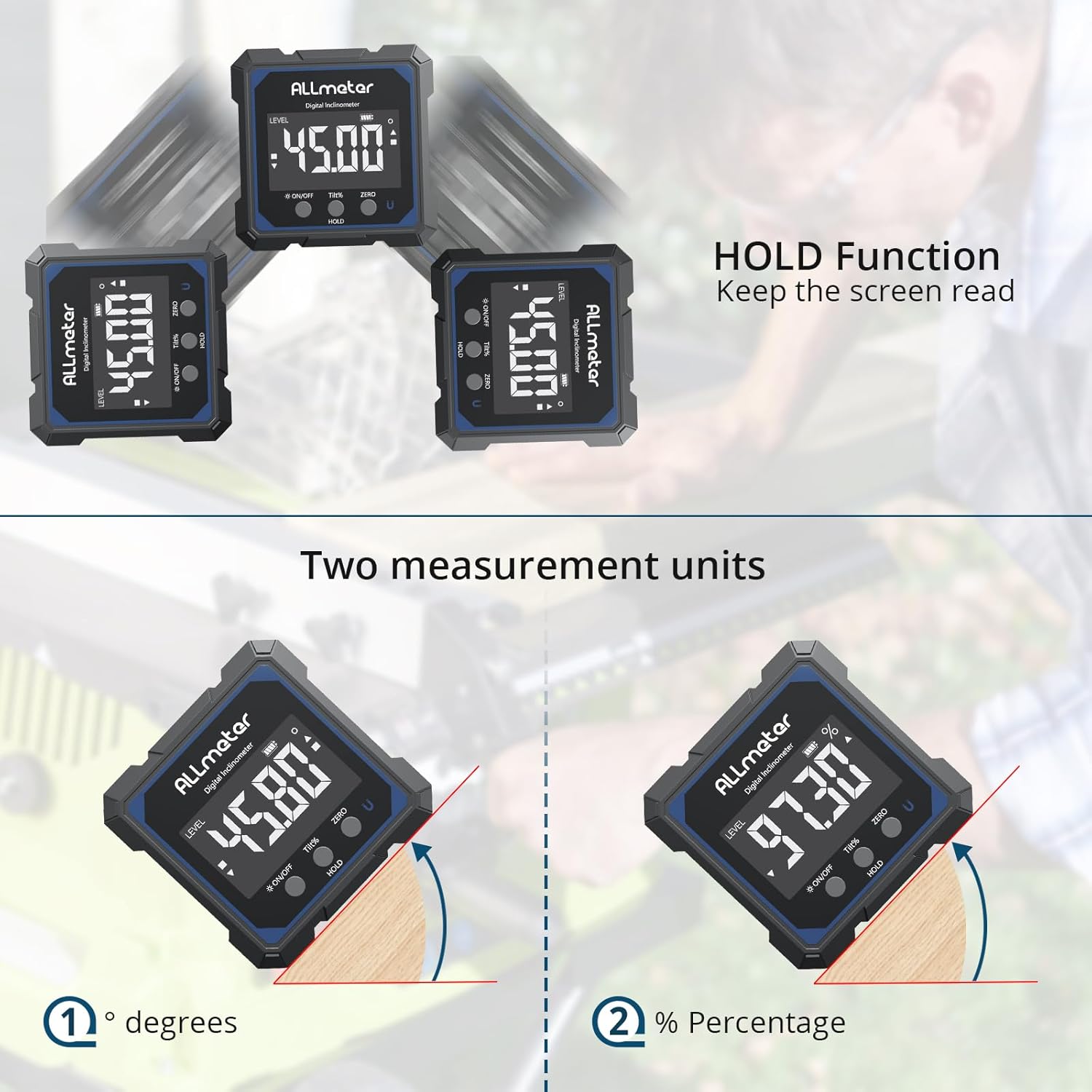

Figure 5: Switching between degrees and percentage misurazione.
4.5 Funzione di conservazione dei dati
To freeze the current reading on the display, briefly press the PRESA pulsante. Premerlo nuovamente per rilasciare il blocco e riprendere la misurazione in tempo reale.
Figure 6: Using the HOLD function to save a reading.
4.6 Using the Laser Lines
The device features dual laser lines for extended alignment. To activate the laser, press the ACCESO/SPENTO button multiple times:
- Press once: Activates the right laser.
- Press twice: Activates the left laser.
- Press three times: Activates both lasers (right + left).
- Press four times: Disables all lasers.
The laser lines are useful for aligning objects such as shelves, tiles, or long boards over a distance.
Figure 7: Dual laser lines in use for precise alignment.
Video 1: Demonstration of the ALLmeter Digital Angle Finder's magnetic base and laser functions.
4.7 Base Magnetica
The ALLmeter Digital Angle Finder features strong magnets on all four sides, allowing it to securely attach to various metal surfaces. This enables hands-free operation, which is particularly useful when working on saw blades, metal beams, or pipes.
Figure 8: Magnetic base attachment to a metal frame.
5. Manutenzione
5.1 Pulizia
Wipe the device with a soft, dry cloth. Do not use abrasive cleaners or solvents. Ensure the charging port cover is securely closed to maintain IP54 rating.
5.2 Resistenza all'acqua e alla polvere
The device is IP54 rated, meaning it is protected against dust ingress and splashing water from any direction. It is suitable for use in environments with light rain or dust, but it should not be submerged in water.
Figure 9: IP54 rating for dust and water resistance.
6. Risoluzione Dei Problemi
6.1 Visualizzazione "ERR"
If the display shows "ERR", it indicates that the angle of the measuring face is inclined by more than 30 degrees from the back or front. Adjust the device's position to be within the operational range.
Figure 10: "ERR" message indicating excessive tilt.
6.2 Il dispositivo non si accende
- Assicurati che la batteria sia carica. Collega il dispositivo a una fonte di alimentazione tramite il cavo USB-C.
- Premere e tenere premuto il tasto ACCESO/SPENTO pulsante per alcuni secondi.
6.3 Letture imprecise
- Assicurarsi che la superficie di misurazione sia pulita e priva di detriti.
- Perform a zero calibration on a known level surface.
- Avoid strong magnetic fields that could interfere with the device's sensors.
7. Specifiche
| Caratteristica | Specificazione |
|---|---|
| Numero di modello | TUTTI066 |
| Campo di misura | 0-360° |
| Risoluzione | 0.05° |
| Precisione | ±0.2° |
| Tipo di laser | Classe 2, <1 mW |
| Tipo di batteria | Ioni di litio da 340 mAh (ricaricabile, inclusa) |
| Porta di ricarica | USB-C |
| Durata della batteria | Fino a 7 ore |
| Tempo di ricarica | Circa 2.5 ore |
| Spegnimento automatico | 3 minuti di inattività |
| Materiale | ABS + lega di alluminio |
| Dimensioni | 2.6 x 1.26 x 2.6 pollici |
| Peso | 5.6 once |
| Grado di protezione IP | Grado di protezione IP54 |
8. Garanzia e supporto
8.1 Informazioni sulla garanzia
The ALLmeter Digital Angle Finder (Model ALL066) comes with an 18-month manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or improper maintenance.
8.2 Assistenza clienti
For technical assistance, warranty claims, or any questions regarding your ALLmeter Digital Angle Finder, please contact ALLmeter customer support through the retailer's platform or the official ALLmeter website. Please have your purchase receipt and product model number (ALL066) available when contacting support.
