Prodotto finitoview
The xDuoo XD05 Pro is a high-fidelity portable Digital-to-Analog Converter (DAC) and balanced headphone amplifier. It integrates multiple input options including USB, coaxial, optical, AES, and Bluetooth decoding, alongside a powerful ampsezione lificatore.
Le caratteristiche principali includono:
- Dual OLED screens for real-time display of working information.
- XMOS XU316 USB receiving chip supporting PCM 32Bit/768kHz, MQA, and DSD512.
- ESS ES9039SPRO DAC chip for high decoding performance and low noise.
- Modular design allowing replacement of DAC and amplifier chips.
- Qualcomm QCC5125 Bluetooth 5.1 chip with aptX, aptX_LL, aptX_HD, and LDAC support.
- Powerful OP+BUF amplifier architecture with 2000mW output power.
- Digital volume adjustment for balanced low-volume performance.
- TURBO button for adjustable output power to match various headphone impedances.
- Support for both portable and desktop modes with external power input.
Cosa c'è nella scatola
The standard package for the xDuoo XD05 Pro includes:
- 1 x XD05 PRO unit
Note: Depending on the specific package or region, additional accessories such as USB cables (Type-C to Type-C, Type-C to USB-A) and a power adapter may be included. Please check your packaging contents.
Device Layout and Connections
Familiarize yourself with the various ports and controls on the XD05 Pro.
Pannello frontale
- Manopola del volume: Controls output volume. Features an integrated OLED display for volume level.
- Uscite cuffie: Unbalanced (6.35mm) and Balanced (4.4mm) headphone jacks.
- OLED Screens: Two screens display working mode, sampling rate, battery status, menu, and volume.
Pannello posteriore
- Ingressi digitali: Coaxial, Optical, AES, USB IN (Type-C).
- Ingressi/uscite analogiche: AUX IN/OUT, Balanced AUX IN/OUT.
- Porta di ricarica: USB-C per la ricarica.
- Ingresso alimentazione esterna: DC 12V input for desktop mode.
- Charge/Power Selector: Switch between charging and power modes.
Pannello laterale
- Pulsante TURBO: Adjusts output power (High, Medium, Low).
- Pulsante MENU: Navigates through device settings.
- Interruttore di alimentazione: Accende/spegne il dispositivo.
Impostare
Caricamento del dispositivo
Before first use, ensure the XD05 Pro is fully charged. Connect the provided USB-C cable to the "CHARGE" port on the rear panel and connect the other end to a USB power adapter (not always included) or a computer USB port. The charging time is approximately 6 hours for fast charging and 10 hours for slow charging.
Collegamento a sorgenti audio
The XD05 Pro offers multiple ways to connect to your audio sources:
- Ingresso USB: For connecting to computers (Windows, Linux, Mac OS), smartphones (iOS, Android). Use the appropriate USB cable (Type-C to Type-C or Type-C to USB-A). The device will function as an external sound card.
- Coaxial/Optical/AES Inputs: For connecting to digital audio players, CD players, or other devices with these outputs.
- Ingresso Bluetooth: Per la connessione wireless a dispositivi abilitati Bluetooth.
- Ingresso AUX: For connecting analog audio sources.
Collegamento delle cuffie
Connect your headphones to either the 6.35mm unbalanced output or the 4.4mm balanced output on the front panel, depending on your headphone's connector type.
Operazione
Accensione/spegnimento
Slide the Power Switch on the side panel to turn the device on or off.
Selezione dell'input
Use the MENU button to cycle through the available input modes (USB, Coaxial, Optical, AES, Bluetooth, AUX). The selected input will be displayed on the OLED screen.
Controllo del volume
Rotate the large red knob on the front panel to adjust the volume. The current volume level will be shown on the integrated OLED display within the knob.
Accoppiamento Bluetooth
Per associare un nuovo dispositivo Bluetooth:
- Switch the input mode to Bluetooth.
- The XD05 Pro will enter pairing mode, indicated by "UNPAIR" on the screen.
- On your Bluetooth device, search for "xDuoo XD05 Pro" and select it to connect.
- Once connected, the screen will show "PAIRED".

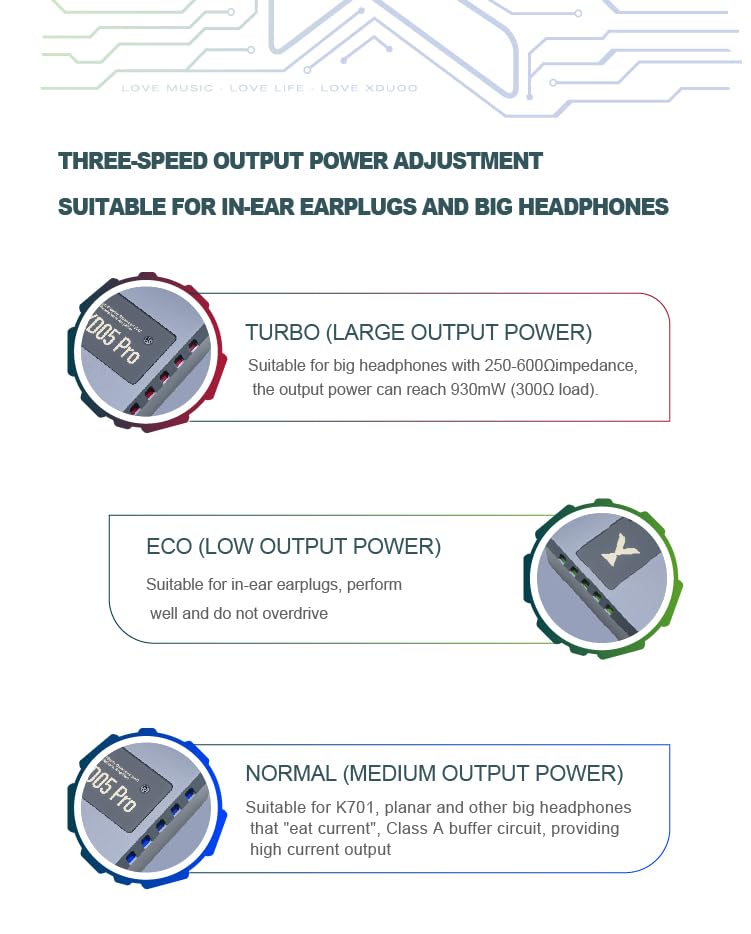

Output Power Adjustment (TURBO Mode)
Press the TURBO button on the side panel to cycle through different output power levels (High, Medium, Low). This allows you to match the amplifier's output to the impedance and sensitivity of your headphones for optimal performance and to prevent overdriving.
- TURBO (Large Output Power): Suitable for high-impedance headphones (250-600Ω).
- ECO (Low Output Power): Ideal for sensitive in-ear monitors (IEMs) to prevent excessive volume and noise.
- NORMAL (Medium Output Power): Suitable for most headphones, including K701 and planar headphones, providing high current output.
Desktop vs. Portable Mode
The XD05 Pro can operate in two modes:
- Modalità portatile: Powered by the internal 3.87V/13600mAh battery. Ideal for on-the-go use.
- Modalità desktop: Connect an external DC 12V power supply to the dedicated input. This mode provides more stable and powerful performance, suitable for home or office setups. Use the power selector switch to choose between internal battery and external power.
Maintenance and Module Replacement
Assistenza generale
- Mantenere pulito il dispositivo utilizzando un panno morbido e asciutto.
- Evitare di esporre il dispositivo a temperature estreme, umidità o luce solare diretta.
- Do not disassemble the unit beyond the user-replaceable components.
Replaceable DAC and OP AmpModuli lificatori
The XD05 Pro features a modular design, allowing users to replace the DAC chip module and the amplifier chips to customize the sound signature according to personal preferences. This process requires careful handling.
Nota: Replacement DAC and OP amplifier modules are sold separately. Refer to the specific instructions provided with the replacement modules for detailed installation steps. Ensure the device is powered off and disconnected from all power sources before attempting any module replacement.
Risoluzione dei problemi
- Nessuna uscita audio:
- Check if the device is powered on and fully charged or connected to external power.
- Verificare che sia selezionata la sorgente di input corretta.
- Ensure headphones are properly connected and volume is not at minimum.
- Check the audio settings on your source device (computer, phone) to ensure the XD05 Pro is selected as the output device.
- Problemi di connessione Bluetooth:
- Ensure the XD05 Pro is in Bluetooth input mode and pairing mode.
- Disattiva e riattiva il Bluetooth sul dispositivo sorgente.
- Forget the device on your source and re-pair.
- Ensure no other devices are actively connected to the XD05 Pro via Bluetooth.
- Suono distorto:
- Check if the volume is too high on either the XD05 Pro or the source device.
- Adjust the TURBO mode setting to match your headphones' impedance.
- Assicurarsi che tutti i cavi siano collegati saldamente.
- Prova un audio diverso file or source to rule out source issues.
- Dispositivo non riconosciuto dal computer:
- Ensure the USB cable is securely connected to the "USB IN" port.
- Prova una porta USB o un cavo diverso.
- For Windows, you may need to install specific drivers (usually available from the manufacturer's webposto).
- Restart both the XD05 Pro and your computer.
Specifiche
Detailed technical specifications for the xDuoo XD05 Pro:
| Parametro | Valore |
|---|---|
| Sistema operativo applicabile | Windows, Linux, Mac OS, iOS, Android system |
| Batteria | 3.87 V/13600 mAh |
| Battery Life (USB IN) | ≥11H (ECO Mode) |
| Battery Life (SPDIF IN) | ≥11H (ECO Mode) |
| Battery Life (AUX IN) | ≥20H (ECO Mode) |
| Charging Time (Fast) | ≤6 ore |
| Tempo di ricarica (lento) | ≤10 ore |
| Dimensioni (L x P x A) | 18.5 x 9.5 x 3.3 cm (7.28 x 3.74 x 1.3 pollici) |
| Peso | 0.78 kg (1.72 libbre) |
| Parametro | Valore |
|---|---|
| Potenza di uscita (32Ω) | 2000mW (THD+N<1%) |
| Potenza di uscita (300Ω) | 240mW (THD+N<1%) |
| Impedenza di uscita | ≤0.2Ω |
| Picco Voltage (TURBO) | 23.8Vp-p |
| Risposta in frequenza | 20 Hz-20 KHz (± 0.5 dB) |
| Diafonia | ≥72 dB |
| THD+N | 0.0007% |
| Numero di serie | ≥120 dB |
| Parametro | Valore |
|---|---|
| Potenza di uscita (32Ω) | 2000mW (THD+N<1%) |
| Potenza di uscita (300Ω) | 930mW (THD+N<1%) |
| Impedenza di uscita | ≤0.4Ω |
| Picco Voltage (TURBO) | 47.2Vp-p |
| Risposta in frequenza | 20 Hz-20 KHz (± 0.5 dB) |
| Diafonia | ≥105 dB |
| THD+N | 0.0007% |
| Numero di serie | ≥120 dB |
| Parametro | Valore |
|---|---|
| Livello di uscita | 2.0V |
| THD+N | 0.0008% |
| Numero di serie | ≥120 dB |
| Diafonia | ≥96 dB |
| Parametro | Valore |
|---|---|
| Livello di uscita | 4.0V |
| THD+N | 0.0005% |
| Numero di serie | ≥128 dB |
| Diafonia | ≥100 dB |
Garanzia e supporto
For warranty information and technical support, please refer to the official xDuoo websito o contattare il rivenditore. Conservare la ricevuta d'acquisto come prova d'acquisto per eventuali reclami in garanzia.
Produttore: xDuoo
Numero modello: XD05 Pro
Data prima disponibilità: 1 aprile 2025
